Here you will find all available parts and drawings of the 'Hikoki SB10V2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

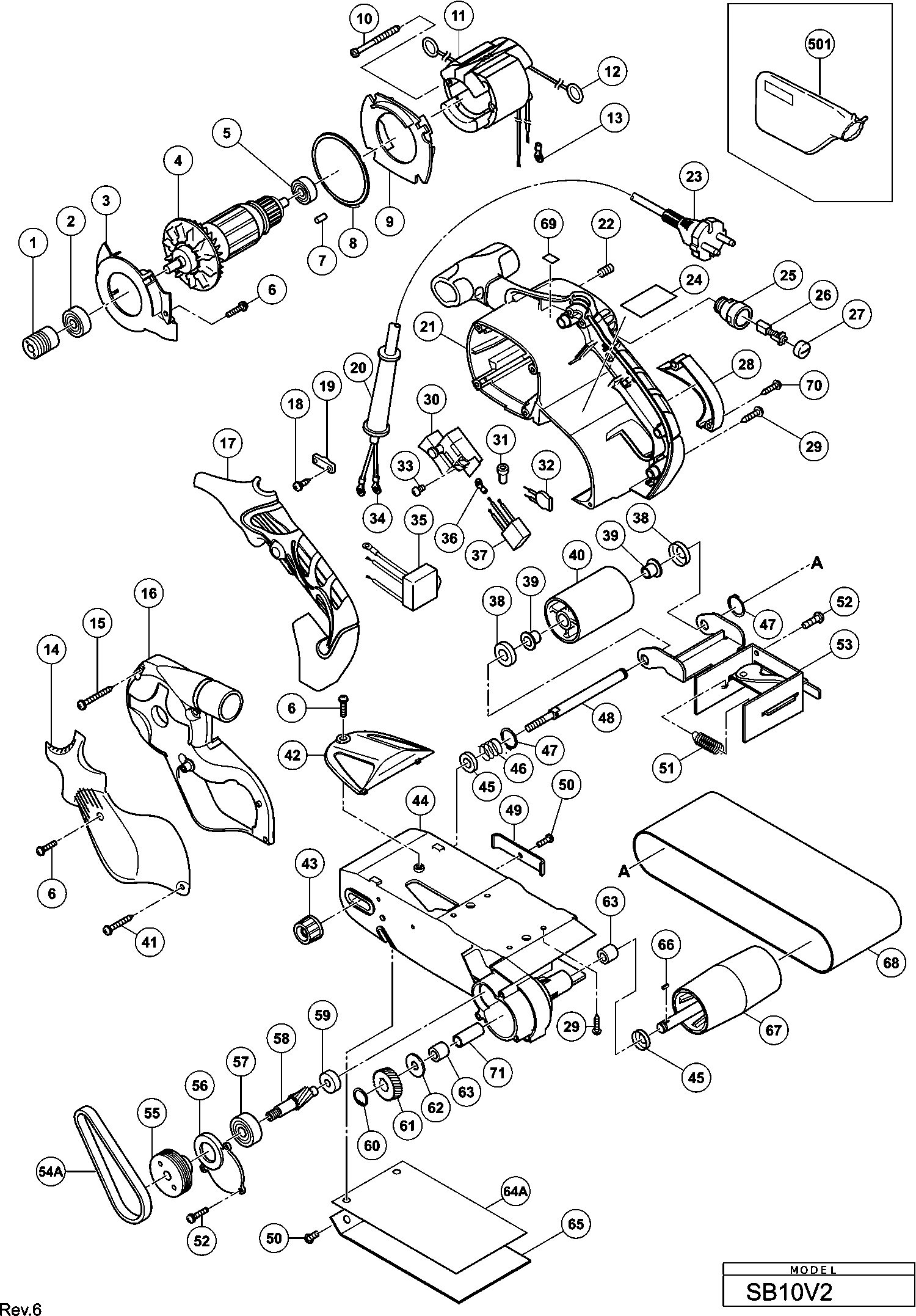

Technical drawing of model Hikoki SB10V2
Spare parts list of model Hikoki SB10V2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 220v-230v | ||||
| *11 | 340700G | 61.46 | 74.37 | |
| FIELD 110 VOLT | ||||
| *11 | 340700J | 57.42 | 69.48 | |
| connecting terminal | ||||
| *13 | 980063 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *23 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *23 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *35 | 327757 | |||
| Armature 230v | ||||
| *4 | 360797E | 57.89 | 70.04 | |
| No information available, not orderable | ||||
| *501 | 323011M | |||
| Pulley (a) | ||||
| 1 | 327742 | 8.10 | 9.80 | |
| Ball Bearing 6000vvcmps2l | ||||
| 2 | 6000VV | 6.15 | 7.44 | |
| Dust Extraction | ||||
| 3 | 327739 | 3.00 | 3.63 | |
| Armature 230v | ||||
| 4 | 360797E | 57.89 | 70.04 | |
| Ball Bearing 608vvc2ps2l | ||||
| 5 | 608VVM | 5.70 | 6.90 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 6 | 935196 | 1.04 | 1.26 | |
| RUBBER PEN | ||||
| 7 | 931701 | 1.05 | 1.27 | |
| Dust Plate | ||||
| 8 | 328209 | 3.00 | 3.63 | |
| Fan Guide | ||||
| 9 | 327738 | 1.95 | 2.36 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 10 | 953174 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 11 | 340700G | 61.46 | 74.37 | |
| FIELD 110 VOLT | ||||
| 11 | 340700J | 57.42 | 69.48 | |
| Brush Terminal | ||||
| 12 | 930703 | 2.40 | 2.90 | |
| connecting terminal | ||||
| 13 | 980063 | 1.04 | 1.26 | |
| Belt Cover | ||||
| 14 | 328433 | 4.80 | 5.81 | |
| Belt Cover | ||||
| 14B | 328433 | 4.80 | 5.81 | |
| Tapping Screw (w/flange) D5x45 | ||||
| 15 | 316321 | 1.65 | 2.00 | |
| Dust Cover | ||||
| 16 | 327740 | 26.40 | 31.94 | |
| Handle Cover | ||||
| 17 | 327760 | 14.55 | 17.61 | |
| No information available, not orderable | ||||
| 18 | 984750 | |||
| Cord Clip | ||||
| 19 | 937631 | 1.04 | 1.26 | |
| Cable gland D8.2 (old 958049z) | ||||
| 20 | 958049 | 1.04 | 1.26 | |
| Housing | ||||
| 21 | 327759 | 63.25 | 76.53 | |
| Hex Adjustment Screw M5x8 | ||||
| 22 | 938477 | 1.05 | 1.27 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 23 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 23 | 500247Z | 6.18 | 7.48 | |
| Brush Holder | ||||
| 25 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 26 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 27 | 945161 | 1.20 | 1.45 | |
| Pulley Cover | ||||
| 28 | 327779 | 4.80 | 5.81 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 29 | 305812 | 1.04 | 1.26 | |
| Switch | ||||
| 30 | 325085 | 9.90 | 11.98 | |
| Switch | ||||
| 30A | 339021 | 9.90 | 11.98 | |
| Connector 50091 (10 Pcs.) | ||||
| 31 | 959140 | 3.30 | 3.99 | |
| Varistor | ||||
| 32 | 328432 | 3.00 | 3.63 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 33 | 305499 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 34 | 980063 | 1.04 | 1.26 | |
| Controller 220v-240v | ||||
| 35 | 327758 | 42.08 | 50.91 | |
| CONTROLLER 100-110 VOLT | ||||
| 35 | 327753 | 39.27 | 47.52 | |
| CONTROLLER 220-240 VOLT (OLD 327758) | ||||
| 35A | 382992 | 15.51 | 18.77 | |
| CONTROLLER 100–110 V (OLD 327753) | ||||
| 35A | 382873 | 11.33 | 13.71 | |
| Terminal For Noise Suppressor | ||||
| 36 | 938108 | 1.20 | 1.45 | |
| Capacitor | ||||
| 37 | 325566 | 9.00 | 10.89 | |
| Washer | ||||
| 38 | 953043 | 1.05 | 1.27 | |
| Metal | ||||
| 39 | 953042 | 1.65 | 2.00 | |
| Idle Pulley Ass'y Includ.39 | ||||
| 40 | 995586 | 22.41 | 27.12 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 41 | 305490 | 1.04 | 1.26 | |
| Clear Cover | ||||
| 42 | 327744 | 1.95 | 2.36 | |
| Bolt | ||||
| 43 | 995578 | 2.10 | 2.54 | |
| Frame | ||||
| 44 | 327780 | 94.74 | 114.63 | |
| Washer | ||||
| 45 | 953161 | 1.05 | 1.27 | |
| Spring | ||||
| 46 | 995577 | 1.05 | 1.27 | |
| Spring Washer D12 (10 pieces) | ||||
| 47 | 939542 | 1.50 | 1.82 | |
| Spindle Ass'y | ||||
| 48 | 995587 | 12.15 | 14.70 | |
| Guide Piece | ||||
| 49 | 327746 | 1.95 | 2.36 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 50 | 949216 | 1.05 | 1.27 | |
| Spring | ||||
| 51 | 953063 | 3.00 | 3.63 | |
| Machine Screw M4x14 (10 Pcs.) | ||||
| 52 | 949218 | 1.05 | 1.27 | |
| Fork Ass'y Includ.51 | ||||
| 53 | 995585 | 32.18 | 38.93 | |
| Belt | ||||
| 54A | 330690 | 3.00 | 3.63 | |
| Pulley (b) | ||||
| 55 | 327749 | 16.09 | 19.47 | |
| Gear Cover | ||||
| 56 | 327748 | 3.90 | 4.72 | |
| Ball Bearing 6200vvcmps2l | ||||
| 57 | 6200VV | 6.15 | 7.44 | |
| Gear | ||||
| 58 | 327750 | 9.00 | 10.89 | |
| No information available, not orderable | ||||
| 59 | 935522 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 59A | 608VVM | 5.70 | 6.90 | |
| Spring Washer D10 (10 pieces) | ||||
| 60 | 939540 | 1.95 | 2.36 | |
| Gear | ||||
| 61 | 995576 | 15.26 | 18.47 | |
| Piston Washer | ||||
| 62 | 335794 | 1.20 | 1.45 | |
| Piston Washer | ||||
| 62A | 335794 | 1.20 | 1.45 | |
| Bushing | ||||
| 63 | 953175 | 1.65 | 2.00 | |
| Shoe Cushion | ||||
| 64A | 329900 | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 65 | 327781 | |||
| Feather Key 3x3x8 | ||||
| 66 | 944109 | 1.70 | 2.06 | |
| Drive Pulley | ||||
| 67 | 995575 | 35.89 | 43.42 | |
| No information available, not orderable | ||||
| 68 | 995552 | |||
| Dust Seal | ||||
| 69 | 328513 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 70 | 302086 | 1.05 | 1.27 | |
| FELT ROLLER | ||||
| 71 | 370075 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 501 | 323011 | |||
| No information available, not orderable | ||||
| 601 | 995550 | |||
| No information available, not orderable | ||||
| 602 | 995551 | |||
| No information available, not orderable | ||||
| 603 | 995553 | |||
| No information available, not orderable | ||||
| 604 | 995554 | |||
| No information available, not orderable | ||||
| 605 | 995555 | |||
| No information available, not orderable | ||||
| 606 | 995556 | |||
| No information available, not orderable | ||||
| 607 | 995557 | |||
| No information available, not orderable | ||||
| 608 | 995558 | |||
| No information available, not orderable | ||||
| 609 | 995559 | |||
| No information available, not orderable | ||||
| 610 | 995560 | |||
| No information available, not orderable | ||||
| 611 | 995561 | |||
| No information available, not orderable | ||||
| 612 | 995562 | |||
| No information available, not orderable | ||||
| 613 | 995563 | |||
| No information available, not orderable | ||||
| 614 | 995564 | |||
| No information available, not orderable | ||||
| 615 | 995565 | |||
| No information available, not orderable | ||||
| 616 | 995566 | |||
| No information available, not orderable | ||||
| 617 | 995567 | |||
| No information available, not orderable | ||||
| 618 | 995568 | |||
| No information available, not orderable | ||||
| 619 | 995569 | |||
| No information available, not orderable | ||||
| 620 | 995570 | |||
| No information available, not orderable | ||||
| 621 | 995571 | |||
| No information available, not orderable | ||||
| 622 | 995572 | |||
| No information available, not orderable | ||||
| 623 | 995573 | |||
