Here you will find all available parts and drawings of the 'Hikoki RP250YE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

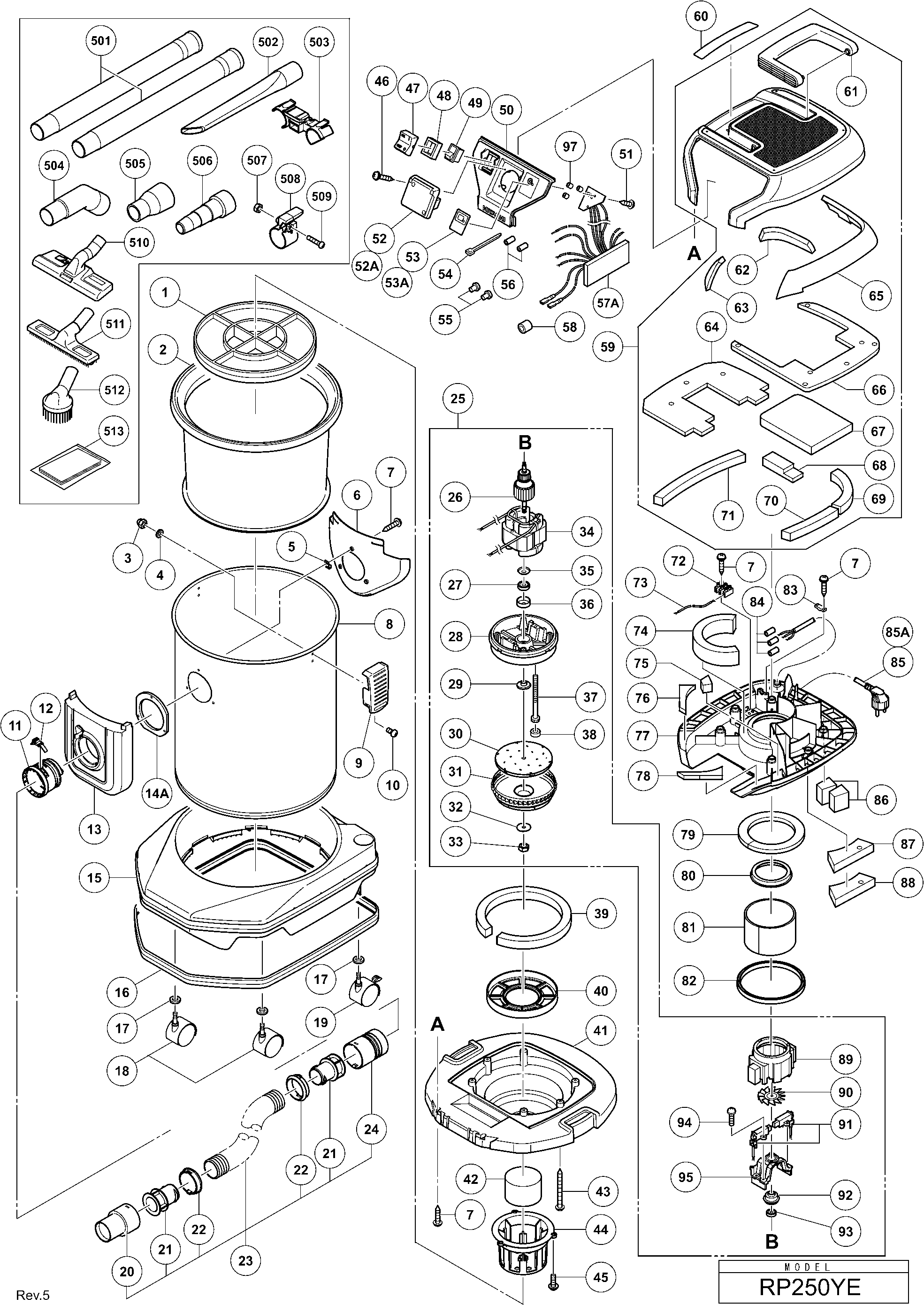

Technical drawing of model Hikoki RP250YE
Spare parts list of model Hikoki RP250YE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Ass'y Includ.26-38,87-93 | ||||
| *25 | 337472 | 72.05 | 87.18 | |
| ARMATURE 230 VOLT | ||||
| *26 | 361018 | 24.61 | 29.78 | |
| STATOR 230 VOLT | ||||
| *34 | 340919 | 34.24 | 41.43 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| *46 | 313687 | 1.04 | 1.26 | |
| Socket | ||||
| *52 | 328685 | 68.34 | 82.69 | |
| Panel Sheet (c) | ||||
| *53 | 337498 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| *73 | 338482 | |||
| No information available, not orderable | ||||
| *85 | 500479Z | |||
| Filter Cage | ||||
| 1 | 325869 | 15.13 | 18.30 | |
| No information available, not orderable | ||||
| 2 | 337459 | |||
| Hex. Cap Nut M4 | ||||
| 3 | 311839 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 4 | 949453 | 1.05 | 1.27 | |
| Earth Plate | ||||
| 5 | 337454 | 1.04 | 1.26 | |
| Poly Guide (b) | ||||
| 6 | 337453 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 7 | 301653 | 1.04 | 1.26 | |
| Tank | ||||
| 8 | 337445 | 77.83 | 94.17 | |
| Clamp | ||||
| 9 | 334398 | 14.70 | 17.79 | |
| Machine Screw M4x8 (black) | ||||
| 10 | 323211 | 1.05 | 1.27 | |
| Hose Joint | ||||
| 11 | 337451 | 5.55 | 6.72 | |
| Hose Stopper | ||||
| 12 | 321014 | 1.65 | 2.00 | |
| Joint Cover (b) | ||||
| 13 | 337450 | 4.65 | 5.63 | |
| Seal | ||||
| 14A | 339182 | 2.40 | 2.90 | |
| JOINT COVER GASKET D.62 (OLD 339182) | ||||
| 14B | 377772 | 1.50 | 1.82 | |
| Base | ||||
| 15 | 337443 | 20.21 | 24.46 | |
| Bumper (a) | ||||
| 16 | 325906 | 12.75 | 15.43 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 17 | 949433 | 1.05 | 1.27 | |
| Caster D50 | ||||
| 18 | 325858 | 6.75 | 8.17 | |
| Caster D50 (w/stopper) | ||||
| 19 | 325859 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 20 | 320986 | |||
| Screw Ring (id 38) | ||||
| 21 | 337512 | 1.05 | 1.27 | |
| Screw Ring | ||||
| 21A | 321065 | 6.30 | 7.62 | |
| Click Ring | ||||
| 22 | 321066 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 23 | 337513 | |||
| No information available, not orderable | ||||
| 23A | 328684 | |||
| No information available, not orderable | ||||
| 24 | 320985 | |||
| Motor Ass'y Includ.26-38,87-93 | ||||
| 25 | 337472 | 72.05 | 87.18 | |
| ARMATURE 230 VOLT | ||||
| 26 | 361018 | 24.61 | 29.78 | |
| BALL BEARING 608VVCM | ||||
| 27 | 339168 | 2.55 | 3.09 | |
| MOTOR BASE | ||||
| 28 | 339173 | 4.95 | 5.99 | |
| Flange Washer | ||||
| 29 | 339174 | 1.05 | 1.27 | |
| FAN | ||||
| 30 | 339166 | 3.00 | 3.63 | |
| CASING | ||||
| 31 | 339177 | 3.00 | 3.63 | |
| SPECIAL WASHER | ||||
| 32 | 339178 | 1.04 | 1.26 | |
| LOCK NUT M8 | ||||
| 33 | 339175 | 1.04 | 1.26 | |
| STATOR 230 VOLT | ||||
| 34 | 340919 | 34.24 | 41.43 | |
| PRESS PLATE | ||||
| 35 | 339172 | 1.04 | 1.26 | |
| BEARING HOLDER | ||||
| 36 | 339180 | 1.04 | 1.26 | |
| BOLT M5X60 (W/WASHER) | ||||
| 37 | 339169 | 1.04 | 1.26 | |
| Rubber Cover | ||||
| 38 | 339170 | 1.04 | 1.26 | |
| Silent Filter (c) | ||||
| 39 | 337477 | 1.80 | 2.18 | |
| Support Ring (b) Since 4.2012 | ||||
| 40 | 334977 | 13.75 | 16.64 | |
| Motor Housing | ||||
| 41 | 337469 | 20.76 | 25.12 | |
| Float | ||||
| 42 | 338455 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 43 | 301815 | 1.05 | 1.27 | |
| Float Holder (a) | ||||
| 44 | 337456 | 2.85 | 3.45 | |
| Screw (plastic Tie) D4x16 | ||||
| 45 | 994810 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 46 | 313687 | 1.04 | 1.26 | |
| Switch Cover (1) | ||||
| 47 | 337502 | 1.04 | 1.26 | |
| Switch Packing | ||||
| 48 | 337503 | 1.04 | 1.26 | |
| Switch | ||||
| 49 | 338471 | 4.05 | 4.90 | |
| Switch Holder | ||||
| 50 | 337495 | 2.55 | 3.09 | |
| Switch Holder | ||||
| 50A | 337495 | 2.55 | 3.09 | |
| Socket | ||||
| 52 | 328685 | 68.34 | 82.69 | |
| No information available, not orderable | ||||
| 52A | 373375 | |||
| Panel Sheet (c) | ||||
| 53 | 337498 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 53A | 373376 | |||
| CORD CLAMP | ||||
| 54 | 975144 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 55 | 959141 | 3.75 | 4.54 | |
| Threaded cable sleeve | ||||
| 56 | 981373 | 1.05 | 1.27 | |
| Controller Ass'y Includ.95 | ||||
| 57A | 337481 | 51.29 | 62.06 | |
| No information available, not orderable | ||||
| 58 | 329755 | |||
| Handle Cover | ||||
| 59 | 338259 | 19.53 | 23.63 | |
| Handle | ||||
| 61 | 337505 | 3.15 | 3.81 | |
| Head Cover Packing (c) | ||||
| 62 | 337508 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 63 | 338457 | |||
| No information available, not orderable | ||||
| 64 | 337509 | |||
| No information available, not orderable | ||||
| 65 | 337507 | |||
| Gasket (a) | ||||
| 66 | 337506 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 67 | 338458 | |||
| Silent Filter (e) | ||||
| 68 | 338459 | 1.05 | 1.27 | |
| Silent Filter (d) | ||||
| 69 | 338460 | 1.05 | 1.27 | |
| Silent Filter (f) | ||||
| 70 | 338461 | 1.50 | 1.82 | |
| Silent Filter (d) | ||||
| 71 | 337478 | 1.95 | 2.36 | |
| Terminal Plate | ||||
| 72 | 321041 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 73 | 338482 | |||
| Silent Filter (g) | ||||
| 74 | 338462 | 1.50 | 1.82 | |
| Silent Filter (m) | ||||
| 75 | 338464 | 1.05 | 1.27 | |
| Motor Cover Packing (a) | ||||
| 76 | 338466 | 1.20 | 1.45 | |
| Motor Hood | ||||
| 77 | 337474 | 12.00 | 14.52 | |
| No information available, not orderable | ||||
| 78 | 338465 | |||
| Silent Filter (g) | ||||
| 79 | 338463 | 1.50 | 1.82 | |
| Support Ring (a) | ||||
| 80 | 325876 | 4.65 | 5.63 | |
| Silent Filter (b) | ||||
| 81 | 337476 | 1.04 | 1.26 | |
| Motor Packing (a) | ||||
| 82 | 338467 | 3.60 | 4.36 | |
| Cord clamp | ||||
| 83 | 995063 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 85 | 500479Z | |||
| No information available, not orderable | ||||
| 85A | 500528Z | |||
| Silent Filter (l) | ||||
| 86 | 338468 | 1.05 | 1.27 | |
| Silent Filter (k) | ||||
| 87 | 338469 | 1.05 | 1.27 | |
| Silent Filter (k) | ||||
| 88 | 338470 | 1.05 | 1.27 | |
| Fan Cover | ||||
| 89 | 339163 | 1.05 | 1.27 | |
| COOLING FAN | ||||
| 90 | 339164 | 1.04 | 1.26 | |
| CARBON BRUSHES (1 PAIR) | ||||
| 91 | 339161 | 9.75 | 11.80 | |
| BEARING HOLDER | ||||
| 92 | 339179 | 1.04 | 1.26 | |
| BALL BEARING 607VVCM | ||||
| 93 | 339167 | 1.65 | 2.00 | |
| MACHINE SCREW M4X16 (W/WASHERS) | ||||
| 94 | 339165 | 1.04 | 1.26 | |
| MOTOR FRAME | ||||
| 95 | 339171 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 97 | 370077 | |||
| No information available, not orderable | ||||
| 501 | 337519 | |||
| No information available, not orderable | ||||
| 502 | 337523 | |||
| No information available, not orderable | ||||
| 503 | 337518 | |||
| No information available, not orderable | ||||
| 504 | 337521 | |||
| No information available, not orderable | ||||
| 505 | 320994 | |||
| No information available, not orderable | ||||
| 506 | 337527 | |||
| Nut M4 (10 Pieces) | ||||
| 507 | 949554 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 508 | 337520 | |||
| Machine Screw (w/washers) M4x16 | ||||
| 509 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 510 | 337522 | |||
| No information available, not orderable | ||||
| 510B | 377782 | |||
| No information available, not orderable | ||||
| 511 | 326127 | |||
| No information available, not orderable | ||||
| 512 | 321984 | |||
| No information available, not orderable | ||||
| 513 | 320982 | |||
| No information available, not orderable | ||||
| 513A | 375680 | |||
| No information available, not orderable | ||||
| 601 | 329638 | |||
| No information available, not orderable | ||||
| 601A | 329638 | |||
| No information available, not orderable | ||||
| 602 | 320982 | |||
