Here you will find all available parts and drawings of the 'Hikoki RB36DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

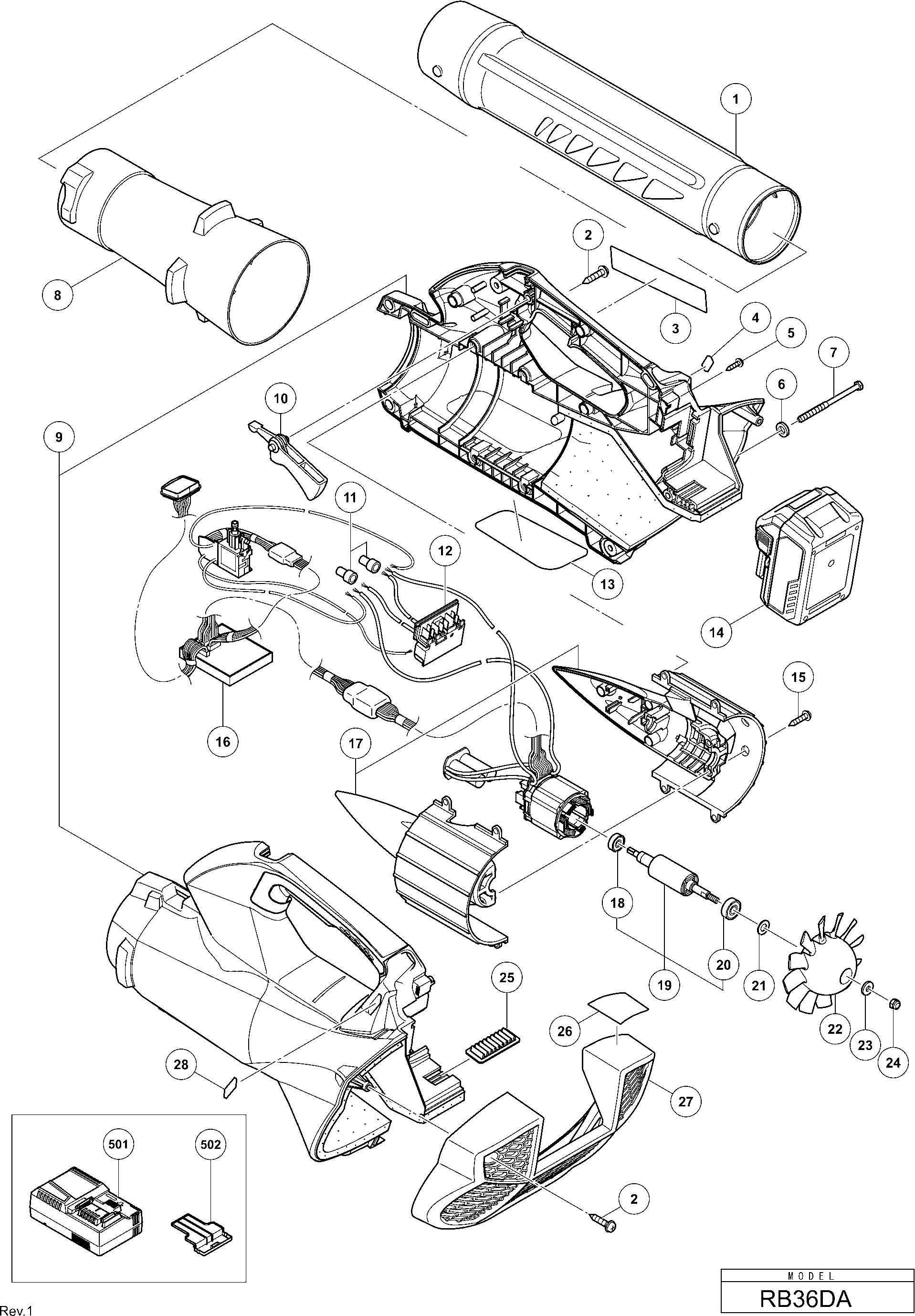

Technical drawing of model Hikoki RB36DA
Spare parts list of model Hikoki RB36DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Cover | ||||
| *502 | 329897 | 1.80 | 2.18 | |
| Nozzle (a) | ||||
| 1 | 6698393 | 10.35 | 12.52 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 2 | 302089 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 5 | 313687 | 1.04 | 1.26 | |
| Washer M5 (10 Pcs.) | ||||
| 6 | 949424 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 7 | 961400 | 1.04 | 1.26 | |
| Pipe | ||||
| 8 | 335198 | 4.20 | 5.08 | |
| Housing (a).(b) Set | ||||
| 9 | 373163 | 56.93 | 68.88 | |
| Housing (a).(b) Set | ||||
| 9A | 373163 | 56.93 | 68.88 | |
| No information available, not orderable | ||||
| 10 | 335199 | |||
| Connector 50092 (10 Pcs.) | ||||
| 11 | 959141 | 3.75 | 4.54 | |
| BATTERY TERMINAL | ||||
| 12 | 372228 | 8.25 | 9.98 | |
| BATTERY TERMINAL NEW | ||||
| 12A | 379931 | 5.28 | 6.39 | |
| No information available, not orderable | ||||
| 14 | 371750 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 15 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 16 | 373113 | |||
| STATOR FET PCB ASSEMBLY (OLD 341056) | ||||
| 16B | 341213 | 148.61 | 179.82 | |
| Motor Housing Set | ||||
| 17 | 336097 | 17.05 | 20.63 | |
| Ball Bearing 625dd | ||||
| 18 | 333826 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 19 | 335194 | |||
| ROTOR ASS'Y (OLD 335194) | ||||
| 19B | 375677 | 41.66 | 50.41 | |
| Ball Bearing 607vv | ||||
| 20 | 607VVC | 5.70 | 6.90 | |
| Ball bearing 607VVC2 | ||||
| 20A | 381409 | 1.00 | 1.21 | |
| Bolt Washer D7 | ||||
| 21 | 6696880 | 1.05 | 1.27 | |
| Fan (1) | ||||
| 22 | 335195 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 23 | 329929 | 1.80 | 2.18 | |
| U-nut M5 | ||||
| 24 | 308387 | 1.05 | 1.27 | |
| Battery Rubber (b) | ||||
| 25 | 370328 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 26 | 336099 | |||
| Nose Grill | ||||
| 27 | 335196 | 12.45 | 15.06 | |
| WIRING ASSEMBLY SET (OLD 375678) | ||||
| 29A | 382862 | 162.96 | 197.18 | |
| Battery Cover | ||||
| 502 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 6699184 | |||
