Here you will find all available parts and drawings of the 'Hikoki RB24EAP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

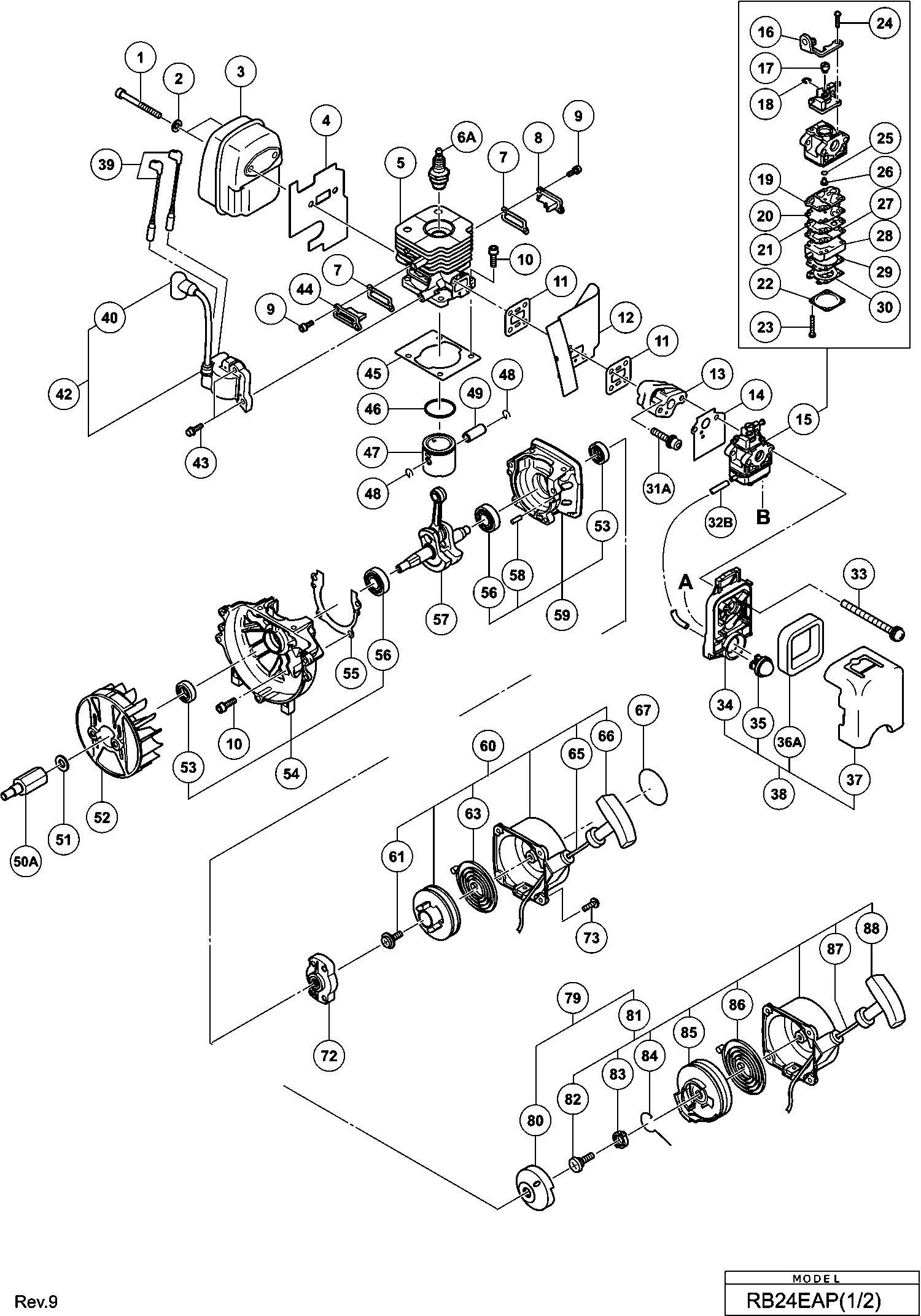

Technical drawing of model Hikoki RB24EAP
Spare parts list of model Hikoki RB24EAP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Ass'y Bmr7a | ||||
| *6A | 6699316 | 8.91 | 10.78 | |
| Hex. Socket Hd. Bolt M6x65 | ||||
| 1 | 6698384 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 2 | 949432 | 1.05 | 1.27 | |
| Muffler | ||||
| 3 | 6698375 | 28.60 | 34.61 | |
| Heat Protection Plate | ||||
| 4 | 6698374 | 6.15 | 7.44 | |
| Cylinder | ||||
| 5 | 6698362 | 30.53 | 36.94 | |
| Spark Plug Ass'y Bmr7a | ||||
| 6A | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 6A | 6699322 | 2.48 | 2.99 | |
| Cover Packing | ||||
| 7 | 6697684 | 1.04 | 1.26 | |
| Scavenging Cover(a) | ||||
| 8 | 6698363 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9 | 6698385 | |||
| No information available, not orderable | ||||
| 10 | 6698386 | |||
| No information available, not orderable | ||||
| 11 | 6684865 | |||
| Flash Pan | ||||
| 12 | 6698372 | 2.10 | 2.54 | |
| Carburetor Insulator | ||||
| 13 | 6698387 | 3.15 | 3.81 | |
| Carburetor Packing | ||||
| 14 | 6698405 | 2.10 | 2.54 | |
| Carburetor Ass'y (wyc-27) Includ.16-30 | ||||
| 15 | 6698373 | 45.65 | 55.24 | |
| Swivel | ||||
| 17 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 18 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 19 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 20 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 21 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 22 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 23 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 24 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 25 | 6684695 | 4.29 | 5.19 | |
| Main Jet #36 | ||||
| 26 | 6697090 | 5.45 | 6.59 | |
| Circuit Plate | ||||
| 27 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 28 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 29 | 6685220 | |||
| No longer available, no replacement | ||||
| 30 | 6684690 | |||
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 31A | 6698844 | 1.20 | 1.45 | |
| Fuel Pipe L70 | ||||
| 32B | 6699014 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 32D | 6601444 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 33 | 307224 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 34 | 6696832 | |||
| Priming Pump Comp. | ||||
| 35 | 6685139 | 5.94 | 7.18 | |
| Cleaner Element | ||||
| 36 | 6690347 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 36A | 6600704 | |||
| No information available, not orderable | ||||
| 37 | 6696831 | |||
| Air Cleaner Ass'y Includ.34-37 | ||||
| 38 | 6696549 | 9.13 | 11.04 | |
| Cord (l325) | ||||
| 39 | 6696566 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 40 | 6696833 | |||
| No information available, not orderable | ||||
| 42 | 6698397 | |||
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 43 | 6698388 | 1.05 | 1.27 | |
| Scavenging Cover (b) | ||||
| 44 | 6698364 | 1.05 | 1.27 | |
| Cylinder Packing | ||||
| 45 | 6698366 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 46 | 6698404 | 4.20 | 5.08 | |
| Piston | ||||
| 47 | 6698368 | 7.28 | 8.80 | |
| Cir Clip | ||||
| 48 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 49 | 6684591 | 4.29 | 5.19 | |
| Special Bolt | ||||
| 50A | 6600347 | 1.80 | 2.18 | |
| Bolt Washer M8 (black) | ||||
| 51 | 323212 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 52 | 6698396 | 8.70 | 10.53 | |
| Oil Seal | ||||
| 53 | 6684607 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 54 | 6698370 | |||
| Crank Case Packing | ||||
| 55 | 6697688 | 1.04 | 1.26 | |
| Ball Bearing 6001 C3 | ||||
| 56 | 6684608 | 3.80 | 4.60 | |
| Crank Shaft | ||||
| 57 | 6696533 | 32.31 | 39.10 | |
| Knock Pin 4x12 | ||||
| 58 | 6696947 | 1.05 | 1.27 | |
| Crank Case (a) Ass'y Includ.52,55,57 | ||||
| 59 | 6698369 | 13.35 | 16.15 | |
| Recoil Starter Body Ass'y Includ.60-63 Till 7.201 | ||||
| 60 | 6696572 | 10.20 | 12.34 | |
| Set Screw Till 7.2014 | ||||
| 61 | 6693633 | 1.15 | 1.39 | |
| Recoil Spring Till 7.2014 | ||||
| 63 | 6684675 | 11.55 | 13.98 | |
| Rope Till 7.2014 | ||||
| 65 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 66 | 6693227 | 3.30 | 3.99 | |
| Starter Pulley Ass'y Till 7.2014 | ||||
| 72 | 6696471 | 5.10 | 6.17 | |
| Screw (w/washers) M4x16 | ||||
| 73 | 6698398 | 1.05 | 1.27 | |
| Recoil Starter Ass'y Includ.80,81 | ||||
| 79 | 6600408 | 8.25 | 9.98 | |
| Starter Pulley Since 8.2014 | ||||
| 80 | 6600407 | 2.55 | 3.09 | |
| Recoil Ass'y Includ.82-88 Since 8.2014 | ||||
| 81 | 6600406 | 7.20 | 8.71 | |
| Recoil Set Screw Since 8.2014 | ||||
| 82 | 6600404 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 83 | 6600402 | |||
| Swing Arm Since 8.2014 | ||||
| 84 | 6600401 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 85 | 6600405 | |||
| Recoil Spring Since 8.2014 | ||||
| 86 | 6600403 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 87 | 6600400 | |||
| Recoil Handle Since 8.2014 | ||||
| 88 | 6600399 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 91 | 6698399 | |||
| Throttle Lever | ||||
| 92 | 6698391 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 93 | 6698400 | |||
| No information available, not orderable | ||||
| 94 | 6685364 | |||
| Muffler Protector | ||||
| 95A | 6699427 | 9.60 | 11.62 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 96 | 302089 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 97A | 6698716 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 97B | 6601525 | |||
| No information available, not orderable | ||||
| 98 | 6698401 | |||
| Fuel Pipe L70 | ||||
| 98A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 99A | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 101 | 6698402 | |||
| Tank | ||||
| 102A | 6600317 | 7.95 | 9.62 | |
| Tank (c) Since 8.2014 | ||||
| 102B | 6600354 | 3.45 | 4.17 | |
| Bolt (w/flange) L 17.8 | ||||
| 103 | 6698511 | 1.05 | 1.27 | |
| Pump Filter | ||||
| 104A | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 105 | 6696949 | |||
| Bolt (w/flange) L23.8 | ||||
| 106 | 6698512 | 1.05 | 1.27 | |
| Nozzle (b) | ||||
| 107 | 6698394 | 5.25 | 6.35 | |
| Nozzle (a) | ||||
| 108 | 6698393 | 10.35 | 12.52 | |
| Guard Net | ||||
| 110 | 6698381 | 2.10 | 2.54 | |
| Volute Case | ||||
| 111A | 6699428 | 8.10 | 9.80 | |
| U-nut M8 | ||||
| 112A | 6684932 | 2.15 | 2.60 | |
| Fan | ||||
| 113 | 6698378 | 6.90 | 8.35 | |
| Fan Housing (old 6698380) | ||||
| 114A | 6699426 | 16.78 | 20.30 | |
| Fan Housing | ||||
| 114A | 6699429 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 119 | 6684924 | |||
| No longer available, no replacement | ||||
| 120A | 6698931 | |||
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 121 | 6698844 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 125 | 6600358 | |||
| No information available, not orderable | ||||
| 501 | 6698403 | |||
| Combi Box Spanner 13x19 Plus | ||||
| 501A | 6684979 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 601 | 6699184 | |||
