Here you will find all available parts and drawings of the 'Hikoki RB18DSL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

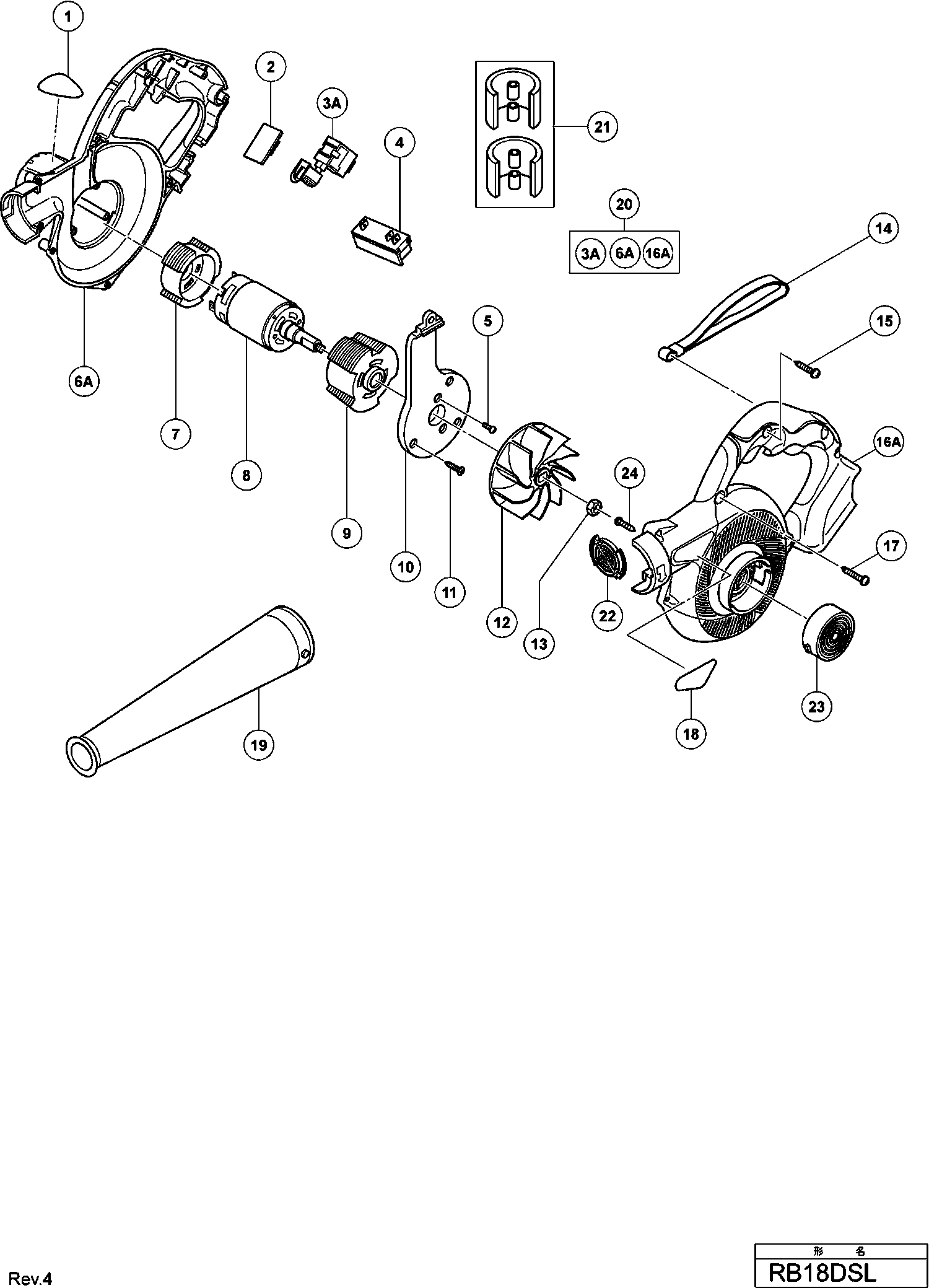

Technical drawing of model Hikoki RB18DSL
Spare parts list of model Hikoki RB18DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Printed Circuit Board | ||||
| 2 | 328557 | 8.85 | 10.71 | |
| Dc-trigger Switch (w/felt) Since 11.2011 | ||||
| 3A | 334702 | 30.53 | 36.94 | |
| No information available, not orderable | ||||
| 4 | 328554 | |||
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 5 | 949216 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 6A | 328559 | |||
| No information available, not orderable | ||||
| 7 | 328560 | |||
| Motor | ||||
| 8 | 328615 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 9 | 328553 | |||
| No information available, not orderable | ||||
| 10 | 328563 | |||
| No information available, not orderable | ||||
| 11 | 328550 | |||
| No information available, not orderable | ||||
| 12 | 328564 | |||
| Tpe (sl),kor (sl) | ||||
| 13 | 949556 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 14 | 328565 | |||
| No information available, not orderable | ||||
| 15 | 328546 | |||
| No information available, not orderable | ||||
| 16A | 330077 | |||
| No information available, not orderable | ||||
| 17 | 328549 | |||
| Pipe | ||||
| 19 | 328562 | 10.95 | 13.25 | |
| Housing. Switch Set Includ.3a,6a,16a Till 10.2011 | ||||
| 20 | 334699 | 55.00 | 66.55 | |
| Ferrite Support Set Since 3.2012 For Europe | ||||
| 21 | 334869 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 601 | 317124 | |||
| No information available, not orderable | ||||
| 602 | 317123 | |||
| Nozzle (b) | ||||
| 603 | 990046 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 604 | 323587 | |||
