Here you will find all available parts and drawings of the 'Hikoki RB100EF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

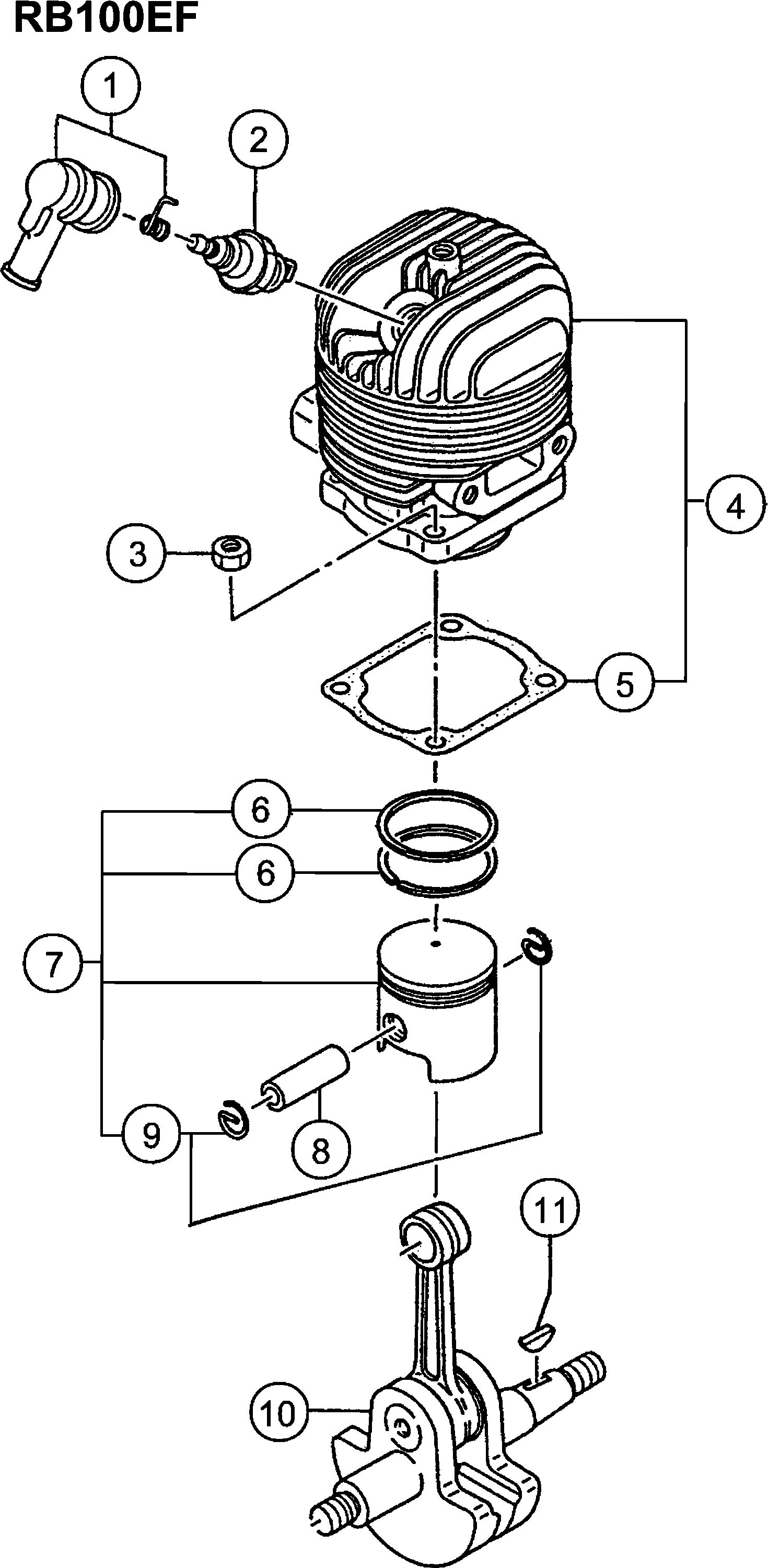

Technical drawing of model Hikoki RB100EF
Spare parts list of model Hikoki RB100EF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bmr7a | ||||
| 2 | 6699316 | 8.91 | 10.78 | |
| Spring Nut 6 | ||||
| 3 | 6695475 | 1.15 | 1.39 | |
| CYLINDER SET | ||||
| 4 | 6698001 | 86.21 | 104.32 | |
| Cylinder Gasket | ||||
| 5 | 6685727 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686128 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685890 | 18.60 | 22.51 | |
| Piston Pin 10x30 | ||||
| 8 | 6686007 | 2.31 | 2.80 | |
| Piston Pin Circlip | ||||
| 9 | 6686032 | 1.15 | 1.39 | |
| Crank Shaft Comp. | ||||
| 10 | 6686194 | 90.45 | 109.44 | |
| Wood-ruff Key 3x13x5 | ||||
| 11 | 6686457 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 21 | 6686464 | |||
| No longer available, no replacement | ||||
| 22 | 6686563 | |||
| Ball Bearing #6303zz | ||||
| 23 | 6695572 | 10.23 | 12.37 | |
| Oil Seal | ||||
| 24 | 6695648 | 3.30 | 3.99 | |
| Crank Case Gasket | ||||
| 25 | 6686716 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 26 | 6686778 | |||
| Case Plate | ||||
| 27 | 6692263 | 2.31 | 2.80 | |
| Screw 5x10/s | ||||
| 28 | 6695333 | 1.15 | 1.39 | |
| Cord Clamp Comp. | ||||
| 29 | 6688004 | 1.15 | 1.39 | |
| Screw 5x10/p | ||||
| 30 | 6695319 | 1.15 | 1.39 | |
| Grommet | ||||
| 31 | 6688050 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 32 | 6687863 | |||
| No longer available, no replacement | ||||
| 33 | 6688454 | |||
| Exciter Comp. | ||||
| 34 | 6687509 | 44.31 | 53.62 | |
| Screw 5x22/ws | ||||
| 35 | 6695422 | 1.15 | 1.39 | |
| Coil Cover | ||||
| 36 | 6687983 | 1.15 | 1.39 | |
| Screw 5x10/s | ||||
| 37 | 6695333 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 38 | 6687692 | |||
| Screw 4x15ps | ||||
| 39 | 6695373 | 1.15 | 1.39 | |
| Hex.hole Bolt 6x35/s | ||||
| 40 | 6695500 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 41 | 6687390 | |||
| Ring | ||||
| 42 | 6695185 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 43 | 6695138 | |||
| No longer available, no replacement | ||||
| 44 | 6694888 | |||
| S.washer 5 | ||||
| 45 | 6684662 | 2.15 | 2.60 | |
| Small Washer 5 | ||||
| 46 | 6684864 | 2.15 | 2.60 | |
| Stop Ring E-5 Since C237092 | ||||
| 51 | 6684683 | 2.15 | 2.60 | |
| Stop Ring E-5 Since C237092 | ||||
| 51A | 6684683 | 2.15 | 2.60 | |
| Starter Pawl Spring | ||||
| 52 | 6693345 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 52A | 6697642 | |||
| Starter Pawl | ||||
| 53 | 6693302 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 53A | 6697643 | |||
| Small Nut 10 | ||||
| 54 | 6695139 | 1.05 | 1.27 | |
| Starter Pulley | ||||
| 55 | 6693395 | 11.05 | 13.37 | |
| Starter Pulley Ass'y | ||||
| 55A | 6697644 | 11.05 | 13.37 | |
| Screw | ||||
| 71 | 6684967 | 1.04 | 1.26 | |
| Muffler Gasket For Europe | ||||
| 72 | 6692742 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 73 | 6692884 | |||
| Bolt Washer M8 | ||||
| 74 | 6684611 | 2.15 | 2.60 | |
| Muffler Bolt (old 750-05004-20) | ||||
| 75 | 6692881 | 2.31 | 2.80 | |
| Screw 6x12/ps | ||||
| 76 | 6695399 | 1.15 | 1.39 | |
| Screw 5x18 | ||||
| 77 | 6694891 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 78 | 6684662 | 2.15 | 2.60 | |
| Small Washer 5 | ||||
| 79 | 6684864 | 2.15 | 2.60 | |
| Screw 6x20 | ||||
| 80 | 6694934 | 1.15 | 1.39 | |
| Ring | ||||
| 81 | 6695219 | 1.15 | 1.39 | |
| Ring | ||||
| 82 | 6695183 | 1.15 | 1.39 | |
| Muffler Protecter A | ||||
| 83 | 6692786 | 26.16 | 31.66 | |
| Cord Clamp Comp. | ||||
| 84 | 6688004 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 85 | 6698165 | |||
| Inlet Manifold Gasket | ||||
| 101 | 6689888 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 102 | 6698112 | |||
| Small Washer 5 | ||||
| 103 | 6684864 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 104 | 6695343 | |||
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 105 | 6684615 | 2.15 | 2.60 | |
| Carburetor Assembly Pn (old 455-05029-90) | ||||
| 106 | 6690478 | 68.36 | 82.72 | |
| Fuel Pipe Ass'y 3x5x280 | ||||
| 107 | 6688172 | 3.30 | 3.99 | |
| Clip 5.2 | ||||
| 108 | 6692311 | 1.15 | 1.39 | |
| Pump Filter Body Ass'y | ||||
| 109 | 6692273 | 7.10 | 8.59 | |
| Tank Cap D Ass'y Black | ||||
| 110 | 6691740 | 7.59 | 9.18 | |
| No information available, not orderable | ||||
| 111 | 6697182 | |||
| Air Cleaner Body | ||||
| 114 | 6690105 | 8.41 | 10.18 | |
| Choke Valve | ||||
| 115 | 6691252 | 6.44 | 7.79 | |
| Collar | ||||
| 116 | 6684858 | 4.29 | 5.19 | |
| Spacer | ||||
| 117 | 6684859 | 2.15 | 2.60 | |
| Blow Over Check Board | ||||
| 118 | 6684860 | 4.29 | 5.19 | |
| No longer available, no replacement | ||||
| 119 | 6684861 | |||
| Cleaner Cap | ||||
| 120 | 6690153 | 5.78 | 6.99 | |
| Aircleaner Assy, Caa-37 | ||||
| 121 | 6690028 | 14.85 | 17.97 | |
| Small Washer 5 | ||||
| 122 | 6684864 | 2.15 | 2.60 | |
| Screw 5x57/s | ||||
| 123 | 6695353 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 124 | 6684625 | |||
| Recoil Starter Body Ass'y | ||||
| 141A | 6697645 | 21.78 | 26.35 | |
| No information available, not orderable | ||||
| 142 | 6693025 | |||
| Recoil Starter Body Comp | ||||
| 142A | 6697646 | 11.71 | 14.17 | |
| Starter Rope Reel | ||||
| 143 | 6693007 | 4.95 | 5.99 | |
| Starter Rope Reel | ||||
| 143A | 6697647 | 4.13 | 4.99 | |
| Recoil Spring | ||||
| 144 | 6693114 | 9.08 | 10.98 | |
| STARTER SPRING | ||||
| 144A | 6697648 | 7.08 | 8.57 | |
| Starter Rope (old 783-04270-20/6693164) | ||||
| 145 | 6693165 | 3.30 | 3.99 | |
| STARTER ROPE | ||||
| 145A | 6697649 | 2.64 | 3.19 | |
| No information available, not orderable | ||||
| 146 | 6693607 | |||
| Starter Handle | ||||
| 147 | 6693232 | 3.30 | 3.99 | |
| Starter Handle | ||||
| 147A | 6697650 | 2.80 | 3.39 | |
| Set Screw | ||||
| 148 | 6693634 | 1.15 | 1.39 | |
| Pump Body Comp. Till U100576 | ||||
| 162 | 6691432 | 34.19 | 41.37 | |
| Diaphragm Cover-metering | ||||
| 163 | 6685222 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 164 | 6690827 | |||
| No longer available, no replacement | ||||
| 165 | 6685220 | |||
| Pump Diaphragm | ||||
| 166 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 167 | 6691457 | 7.10 | 8.59 | |
| Main Jet #48 | ||||
| 168 | 6691853 | 4.45 | 5.38 | |
| O-RING (old 550-25100-20) | ||||
| 169 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 170 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 171 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 173 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 174 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 175 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 176 | 6684871 | 4.29 | 5.19 | |
| Cleaner Packing | ||||
| 177 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 178 | 6691312 | 1.15 | 1.39 | |
| Thrust Washer | ||||
| 179 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 181 | 6684700 | 4.29 | 5.19 | |
| Frame Comp., Black | ||||
| 201 | 6685803 | 82.43 | 99.73 | |
| No information available, not orderable | ||||
| 202 | 6685864 | |||
| Truss Screw 6x16 | ||||
| 203 | 6694961 | 1.15 | 1.39 | |
| Shoulder Belt Comp. | ||||
| 204 | 6685819 | 11.71 | 14.17 | |
| Cushion Pad | ||||
| 205 | 6685812 | 28.14 | 34.05 | |
| Fastener | ||||
| 206 | 6686241 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 207 | 6686140 | |||
| No information available, not orderable | ||||
| 241 | 6694901 | |||
| Small Washer 5 | ||||
| 242 | 6684864 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 243 | 6685599 | |||
| Fan | ||||
| 244 | 6687170 | 24.20 | 29.28 | |
| No longer available, no replacement | ||||
| 245 | 6695221 | |||
| Bolt 6x30 (old 990-21060-301) | ||||
| 246 | 6694990 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 247 | 6685634 | |||
| Nut 5 | ||||
| 248 | 6695120 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 249 | 6686260 | |||
| Tapping Screw 5x20 | ||||
| 250 | 6695254 | 1.15 | 1.39 | |
| Blow Pipe | ||||
| 251 | 6688423 | 16.94 | 20.49 | |
| Pipe Band | ||||
| 252 | 6686784 | 5.78 | 6.99 | |
| No information available, not orderable | ||||
| 253 | 6694940 | |||
| No information available, not orderable | ||||
| 254 | 6691701 | |||
| No information available, not orderable | ||||
| 255 | 6684792 | |||
| Special Nut 6 | ||||
| 256 | 6685863 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 257 | 6686319 | |||
| Ring | ||||
| 258 | 6695219 | 1.15 | 1.39 | |
| Ring | ||||
| 259 | 6685855 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 260 | 6694930 | |||
| Ring | ||||
| 261 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 262 | 6685907 | |||
| No information available, not orderable | ||||
| 263 | 6685864 | |||
| O-ring V-70 (old 999-67070-020) New | ||||
| 264 | 6695686 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 265 | 6691957 | |||
| Throttle Lever Ass'y For Europe | ||||
| 281 | 6685669 | 40.24 | 48.69 | |
| Lever Bracket A For Europe | ||||
| 282 | 6686054 | 3.30 | 3.99 | |
| Lever Bracket B For Europe | ||||
| 283 | 6686137 | 3.30 | 3.99 | |
| Handle Knob Comp. For Europe | ||||
| 284 | 6689263 | 4.45 | 5.38 | |
| Grip For Europe | ||||
| 285 | 6688297 | 9.40 | 11.37 | |
| Tapping Screw 5x20 | ||||
| 286 | 6695254 | 1.15 | 1.39 | |
| Screw 5x25, Black (old 994-31050-253) | ||||
| 287 | 6695456 | 1.15 | 1.39 | |
| Self-lock Nut 5, Black For Europe | ||||
| 288 | 6695174 | 1.15 | 1.39 | |
| Stop Switch For Europe | ||||
| 289 | 6687515 | 2.31 | 2.80 | |
| Stop Switch Base For Europe | ||||
| 290 | 6688374 | 2.31 | 2.80 | |
| Stop Switch Spring For Europe | ||||
| 291 | 6688385 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 292 | 6695275 | |||
| Cord, B960m For Europe | ||||
| 293 | 6687892 | 4.95 | 5.99 | |
| Protection Tube 7x870l (old 164-07087-00) | ||||
| 294 | 6684717 | 6.44 | 7.79 | |
| Throttle Wire Comp. | ||||
| 295 | 6693893 | 10.40 | 12.58 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6694822 | |||
| Flexible Pipe | ||||
| 507 | 6686796 | 17.09 | 20.68 | |
| Swivel Pipe | ||||
| 508 | 6686814 | 15.28 | 18.48 | |
| Straight Pipe (long) | ||||
| 509 | 6686819 | 15.13 | 18.30 | |
| Straight Pipe (short) (old 305-31310-20)(old 66868 | ||||
| 510 | 6688953 | 14.35 | 17.36 | |
| Bent Pipe, Black | ||||
| 511 | 6686824 | 11.05 | 13.37 | |
| Wire Clamp 95 (old 110-31310-21/6686872) | ||||
| 512 | 6686873 | 11.05 | 13.37 | |
| Wire Clamp 78 | ||||
| 513 | 6686884 | 9.74 | 11.78 | |
| Starter Mark Rb100ef | ||||
| 601 | 6694498 | 1.05 | 1.27 | |
