Here you will find all available parts and drawings of the 'Hikoki R18DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

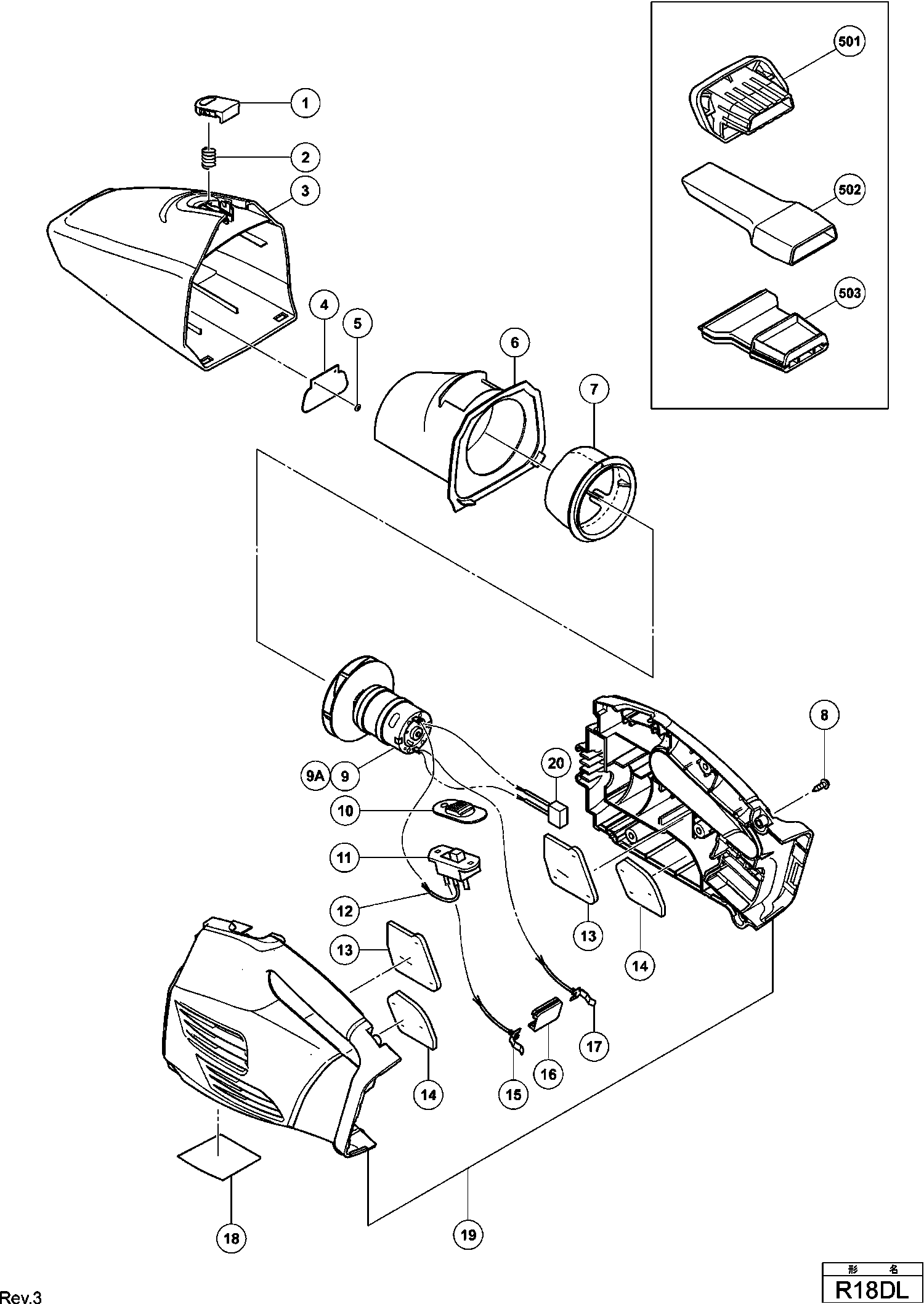

Technical drawing of model Hikoki R18DL
Spare parts list of model Hikoki R18DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 1 | 331382 | 1.05 | 1.27 | |
| Spring | ||||
| 2 | 331383 | 1.05 | 1.27 | |
| Dust Case | ||||
| 3 | 331385 | 11.40 | 13.79 | |
| Locking Device | ||||
| 4 | 331386 | 1.05 | 1.27 | |
| Nut | ||||
| 5 | 331384 | 1.05 | 1.27 | |
| Guard | ||||
| 6 | 331387 | 4.58 | 5.54 | |
| Filter | ||||
| 7 | 331404 | 4.20 | 5.08 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 8 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 9 | 331402 | |||
| Motor | ||||
| 9A | 334898 | 18.84 | 22.79 | |
| No longer available, no replacement | ||||
| 10 | 331388 | |||
| Switch | ||||
| 11 | 331393 | 2.10 | 2.54 | |
| Internal wire | ||||
| 12 | 331396 | 2.10 | 2.54 | |
| Noise Insulation (a) | ||||
| 13 | 331380 | 2.10 | 2.54 | |
| Noise Insulation (b) | ||||
| 14 | 331381 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 15 | 331395 | |||
| Holder | ||||
| 16 | 315141 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 17 | 331394 | |||
| No information available, not orderable | ||||
| 19 | 331401 | |||
| Noise Suppressor | ||||
| 20 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 501 | 331405 | |||
| No information available, not orderable | ||||
| 502 | 331406 | |||
| No information available, not orderable | ||||
| 503 | 331407 | |||
