Here you will find all available parts and drawings of the 'Hikoki R18DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

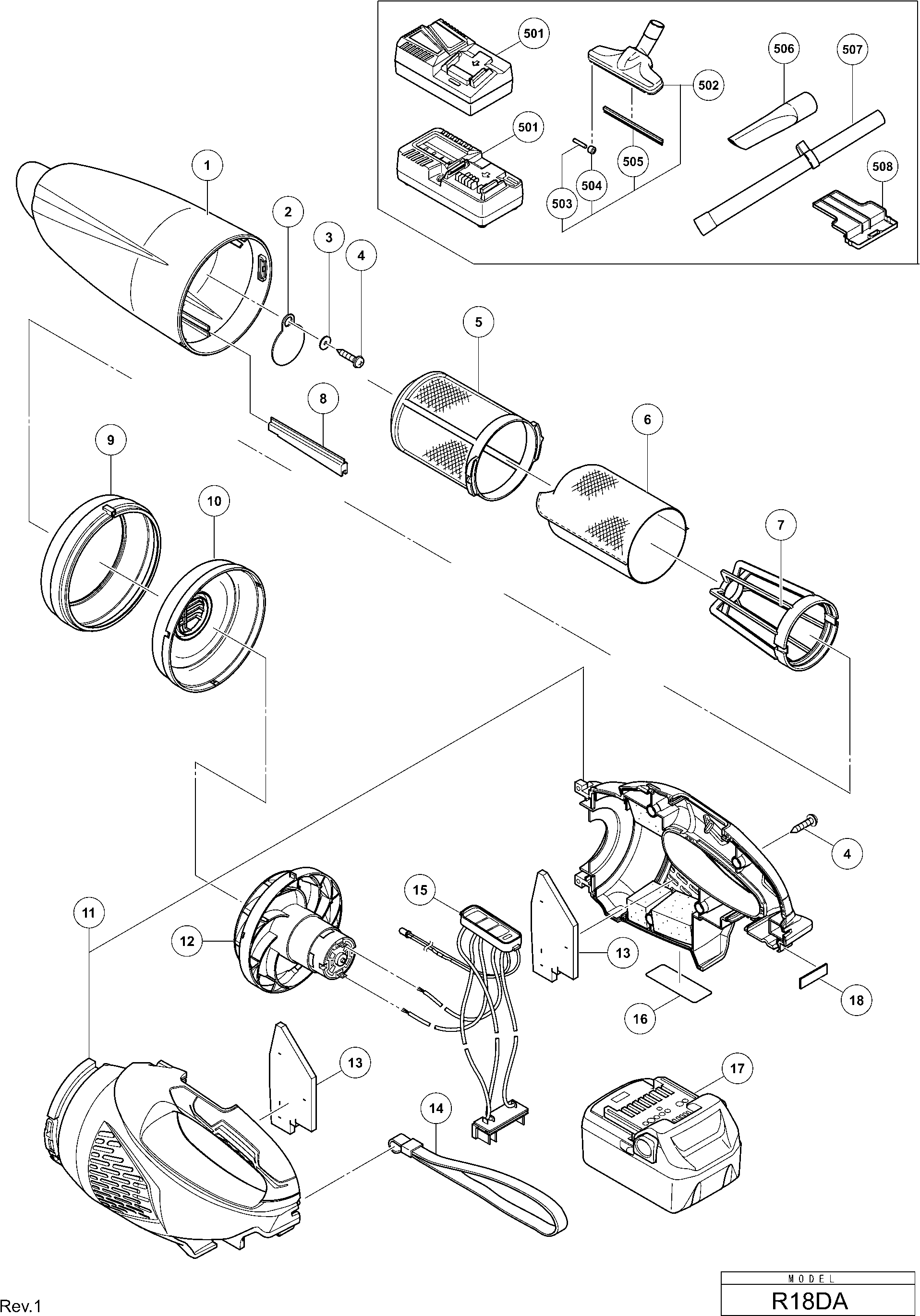

Technical drawing of model Hikoki R18DA
Spare parts list of model Hikoki R18DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *17 | 336266 | |||
| No information available, not orderable | ||||
| 1 | 337788 | |||
| DUST CASE (WHITE) | ||||
| 1C | 375157 | 8.55 | 10.35 | |
| VALVE | ||||
| 2 | 337799 | 1.04 | 1.26 | |
| Washer (1) | ||||
| 3 | 333916 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 4 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 337792 | |||
| No information available, not orderable | ||||
| 6 | 337793 | |||
| FILTER HOLDER | ||||
| 7 | 337794 | 1.05 | 1.27 | |
| FILTER BLADE | ||||
| 8 | 337800 | 1.04 | 1.26 | |
| FILTER BLADE NEW | ||||
| 8A | 379022 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 9 | 337796 | |||
| Fan Cover | ||||
| 10 | 337795 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 11 | 373085 | |||
| No information available, not orderable | ||||
| 11A | 376027 | |||
| MOTOR FAN (B) | ||||
| 12 | 337805 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 13 | 373179 | |||
| Strap (black) | ||||
| 14 | 306952 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 15 | 373089 | |||
| No information available, not orderable | ||||
| 17 | 336266 | |||
| Cushion | ||||
| 18 | 331101 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 502 | 337933 | |||
| No information available, not orderable | ||||
| 502B | 380948 | |||
| ROLLER SHAFT | ||||
| 503 | 370678 | 1.04 | 1.26 | |
| SHAFT D3 NEW | ||||
| 503A | 378924 | 1.00 | 1.21 | |
| ROLLER | ||||
| 504 | 370679 | 2.10 | 2.54 | |
| WHEEL NEW | ||||
| 504A | 378923 | 1.00 | 1.21 | |
| NOZZLE BLADE | ||||
| 505 | 370677 | 2.10 | 2.54 | |
| BLADE NEW | ||||
| 505A | 378922 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 506 | 332709 | |||
| No information available, not orderable | ||||
| 506B | 378836 | |||
| No information available, not orderable | ||||
| 507 | 332710 | |||
| No information available, not orderable | ||||
| 507B | 378835 | |||
| Battery Cover | ||||
| 508 | 329897 | 1.80 | 2.18 | |
