Here you will find all available parts and drawings of the 'Hikoki PU-PM3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

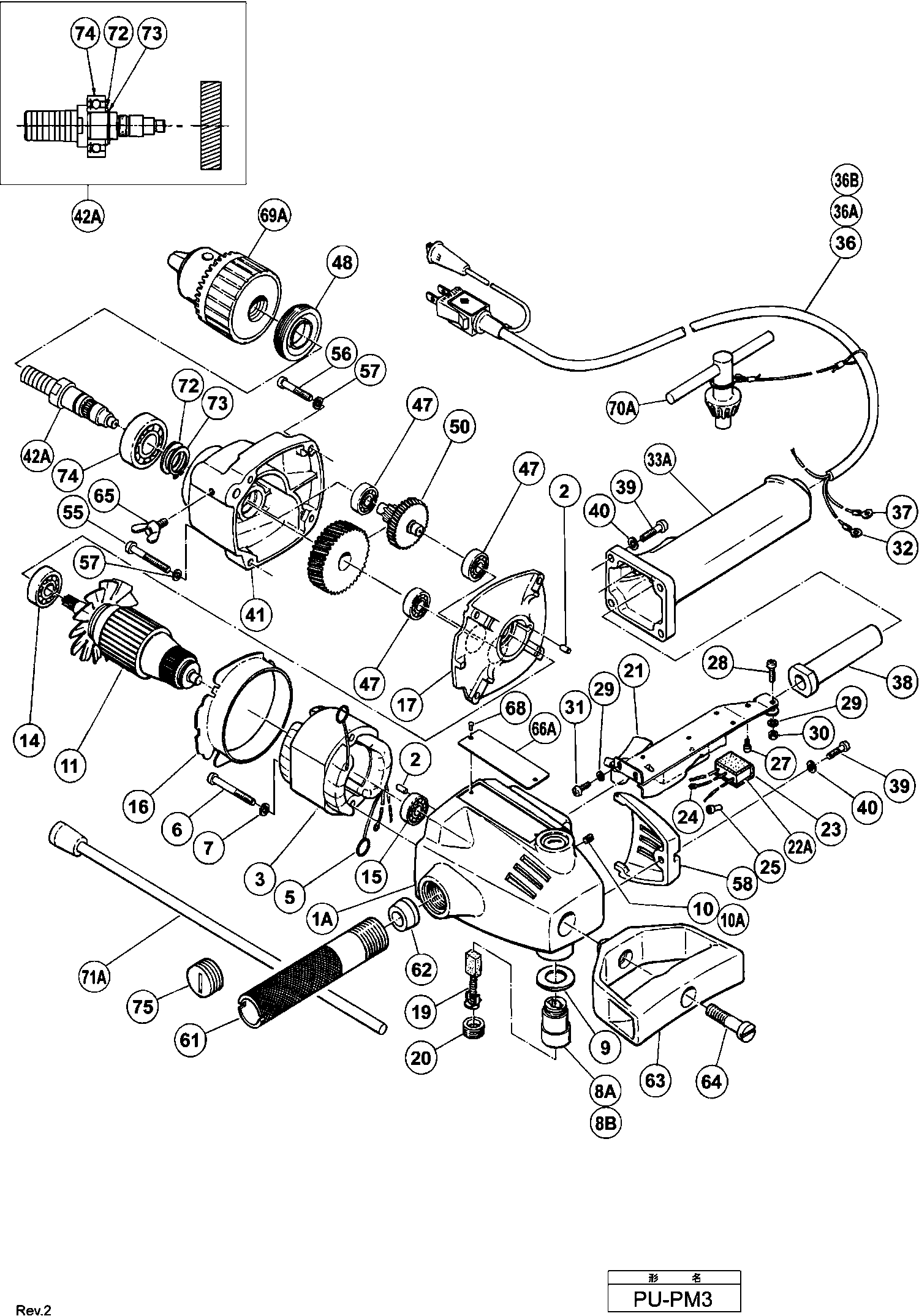

Technical drawing of model Hikoki PU-PM3
Spare parts list of model Hikoki PU-PM3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *3 | 930772F | |||
| No information available, not orderable | ||||
| *36 | 500427Z | |||
| Cord Armor D10.7 | ||||
| *38 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *38 | 958049 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 1A | 930790 | |||
| RUBBER PEN | ||||
| 2 | 931701 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 3 | 930772F | |||
| Brush Terminal | ||||
| 5 | 930703 | 2.40 | 2.90 | |
| MACHINE SCREW M5X50 (10 PCS.) | ||||
| 6 | 949250 | 1.26 | 1.52 | |
| Spring Washer M5 (10 pieces) | ||||
| 7 | 949454 | 1.04 | 1.26 | |
| CARBON BRUSH HOLDER | ||||
| 8A | 944598 | 3.96 | 4.79 | |
| Brush Holder (2) | ||||
| 8B | 957051 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 9 | 930706 | |||
| Hex. Socket Set Screw M5x6 Till 2.1986 | ||||
| 10 | 962782 | 1.04 | 1.26 | |
| Hex. Socket Set Screw M4x6 Since 3.1986 | ||||
| 10A | 985114 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 11 | 930774F | |||
| Ball Bearing 6200vvcmps2l | ||||
| 14 | 6200VV | 6.15 | 7.44 | |
| Ball Bearing 608vvc2ps2l | ||||
| 15 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 16 | 930776 | |||
| No information available, not orderable | ||||
| 17 | 930777 | |||
| Carbon Brush (1 Pair) | ||||
| 19 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 20 | 935829 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21 | 931066 | |||
| Noise Suppressor | ||||
| 22A | 994273 | 4.29 | 5.19 | |
| Rubber | ||||
| 23 | 930153 | 1.04 | 1.26 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 24 | 959144 | 3.00 | 3.63 | |
| Connector 50092 (10 Pcs.) | ||||
| 25 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 27 | 949292 | |||
| Machine Screw M4x12 (10 Pcs.) | ||||
| 28 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 29 | 949453 | 1.05 | 1.27 | |
| Nut M4 (10 Pieces) | ||||
| 30 | 949554 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 31 | 949216 | 1.05 | 1.27 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 32 | 930804 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 33A | 931067 | |||
| No information available, not orderable | ||||
| 36 | 500429Z | |||
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 37 | 959144 | 3.00 | 3.63 | |
| Cord Armor D10.7 | ||||
| 38 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 38 | 958049 | 1.04 | 1.26 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 39 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 40 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 930960 | |||
| No information available, not orderable | ||||
| 42 | 930966 | |||
| No information available, not orderable | ||||
| 42A | 328211 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 47 | 608VVM | 5.70 | 6.90 | |
| BEARING COVER | ||||
| 48 | 930901 | 2.22 | 2.69 | |
| No information available, not orderable | ||||
| 50 | 930791 | |||
| Machine Screw M5x40 (OLD 949248Z) | ||||
| 55 | 949248 | 1.80 | 2.18 | |
| Machine Screw M5x30 (10 Pcs.) | ||||
| 56 | 949245 | 1.65 | 2.00 | |
| Spring Washer M5 (10 pieces) | ||||
| 57 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 58 | 930784 | |||
| No information available, not orderable | ||||
| 61 | 930729 | |||
| No information available, not orderable | ||||
| 62 | 930730 | |||
| No information available, not orderable | ||||
| 63 | 930939 | |||
| No information available, not orderable | ||||
| 64 | 930732 | |||
| Wing Bolt M6x10 (10 Pcs.) | ||||
| 65 | 949394 | 7.05 | 8.53 | |
| RIVET D2.5X3.2 (10 PCS.) | ||||
| 68 | 949509 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 69 | 950265 | |||
| No information available, not orderable | ||||
| 69A | 950284 | |||
| No information available, not orderable | ||||
| 70 | 930904 | |||
| No information available, not orderable | ||||
| 70A | 930733 | |||
| No information available, not orderable | ||||
| 71A | 930964 | |||
| WASHER | ||||
| 72 | 930890 | 1.00 | 1.21 | |
| Ring | ||||
| 73 | 967261 | 1.05 | 1.27 | |
| Ball Bearing 6203vvcmps2l | ||||
| 74 | 6203VV | 7.80 | 9.44 | |
| No information available, not orderable | ||||
| 75 | 930787G | |||
