Here you will find all available parts and drawings of the 'Hikoki PS7-BS3'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

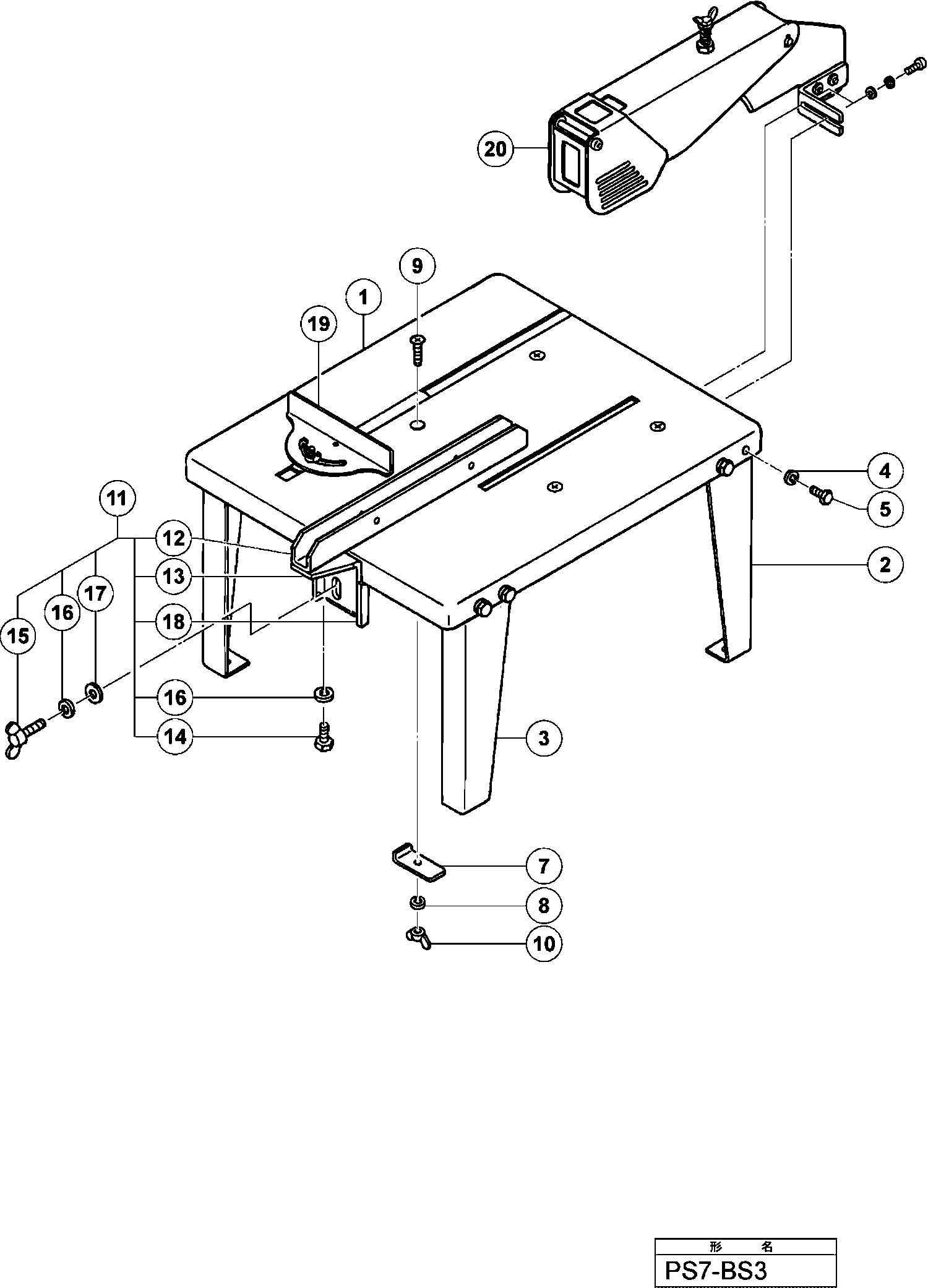

Technical drawing of model Hikoki PS7-BS3
Spare parts list of model Hikoki PS7-BS3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 957672 | |||
| No information available, not orderable | ||||
| 2 | 957670 | |||
| No information available, not orderable | ||||
| 3 | 957671 | |||
| Spring Washer M8 (10 Pcs.) | ||||
| 4 | 949457 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 5 | 949621 | |||
| No information available, not orderable | ||||
| 7 | 940894 | |||
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 8 | 949455 | 1.05 | 1.27 | |
| Flat Hd. Screw M6x25 (10 Pcs.) | ||||
| 9 | 949342 | 1.65 | 2.00 | |
| Wing Nut M6 (10 Pcs.) | ||||
| 10 | 949313 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 11 | 957374 | |||
| No information available, not orderable | ||||
| 12 | 957375 | |||
| No information available, not orderable | ||||
| 13 | 957376 | |||
| Bolt M8x16 (10 Pcs.) | ||||
| 14 | 949622 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 15 | 949413 | |||
| Spring Washer M8 (10 Pcs.) | ||||
| 16 | 949457 | 1.05 | 1.27 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 17 | 949433 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 18 | 957377 | |||
| No information available, not orderable | ||||
| 19 | 941878 | |||
