Here you will find all available parts and drawings of the 'Hikoki PR-38E'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

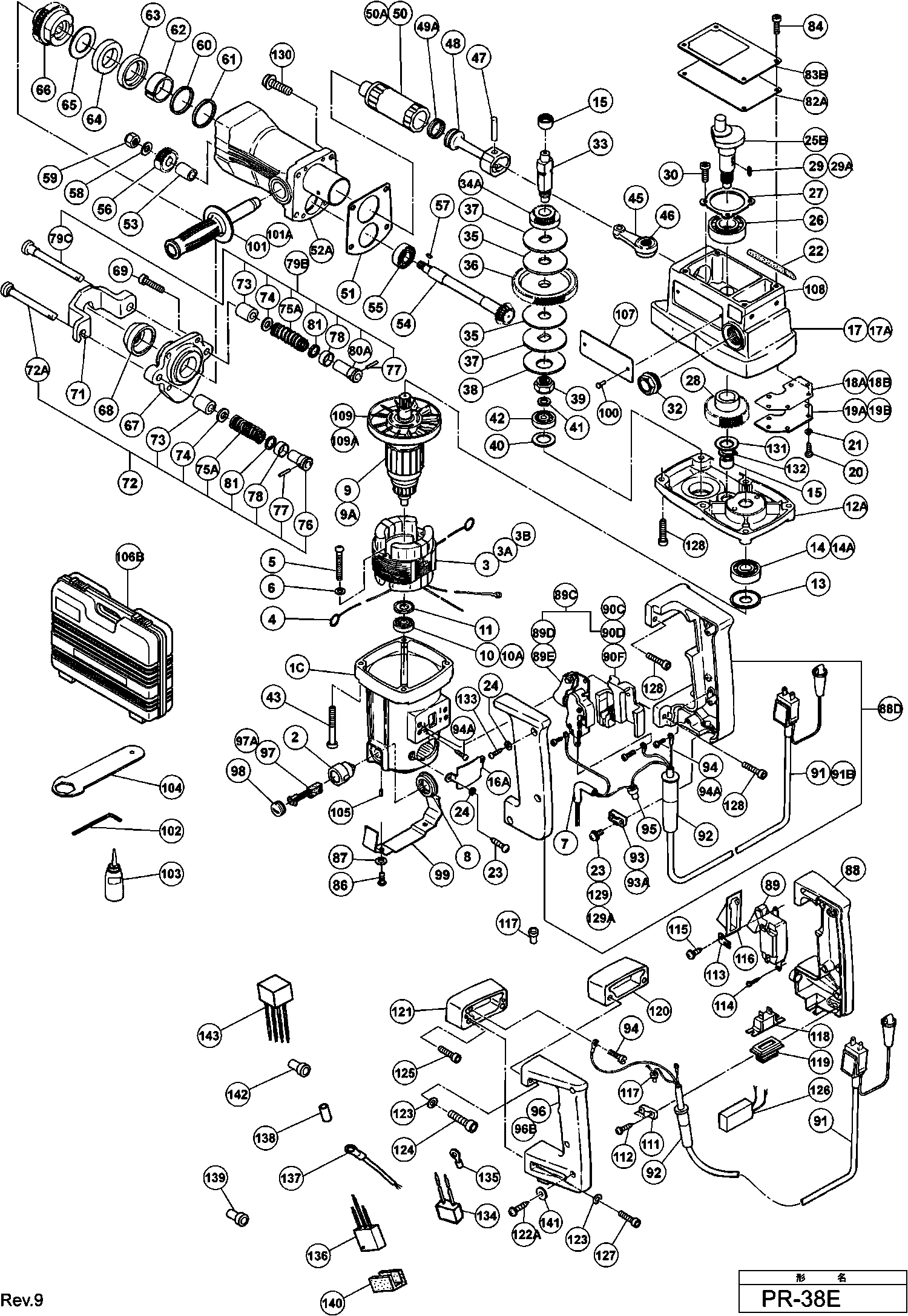

Technical drawing of model Hikoki PR-38E
Spare parts list of model Hikoki PR-38E
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *101 | 944457 | |||
| No information available, not orderable | ||||
| *129 | 957147 | |||
| Gear Cover Ass'y (metallic Silver Green) Includ.1 | ||||
| *12A | 332170 | 42.76 | 51.74 | |
| Noise Suppressor | ||||
| *136 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| *137 | 322272 | |||
| Housing Ass'y (metallic Silver Green) Includ.2,10 | ||||
| *1B | 332168 | 48.81 | 59.06 | |
| No information available, not orderable | ||||
| *1C | 332169 | |||
| Machine Screw M4x12 (10 Pcs.) | ||||
| *23 | 949217 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| *3 | 944535F | |||
| Oil Gauge | ||||
| *32 | 955011 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| *3A | 944535K | |||
| Striker | ||||
| *50 | 956111 | 37.13 | 44.92 | |
| No information available, not orderable | ||||
| *50A | 322058 | |||
| Retainer Rod (b) Ass'y Includ.73-75,77,78,79c,80a | ||||
| *79B | 971107 | 21.18 | 25.62 | |
| Handle And Handle Cover Set | ||||
| *88B | 971168 | 25.71 | 31.11 | |
| Handle Ass'y (a) Metallic Silver Green Includ.93a | ||||
| *88D | 334511 | 47.03 | 56.90 | |
| Switch (a) (1p Screw Type) W/o | ||||
| *89D | 971162 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| *9 | 971052E | |||
| No information available, not orderable | ||||
| *90C | 971163 | |||
| No information available, not orderable | ||||
| *90D | 981986Z | |||
| Support (f) Since 11.1995 | ||||
| *90F | 312408 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| *91 | 500452Z | |||
| No information available, not orderable | ||||
| *91B | 500478Z | |||
| Cord Armor D10.7 | ||||
| *92 | 940778 | 2.10 | 2.54 | |
| Housing Ass'y (metallic Silver Green) Includ.2,10 | ||||
| 1B | 332168 | 48.81 | 59.06 | |
| No information available, not orderable | ||||
| 1C | 332169 | |||
| Brush Holder | ||||
| 2 | 971001 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 3 | 944535F | |||
| No information available, not orderable | ||||
| 3A | 944535L | |||
| No information available, not orderable | ||||
| 3B | 340556G | |||
| Brush Terminal | ||||
| 4 | 930703 | 2.40 | 2.90 | |
| MACHINESCHROEF M5X55 (10 STUKS) | ||||
| 5 | 949233 | 1.62 | 1.96 | |
| Spring Washer M5 (10 pieces) | ||||
| 6 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 8 | 956127 | |||
| No information available, not orderable | ||||
| 9 | 971052F | |||
| No information available, not orderable | ||||
| 9A | 360608E | |||
| Ball Bearing 6000vvcmps2l | ||||
| 10 | 6000VV | 6.15 | 7.44 | |
| Ball Bearing 6000ddwcmns7l Since 6.1993 | ||||
| 10A | 6000DW | 4.65 | 5.63 | |
| Ring | ||||
| 11 | 944433 | 1.65 | 2.00 | |
| Gear Cover Ass'y (metallic Silver Green) Includ.1 | ||||
| 12A | 332170 | 42.76 | 51.74 | |
| Dust Seal (1) | ||||
| 13 | 971054 | 3.60 | 4.36 | |
| Ball Bearing 6202vvcmps2l | ||||
| 14 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 14A | 6202DW | |||
| Needle-roller Bearing | ||||
| 15 | 939299 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 16A | 332171 | |||
| CRANK CASE ASS'Y (SILVER GREEN) | ||||
| 17 | 971056 | 105.44 | 127.58 | |
| Crank Case Ass'y (metallic Silver Green) Includ.1 | ||||
| 17A | 331912 | 182.88 | 221.28 | |
| COVER SEAL (B) | ||||
| 18A | 971057 | 1.00 | 1.21 | |
| Cover Seal (b) Since 7.1978 | ||||
| 18B | 971098 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 19A | 971058 | |||
| Cover Plate (b) Since 7.1978 | ||||
| 19B | 971099 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 20 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 21 | 949453 | 1.05 | 1.27 | |
| Oil Felt | ||||
| 22 | 956967 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 23 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 24 | 949453 | 1.05 | 1.27 | |
| Crank Shaft Ass'y Includ.29a,131,132 | ||||
| 25B | 971167 | 43.86 | 53.07 | |
| Ball Bearing 6204dd | ||||
| 26 | 6204DD | 9.00 | 10.89 | |
| BEARING COVER (B) | ||||
| 27 | 971060 | 2.22 | 2.69 | |
| First Gear | ||||
| 28 | 971061 | 32.18 | 38.93 | |
| KEY PIN 3X13 | ||||
| 29 | 932815 | 1.35 | 1.63 | |
| Feather Key 3x3x12 Since 1.1986 | ||||
| 29A | 937177 | 1.65 | 2.00 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 30 | 949821 | 2.55 | 3.09 | |
| Oil Gauge | ||||
| 32 | 955011 | 10.95 | 13.25 | |
| OIL GAUGE (OLD 955011) | ||||
| 32A | 375619 | 5.52 | 6.68 | |
| No information available, not orderable | ||||
| 33 | 971062 | |||
| Bevel Gear | ||||
| 34A | 998543 | 25.99 | 31.44 | |
| Clutch Plate | ||||
| 35 | 981941 | 5.55 | 6.72 | |
| Second Gear | ||||
| 36 | 971064 | 33.55 | 40.60 | |
| SLIPKOPPELINGPLAAT | ||||
| 37 | 956207 | 1.98 | 2.40 | |
| Spring | ||||
| 38 | 944514 | 1.04 | 1.26 | |
| U-MOER | ||||
| 39 | 944515 | 1.00 | 1.21 | |
| Ring | ||||
| 40 | 944525 | 1.05 | 1.27 | |
| Ring | ||||
| 41 | 944516 | 1.04 | 1.26 | |
| Ball Bearing 629vv | ||||
| 42 | 629VVM | 5.85 | 7.08 | |
| HEX.SOCKET HD.BOLT M6X45 (10 PCS) | ||||
| 43 | 949832 | 3.06 | 3.70 | |
| DRIJFSTANG | ||||
| 45 | 956106 | 43.18 | 52.25 | |
| Needle Bearing (nsk Aj50 1203) | ||||
| 46 | 980756 | 10.65 | 12.89 | |
| Piston Pin | ||||
| 47 | 956110 | 1.65 | 2.00 | |
| Piston | ||||
| 48 | 971065 | 40.43 | 48.91 | |
| X-ring | ||||
| 49A | 971151 | 2.55 | 3.09 | |
| Striker | ||||
| 50 | 956111 | 37.13 | 44.92 | |
| No information available, not orderable | ||||
| 50A | 322058 | |||
| Seal Packing | ||||
| 51 | 971068 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52A | 331957 | |||
| @ METAL D12X20 | ||||
| 53 | 955975 | 2.94 | 3.56 | |
| Drive Shaft | ||||
| 54 | 956211 | 75.90 | 91.84 | |
| Ball Bearing 6001vv | ||||
| 55 | 6001VV | 6.60 | 7.99 | |
| LAATSTE TANDWIEL (OUD 944533) | ||||
| 56 | 971070 | 9.00 | 10.89 | |
| INLEGSPIE 3X10 *TD5-1-2* | ||||
| 57 | 932819 | 1.26 | 1.52 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 58 | 949457 | 1.05 | 1.27 | |
| U-BORGMOER M8 | ||||
| 59 | 944426 | 1.00 | 1.21 | |
| Cylinder Washer | ||||
| 60 | 956225 | 1.05 | 1.27 | |
| Urethane Ring | ||||
| 61 | 956224 | 9.30 | 11.25 | |
| Mouth | ||||
| 62 | 971071 | 11.55 | 13.98 | |
| Mouth Washer | ||||
| 63 | 971072 | 7.05 | 8.53 | |
| Damper | ||||
| 64 | 971073 | 10.65 | 12.89 | |
| Bearing Washer | ||||
| 65 | 971074 | 1.05 | 1.27 | |
| Final Gear | ||||
| 66 | 971075 | 55.41 | 67.05 | |
| Front Cover | ||||
| 67 | 971076 | 64.21 | 77.70 | |
| Dust Cover | ||||
| 68 | 971077 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M6x25 (10 Pcs.) | ||||
| 69 | 949652 | 3.30 | 3.99 | |
| Retainer (1) | ||||
| 71 | 971078 | 35.06 | 42.43 | |
| Retainer Rod (a) Ass'y Includ.72a-78,81 | ||||
| 72 | 971106 | 21.04 | 25.46 | |
| Retainer Rod (a) | ||||
| 72A | 971079 | 5.70 | 6.90 | |
| DAMPER (B) | ||||
| 73 | 971080 | 2.82 | 3.41 | |
| Washer M8 (10 Pcs.) | ||||
| 74 | 949426 | 1.05 | 1.27 | |
| SPRING | ||||
| 75A | 998558 | 1.38 | 1.67 | |
| STOPPER (L) | ||||
| 76 | 971082 | 4.68 | 5.66 | |
| NEEDLE ROLLER | ||||
| 77 | 971083 | 1.00 | 1.21 | |
| STOPPER RING | ||||
| 78 | 971084 | 1.00 | 1.21 | |
| Retainer Rod (b) Ass'y Includ.73-75,77,78,79c,80a | ||||
| 79B | 971107 | 21.18 | 25.62 | |
| No information available, not orderable | ||||
| 79C | 998557 | |||
| STOPPER (L) | ||||
| 80A | 971082 | 4.68 | 5.66 | |
| Stopper Washer | ||||
| 81 | 971087 | 1.04 | 1.26 | |
| Cover Seal | ||||
| 82A | 971088 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 83B | 332172 | 5.10 | 6.17 | |
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 84 | 949665 | 2.10 | 2.54 | |
| Machine Screw M5x8 (10 Pcs.) | ||||
| 86 | 949235 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 87 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 88 | 971146 | |||
| Handle And Handle Cover Set | ||||
| 88B | 971168 | 25.71 | 31.11 | |
| Handle Ass'y (a) Metallic Silver Green Includ.93a | ||||
| 88D | 334511 | 47.03 | 56.90 | |
| Switch (1p Screw Type) W/o Lock For Kor | ||||
| 89 | 956433 | 15.54 | 18.80 | |
| Switch Ass'y (1p Screw Type) W/o Lock Includ.89d, | ||||
| 89C | 971161 | 32.18 | 38.93 | |
| Switch (a) (1p Screw Type) W/o | ||||
| 89D | 971162 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 89E | 981533Z | |||
| No information available, not orderable | ||||
| 90C | 971163 | |||
| No information available, not orderable | ||||
| 90D | 981986Z | |||
| Support (f) Since 11.1995 | ||||
| 90F | 312408 | 7.05 | 8.53 | |
| Cord | ||||
| 91 | 930044 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 91B | 500478Z | |||
| Cord Armor D10.7 | ||||
| 92 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 92 | 958049 | 1.04 | 1.26 | |
| CORD CLIP | ||||
| 93 | 930108 | 1.00 | 1.21 | |
| Cord Clip | ||||
| 93A | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 94 | 949292 | |||
| Machine Screw (w/sp. Washer) M4x8 Since D106801 | ||||
| 94A | 958523 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 95 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 96 | 971147 | |||
| Carbon Brush (1 Pair) | ||||
| 97 | 999043 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 97A | 999073 | 14.40 | 17.42 | |
| Brush Cap | ||||
| 98 | 935829 | 1.05 | 1.27 | |
| ACHTERDEKSEL | ||||
| 99 | 971091 | 3.48 | 4.21 | |
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 100 | 949510 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 101 | 944457 | |||
| No information available, not orderable | ||||
| 101A | 328656 | |||
| No information available, not orderable | ||||
| 102 | 944459 | |||
| Lubricant Oiler (120cc) | ||||
| 103 | 931848 | 8.40 | 10.16 | |
| Lubricant Oiler (120cc) | ||||
| 103A | 931848 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 104 | 971109 | |||
| Hex Adjustment Screw M5x8 | ||||
| 105 | 938477 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 106B | 312831 | |||
| Fan | ||||
| 109 | 971097 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 109A | 322059 | |||
| Cord Clip | ||||
| 111 | 937631 | 1.04 | 1.26 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 112 | 982095 | 1.04 | 1.26 | |
| WIRE CLIP | ||||
| 113 | 956252 | 1.00 | 1.21 | |
| Screw | ||||
| 114 | 954017 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 115 | 930446 | |||
| Switch Cover | ||||
| 116 | 971793 | 3.00 | 3.63 | |
| Connector 50091 (10 Pcs.) | ||||
| 117 | 959140 | 3.30 | 3.99 | |
| Switch | ||||
| 118 | 953261 | 13.50 | 16.34 | |
| Switch Cover | ||||
| 119 | 971792 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 120 | 971128Z | |||
| No information available, not orderable | ||||
| 121 | 971148 | |||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 122A | 307028 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 123 | 949425 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x50 | ||||
| 124 | 986491 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 For Kor | ||||
| 125 | 987707 | 1.05 | 1.27 | |
| DIODE 100V-127V | ||||
| 126 | 956613 | 14.90 | 18.03 | |
| Hex. Socket Hd. Bolt M6x22 (10 Pcs.) | ||||
| 127 | 949670 | 3.00 | 3.63 | |
| Hex. Socket Hd. Bolt M6x22 (10 Pcs.) | ||||
| 128 | 949670 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 129 | 957147 | |||
| No information available, not orderable | ||||
| 129A | 984750 | |||
| HEX. SOCKET HD.BOLT M6X22 | ||||
| 130 | 971392 | 1.00 | 1.21 | |
| Washer (a) | ||||
| 131 | 983719 | 1.05 | 1.27 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 132 | 939544 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 133 | 956636 | |||
| Noise Suppressor | ||||
| 134 | 930039 | 1.95 | 2.36 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 135 | 959144 | 3.00 | 3.63 | |
| Noise Suppressor | ||||
| 136 | 994273 | 4.29 | 5.19 | |
| Noise Suppressor | ||||
| 136 | 930039 | 1.95 | 2.36 | |
| No longer available, no replacement | ||||
| 137 | 985289 | |||
| Threaded cable sleeve | ||||
| 138 | 981373 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 139 | 959140 | 3.30 | 3.99 | |
| Rubber | ||||
| 140 | 930153 | 1.04 | 1.26 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 141 | 949429 | 1.05 | 1.27 | |
| Connector 50092 (10 Pcs.) | ||||
| 142 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 143 | 328657 | |||
| No information available, not orderable | ||||
| 601 | 955994 | |||
| No information available, not orderable | ||||
| 602 | 955995 | |||
| No information available, not orderable | ||||
| 603 | 955996 | |||
| No information available, not orderable | ||||
| 604 | 955998 | |||
| No information available, not orderable | ||||
| 605 | 956000 | |||
| No information available, not orderable | ||||
| 606 | 955154 | |||
| No information available, not orderable | ||||
| 607 | 955155 | |||
| No information available, not orderable | ||||
| 608 | 956002 | |||
| No information available, not orderable | ||||
| 609 | 955157 | |||
| No information available, not orderable | ||||
| 610 | 956004 | |||
| No information available, not orderable | ||||
| 611 | 955159 | |||
| No information available, not orderable | ||||
| 612 | 955997 | |||
| No information available, not orderable | ||||
| 613 | 955999 | |||
| No information available, not orderable | ||||
| 614 | 956001 | |||
| No information available, not orderable | ||||
| 615 | 955166 | |||
| No information available, not orderable | ||||
| 616 | 955167 | |||
| No information available, not orderable | ||||
| 617 | 956003 | |||
| No information available, not orderable | ||||
| 618 | 955168 | |||
| No information available, not orderable | ||||
| 619 | 956005 | |||
| No information available, not orderable | ||||
| 620 | 955169 | |||
| No information available, not orderable | ||||
| 621 | 955163 | |||
| No information available, not orderable | ||||
| 622 | 956008 | |||
| No information available, not orderable | ||||
| 623 | 955165 | |||
| No information available, not orderable | ||||
| 624 | 956009 | |||
| No information available, not orderable | ||||
| 625 | 955186 | |||
| No information available, not orderable | ||||
| 626 | 981890 | |||
| No information available, not orderable | ||||
| 627 | 981904 | |||
| No information available, not orderable | ||||
| 628 | 981891 | |||
| No information available, not orderable | ||||
| 629 | 981905 | |||
| No information available, not orderable | ||||
| 630 | 981892 | |||
| No information available, not orderable | ||||
| 631 | 981906 | |||
| No information available, not orderable | ||||
| 632 | 981893 | |||
| No information available, not orderable | ||||
| 633 | 981907 | |||
| No information available, not orderable | ||||
| 634 | 981895 | |||
| No information available, not orderable | ||||
| 635 | 981909 | |||
| No information available, not orderable | ||||
| 636 | 981896 | |||
| No information available, not orderable | ||||
| 637 | 981910 | |||
| No information available, not orderable | ||||
| 638 | 981911 | |||
| No information available, not orderable | ||||
| 639 | 981912 | |||
| No information available, not orderable | ||||
| 640 | 981913 | |||
| No information available, not orderable | ||||
| 642 | 944477 | |||
| No information available, not orderable | ||||
| 643 | 981919 | |||
| No information available, not orderable | ||||
| 644 | 981920 | |||
| No information available, not orderable | ||||
| 645 | 981921 | |||
| No information available, not orderable | ||||
| 646 | 981929 | |||
| No information available, not orderable | ||||
| 647 | 981930 | |||
| No information available, not orderable | ||||
| 648 | 981931 | |||
| No information available, not orderable | ||||
| 650 | 944574 | |||
| No information available, not orderable | ||||
| 651 | 981922 | |||
| No information available, not orderable | ||||
| 652 | 981923 | |||
| No information available, not orderable | ||||
| 653 | 981925 | |||
| No information available, not orderable | ||||
| 654 | 981926 | |||
| No information available, not orderable | ||||
| 655 | 944460 | |||
| No information available, not orderable | ||||
| 656 | 944461 | |||
| No information available, not orderable | ||||
| 657 | 993038 | |||
| No information available, not orderable | ||||
| 659 | 944500 | |||
| No information available, not orderable | ||||
| 661 | 944464 | |||
| No information available, not orderable | ||||
| 662A | 318085 | |||
| OMALA Oil (1 liter) | ||||
| 663 | 955009 | 21.04 | 25.46 | |
| No information available, not orderable | ||||
| 664 | 971105 | |||
| No information available, not orderable | ||||
| 665 | 980734 | |||
| No information available, not orderable | ||||
| 666 | 956126 | |||
| OLIEPAKKING | ||||
| 667 | 980982 | 1.38 | 1.67 | |
| No information available, not orderable | ||||
| 668 | 998561 | |||
| No information available, not orderable | ||||
| 669 | 998562 | |||
| No information available, not orderable | ||||
| 670 | 320859 | |||
| Oil Felt | ||||
| 671 | 324896 | 3.75 | 4.54 | |
