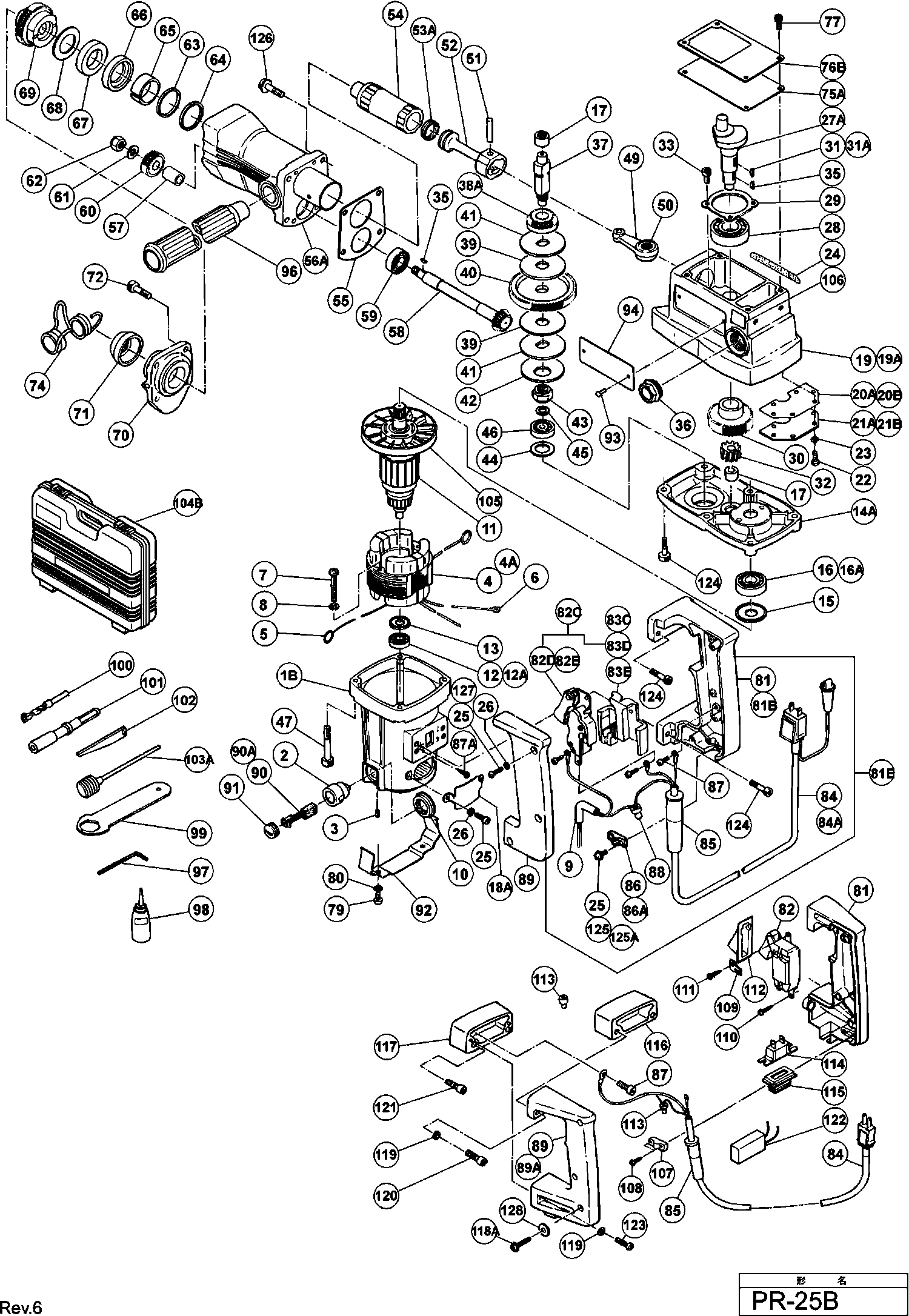

Technical drawing of model Hikoki PR-25B
Spare parts list of model Hikoki PR-25B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Ass'y (metallic Silver Green) Includ.2,10 | ||||
| 1B | 332168 | 48.81 | 59.06 | |
| Brush Holder | ||||
| 2 | 971001 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 3 | 938477 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 4 | 944535F | |||
| No information available, not orderable | ||||
| 4A | 944535K | |||
| Brush Terminal | ||||
| 5 | 930703 | 2.40 | 2.90 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 6 | 930804 | 3.00 | 3.63 | |
| MACHINE SCREW M5X55 (10 PCS.) | ||||
| 7 | 949233 | 1.62 | 1.96 | |
| Spring Washer M5 (10 pieces) | ||||
| 8 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 10 | 956127 | |||
| No information available, not orderable | ||||
| 11 | 971052F | |||
| Ball Bearing 6000vvcmps2l | ||||
| 12 | 6000VV | 6.15 | 7.44 | |
| Ball Bearing 6000ddwcmns7l Since 6.1993 | ||||
| 12A | 6000DW | 4.65 | 5.63 | |
| Ring | ||||
| 13 | 944433 | 1.65 | 2.00 | |
| Gear Cover Ass'y (metallic Silver Green) Includ.1 | ||||
| 14A | 332170 | 42.76 | 51.74 | |
| Dust Seal (1) | ||||
| 15 | 971054 | 3.60 | 4.36 | |
| Ball Bearing 6202vvcmps2l | ||||
| 16 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 16A | 6202DW | |||
| Needle-roller Bearing | ||||
| 17 | 939299 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 18A | 332171 | |||
| CRANKCASE ASSEMBLY (SILVER GREEN) | ||||
| 19 | 971056 | 105.44 | 127.58 | |
| Crank Case Ass'y (metallic Silver Green) Includ.1 | ||||
| 19A | 331912 | 182.88 | 221.28 | |
| COVER SEAL (B) | ||||
| 20A | 971057 | 1.00 | 1.21 | |
| Cover Seal (b) Since 7.1978 | ||||
| 20B | 971098 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21A | 971058 | |||
| Cover Plate (b) Since 7.1978 | ||||
| 21B | 971099 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 22 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 23 | 949453 | 1.05 | 1.27 | |
| Oil Felt | ||||
| 24 | 956967 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 25 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 26 | 949453 | 1.05 | 1.27 | |
| CRANKSHAFT | ||||
| 27A | 971150 | 28.38 | 34.34 | |
| Ball Bearing 6204dd | ||||
| 28 | 6204DD | 9.00 | 10.89 | |
| Bearing cover (B) | ||||
| 29 | 971060 | 2.22 | 2.69 | |
| First Gear | ||||
| 30 | 971061 | 32.18 | 38.93 | |
| KEY PIN 3X13 | ||||
| 31 | 932815 | 1.35 | 1.63 | |
| Feather Key 3x3x12 Since 1.1986 | ||||
| 31A | 937177 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 32 | 971141 | |||
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 33 | 949821 | 2.55 | 3.09 | |
| FEATHER KEY 3X10 *TD5-1-2* | ||||
| 35 | 932819 | 1.26 | 1.52 | |
| Oil Gauge | ||||
| 36 | 955011 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| 37 | 971062 | |||
| Bevel Gear | ||||
| 38A | 998543 | 25.99 | 31.44 | |
| Clutch Plate | ||||
| 39 | 981941 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 40 | 971142 | |||
| Slip clutch plate | ||||
| 41 | 956207 | 1.98 | 2.40 | |
| Spring | ||||
| 42 | 944514 | 1.04 | 1.26 | |
| U-NUT | ||||
| 43 | 944515 | 1.00 | 1.21 | |
| Ring | ||||
| 44 | 944525 | 1.05 | 1.27 | |
| Ring | ||||
| 45 | 944516 | 1.04 | 1.26 | |
| Ball Bearing 629vv | ||||
| 46 | 629VVM | 5.85 | 7.08 | |
| HEX SOCKET HEAD BOLT M6 X 45 (10 PCS.) | ||||
| 47 | 949832 | 3.06 | 3.70 | |
| Drive rod | ||||
| 49 | 956106 | 43.18 | 52.25 | |
| Needle Bearing (nsk Aj50 1203) | ||||
| 50 | 980756 | 10.65 | 12.89 | |
| Piston Pin | ||||
| 51 | 956110 | 1.65 | 2.00 | |
| Piston | ||||
| 52 | 971065 | 40.43 | 48.91 | |
| X-ring | ||||
| 53A | 971151 | 2.55 | 3.09 | |
| Striker | ||||
| 54 | 956275 | 36.44 | 44.09 | |
| Seal Packing | ||||
| 55 | 971068 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 56A | 331957 | |||
| @ METAL D12X20 | ||||
| 57 | 955975 | 2.94 | 3.56 | |
| Drive Shaft | ||||
| 58 | 956211 | 75.90 | 91.84 | |
| Ball Bearing 6001vv | ||||
| 59 | 6001VV | 6.60 | 7.99 | |
| Final gear (old 944533) | ||||
| 60 | 971070 | 9.00 | 10.89 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 61 | 949457 | 1.05 | 1.27 | |
| U-LOCK NUT M8 | ||||
| 62 | 944426 | 1.00 | 1.21 | |
| Cylinder Washer | ||||
| 63 | 956225 | 1.05 | 1.27 | |
| Urethane Ring | ||||
| 64 | 956224 | 9.30 | 11.25 | |
| Mouth | ||||
| 65 | 971071 | 11.55 | 13.98 | |
| Mouth Washer | ||||
| 66 | 971072 | 7.05 | 8.53 | |
| Damper | ||||
| 67 | 971073 | 10.65 | 12.89 | |
| Bearing Washer | ||||
| 68 | 971074 | 1.05 | 1.27 | |
| Final Gear | ||||
| 69 | 971075 | 55.41 | 67.05 | |
| No information available, not orderable | ||||
| 70 | 956277 | |||
| Dust Cover | ||||
| 71 | 971077 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M6x25 (10 Pcs.) | ||||
| 72 | 949652 | 3.30 | 3.99 | |
| Retainer | ||||
| 74 | 956278 | 11.82 | 14.30 | |
| Cover Seal | ||||
| 75A | 971088 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 76B | 332172 | 5.10 | 6.17 | |
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 77 | 949665 | 2.10 | 2.54 | |
| Machine Screw M5x8 (10 Pcs.) | ||||
| 79 | 949235 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 80 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 81 | 971146 | |||
| Handle And Handle Cover Set | ||||
| 81B | 971168 | 25.71 | 31.11 | |
| Handle Ass'y (a) Metallic Silver Green Includ.93a | ||||
| 81E | 334511 | 47.03 | 56.90 | |
| Switch (1p Screw Type) W/o Lock For Kor | ||||
| 82 | 956433 | 15.54 | 18.80 | |
| Switch Ass'y (1p Screw Type) W/o Lock Includ.89d, | ||||
| 82C | 971161 | 32.18 | 38.93 | |
| Switch (a) (1p Screw Type) W/o | ||||
| 82D | 971162 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 82E | 981533Z | |||
| No information available, not orderable | ||||
| 83C | 971163 | |||
| No information available, not orderable | ||||
| 83D | 981986Z | |||
| Support (f) Since 11.1995 | ||||
| 83F | 312408 | 7.05 | 8.53 | |
| Cord | ||||
| 84 | 930044 | 38.50 | 46.58 | |
| No information available, not orderable | ||||
| 84A | 500445Z | |||
| Cord Armor D10.7 | ||||
| 85 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 85 | 958049 | 1.04 | 1.26 | |
| CORD CLIP | ||||
| 86 | 930108 | 1.00 | 1.21 | |
| Cord Clip | ||||
| 86A | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 87 | 949292 | |||
| Machine Screw (w/sp. Washer) M4x8 Since D106801 | ||||
| 87A | 958523 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 88 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 89 | 971147 | |||
| Carbon Brush (1 Pair) | ||||
| 90 | 999043 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 90A | 999073 | 14.40 | 17.42 | |
| Brush Cap | ||||
| 91 | 935829 | 1.05 | 1.27 | |
| Rear cover | ||||
| 92 | 971091 | 3.48 | 4.21 | |
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 93 | 949510 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 96 | 944457 | |||
| No information available, not orderable | ||||
| 97 | 944459 | |||
| Lubricant Oiler (120cc) | ||||
| 98 | 931848 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 99 | 971109 | |||
| No information available, not orderable | ||||
| 100 | 944500 | |||
| No information available, not orderable | ||||
| 101 | 981911 | |||
| No information available, not orderable | ||||
| 102 | 944477 | |||
| No information available, not orderable | ||||
| 104B | 312831 | |||
| Fan | ||||
| 105 | 971097 | 7.65 | 9.26 | |
| Cord Clip | ||||
| 107 | 937631 | 1.04 | 1.26 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 108 | 982095 | 1.04 | 1.26 | |
| Wire clip | ||||
| 109 | 956252 | 1.00 | 1.21 | |
| Screw | ||||
| 110 | 954017 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 111 | 930446 | |||
| Switch Cover | ||||
| 112 | 971793 | 3.00 | 3.63 | |
| Connector 50091 (10 Pcs.) | ||||
| 113 | 959140 | 3.30 | 3.99 | |
| Switch | ||||
| 114 | 953261 | 13.50 | 16.34 | |
| Switch Cover | ||||
| 115 | 971792 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 116 | 971128Z | |||
| No information available, not orderable | ||||
| 117 | 971148 | |||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 118A | 307028 | 1.05 | 1.27 | |
| Washer M6 (10 Pcs.) | ||||
| 119 | 949425 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x50 | ||||
| 120 | 986491 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 For Kor | ||||
| 121 | 987707 | 1.05 | 1.27 | |
| DIODE 100V-127V | ||||
| 122 | 956613 | 14.90 | 18.03 | |
| Hex. Socket Hd. Bolt M6x22 (10 Pcs.) | ||||
| 123 | 949670 | 3.00 | 3.63 | |
| Hex. Socket Hd. Bolt M6x22 (10 Pcs.) | ||||
| 124 | 949670 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 125 | 957147 | |||
| No information available, not orderable | ||||
| 125A | 984750 | |||
| HEX. SOCKET HEAD BOLT M6X22 | ||||
| 126 | 971392 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 127 | 956636 | |||
| Bolt Washer M4 (10 Pcs.) | ||||
| 128 | 949429 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 955994 | |||
| No information available, not orderable | ||||
| 602 | 955995 | |||
| No information available, not orderable | ||||
| 603 | 955996 | |||
| No information available, not orderable | ||||
| 604 | 955998 | |||
| No information available, not orderable | ||||
| 605 | 956000 | |||
| No information available, not orderable | ||||
| 606 | 955154 | |||
| No information available, not orderable | ||||
| 607 | 955155 | |||
| No information available, not orderable | ||||
| 608 | 956002 | |||
| No information available, not orderable | ||||
| 609 | 955997 | |||
| No information available, not orderable | ||||
| 610 | 955999 | |||
| No information available, not orderable | ||||
| 611 | 956001 | |||
| No information available, not orderable | ||||
| 612 | 955166 | |||
| No information available, not orderable | ||||
| 613 | 955167 | |||
| No information available, not orderable | ||||
| 614 | 956003 | |||
| No information available, not orderable | ||||
| 615 | 955163 | |||
| No information available, not orderable | ||||
| 616 | 956008 | |||
| No information available, not orderable | ||||
| 617 | 955165 | |||
| No information available, not orderable | ||||
| 618 | 956009 | |||
| No information available, not orderable | ||||
| 619 | 955186 | |||
| No information available, not orderable | ||||
| 620 | 981890 | |||
| No information available, not orderable | ||||
| 621 | 981904 | |||
| No information available, not orderable | ||||
| 622 | 981891 | |||
| No information available, not orderable | ||||
| 623 | 981905 | |||
| No information available, not orderable | ||||
| 624 | 981892 | |||
| No information available, not orderable | ||||
| 625 | 981906 | |||
| No information available, not orderable | ||||
| 626 | 981893 | |||
| No information available, not orderable | ||||
| 627 | 981907 | |||
| No information available, not orderable | ||||
| 628 | 981911 | |||
| No information available, not orderable | ||||
| 629 | 981912 | |||
| No information available, not orderable | ||||
| 630 | 981913 | |||
| No information available, not orderable | ||||
| 632 | 944477 | |||
| No information available, not orderable | ||||
| 633 | 981919 | |||
| No information available, not orderable | ||||
| 634 | 981920 | |||
| No information available, not orderable | ||||
| 635 | 981921 | |||
| No information available, not orderable | ||||
| 636 | 981929 | |||
| No information available, not orderable | ||||
| 637 | 981930 | |||
| No information available, not orderable | ||||
| 638 | 981931 | |||
| No information available, not orderable | ||||
| 640 | 944574 | |||
| No information available, not orderable | ||||
| 641 | 981922 | |||
| No information available, not orderable | ||||
| 642 | 981923 | |||
| No information available, not orderable | ||||
| 643 | 981925 | |||
| No information available, not orderable | ||||
| 644 | 981926 | |||
| No information available, not orderable | ||||
| 645 | 944460 | |||
| No information available, not orderable | ||||
| 646 | 944461 | |||
| No information available, not orderable | ||||
| 647 | 993038 | |||
| No information available, not orderable | ||||
| 648 | 944500 | |||
| No information available, not orderable | ||||
| 650 | 944464 | |||
| OMALA Oil (1 liter) | ||||
| 651 | 955009 | 21.04 | 25.46 | |
| No information available, not orderable | ||||
| 652 | 980734 | |||
| No information available, not orderable | ||||
| 653 | 956126 | |||
| No information available, not orderable | ||||
| 654 | 981924 | |||
| OIL SEAL | ||||
| 655 | 980982 | 1.38 | 1.67 | |
| No information available, not orderable | ||||
| 656A | 318085 | |||
| No information available, not orderable | ||||
| 657 | 998561 | |||
| No information available, not orderable | ||||
| 658 | 998562 | |||
| No information available, not orderable | ||||
| 659 | 320859 | |||
| Oil Felt | ||||
| 660 | 324896 | 3.75 | 4.54 | |
