Here you will find all available parts and drawings of the 'Hikoki PH-40F'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

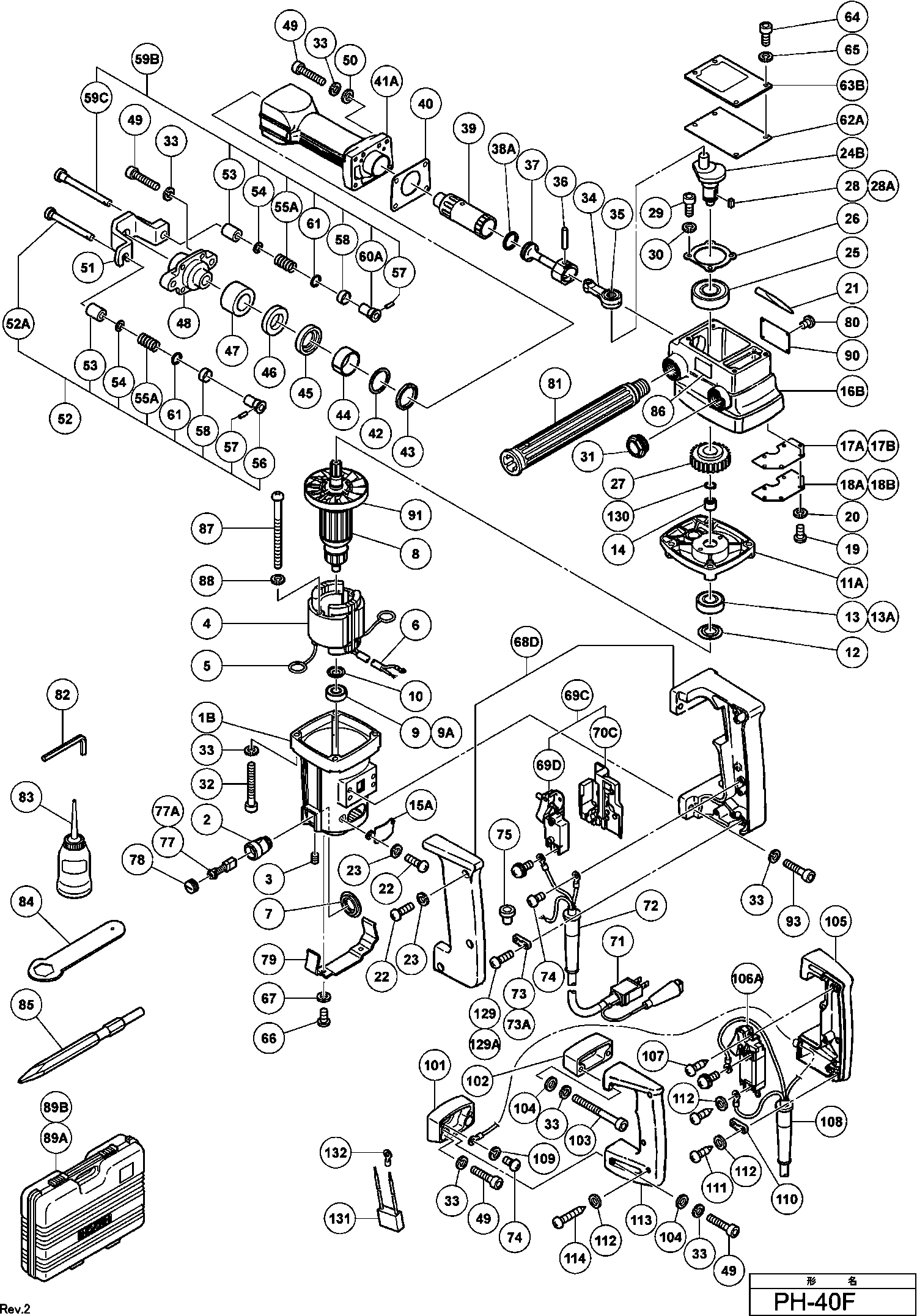

Technical drawing of model Hikoki PH-40F
Spare parts list of model Hikoki PH-40F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 220v-230v | ||||
| *4 | 944535E | 46.75 | 56.57 | |
| Stator Ass'y 240v Includ.4 | ||||
| *4 | 944535F | 46.75 | 56.57 | |
| No information available, not orderable | ||||
| *71 | 971136 | |||
| Cord Armor D10.7 | ||||
| *72 | 940778 | 2.10 | 2.54 | |
| Armature 230v | ||||
| *8 | 971052E | 87.59 | 105.98 | |
| Housing Ass'y (metallic Silver Green) Includ.2,10 | ||||
| 1B | 332168 | 48.81 | 59.06 | |
| Brush Holder | ||||
| 2 | 971001 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 3 | 938477 | 1.05 | 1.27 | |
| Stator Ass'y 240v Includ.4 | ||||
| 4 | 944535F | 46.75 | 56.57 | |
| Stator 220v-230v | ||||
| 4 | 944535E | 46.75 | 56.57 | |
| Brush Terminal | ||||
| 5 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 7 | 956127 | |||
| Armature 230v | ||||
| 8 | 971052E | 87.59 | 105.98 | |
| Armature Ass'y 240v | ||||
| 8 | 971052F | 87.59 | 105.98 | |
| Ball Bearing 6000vvcmps2l | ||||
| 9 | 6000VV | 6.15 | 7.44 | |
| Ball Bearing 6000ddwcmns7l Since 6.1993 | ||||
| 9A | 6000DW | 4.65 | 5.63 | |
| Ring | ||||
| 10 | 944433 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 11A | 332144 | |||
| Dust Seal (1) | ||||
| 12 | 971054 | 3.60 | 4.36 | |
| Ball Bearing 6202vvcmps2l | ||||
| 13 | 6202VV | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 13A | 6202DW | |||
| Needle-roller Bearing | ||||
| 14 | 939299 | 10.65 | 12.89 | |
| Side Cover (metallic Silver Green) Since 7.2009 | ||||
| 15A | 332171 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 16B | 332142 | |||
| COVER SEAL (B) | ||||
| 17A | 971057 | 1.00 | 1.21 | |
| Cover Seal (b) Since 7.1978 | ||||
| 17B | 971098 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 18A | 971058 | |||
| Cover Plate (b) Since 7.1978 | ||||
| 18B | 971099 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 19 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 20 | 949453 | 1.05 | 1.27 | |
| Oil Felt | ||||
| 21 | 956967 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 22 | 949217 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 23 | 949453 | 1.05 | 1.27 | |
| Crank Shaft Ass'y Includ.28a,130 | ||||
| 24B | 971393 | 37.95 | 45.92 | |
| Ball Bearing 6204dd | ||||
| 25 | 6204DD | 9.00 | 10.89 | |
| BEARING COVER (B) | ||||
| 26 | 971060 | 2.22 | 2.69 | |
| EERSTE TANDWIEL | ||||
| 27 | 971113 | 17.05 | 20.63 | |
| KEY PIN 3X13 | ||||
| 28 | 932815 | 1.35 | 1.63 | |
| Feather Key 3x3x12 Since 1.1986 | ||||
| 28A | 937177 | 1.65 | 2.00 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 29 | 949821 | 2.55 | 3.09 | |
| Spring Washer M5 (10 pieces) | ||||
| 30 | 949454 | 1.04 | 1.26 | |
| Oil Gauge | ||||
| 31 | 955011 | 10.95 | 13.25 | |
| OIL GAUGE (OLD 955011) | ||||
| 31A | 375619 | 5.52 | 6.68 | |
| HEX.SOCKET HD.BOLT M6X45 (10 PCS) | ||||
| 32 | 949832 | 3.06 | 3.70 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 33 | 949455 | 1.05 | 1.27 | |
| DRIJFSTANG | ||||
| 34 | 956106 | 43.18 | 52.25 | |
| Needle Bearing (nsk Aj50 1203) | ||||
| 35 | 980756 | 10.65 | 12.89 | |
| Piston Pin | ||||
| 36 | 956110 | 1.65 | 2.00 | |
| Piston | ||||
| 37 | 971065 | 40.43 | 48.91 | |
| X-ring | ||||
| 38A | 971151 | 2.55 | 3.09 | |
| Striker | ||||
| 39 | 956111 | 37.13 | 44.92 | |
| SEAL PACKING | ||||
| 40 | 971114 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 41A | 332143 | |||
| Cylinder Washer | ||||
| 42 | 956225 | 1.05 | 1.27 | |
| Urethane Ring | ||||
| 43 | 956224 | 9.30 | 11.25 | |
| Mouth | ||||
| 44 | 971071 | 11.55 | 13.98 | |
| Mouth Washer | ||||
| 45 | 971072 | 7.05 | 8.53 | |
| Damper | ||||
| 46 | 971073 | 10.65 | 12.89 | |
| HULS | ||||
| 47 | 971116 | 1.98 | 2.40 | |
| FRONT COVER | ||||
| 48 | 971117 | 38.44 | 46.51 | |
| Hex. Socket Hd. Bolt M6x25 (10 Pcs.) | ||||
| 49 | 949652 | 3.30 | 3.99 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 50 | 949432 | 1.05 | 1.27 | |
| RETAINER | ||||
| 51 | 971118 | 27.66 | 33.47 | |
| Retainer Rod (a) Ass'y Includ.72a-78,81 | ||||
| 52 | 971106 | 21.04 | 25.46 | |
| Retainer Rod (a) | ||||
| 52A | 971079 | 5.70 | 6.90 | |
| DAMPER (B) | ||||
| 53 | 971080 | 2.82 | 3.41 | |
| Washer M8 (10 Pcs.) | ||||
| 54 | 949426 | 1.05 | 1.27 | |
| SPRING | ||||
| 55A | 998558 | 1.38 | 1.67 | |
| STOPPER (L) | ||||
| 56 | 971082 | 4.68 | 5.66 | |
| NEEDLE ROLLER | ||||
| 57 | 971083 | 1.00 | 1.21 | |
| STOPPER RING | ||||
| 58 | 971084 | 1.00 | 1.21 | |
| Retainer Rod (b) Ass'y Includ.73-75,77,78,79c,80a | ||||
| 59B | 971107 | 21.18 | 25.62 | |
| No information available, not orderable | ||||
| 59C | 998557 | |||
| STOPPER (L) | ||||
| 60A | 971082 | 4.68 | 5.66 | |
| Stopper Washer | ||||
| 61 | 971087 | 1.04 | 1.26 | |
| COVER SEAL | ||||
| 62A | 971119 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 63B | 332145 | |||
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 64 | 949665 | 2.10 | 2.54 | |
| Spring Washer M5 (10 pieces) | ||||
| 65 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x8 (10 Pcs.) | ||||
| 66 | 949235 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 67 | 949454 | 1.04 | 1.26 | |
| Handle Ass'y (a) Metallic Silver Green Includ.93a | ||||
| 68D | 334511 | 47.03 | 56.90 | |
| Switch | ||||
| 69C | 971139 | 32.18 | 38.93 | |
| Switch (a) (1p Screw Type) W/lock Since 9.1981 (s | ||||
| 69D | 971390 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 70C | 971163 | |||
| No information available, not orderable | ||||
| 71 | 971136 | |||
| Cord Armor D10.7 | ||||
| 72 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 72 | 958049 | 1.04 | 1.26 | |
| CORD CLIP | ||||
| 73 | 930108 | 1.00 | 1.21 | |
| Cord Clip | ||||
| 73A | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 74 | 949292 | |||
| Connector 50092 (10 Pcs.) | ||||
| 75 | 959141 | 3.75 | 4.54 | |
| Carbon Brush (1 Pair) | ||||
| 77 | 999043 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 77A | 999073 | 14.40 | 17.42 | |
| Brush Cap | ||||
| 78 | 935829 | 1.05 | 1.27 | |
| ACHTERDEKSEL | ||||
| 79 | 971091 | 3.48 | 4.21 | |
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 80 | 949510 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 81 | 944457 | |||
| No information available, not orderable | ||||
| 82 | 944459 | |||
| Lubricant Oiler (120cc) | ||||
| 83 | 931848 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 84 | 971109 | |||
| No information available, not orderable | ||||
| 85 | 981922 | |||
| No information available, not orderable | ||||
| 86 | 955006C | |||
| MACHINESCHROEF M5X55 (10 STUKS) | ||||
| 87 | 949233 | 1.62 | 1.96 | |
| Spring Washer M5 (10 pieces) | ||||
| 88 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 89A | 971395 | |||
| No information available, not orderable | ||||
| 89B | 312831 | |||
| Fan | ||||
| 91 | 971097 | 7.65 | 9.26 | |
| Hex. Socket Hd. Bolt M6x22 (10 Pcs.) | ||||
| 93 | 949670 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 101 | 971127Z | |||
| No information available, not orderable | ||||
| 102 | 971128Z | |||
| Hex. Socket Hd. Bolt M6x50 (10 Pcs.) Since 1.1985 | ||||
| 103 | 949782 | 6.75 | 8.17 | |
| Washer M6 (10 Pcs.) | ||||
| 104 | 949425 | 1.05 | 1.27 | |
| HANDGREEP (A) | ||||
| 105 | 955291 | 7.50 | 9.08 | |
| Switch (2p Screw Type) W/o Lock Till 11.1982 For | ||||
| 106A | 971824Z | 35.06 | 42.43 | |
| Screw | ||||
| 107 | 954017 | 1.04 | 1.26 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 108 | 930026 | 3.00 | 3.63 | |
| Spring Washer M4 (10 pieces) | ||||
| 109 | 949453 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 110 | 937631 | 1.04 | 1.26 | |
| Tapping Screw D4X16 | ||||
| 111 | 954004 | 1.04 | 1.26 | |
| Washer M4 (10 Pcs.) | ||||
| 112 | 949423 | 1.05 | 1.27 | |
| HANDGREEP (B) | ||||
| 113 | 955292 | 4.68 | 5.66 | |
| Tapping Screw D4x25 For Aus (since 1.1985 For Saf | ||||
| 114 | 958705 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 129 | 949217 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 129A | 957147 | |||
| Retaining Ring For D18 Shaft (10 Pcs.) | ||||
| 130 | 939546 | 3.60 | 4.36 | |
| Noise Suppressor | ||||
| 131 | 930039 | 1.95 | 2.36 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 132 | 959144 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 602 | 944574 | |||
| No information available, not orderable | ||||
| 603A | 318085 | |||
| OMALA Oil (1 liter) | ||||
| 604 | 955009 | 21.04 | 25.46 | |
| No information available, not orderable | ||||
| 605 | 971105 | |||
| No information available, not orderable | ||||
| 606 | 955181 | |||
| No information available, not orderable | ||||
| 607 | 955183 | |||
| No information available, not orderable | ||||
| 608 | 955186 | |||
| No information available, not orderable | ||||
| 609 | 956126 | |||
| No information available, not orderable | ||||
| 610A | 323357 | |||
| No information available, not orderable | ||||
| 611 | 980734 | |||
| No information available, not orderable | ||||
| 612 | 980752 | |||
| No information available, not orderable | ||||
| 613 | 980753 | |||
| No information available, not orderable | ||||
| 614 | 981922 | |||
| No information available, not orderable | ||||
| 615 | 981923 | |||
| No information available, not orderable | ||||
| 616 | 981924 | |||
| No information available, not orderable | ||||
| 617 | 981925 | |||
| No information available, not orderable | ||||
| 618 | 981926 | |||
| No information available, not orderable | ||||
| 619 | 981929 | |||
| No information available, not orderable | ||||
| 620 | 981930 | |||
| No information available, not orderable | ||||
| 621 | 981931 | |||
| OLIEPAKKING | ||||
| 622 | 980982 | 1.38 | 1.67 | |
| No information available, not orderable | ||||
| 623 | 320859 | |||
| Oil Felt | ||||
| 624 | 324896 | 3.75 | 4.54 | |
