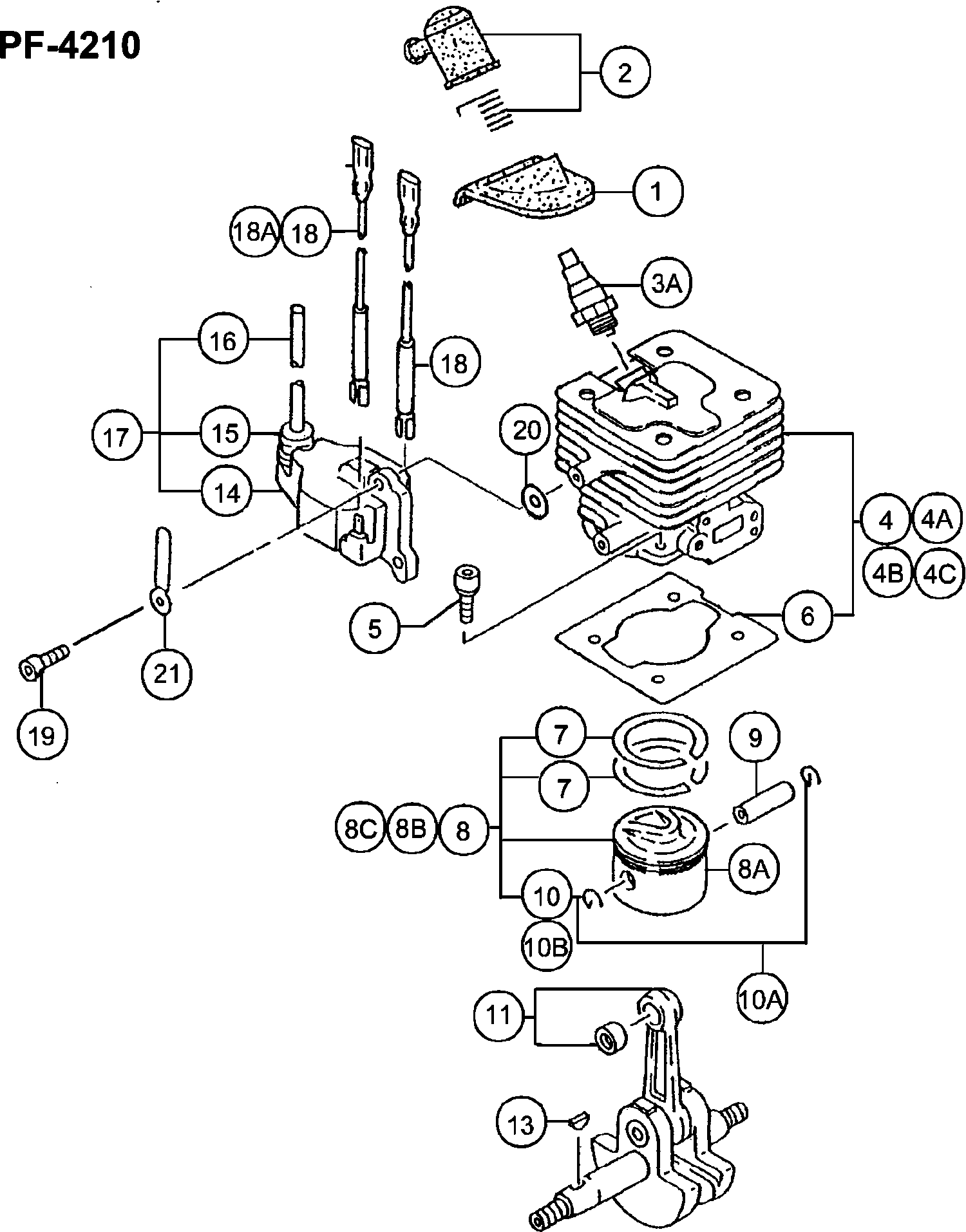

Technical drawing of model Hikoki PF-4210
Spare parts list of model Hikoki PF-4210
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Rubber Cover Till J032440 | ||||
| 1 | 6688336 | 3.30 | 3.99 | |
| Spark Plug Cap Ass'y | ||||
| 2 | 6687479 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpm6a | ||||
| 3A | 6699317 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| 4 | 6685476 | |||
| CYLINDER SET PN (OLD 001-04413-90) | ||||
| 4A | 6685477 | 48.02 | 58.10 | |
| No information available, not orderable | ||||
| 4B | 6685476 | |||
| CYLINDER SET PN (OLD 001-04413-90) | ||||
| 4C | 6685477 | 48.02 | 58.10 | |
| No information available, not orderable | ||||
| 5 | 6684668 | |||
| Cylinder Gasket | ||||
| 6 | 6685741 | 2.31 | 2.80 | |
| Piston Ring | ||||
| 7 | 6686123 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 8 | 6685889 | |||
| No information available, not orderable | ||||
| 8B | 6685889 | |||
| Piston Set | ||||
| 8C | 6685888 | 26.16 | 31.66 | |
| Piston Pin 10x30 | ||||
| 9 | 6686007 | 2.31 | 2.80 | |
| Piston Pin Circlip | ||||
| 10 | 6686032 | 1.15 | 1.39 | |
| Piston Pin Circlip (old 039-01000-20) | ||||
| 10A | 6686026 | 1.15 | 1.39 | |
| Piston Pin Circlip | ||||
| 10B | 6686032 | 1.15 | 1.39 | |
| Crank Shaft Comp. (old 046-04400-80) | ||||
| 11 | 6686192 | 84.40 | 102.12 | |
| Wood-ruff Key 3x13x5 | ||||
| 13 | 6686457 | 1.15 | 1.39 | |
| Ignition Coil Comp. | ||||
| 14 | 6687655 | 36.15 | 43.74 | |
| Rubber Cap | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| High Tension Cord | ||||
| 16 | 6687885 | 1.15 | 1.39 | |
| Ignition Coil Ass'y | ||||
| 17 | 6687657 | 30.25 | 36.60 | |
| No information available, not orderable | ||||
| 18 | 6687924 | |||
| No information available, not orderable | ||||
| 18A | 6687924 | |||
| Screw 4x18/ws (old 994-16040-183) | ||||
| 19 | 6695406 | 1.15 | 1.39 | |
| Washer T1.6 | ||||
| 20 | 6684600 | 2.15 | 2.60 | |
| Cord Clamp Comp. | ||||
| 21 | 6688011 | 1.15 | 1.39 | |
| Protector | ||||
| 31 | 6688348 | 4.45 | 5.38 | |
| Hex.hole Bolt 5x20/ps | ||||
| 32 | 6684634 | 2.15 | 2.60 | |
| Crank Case Ass'y | ||||
| 33 | 6686559 | 50.21 | 60.76 | |
| Crank Case Gasket | ||||
| 34 | 6686715 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 35 | 6695637 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 36 | 6695557 | |||
| Crank Shaft Shim 0.10 | ||||
| 37 | 6686470 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.20 | ||||
| 37 | 6686472 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.30 | ||||
| 37 | 6686473 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 38 | 6684786 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 39 | 6687372 | 19.96 | 24.15 | |
| Ring | ||||
| 40 | 6695198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 41 | 6695138 | |||
| Fan Housing | ||||
| 42 | 6686983 | 28.14 | 34.05 | |
| No information available, not orderable | ||||
| 43 | 6684668 | |||
| Primary Cord Grommet | ||||
| 44 | 6688057 | 1.15 | 1.39 | |
| Inlet Manifold Gasket | ||||
| 81 | 6689885 | 2.31 | 2.80 | |
| CARB.INSULATOR SET, SPARE (OLD 404-04300-90) | ||||
| 82 | 6689955 | 8.91 | 10.78 | |
| Carburetor Gasket | ||||
| 83 | 6689833 | 1.15 | 1.39 | |
| Collar | ||||
| 85 | 6690802 | 2.31 | 2.80 | |
| Cleaner Body Comp. | ||||
| 86 | 6690099 | 5.28 | 6.38 | |
| Choke Valve | ||||
| 87 | 6691258 | 1.15 | 1.39 | |
| Blow Over Check Board | ||||
| 88 | 6690843 | 1.15 | 1.39 | |
| Cleaner Element | ||||
| 89A | 6690352 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 90 | 6684658 | |||
| Cleaner Cover | ||||
| 91 | 6690397 | 3.30 | 3.99 | |
| Special Screw | ||||
| 92 | 6689737 | 1.15 | 1.39 | |
| Screw M5x60 | ||||
| 93 | 6684660 | 2.15 | 2.60 | |
| S.washer 5 | ||||
| 94 | 6684662 | 2.15 | 2.60 | |
| Carburetor Set, Pn Since B039001 | ||||
| 95 | 6690476 | 86.36 | 104.50 | |
| No information available, not orderable | ||||
| 96 | 6693248 | |||
| No information available, not orderable | ||||
| 97 | 6695425 | |||
| Tank Fixing Collar | ||||
| 98 | 6692182 | 2.31 | 2.80 | |
| SHIELD TUBE ASS'Y | ||||
| 99 | 6697939 | 15.07 | 18.23 | |
| Clip D6 | ||||
| 100A | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 101A | 6684620 | |||
| Tank Wht | ||||
| 102 | 6691539 | 11.88 | 14.37 | |
| No information available, not orderable | ||||
| 102A | 6699337 | |||
| Collar C | ||||
| 103 | 6684623 | 2.15 | 2.60 | |
| Air Vent Valve Ass'y For Aus | ||||
| 104 | 6692171 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 105 | 6697800 | |||
| Air Vent Assembly (old 564-06611-90) | ||||
| 106 | 6691389 | 10.23 | 12.37 | |
| No longer available, no replacement | ||||
| 107 | 6691768 | |||
| Hex.hole Bolt 5x20/ps | ||||
| 109 | 6684634 | 2.15 | 2.60 | |
| Engine Bed (old 940-04300-20) | ||||
| 110 | 6694785 | 4.95 | 5.99 | |
| No longer available, no replacement | ||||
| 111 | 6684880 | |||
| No longer available, no replacement | ||||
| 113 | 6688156 | |||
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 114 | 6684786 | 2.15 | 2.60 | |
| Washer M5 (black) | ||||
| 115 | 6684918 | 2.15 | 2.60 | |
| Pump Filter Ass'y Till Tl044140 | ||||
| 118 | 6601175 | 3.14 | 3.80 | |
| Muffler Protector | ||||
| 131 | 6692783 | 12.88 | 15.58 | |
| Hex.hole Bolt M5x12/s | ||||
| 132 | 6684667 | 2.15 | 2.60 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 134 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 135 | 6684639 | 2.15 | 2.60 | |
| Muffler Set, Pn Till B039000 | ||||
| 136 | 6692472 | 32.21 | 38.98 | |
| Washer M5 (black) | ||||
| 137 | 6684918 | 2.15 | 2.60 | |
| Tail Pipe | ||||
| 138 | 6692652 | 3.30 | 3.99 | |
| Ring | ||||
| 139 | 6685109 | 1.15 | 1.39 | |
| Muffler Arrestor (old 732-04400-20) | ||||
| 140 | 6692696 | 2.31 | 2.80 | |
| Muffler Gasket | ||||
| 141 | 6692741 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 142 | 6687246 | 9.58 | 11.59 | |
| Grommet | ||||
| 144A | 6688050 | 1.15 | 1.39 | |
| Ring | ||||
| 147 | 6689645 | 1.15 | 1.39 | |
| Clutch Arm Comp. | ||||
| 148 | 6688614 | 7.93 | 9.59 | |
| Clutch Spring | ||||
| 149 | 6689428 | 1.15 | 1.39 | |
| Washer | ||||
| 150 | 6695203 | 1.15 | 1.39 | |
| Clutch Step Bolt | ||||
| 151 | 6689632 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 152 | 6699556 | |||
| Recoil Starter Body Ass'y | ||||
| 171 | 6697645 | 21.78 | 26.35 | |
| No information available, not orderable | ||||
| 172 | 6693025 | |||
| Recoil Starter Body Comp | ||||
| 172A | 6697646 | 11.71 | 14.17 | |
| Starter Rope Reel | ||||
| 173 | 6693007 | 4.95 | 5.99 | |
| Starter Rope Reel | ||||
| 173A | 6697647 | 4.13 | 4.99 | |
| Recoil Spring | ||||
| 174 | 6693114 | 9.08 | 10.98 | |
| STARTER SPRING | ||||
| 174A | 6697648 | 7.08 | 8.57 | |
| Starter Rope (old 783-04270-20/6693164) | ||||
| 175 | 6693165 | 3.30 | 3.99 | |
| STARTER ROPE | ||||
| 175A | 6697649 | 2.64 | 3.19 | |
| No information available, not orderable | ||||
| 176 | 6693607 | |||
| Starter Handle | ||||
| 177 | 6693232 | 3.30 | 3.99 | |
| Starter Handle | ||||
| 177A | 6697650 | 2.80 | 3.39 | |
| Set Screw | ||||
| 178 | 6693634 | 1.15 | 1.39 | |
| Starter Pawl | ||||
| 179 | 6693302 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 179A | 6697643 | |||
| D4e Retaining Ring (old 993-55040-001) | ||||
| 180 | 6685101 | 1.15 | 1.39 | |
| Hex.hole Bolt 5x20/ps | ||||
| 181 | 6684634 | 2.15 | 2.60 | |
| Starter Pawl Spring | ||||
| 182 | 6693345 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 182A | 6697642 | |||
| Starter Pulley | ||||
| 183 | 6693395 | 11.05 | 13.37 | |
| Starter Pulley Ass'y | ||||
| 183A | 6697644 | 11.05 | 13.37 | |
| Hex. Hole Bolt M5x25/s | ||||
| 184 | 6684709 | 2.15 | 2.60 | |
| Washer M5 (black) | ||||
| 185 | 6684918 | 2.15 | 2.60 | |
| Small Nut 10 | ||||
| 186 | 6695139 | 1.05 | 1.27 | |
| Throttle Set Screw | ||||
| 191 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 192 | 6684873 | 6.44 | 7.79 | |
| Swivel | ||||
| 193 | 6684697 | 6.44 | 7.79 | |
| Thrust Washer | ||||
| 194 | 6684874 | 2.15 | 2.60 | |
| Stop Ring | ||||
| 195 | 6684696 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 196 | 6684871 | 4.29 | 5.19 | |
| O-RING (old 550-25100-20) | ||||
| 197 | 6684695 | 4.29 | 5.19 | |
| Main Jet, #44.5 (old 599-200bw-44/6691876) | ||||
| 198 | 6696131 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 199 | 6684872 | 2.15 | 2.60 | |
| Pump Gasket (old 577-25100-20) | ||||
| 200 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 201 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 202 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 203 | 6684879 | 62.16 | 75.22 | |
| Diaphragm Gasket | ||||
| 204 | 6684691 | 8.58 | 10.38 | |
| No longer available, no replacement | ||||
| 205 | 6690827 | |||
| Diaphragm Cover | ||||
| 206 | 6684688 | 8.58 | 10.38 | |
| Set Screw | ||||
| 207 | 6684699 | 2.15 | 2.60 | |
| Cleaner Packing | ||||
| 208 | 6684875 | 4.29 | 5.19 | |
| Priming Pump Comp. | ||||
| 209 | 6684687 | 16.34 | 19.77 | |
| Priming Body | ||||
| 210 | 6684689 | 6.44 | 7.79 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
