Here you will find all available parts and drawings of the 'Hikoki P20SF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

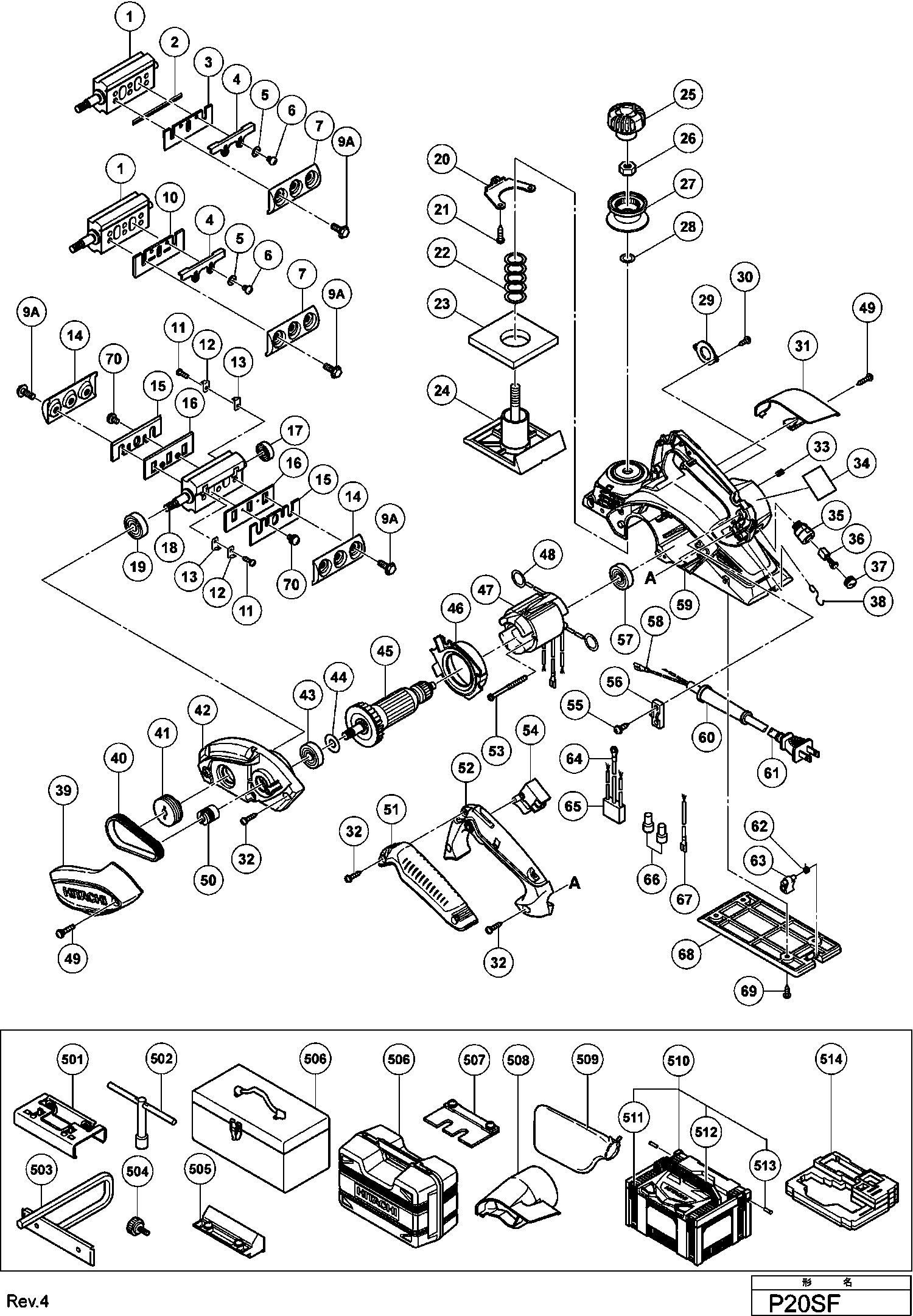

Technical drawing of model Hikoki P20SF
Spare parts list of model Hikoki P20SF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *12 | 958731Z | |||
| No information available, not orderable | ||||
| *13 | 958732Z | |||
| No information available, not orderable | ||||
| *15 | 958728 | |||
| Cutter Block Ass'y (w/b.b) Includ.1,3,57-59 For I | ||||
| *18 | 334481 | 20.90 | 25.29 | |
| KNOB | ||||
| *27 | 334488 | 2.10 | 2.54 | |
| Cord Holder | ||||
| *38 | 334736 | 1.20 | 1.45 | |
| Armature 230v | ||||
| *45 | 360936E | 30.53 | 36.94 | |
| Stator 220v-230v | ||||
| *47 | 340834E | 20.90 | 25.29 | |
| FIELD 110 VOLT | ||||
| *47 | 340834C | 19.47 | 23.56 | |
| Switch | ||||
| *54 | 334474 | 10.05 | 12.16 | |
| Switch | ||||
| *54 | 322101 | 6.75 | 8.17 | |
| Housing | ||||
| *59 | 334482 | 32.31 | 39.10 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *61 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *61 | 500247Z | 6.18 | 7.48 | |
| Connector 50091 (10 Pcs.) | ||||
| *66 | 959140 | 3.30 | 3.99 | |
| Cutter Block Ass'y (w/b.b) Includ.1,3 Except For | ||||
| 1 | 334480 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 2 | 879418 | |||
| No information available, not orderable | ||||
| 2A | 336571 | |||
| Set Plate (b) (1 Pair) For Double Edge Blade Type | ||||
| 3 | 334478 | 6.90 | 8.35 | |
| Clamping plate CS 50 EB | ||||
| 4 | 314754 | 3.30 | 3.99 | |
| Washer M4 (10 Pcs.) | ||||
| 5 | 949423 | 1.05 | 1.27 | |
| Machine Screw M4x5 (10 Pcs.) | ||||
| 6 | 949213 | 1.05 | 1.27 | |
| Blade Holder (1 Pair) Except For Ind | ||||
| 7 | 316398 | 12.75 | 15.43 | |
| Bolt M6 | ||||
| 9A | 336574 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 10 | 314746 | |||
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 11 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 12 | 958731Z | |||
| No information available, not orderable | ||||
| 13 | 958732Z | |||
| No information available, not orderable | ||||
| 14 | 958734Z | |||
| CHISEL HOLDER (1 SET) (OLD 958734Z) | ||||
| 14A | 378255 | 11.88 | 14.37 | |
| No information available, not orderable | ||||
| 15 | 958728 | |||
| No information available, not orderable | ||||
| 16 | 958733Z | |||
| CHISEL HOLDER SHIM PLATE (1 SET) (OLD 958733Z) | ||||
| 16A | 378253 | 8.10 | 9.80 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| Cutter Block Ass'y (w/b.b) Includ.1,3,57-59 For I | ||||
| 18 | 334481 | 20.90 | 25.29 | |
| Ball Bearing 6200vvcmps2l | ||||
| 19 | 6200VV | 6.15 | 7.44 | |
| Screw Plate | ||||
| 20 | 958945 | 1.65 | 2.00 | |
| Tapping Screw D4X16 | ||||
| 21 | 954004 | 1.04 | 1.26 | |
| Spring | ||||
| 22 | 958709 | 1.95 | 2.36 | |
| Rubber Packing | ||||
| 23 | 958708 | 1.65 | 2.00 | |
| Front Base | ||||
| 24 | 334739 | 9.15 | 11.07 | |
| KNOB | ||||
| 25 | 334494 | 2.10 | 2.54 | |
| Locknut M10 | ||||
| 26 | 334497 | 2.10 | 2.54 | |
| KNOB | ||||
| 27 | 334488 | 2.10 | 2.54 | |
| Washer | ||||
| 28 | 301659 | 1.04 | 1.26 | |
| Cover | ||||
| 29 | 334492 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 30 | 309470 | |||
| Tip Cover | ||||
| 31 | 334501 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 32 | 301653 | 1.04 | 1.26 | |
| Hex Adjustment Screw M5x8 | ||||
| 33 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 35 | 957571 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 36 | 999021 | |||
| Brush Cap | ||||
| 37 | 931266 | 1.04 | 1.26 | |
| Cord Holder | ||||
| 38 | 334736 | 1.20 | 1.45 | |
| CORD CLAMP | ||||
| 38 | 334498 | 1.20 | 1.45 | |
| Belt Cover | ||||
| 39 | 334487 | 2.10 | 2.54 | |
| Belt Cover | ||||
| 39B | 334487 | 2.10 | 2.54 | |
| V-belt | ||||
| 40 | 958718 | 9.30 | 11.25 | |
| Pulley (b) | ||||
| 41 | 334491 | 4.20 | 5.08 | |
| End Shield | ||||
| 42 | 334486 | 9.60 | 11.62 | |
| Ball Bearing 6200vvcmps2l | ||||
| 43 | 6200VV | 6.15 | 7.44 | |
| Washer (a) | ||||
| 44 | 334713 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 45 | 360936E | 30.53 | 36.94 | |
| Fan Guide | ||||
| 46 | 334493 | 1.20 | 1.45 | |
| Stator 220v-230v | ||||
| 47 | 340834E | 20.90 | 25.29 | |
| FIELD 110 VOLT | ||||
| 47 | 340834C | 19.47 | 23.56 | |
| Brush Terminal | ||||
| 48 | 931867 | 1.05 | 1.27 | |
| Machine Screw (black) M4x16 | ||||
| 49 | 333163 | 1.80 | 2.18 | |
| Pulley (a) | ||||
| 50 | 334490 | 3.15 | 3.81 | |
| Grip Cover | ||||
| 51 | 334485 | 5.70 | 6.90 | |
| Handle Cover | ||||
| 52 | 334484 | 4.20 | 5.08 | |
| Hex. Hd. Tapping Screw D4x60 | ||||
| 53 | 960108 | 1.04 | 1.26 | |
| Switch | ||||
| 54 | 334474 | 10.05 | 12.16 | |
| Switch | ||||
| 54 | 322101 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 55 | 984750 | |||
| Cord Clip | ||||
| 56 | 937631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 57 | 608VVM | 5.70 | 6.90 | |
| Faston | ||||
| 58 | 331707 | 1.88 | 2.27 | |
| Housing | ||||
| 59 | 334482 | 32.31 | 39.10 | |
| No information available, not orderable | ||||
| 60 | 953327 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 61 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 61 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 61 | 500247Z | 6.18 | 7.48 | |
| Spring | ||||
| 62 | 334500 | 1.20 | 1.45 | |
| Stand | ||||
| 63 | 334499 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 64 | 961419Z | |||
| Noise Suppressor | ||||
| 65 | 994273 | 4.29 | 5.19 | |
| Connector 50092 (10 Pcs.) | ||||
| 66 | 959141 | 3.75 | 4.54 | |
| Connector 50091 (10 Pcs.) | ||||
| 66 | 959140 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 67 | 331269 | |||
| Rear Base | ||||
| 68 | 334838 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 69 | 307811 | |||
| Machine Screw (w/washers) M4x8 For Ind | ||||
| 70 | 976815 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 334693 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 503 | 958842Z | |||
| SCREW | ||||
| 504 | 940650 | 1.05 | 1.27 | |
| Blade Holder for Sharpening | ||||
| 505 | 314767 | 3.30 | 3.99 | |
| BLADE SHARPENING ASS'Y (OLD 314767) | ||||
| 505A | 378861 | 2.16 | 2.61 | |
| No information available, not orderable | ||||
| 506 | 334735 | |||
| No information available, not orderable | ||||
| 507 | 316419 | |||
| No information available, not orderable | ||||
| 509 | 322955M | |||
| No information available, not orderable | ||||
| 510 | 337108 | |||
| No information available, not orderable | ||||
| 511 | 336472 | |||
| No information available, not orderable | ||||
| 512 | 336473 | |||
| No information available, not orderable | ||||
| 513 | 336474 | |||
| No information available, not orderable | ||||
| 514 | 337742 | |||
| No information available, not orderable | ||||
| 514A | 381535 | |||
| No information available, not orderable | ||||
| 601 | 334503 | |||
| DUST ADAPTER FOR PLANERS | ||||
| 602 | 334502 | 1.98 | 2.40 | |
| No information available, not orderable | ||||
| 603 | 322955 | |||
