Here you will find all available parts and drawings of the 'Hikoki NV90AB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

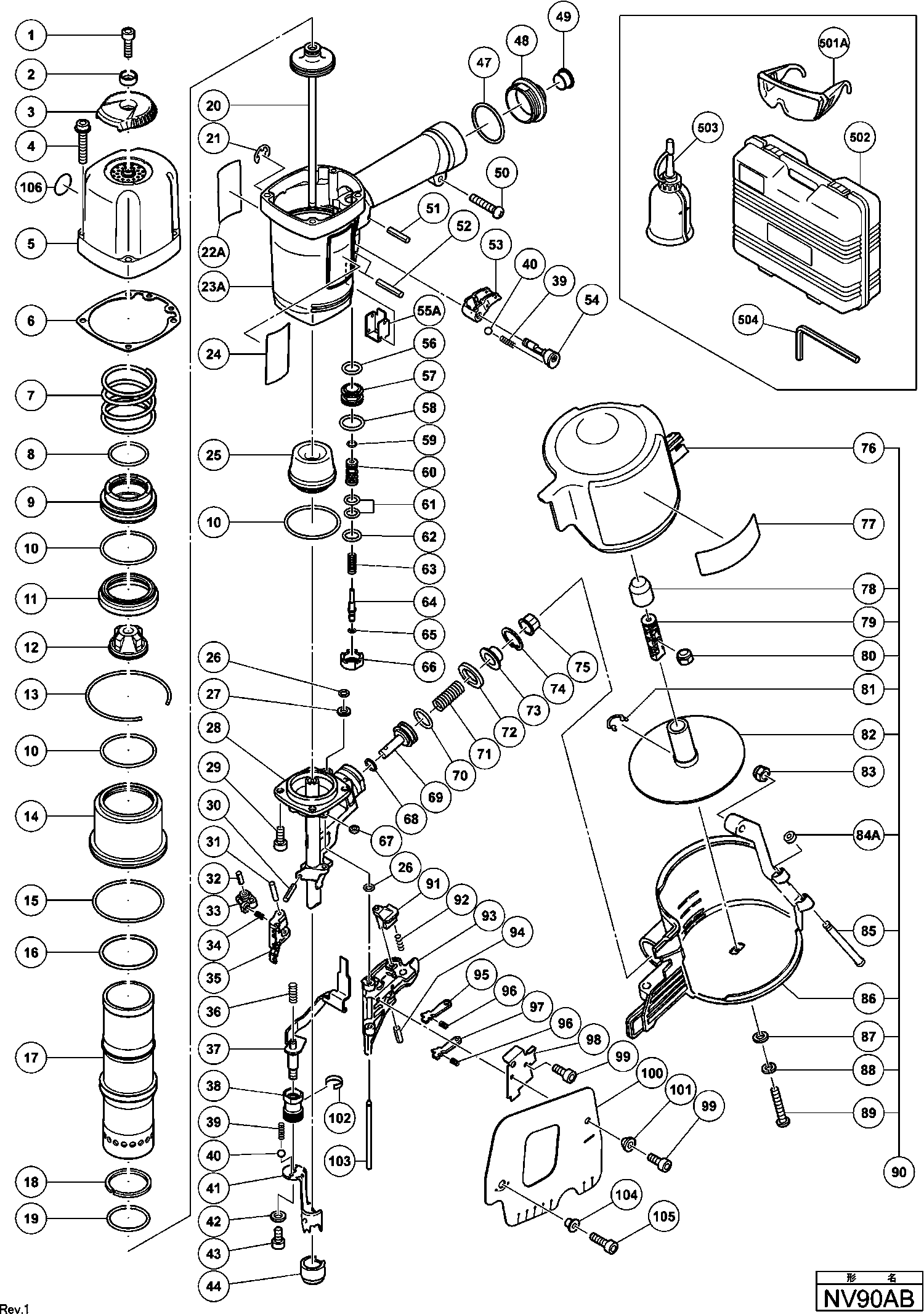

Technical drawing of model Hikoki NV90AB
Spare parts list of model Hikoki NV90AB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Body Ass'y (w/grip Rubber For H/k: Supplied With | ||||
| *23A | 882161 | 344.03 | 416.27 | |
| Cap (1) | ||||
| *48 | 882162 | 32.18 | 38.93 | |
| Baffle | ||||
| *48 | 880379 | 28.05 | 33.94 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 1 | 949755 | 3.00 | 3.63 | |
| Plate | ||||
| 2 | 880515 | 5.85 | 7.08 | |
| Top Cover | ||||
| 3 | 884332 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt (w/flange) M6x35 | ||||
| 4 | 301597 | 1.05 | 1.27 | |
| Exhaust Cover For H/k | ||||
| 5 | 882821 | 148.78 | 180.02 | |
| Gasket (b) | ||||
| 6 | 878919 | 3.00 | 3.63 | |
| Spring | ||||
| 7 | 878912 | 22.55 | 27.29 | |
| O-ring (i.d.38.5) | ||||
| 8 | 878913 | 1.95 | 2.36 | |
| Head Valve | ||||
| 9 | 878911 | 25.03 | 30.28 | |
| O-ring (i.d 52.6) | ||||
| 10 | 878372 | 3.60 | 4.36 | |
| Head Valve Rubber | ||||
| 11 | 878918 | 9.00 | 10.89 | |
| Exhaust Valve Rubber | ||||
| 12 | 878915 | 15.13 | 18.30 | |
| Washer Spring | ||||
| 13 | 880513 | 3.00 | 3.63 | |
| Cylinder Plate | ||||
| 14 | 880707 | 154.55 | 187.01 | |
| Cylinder O-ring (i.d 68.3) | ||||
| 15 | 874104 | 3.90 | 4.72 | |
| O-ring | ||||
| 16 | 878961 | 3.90 | 4.72 | |
| Cylinder | ||||
| 17 | 881007 | 117.84 | 142.58 | |
| Piston Ring | ||||
| 18 | 878931 | 36.99 | 44.75 | |
| O-ring | ||||
| 19 | 880127 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 20 | 880990 | |||
| Retaining Ring (e-type) For D6 Shaft | ||||
| 21 | 955479 | 1.05 | 1.27 | |
| Warning Label | ||||
| 22A | 884070 | 1.65 | 2.00 | |
| Body Ass'y (w/grip Rubber For H/k: Supplied With | ||||
| 23A | 882161 | 344.03 | 416.27 | |
| Frame | ||||
| 23A | 880510 | 215.46 | 260.71 | |
| Piston Bumper | ||||
| 25 | 880991 | 27.64 | 33.44 | |
| O-ring (p-4) | ||||
| 26 | 874436 | 1.05 | 1.27 | |
| Ring | ||||
| 27 | 878964 | 1.65 | 2.00 | |
| Nose | ||||
| 28 | 880992 | 520.30 | 629.56 | |
| Nylock High Tension Bolt M7x20 | ||||
| 29 | 993068 | 2.40 | 2.90 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 30 | 949685 | 2.55 | 3.09 | |
| Needle Roller | ||||
| 31 | 880998 | 2.40 | 2.90 | |
| Roll Pin D4x14 (10 Pcs.) | ||||
| 32 | 949770 | 2.55 | 3.09 | |
| Feeder Arm | ||||
| 33 | 878132 | 40.84 | 49.41 | |
| Feeder Spring | ||||
| 34 | 878340 | 1.05 | 1.27 | |
| Feeder | ||||
| 35 | 881372 | 35.06 | 42.43 | |
| Spring | ||||
| 36 | 878425 | 2.40 | 2.90 | |
| Pushing Lever (b) | ||||
| 37 | 880499 | 89.51 | 108.31 | |
| Adjuster | ||||
| 38 | 880082 | 39.05 | 47.25 | |
| Spring | ||||
| 39 | 982454 | 1.04 | 1.26 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 40 | 959155 | 1.04 | 1.26 | |
| Pushing Lever (a) | ||||
| 41 | 881000 | 64.21 | 77.70 | |
| Ring | ||||
| 42 | 880081 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M6x12 (10 Pcs.) | ||||
| 43 | 949657 | 3.00 | 3.63 | |
| Nose Cap (a) | ||||
| 44 | 880132 | 8.40 | 10.16 | |
| O-ring (i.d 37.2) | ||||
| 47 | 880183 | 1.05 | 1.27 | |
| Cap (1) | ||||
| 48 | 882162 | 32.18 | 38.93 | |
| Baffle | ||||
| 48 | 880379 | 28.05 | 33.94 | |
| Dust Cap | ||||
| 49 | 872035 | 1.04 | 1.26 | |
| Machine Screw M5x25 (black) | ||||
| 50 | 302316 | 1.04 | 1.26 | |
| Roll Pin D3x22 (10 Pcs.) | ||||
| 51 | 949864 | 1.65 | 2.00 | |
| Roll Pin D3x28 (10 Pcs.) | ||||
| 52 | 949865 | 2.55 | 3.09 | |
| Trigger (a) | ||||
| 53 | 880674 | 11.85 | 14.34 | |
| Change Button (b) | ||||
| 54 | 880086 | 23.10 | 27.95 | |
| Pushing Lever Guide | ||||
| 55A | 884336 | 3.30 | 3.99 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 56 | 877699 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 57 | 878881 | 39.74 | 48.08 | |
| O-ring (s-18) | ||||
| 58 | 878885 | 1.05 | 1.27 | |
| O-RING (S-4) | ||||
| 59 | 981317 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 60 | 880672 | 32.18 | 38.93 | |
| O-ring (I.D. 8.8) | ||||
| 61 | 878925 | 1.05 | 1.27 | |
| O-Ring (I.D.11) | ||||
| 62 | 878887 | 1.65 | 2.00 | |
| Plunger Spring | ||||
| 63 | 878884 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 64 | 880673 | 14.71 | 17.80 | |
| O-RING (I.D.1.8) | ||||
| 65 | 878888 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 66 | 880671 | 23.65 | 28.62 | |
| Shaft Ring | ||||
| 67 | 880319 | 1.65 | 2.00 | |
| O-ring (p-9) | ||||
| 68 | 872645 | 1.65 | 2.00 | |
| Feed Piston | ||||
| 69 | 880999 | 25.99 | 31.44 | |
| O-ring (p-21) | ||||
| 70 | 880330 | 1.05 | 1.27 | |
| Spring | ||||
| 71 | 877144 | 1.65 | 2.00 | |
| Damper | ||||
| 72 | 877711 | 1.95 | 2.36 | |
| Feed Piston Cover | ||||
| 73 | 880331 | 3.15 | 3.81 | |
| Retaining Ring For D28 Hole (10 Pcs.) | ||||
| 74 | 939555 | 4.35 | 5.26 | |
| Magazine Bushing | ||||
| 75 | 878305 | 1.04 | 1.26 | |
| Magazine Cover | ||||
| 76 | 881004 | 25.16 | 30.45 | |
| WARNING LABEL | ||||
| 77 | 880476 | 1.98 | 2.40 | |
| Holder Cap (a) | ||||
| 78 | 881003 | 2.40 | 2.90 | |
| Holder Shaft | ||||
| 79 | 880505 | 5.85 | 7.08 | |
| Nylon Nut M4 | ||||
| 80 | 876465 | 1.05 | 1.27 | |
| Ratchet Spring | ||||
| 81 | 880398 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 82 | 880503 | |||
| Nail Holder | ||||
| 82A | 890086 | 9.30 | 11.25 | |
| Nylon Nut M5 | ||||
| 83 | 877371 | 1.05 | 1.27 | |
| Feeder Shaft Ring | ||||
| 84A | 877826 | 2.55 | 3.09 | |
| Pin | ||||
| 85 | 880508 | 14.25 | 17.24 | |
| Magazine | ||||
| 86 | 881002 | 43.86 | 53.07 | |
| Washer M4 (10 Pcs.) | ||||
| 87 | 949423 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 88 | 949453 | 1.05 | 1.27 | |
| Machine Screw M4x35 (10 Pcs.) | ||||
| 89 | 949226 | 1.35 | 1.63 | |
| Magazine Ass'y Includ.76,78-82,84-89 | ||||
| 90 | 881001 | 125.40 | 151.73 | |
| Guide Lock | ||||
| 91 | 880495 | 25.44 | 30.78 | |
| Spring | ||||
| 92 | 880446 | 1.35 | 1.63 | |
| Guide Piece | ||||
| 93 | 881371 | 102.16 | 123.62 | |
| Roll Pin D3x8 (10 Pcs.) | ||||
| 94 | 949749 | 1.95 | 2.36 | |
| Nail Stopper (a) | ||||
| 95 | 880493 | 11.25 | 13.61 | |
| Spring | ||||
| 96 | 880494 | 2.40 | 2.90 | |
| Nail Stopper (b) | ||||
| 97 | 880994 | 9.60 | 11.62 | |
| Nail Guide Cover | ||||
| 98 | 880995 | 3.75 | 4.54 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 99 | 880413 | 1.05 | 1.27 | |
| Cover | ||||
| 100 | 880996 | 8.70 | 10.53 | |
| Sleeve (b) | ||||
| 101 | 878337 | 3.00 | 3.63 | |
| Nail Guide Shaft | ||||
| 103 | 880997 | 8.70 | 10.53 | |
| Sleeve | ||||
| 104 | 881005 | 6.45 | 7.80 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 105 | 949821 | 2.55 | 3.09 | |
| Warning Label (a) | ||||
| 106 | 883513 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501A | 875769 | |||
| CASE | ||||
| 502 | 880711 | 44.55 | 53.91 | |
| CASE | ||||
| 502 | 882822 | 44.55 | 53.91 | |
| No information available, not orderable | ||||
| 503 | 877153 | |||
| No information available, not orderable | ||||
| 504 | 943277 | |||
| No information available, not orderable | ||||
| 601 | 881012 | |||
| Grease (attolub No.2) 500g | ||||
| 602 | 317918 | 32.18 | 38.93 | |
| Grip Tape (a) | ||||
| 603 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 604A | 888213 | |||
| Hanger Parts Set For Europe | ||||
| 605 | 888098 | 522.78 | 632.56 | |
