Here you will find all available parts and drawings of the 'Hikoki NV83A2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

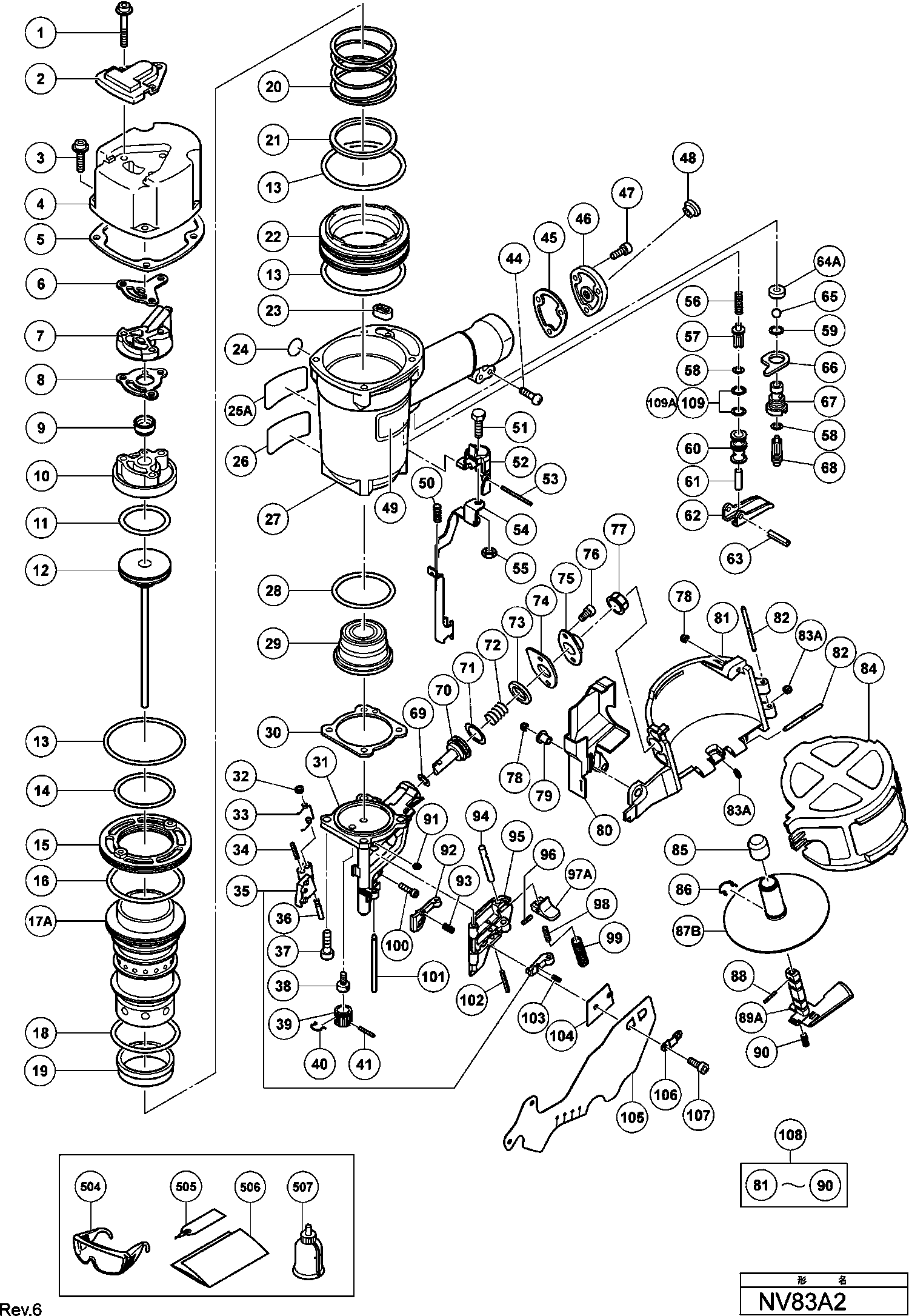

Technical drawing of model Hikoki NV83A2
Spare parts list of model Hikoki NV83A2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt (w/flange) M6x45 | ||||
| 1 | 883509 | 3.30 | 3.99 | |
| Cover Plate | ||||
| 2 | 877330 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 3 | 883507 | |||
| Exhaust Cover | ||||
| 4 | 877324 | 75.76 | 91.67 | |
| Gasket (b) | ||||
| 5 | 877325 | 4.50 | 5.44 | |
| Gasket (f) | ||||
| 6 | 877329 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 7 | 877328 | |||
| Gasket (c) | ||||
| 8 | 877854 | 2.40 | 2.90 | |
| Exhaust Valve | ||||
| 9 | 878417 | 5.85 | 7.08 | |
| Head Cap And Gasket Set | ||||
| 10 | 877852 | 35.06 | 42.43 | |
| O-ring (1ap-48) | ||||
| 11 | 877368 | 1.95 | 2.36 | |
| Piston (h) | ||||
| 12 | 878428 | 111.93 | 135.43 | |
| O-ring (s-90) | ||||
| 13 | 877316 | 2.55 | 3.09 | |
| Cylinder O-ring (i.d 63.1) | ||||
| 14 | 877312 | 1.95 | 2.36 | |
| Cylinder Plate | ||||
| 15 | 877318 | 20.49 | 24.79 | |
| Cylinder O-ring (i.d 79.3) | ||||
| 16 | 877313 | 1.95 | 2.36 | |
| Cylinder | ||||
| 17A | 884068 | 49.64 | 60.06 | |
| Cylinder O-ring (i.d 69.3) | ||||
| 18 | 877314 | 1.95 | 2.36 | |
| Cylinder Ring | ||||
| 19 | 877317 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 20 | 877321 | |||
| Ring | ||||
| 21 | 877322 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 22 | 877310 | |||
| Gasket (g) | ||||
| 23 | 877327 | 1.05 | 1.27 | |
| Warning Label (a) | ||||
| 24 | 883513 | 1.65 | 2.00 | |
| Warning Label | ||||
| 25A | 884070 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 26 | 878183 | |||
| Body (b) | ||||
| 27 | 884040 | 98.59 | 119.29 | |
| No longer available, no replacement | ||||
| 28 | 877315 | |||
| Piston Bumper (b) | ||||
| 29 | 883511 | 14.03 | 16.97 | |
| Gasket (a) | ||||
| 30 | 877334 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 31 | 884020 | |||
| Feeder Shaft Ring | ||||
| 32 | 877826 | 2.55 | 3.09 | |
| Feeder Spring | ||||
| 33 | 877851 | 3.00 | 3.63 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 34 | 949496 | 1.65 | 2.00 | |
| Feeder Set | ||||
| 35 | 877856 | 43.86 | 53.07 | |
| Feeder Shaft | ||||
| 36 | 877825 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 37 | 883492 | |||
| Adjuster Bolt | ||||
| 38 | 884030 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 39 | 884029 | |||
| Ratchet Spring (a) | ||||
| 40 | 884031 | 1.80 | 2.18 | |
| Roll Pin D2.5x18 (10 Pcs.) | ||||
| 41 | 949863 | 1.80 | 2.18 | |
| Machine Screw M5x25 (10 pieces) | ||||
| 44 | 949243 | 1.35 | 1.63 | |
| Gasket (d) | ||||
| 45 | 877331 | 1.05 | 1.27 | |
| Cap | ||||
| 46 | 878311 | 10.65 | 12.89 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 47 | 949658 | 1.80 | 2.18 | |
| Dust Cap | ||||
| 48 | 872035 | 1.04 | 1.26 | |
| Spring | ||||
| 50 | 877365 | 1.95 | 2.36 | |
| Spring | ||||
| 50 | 878423 | 1.05 | 1.27 | |
| Safety Bolt | ||||
| 51 | 875650 | 1.05 | 1.27 | |
| Valve Guard | ||||
| 52 | 884027 | 3.45 | 4.17 | |
| Roll Pin D3x45 | ||||
| 53 | 884025 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 54 | 884026 | |||
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 55 | 949555 | 1.05 | 1.27 | |
| Plunger Spring | ||||
| 56 | 875643 | 1.05 | 1.27 | |
| PLUNGER (2 needed) | ||||
| 57 | 884039 | 25.58 | 30.95 | |
| O-ring | ||||
| 58 | 874820 | 1.65 | 2.00 | |
| O-ring (s-12) | ||||
| 59 | 875638 | 1.65 | 2.00 | |
| Valve Bushing | ||||
| 60 | 878266 | 16.50 | 19.96 | |
| Safety Plunger (b) | ||||
| 61 | 875642 | 8.70 | 10.53 | |
| Trigger | ||||
| 62 | 876203 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 63 | 949866 | 3.60 | 4.36 | |
| Valve Packing | ||||
| 64A | 888151 | 1.04 | 1.26 | |
| Urethane Ball (c) D7.14 | ||||
| 65 | 875645 | 3.90 | 4.72 | |
| Valve Plate | ||||
| 66 | 875644 | 1.05 | 1.27 | |
| Trigger Valve Bushing | ||||
| 67 | 877335 | 12.60 | 15.25 | |
| Trigger Plunger | ||||
| 68 | 878121 | 1.65 | 2.00 | |
| O-ring (p-9) | ||||
| 69 | 872645 | 1.65 | 2.00 | |
| Feed Piston | ||||
| 70 | 877709 | 17.33 | 20.96 | |
| O-ring (p-22) | ||||
| 71 | 876796 | 1.05 | 1.27 | |
| Spring | ||||
| 72 | 877144 | 1.65 | 2.00 | |
| Damper | ||||
| 73 | 877711 | 1.95 | 2.36 | |
| Feed Piston Cover (a) | ||||
| 74 | 877827 | 1.65 | 2.00 | |
| Feed Piston Cover | ||||
| 75 | 877713 | 2.55 | 3.09 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 76 | 877839 | 1.05 | 1.27 | |
| Magazine Bushing | ||||
| 77 | 878305 | 1.04 | 1.26 | |
| Nylon Nut M5 | ||||
| 78 | 877371 | 1.05 | 1.27 | |
| Sleeve | ||||
| 79 | 882907 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 80 | 884028 | |||
| Magazine | ||||
| 81 | 884033 | 16.09 | 19.47 | |
| Pin | ||||
| 82 | 883111 | 9.75 | 11.80 | |
| Feeder Shaft Ring | ||||
| 83A | 877826 | 2.55 | 3.09 | |
| Magazine Cover | ||||
| 84 | 884034 | 12.90 | 15.61 | |
| Holder Cap | ||||
| 85 | 884038 | 1.65 | 2.00 | |
| Ratchet Spring | ||||
| 86 | 884037 | 3.30 | 3.99 | |
| Nail Holder Set (old 884036) | ||||
| 87A | 884078 | 7.95 | 9.62 | |
| Roll Pin D2.5x18 (10 Pcs.) | ||||
| 88 | 949863 | 1.80 | 2.18 | |
| Holder Shaft | ||||
| 89A | 884079 | 4.35 | 5.26 | |
| Spring | ||||
| 90 | 881826 | 1.05 | 1.27 | |
| Shaft Ring | ||||
| 91 | 880319 | 1.65 | 2.00 | |
| Sub Nail Stopper | ||||
| 92 | 878401 | 22.83 | 27.62 | |
| Sub Stopper Spring | ||||
| 93 | 877468 | 1.05 | 1.27 | |
| Lock Shaft | ||||
| 94 | 877820 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 95 | 884021 | |||
| Roll Pin D3x10 (10 Pcs.) | ||||
| 96 | 949776 | 2.40 | 2.90 | |
| Guide Lock (a) | ||||
| 97A | 326774 | 7.05 | 8.53 | |
| Spring | ||||
| 98 | 877372 | 2.40 | 2.90 | |
| Spring | ||||
| 99 | 878425 | 2.40 | 2.90 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 100 | 949757 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 101 | 884024 | |||
| Roll Pin D3x28 (10 Pcs.) | ||||
| 102 | 949865 | 2.55 | 3.09 | |
| Main Stopper Spring | ||||
| 103 | 876681 | 1.65 | 2.00 | |
| Nail Guide Cover | ||||
| 104 | 877469 | 1.05 | 1.27 | |
| Cover | ||||
| 105 | 884023 | 1.50 | 1.82 | |
| Plate | ||||
| 106 | 884022 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 107 | 877838 | 1.05 | 1.27 | |
| Complete Magazine | ||||
| 108 | 884032 | 42.49 | 51.41 | |
| O-ring (s-12) | ||||
| 109 | 875638 | 1.65 | 2.00 | |
| O-ring (i.d 10.7) | ||||
| 109A | 884112 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 504 | 875769 | |||
| Caution Tag | ||||
| 505 | 882413 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 506 | 882414 | |||
| No information available, not orderable | ||||
| 507 | 877153 | |||
| No information available, not orderable | ||||
| 601 | 876762 | |||
| Grip Tape (a) | ||||
| 603 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 604A | 888213 | |||
