Here you will find all available parts and drawings of the 'Hikoki NV65HMC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

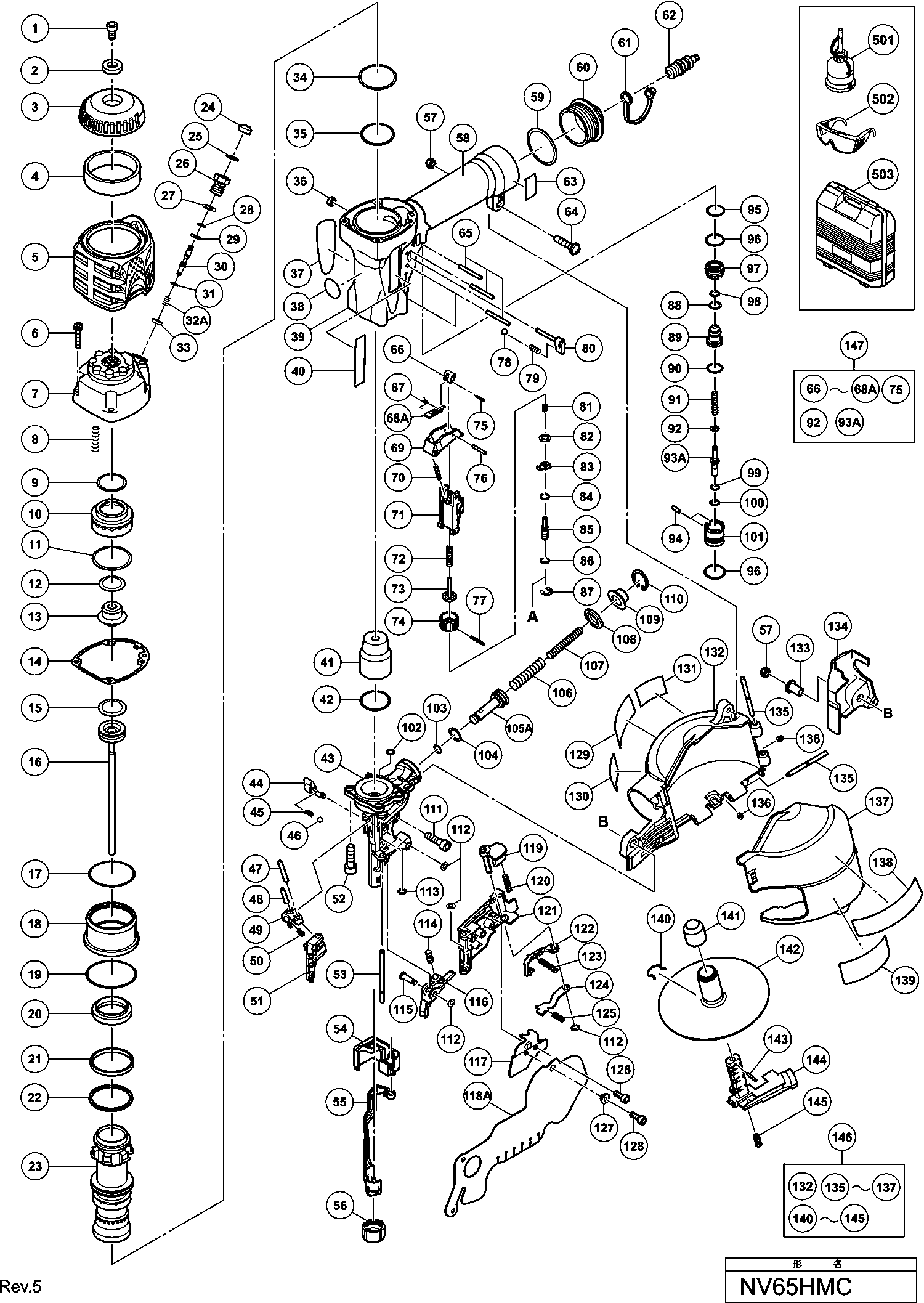

Technical drawing of model Hikoki NV65HMC
Spare parts list of model Hikoki NV65HMC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 980046 | |||
| Plate | ||||
| 2 | 887026 | 5.10 | 6.17 | |
| Top Cover | ||||
| 3 | 887025 | 5.10 | 6.17 | |
| Muffler | ||||
| 4 | 886658 | 5.10 | 6.17 | |
| Protector | ||||
| 5 | 886423 | 6.75 | 8.17 | |
| Nylock Bolt M5x25 | ||||
| 6 | 881262 | 2.70 | 3.27 | |
| Exhaust Cover (gold) | ||||
| 7 | 886421 | 82.36 | 99.66 | |
| Head Valve Spring | ||||
| 8 | 886418 | 1.80 | 2.18 | |
| O-ring | ||||
| 9 | 883770 | 1.80 | 2.18 | |
| Head Valve | ||||
| 10 | 886416 | 30.25 | 36.60 | |
| O-ring | ||||
| 11 | 886417 | 3.45 | 4.17 | |
| O-ring | ||||
| 12 | 883774 | 3.45 | 4.17 | |
| Exhaust Rubber | ||||
| 13 | 886419 | 14.70 | 17.79 | |
| Gasket | ||||
| 14 | 883789 | 6.75 | 8.17 | |
| O-ring | ||||
| 15 | 883751 | 10.35 | 12.52 | |
| Piston (h) | ||||
| 16 | 886402 | 100.65 | 121.79 | |
| Cylinder O-ring (d) | ||||
| 17 | 877126 | 1.65 | 2.00 | |
| Separater | ||||
| 18 | 886420 | 39.74 | 48.08 | |
| O-ring (1as-50) | ||||
| 19 | 990067 | 1.65 | 2.00 | |
| Valve Rubber | ||||
| 20 | 883768 | 9.45 | 11.43 | |
| Cylinder Bumper | ||||
| 21 | 883956 | 7.35 | 8.89 | |
| Cylinder Washer | ||||
| 22 | 883955 | 6.75 | 8.17 | |
| Cylinder | ||||
| 23 | 886415 | 140.25 | 169.70 | |
| Knob | ||||
| 24 | 884334 | 1.65 | 2.00 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 25 | 968643 | 1.95 | 2.36 | |
| Valve Bushing | ||||
| 26 | 885027 | 20.21 | 24.46 | |
| O-ring (s-10) | ||||
| 27 | 987105 | 1.05 | 1.27 | |
| O-ring (s3) | ||||
| 28 | 881715 | 1.05 | 1.27 | |
| O-ring (1ap-3) | ||||
| 29 | 873093 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30 | 885028 | |||
| Plunger | ||||
| 30A | 886044 | 18.29 | 22.13 | |
| O-Ring | ||||
| 31 | 878607 | 1.05 | 1.27 | |
| Spring | ||||
| 32A | 887177 | 1.20 | 1.45 | |
| Gasket | ||||
| 33 | 884338 | 1.05 | 1.27 | |
| O-ring (p-36) | ||||
| 34 | 931835 | 1.65 | 2.00 | |
| O-ring (p-32) | ||||
| 35 | 986374 | 1.65 | 2.00 | |
| Feeder Shaft Ring | ||||
| 36 | 886669 | 1.80 | 2.18 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 36A | 968643 | 1.95 | 2.36 | |
| Warning Label (a) | ||||
| 38 | 883513 | 1.65 | 2.00 | |
| Body Ass'y Includ.58 | ||||
| 39 | 887173 | 134.20 | 162.38 | |
| Brand Plate | ||||
| 40 | 886342 | 1.80 | 2.18 | |
| Brand Plate | ||||
| 40A | 886342 | 1.80 | 2.18 | |
| Piston Bumper | ||||
| 41 | 885195 | 6.75 | 8.17 | |
| O-ring (s-38) | ||||
| 42 | 980717 | 1.35 | 1.63 | |
| Nose | ||||
| 43 | 886403 | 256.03 | 309.79 | |
| Change Knob | ||||
| 44 | 886409 | 3.45 | 4.17 | |
| Lock Spring | ||||
| 45 | 882923 | 1.80 | 2.18 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 46 | 959148 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 47 | 880659 | 1.05 | 1.27 | |
| ROLL PIN D4X18 (10 PCS.) | ||||
| 48 | 949498 | 1.74 | 2.11 | |
| Feeder Arm (b) | ||||
| 49 | 883144 | 46.75 | 56.57 | |
| Feeder Spring | ||||
| 50 | 883143 | 1.65 | 2.00 | |
| Feeder (a) | ||||
| 51 | 886406 | 26.26 | 31.78 | |
| Nylock High Tension Bolt M6x20 | ||||
| 52 | 880675 | 4.05 | 4.90 | |
| Nail Guide Shaft | ||||
| 53 | 883755 | 7.35 | 8.89 | |
| Pushing Lever Cover (a) | ||||
| 54 | 883761 | 5.10 | 6.17 | |
| Pushing Lever (a) | ||||
| 55 | 887024 | 67.10 | 81.19 | |
| Nose Cap | ||||
| 56 | 886650 | 3.45 | 4.17 | |
| Nylon Nut M5 | ||||
| 57 | 877371 | 1.05 | 1.27 | |
| O-ring (i.d 37.2) | ||||
| 59 | 880183 | 1.05 | 1.27 | |
| Cap (gold) | ||||
| 60 | 886426 | 20.21 | 24.46 | |
| Dust Cap | ||||
| 61 | 877914 | 1.95 | 2.36 | |
| Air Plug L-pt 1/4 | ||||
| 62 | 883135 | 14.99 | 18.13 | |
| Machine Screw (w/washer) M5x25 (black) | ||||
| 64 | 887315 | 1.80 | 2.18 | |
| Roll Pin D3x28 (10 Pcs.) | ||||
| 65 | 949865 | 2.55 | 3.09 | |
| Trigger Piece (c) | ||||
| 66 | 886626 | 1.80 | 2.18 | |
| Trigger Spring | ||||
| 67 | 886627 | 1.80 | 2.18 | |
| Switch | ||||
| 69 | 886623 | 3.45 | 4.17 | |
| Trigger (s) Since 7.2016 For Nor | ||||
| 69A | 886052 | 9.00 | 10.89 | |
| Trigger Spring | ||||
| 70 | 883759 | 3.30 | 3.99 | |
| Trigger Spring Since 7.2016 For Nor | ||||
| 70A | 884916 | 1.80 | 2.18 | |
| Pushing Lever Guide | ||||
| 71 | 886047 | 18.29 | 22.13 | |
| Pushing Lever Spring | ||||
| 72 | 882892 | 5.10 | 6.17 | |
| Pushing Lever (c) | ||||
| 73 | 882891 | 18.15 | 21.96 | |
| Adjuster | ||||
| 74 | 882889 | 3.45 | 4.17 | |
| Roll Pin D1.6x10 | ||||
| 75 | 886228 | 1.80 | 2.18 | |
| Roll Pin D2.5x16 | ||||
| 76 | 881951 | 1.80 | 2.18 | |
| Roll Pin D2x16 | ||||
| 77 | 880093 | 1.04 | 1.26 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 78 | 959148 | 1.05 | 1.27 | |
| Lock Spring | ||||
| 79 | 882923 | 1.80 | 2.18 | |
| Lock Knob | ||||
| 80 | 886727 | 3.45 | 4.17 | |
| Lock Knob (a) Since 7.2016 For Nor | ||||
| 80A | 885865 | 18.70 | 22.63 | |
| Adjuster Spring | ||||
| 81 | 882890 | 1.65 | 2.00 | |
| Adjuster Plate (c) | ||||
| 82 | 884973 | 1.65 | 2.00 | |
| Adjuster Plate (a) | ||||
| 83 | 882886 | 3.30 | 3.99 | |
| O-RING (S-4) | ||||
| 84 | 981317 | 1.05 | 1.27 | |
| Pushing Lever (b) | ||||
| 85 | 882888 | 17.33 | 20.96 | |
| O-ring (s-5) | ||||
| 86 | 872822 | 3.00 | 3.63 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 87 | 872971 | 1.05 | 1.27 | |
| O-ring (p9-u) | ||||
| 88 | 883104 | 3.45 | 4.17 | |
| Valve Piston | ||||
| 89 | 883101 | 30.25 | 36.60 | |
| O-ring (1ap-11) | ||||
| 90 | 878764 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 91 | 883103 | 1.80 | 2.18 | |
| O-ring (i.d 1.8) Since 7.2016 For Nor | ||||
| 92 | 883405 | 5.10 | 6.17 | |
| Plunger (s) Since 7.2016 For Nor | ||||
| 93B | 886051 | 55.00 | 66.55 | |
| Pin D2x8 (10 Pcs.) | ||||
| 94 | 949778 | 1.80 | 2.18 | |
| O-ring (s-14) | ||||
| 95 | 876319 | 1.65 | 2.00 | |
| O-ring (s-16) | ||||
| 96 | 876031 | 1.65 | 2.00 | |
| Valve Bushing (b) | ||||
| 97 | 886042 | 15.95 | 19.30 | |
| O-ring (p7-u) | ||||
| 98 | 883105 | 3.45 | 4.17 | |
| O-ring (1ap-5) | ||||
| 99 | 873407 | 1.04 | 1.26 | |
| O-ring (s-6) | ||||
| 100 | 997218 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 101 | 883099 | 8.10 | 9.80 | |
| O-ring (1ap-3) | ||||
| 102 | 873093 | 1.05 | 1.27 | |
| O-ring (p-9) | ||||
| 103 | 872645 | 1.65 | 2.00 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 104 | 877763 | 1.05 | 1.27 | |
| Feed Piston | ||||
| 105A | 887455 | 22.00 | 26.62 | |
| Feed Spring (a) | ||||
| 106 | 883757 | 1.80 | 2.18 | |
| Feed Spring (b) | ||||
| 107 | 883758 | 1.80 | 2.18 | |
| Bumper | ||||
| 108 | 885681 | 7.35 | 8.89 | |
| Feed Piston Cover | ||||
| 109 | 883098 | 3.45 | 4.17 | |
| Locking Ring for D24 | ||||
| 110 | 983748 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 111 | 949757 | 3.00 | 3.63 | |
| Shaft Ring | ||||
| 112 | 880319 | 1.65 | 2.00 | |
| O-ring (p-4) | ||||
| 113 | 874436 | 1.05 | 1.27 | |
| Spring | ||||
| 114 | 886412 | 1.80 | 2.18 | |
| Nose Shaft | ||||
| 115 | 886410 | 5.10 | 6.17 | |
| Nose Piece | ||||
| 116 | 886652 | 27.50 | 33.28 | |
| Nail Guide Cover | ||||
| 117 | 883784 | 4.80 | 5.81 | |
| Cover | ||||
| 118A | 888131 | 1.80 | 2.18 | |
| Guide Lock | ||||
| 119 | 886107 | 5.10 | 6.17 | |
| Spring | ||||
| 120 | 880446 | 1.35 | 1.63 | |
| Nail Guide | ||||
| 121 | 886404 | 61.05 | 73.87 | |
| Nail Stopper (a) | ||||
| 122 | 883783 | 67.79 | 82.02 | |
| Nail Stopper Spring | ||||
| 123 | 886451 | 1.80 | 2.18 | |
| Nail Stopper (b) | ||||
| 124 | 882680 | 3.30 | 3.99 | |
| Spring | ||||
| 125 | 880494 | 2.40 | 2.90 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 126 | 880413 | 1.05 | 1.27 | |
| Sleeve (b) | ||||
| 127 | 882881 | 3.30 | 3.99 | |
| Nylock Hex. Socket Hd. Bolt M4x12 | ||||
| 128 | 880630 | 1.05 | 1.27 | |
| Warning Label | ||||
| 129 | 887175 | 5.10 | 6.17 | |
| Warning Label | ||||
| 131 | 887174 | 5.10 | 6.17 | |
| Magazine | ||||
| 132 | 886428 | 13.35 | 16.15 | |
| Sleeve | ||||
| 133 | 882907 | 3.30 | 3.99 | |
| Pushing Lever Cover (b) | ||||
| 134 | 883762 | 6.75 | 8.17 | |
| Pin | ||||
| 135 | 881825 | 3.00 | 3.63 | |
| Feeder Shaft Ring | ||||
| 136 | 877826 | 2.55 | 3.09 | |
| Magazine Cover | ||||
| 137 | 883926 | 16.36 | 19.80 | |
| Ratchet Spring | ||||
| 140 | 880398 | 7.65 | 9.26 | |
| Holder Cap (a) | ||||
| 141 | 881003 | 2.40 | 2.90 | |
| Nail Holder | ||||
| 142 | 885683 | 24.75 | 29.95 | |
| Nail Holder | ||||
| 142A | 885683 | 24.75 | 29.95 | |
| Roll Pin D2.5x12 | ||||
| 143 | 878791 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 144 | 882905 | |||
| Holder Shaft | ||||
| 144A | 889509 | 1.80 | 2.18 | |
| Spring | ||||
| 145 | 881826 | 1.05 | 1.27 | |
| Magazine Ass'y Includ.132,135-137,140-145 | ||||
| 146 | 887314 | 82.36 | 99.66 | |
| Trigger Parts Set Includ.65-67a,71,94,95a | ||||
| 147 | 888727 | 17.33 | 20.96 | |
| O-ring (i.d 1.8) Since 7.2016 For Nor | ||||
| 148 | 883405 | 5.10 | 6.17 | |
| Trigger Pin Since 7.2016 For Nor | ||||
| 149 | 885268 | 13.05 | 15.79 | |
| SPRING WASHER | ||||
| 150 | 886056 | 1.50 | 1.82 | |
| Spring | ||||
| 151 | 886054 | 14.16 | 17.14 | |
| Trigger Arm (s) Since 7.2016 For Nor | ||||
| 152 | 886053 | 161.56 | 195.49 | |
| Trigger Arm Pin Since 7.2016 For Nor | ||||
| 153 | 886055 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 501 | 883136 | |||
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No longer available, no replacement | ||||
| 503 | 886432 | |||
| No information available, not orderable | ||||
| 503A | 888666 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| No information available, not orderable | ||||
| 603 | 876212 | |||
| Single Sequential Actuation Mechanismkit | ||||
| 604 | 887952 | 329.18 | 398.30 | |
