Here you will find all available parts and drawings of the 'Hikoki NV65AJ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

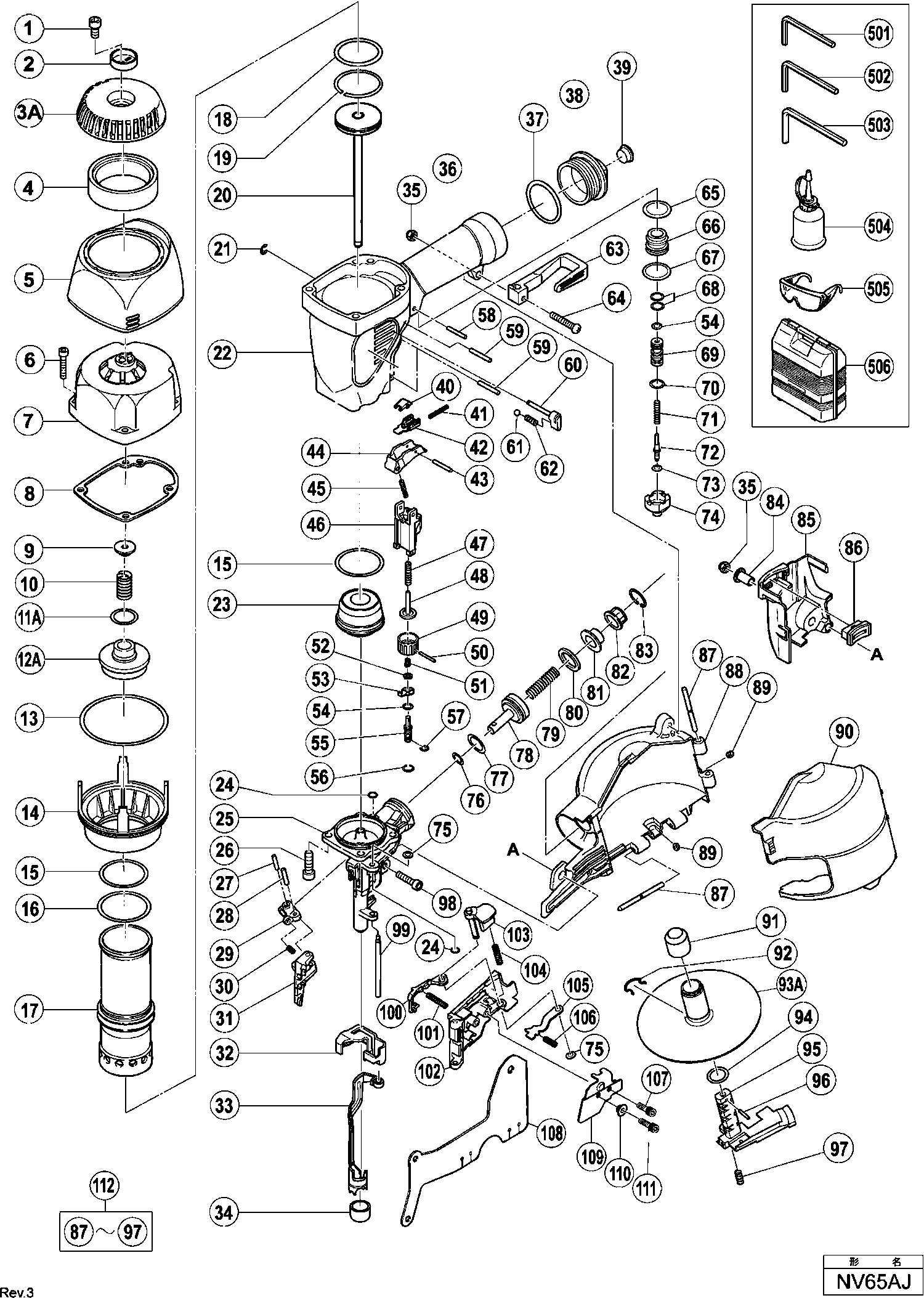

Technical drawing of model Hikoki NV65AJ
Spare parts list of model Hikoki NV65AJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M6x12 (10 Pcs.) | ||||
| 1 | 949657 | 3.00 | 3.63 | |
| PLATE | ||||
| 2 | 882919 | 2.82 | 3.41 | |
| Top Cover | ||||
| 3A | 882917 | 9.90 | 11.98 | |
| Muffler | ||||
| 4 | 882918 | 13.65 | 16.52 | |
| BESCHERMPLAAT (A) | ||||
| 5 | 883632 | 6.66 | 8.06 | |
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 6 | 949662 | 2.10 | 2.54 | |
| UITLAATKAP | ||||
| 7 | 884300 | 57.53 | 69.61 | |
| Gasket (a) | ||||
| 8 | 882915 | 4.80 | 5.81 | |
| Head Bumper | ||||
| 9 | 882914 | 6.60 | 7.99 | |
| Head Valve Spring | ||||
| 10 | 882913 | 6.75 | 8.17 | |
| O-ring (i.d. 20.8) | ||||
| 11A | 883992 | 1.65 | 2.00 | |
| Head Valve (a) | ||||
| 12A | 882927 | 14.10 | 17.06 | |
| O-ring (s-70) | ||||
| 13 | 878863 | 2.40 | 2.90 | |
| Cylinder Plate | ||||
| 14 | 882910 | 6.45 | 7.80 | |
| O-ring (s-46) | ||||
| 15 | 882874 | 1.65 | 2.00 | |
| O-ring (1ap-48) | ||||
| 16 | 877368 | 1.95 | 2.36 | |
| Cylinder | ||||
| 17 | 882909 | 74.25 | 89.84 | |
| Piston O-ring | ||||
| 18 | 882871 | 1.80 | 2.18 | |
| Piston Ring | ||||
| 19 | 882872 | 27.78 | 33.61 | |
| PISTON (H) | ||||
| 20 | 883920 | 126.61 | 153.20 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 21 | 968643 | 1.95 | 2.36 | |
| Housing | ||||
| 22 | 884301 | 246.26 | 297.98 | |
| Piston Bumper | ||||
| 23 | 882873 | 22.00 | 26.62 | |
| O-ring (p-4) | ||||
| 24 | 874436 | 1.05 | 1.27 | |
| NEUS | ||||
| 25 | 883921 | 283.25 | 342.73 | |
| Nylock High Tension Bolt M6x20 | ||||
| 26 | 880675 | 4.05 | 4.90 | |
| Roll Pin D4x16 (10 Pcs.) | ||||
| 27 | 949497 | 2.55 | 3.09 | |
| Needle Roller | ||||
| 28 | 880659 | 1.05 | 1.27 | |
| Feeder Arm | ||||
| 29 | 878132 | 40.84 | 49.41 | |
| Feeder Spring | ||||
| 30 | 882924 | 1.65 | 2.00 | |
| TOEVOERMECHANISME | ||||
| 31 | 883923 | 33.55 | 40.60 | |
| Pushing Lever Cover (b) | ||||
| 32 | 882900 | 3.45 | 4.17 | |
| PUSHING LEVER | ||||
| 33 | 883924 | 50.66 | 61.30 | |
| Nose Cap (a) | ||||
| 34 | 880678 | 4.20 | 5.08 | |
| Nylon Nut M5 | ||||
| 35 | 877371 | 1.05 | 1.27 | |
| O-ring (i.d 37.2) | ||||
| 37 | 880183 | 1.05 | 1.27 | |
| Cap (1) | ||||
| 38 | 882162 | 32.18 | 38.93 | |
| Dust Cap | ||||
| 39 | 877914 | 1.95 | 2.36 | |
| Trigger Piece | ||||
| 40 | 882896 | 1.65 | 2.00 | |
| Spring | ||||
| 41 | 882897 | 1.65 | 2.00 | |
| Trigger Arm (b) | ||||
| 42 | 882895 | 28.05 | 33.94 | |
| Roll Pin D2.5x16 | ||||
| 43 | 881951 | 1.80 | 2.18 | |
| Trigger (1) | ||||
| 44 | 882894 | 3.30 | 3.99 | |
| Trigger Spring | ||||
| 45 | 883759 | 3.30 | 3.99 | |
| Pushing Lever Guide | ||||
| 46 | 882885 | 6.45 | 7.80 | |
| Pushing Lever Spring | ||||
| 47 | 882892 | 5.10 | 6.17 | |
| Pushing Lever (c) | ||||
| 48 | 882891 | 18.15 | 21.96 | |
| Adjuster | ||||
| 49 | 882889 | 3.45 | 4.17 | |
| Roll Pin D2x16 | ||||
| 50 | 880093 | 1.04 | 1.26 | |
| Adjuster Spring | ||||
| 51 | 882890 | 1.65 | 2.00 | |
| Adjuster Plate (b) | ||||
| 52 | 882887 | 3.30 | 3.99 | |
| Adjuster Plate (a) | ||||
| 53 | 882886 | 3.30 | 3.99 | |
| O-RING (S-4) | ||||
| 54 | 981317 | 1.05 | 1.27 | |
| Pushing Lever (b) | ||||
| 55 | 882888 | 17.33 | 20.96 | |
| O-ring (s-5) | ||||
| 56 | 872822 | 3.00 | 3.63 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 57 | 872971 | 1.05 | 1.27 | |
| Roll Pin D3x22 (10 Pcs.) | ||||
| 58 | 949864 | 1.65 | 2.00 | |
| Roll Pin D3x28 (10 Pcs.) | ||||
| 59 | 949865 | 2.55 | 3.09 | |
| LOCK KNOB | ||||
| 60 | 884302 | 11.16 | 13.50 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 61 | 959148 | 1.05 | 1.27 | |
| Lock Spring | ||||
| 62 | 882923 | 1.80 | 2.18 | |
| Hook | ||||
| 63 | 883763 | 4.80 | 5.81 | |
| Machine Screw M5x35 (black) | ||||
| 64 | 302197 | 1.05 | 1.27 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 65 | 877699 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 66 | 882925 | 18.01 | 21.80 | |
| O-ring (s-18) | ||||
| 67 | 878885 | 1.05 | 1.27 | |
| O-ring (I.D. 8.8) | ||||
| 68 | 878925 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 69 | 880672 | 32.18 | 38.93 | |
| O-Ring (I.D.11) | ||||
| 70 | 878887 | 1.65 | 2.00 | |
| Plunger Spring | ||||
| 71 | 878884 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 72 | 882921 | 15.54 | 18.80 | |
| O-RING (I.D.1.8) | ||||
| 73 | 878888 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 74 | 882920 | 29.56 | 35.77 | |
| Shaft Ring | ||||
| 75 | 880319 | 1.65 | 2.00 | |
| O-ring (p-9) | ||||
| 76 | 872645 | 1.65 | 2.00 | |
| O-ring (p-21) | ||||
| 77 | 880330 | 1.05 | 1.27 | |
| Feed Piston | ||||
| 78 | 882673 | 18.43 | 22.29 | |
| Spring | ||||
| 79 | 882883 | 1.80 | 2.18 | |
| Damper | ||||
| 80 | 877711 | 1.95 | 2.36 | |
| Feed Piston Cover | ||||
| 81 | 880331 | 3.15 | 3.81 | |
| Magazine Bushing | ||||
| 82 | 878305 | 1.04 | 1.26 | |
| Retaining Ring For D28 Hole (10 Pcs.) | ||||
| 83 | 939555 | 4.35 | 5.26 | |
| Sleeve | ||||
| 84 | 882907 | 3.30 | 3.99 | |
| PUSHING LEVER COVER (A) | ||||
| 85 | 882899 | 4.20 | 5.08 | |
| BESCHERMPLAAT (B) | ||||
| 86 | 882901 | 2.46 | 2.98 | |
| Pin | ||||
| 87 | 881825 | 3.00 | 3.63 | |
| Magazine | ||||
| 88 | 882903 | 22.00 | 26.62 | |
| Feeder Shaft Ring | ||||
| 89 | 877826 | 2.55 | 3.09 | |
| Magazine Cover | ||||
| 90 | 883926 | 16.36 | 19.80 | |
| Holder Cap (a) | ||||
| 91 | 881003 | 2.40 | 2.90 | |
| Ratchet Spring | ||||
| 92 | 880398 | 7.65 | 9.26 | |
| Nail Holder | ||||
| 93A | 885683 | 24.75 | 29.95 | |
| Nail Holder | ||||
| 93B | 885683 | 24.75 | 29.95 | |
| O-ring (p-9) | ||||
| 94 | 872645 | 1.65 | 2.00 | |
| Roll Pin D2.5x12 | ||||
| 95 | 878791 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 96 | 882905 | |||
| Holder Shaft | ||||
| 96A | 889509 | 1.80 | 2.18 | |
| Spring | ||||
| 97 | 881826 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 98 | 949757 | 3.00 | 3.63 | |
| Nail Guide Shaft | ||||
| 99 | 880658 | 8.40 | 10.16 | |
| Nail Stopper (a) | ||||
| 100 | 883783 | 67.79 | 82.02 | |
| NAIL STOPPER RING | ||||
| 101 | 882878 | 14.90 | 18.03 | |
| GELEIDER | ||||
| 102 | 883922 | 93.72 | 113.40 | |
| Guide Lock | ||||
| 103 | 886107 | 5.10 | 6.17 | |
| Spring | ||||
| 104 | 880446 | 1.35 | 1.63 | |
| Nail Stopper (b) | ||||
| 105 | 882680 | 3.30 | 3.99 | |
| Spring | ||||
| 106 | 880494 | 2.40 | 2.90 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 107 | 880413 | 1.05 | 1.27 | |
| Cover | ||||
| 108 | 882880 | 4.80 | 5.81 | |
| Nail Guide Cover | ||||
| 109 | 883784 | 4.80 | 5.81 | |
| Sleeve (b) | ||||
| 110 | 882881 | 3.30 | 3.99 | |
| Nylock Hex. Socket Hd. Bolt M4x12 | ||||
| 111 | 880630 | 1.05 | 1.27 | |
| Magazine Ass'y Includ.87-97 | ||||
| 112 | 884303 | 69.99 | 84.68 | |
| No information available, not orderable | ||||
| 501 | 943277 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 944459 | |||
| No information available, not orderable | ||||
| 504 | 877153 | |||
| No information available, not orderable | ||||
| 505 | 875769 | |||
| No information available, not orderable | ||||
| 506 | 880790 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| No information available, not orderable | ||||
| 603 | 876212 | |||
| Sequential Trip Mechanism Set | ||||
| 604 | 883991 | 84.56 | 102.32 | |
