Here you will find all available parts and drawings of the 'Hikoki NV65AH2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

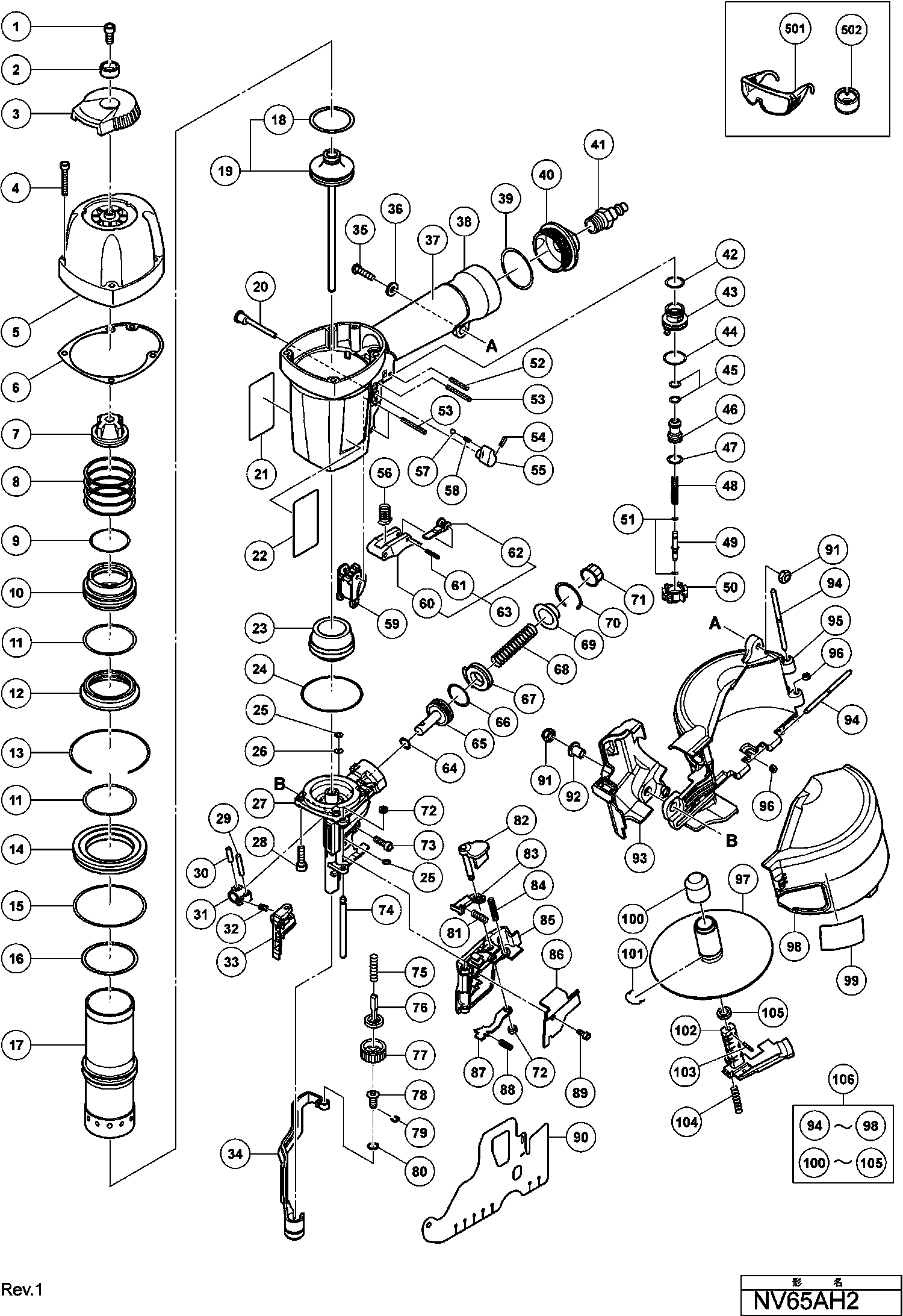

Technical drawing of model Hikoki NV65AH2
Spare parts list of model Hikoki NV65AH2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 1 | 949755 | 3.00 | 3.63 | |
| Plate | ||||
| 2 | 880515 | 5.85 | 7.08 | |
| Top Cover | ||||
| 3 | 884332 | 4.20 | 5.08 | |
| HEX SOCKET HEAD BOLT M5 X 35 (10 PCS.) | ||||
| 4 | 949822 | 2.10 | 2.54 | |
| Exhaust Cover | ||||
| 5 | 888013 | 16.50 | 19.96 | |
| Gasket | ||||
| 6 | 880358 | 1.65 | 2.00 | |
| Exhaust Valve Rubber (a) | ||||
| 7 | 881761 | 9.45 | 11.43 | |
| Head Valve Spring | ||||
| 8 | 880356 | 3.60 | 4.36 | |
| O-ring (s-34) | ||||
| 9 | 980879 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9A | 889510 | |||
| Head Valve | ||||
| 10A | 889036 | 9.00 | 10.89 | |
| Head Valve Rubber (a) | ||||
| 12 | 881760 | 4.50 | 5.44 | |
| Washer Spring | ||||
| 13 | 880669 | 2.55 | 3.09 | |
| Cylinder Plate | ||||
| 14 | 880667 | 22.28 | 26.95 | |
| Cylinder O-ring (i.d. 63.1) | ||||
| 15A | 884339 | 2.10 | 2.54 | |
| O-ring (p-46) | ||||
| 16 | 878716 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 17 | 888025 | |||
| O-ring (i.d. 34.7) | ||||
| 18 | 882685 | 1.65 | 2.00 | |
| Piston | ||||
| 19 | 888026 | 33.00 | 39.93 | |
| Change Rod (d) | ||||
| 20A | 888798 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 21A | 888957 | |||
| Name Plate (1) | ||||
| 22 | 888024 | 1.04 | 1.26 | |
| Piston Bumper | ||||
| 23 | 882676 | 12.15 | 14.70 | |
| O-ring (s-44) | ||||
| 24 | 880362 | 1.04 | 1.26 | |
| O-ring (p-4) | ||||
| 25 | 874436 | 1.05 | 1.27 | |
| Ring | ||||
| 26 | 878279 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 888007 | |||
| Nylock High Tension Bolt M6x20 | ||||
| 28 | 880675 | 4.05 | 4.90 | |
| Needle Roller | ||||
| 29 | 880659 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30 | 888162 | |||
| Feeder Arm | ||||
| 31 | 878132 | 40.84 | 49.41 | |
| Feeder Spring | ||||
| 32 | 888108 | 1.04 | 1.26 | |
| Feeder | ||||
| 33 | 882671 | 23.93 | 28.95 | |
| No information available, not orderable | ||||
| 34 | 888259 | |||
| Machine Screw M5x20 (black) | ||||
| 35 | 302196 | 1.05 | 1.27 | |
| Washer (OLD 876205) | ||||
| 36A | 889024 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 38 | 888012 | |||
| O-ring (i.d 37.2) | ||||
| 39 | 880183 | 1.05 | 1.27 | |
| Cap (1) | ||||
| 40 | 888014 | 5.85 | 7.08 | |
| Air Plug Npt 3/8 | ||||
| 41 | 887863 | 2.10 | 2.54 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 42 | 877763 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 43 | 884963 | 1.65 | 2.00 | |
| O-ring (P-18) | ||||
| 44 | 873570 | 1.35 | 1.63 | |
| O-RING (P-7) (OLD 676531) | ||||
| 45A | 889335 | 1.00 | 1.21 | |
| Valve Piston | ||||
| 46 | 884964 | 1.65 | 2.00 | |
| O-RING (1AP-10) (OLD 872654) | ||||
| 47A | 889495 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 48 | 887178 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 49 | 888177 | |||
| Valve Bushing (a) | ||||
| 50 | 884962 | 1.65 | 2.00 | |
| O-RING (I.D.1.8) | ||||
| 51 | 878888 | 1.05 | 1.27 | |
| Roll Pin D3x22 (10 Pcs.) | ||||
| 52 | 949864 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 53 | 887865 | |||
| Roll Pin D3x10 (10 Pcs.) | ||||
| 54 | 887458 | 1.20 | 1.45 | |
| Change Knob (d) | ||||
| 55 | 887684 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 56 | 888261 | |||
| Steel Ball D3.97 (10 Pcs.) | ||||
| 57 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 58 | 887673 | 1.20 | 1.45 | |
| PUSHING LEVER GUIDE (D) | ||||
| 59 | 887686 | 1.86 | 2.25 | |
| No information available, not orderable | ||||
| 60 | 888402 | |||
| Roll Pin D2.5 | ||||
| 61A | 887856 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 62 | 888174 | |||
| No information available, not orderable | ||||
| 63 | 888173 | |||
| O-ring (p-9) | ||||
| 64 | 872645 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 65 | 888401 | |||
| O-ring (p-21) | ||||
| 66 | 880330 | 1.05 | 1.27 | |
| DAMPER (OLD 880367) | ||||
| 67A | 889339 | 1.20 | 1.45 | |
| SPRING | ||||
| 68 | 878603 | 1.00 | 1.21 | |
| Feed Piston Cover | ||||
| 69 | 880331 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 70 | 888028 | |||
| Magazine Bushing | ||||
| 71 | 878305 | 1.04 | 1.26 | |
| Shaft Ring | ||||
| 72 | 880319 | 1.65 | 2.00 | |
| Hex. Socket Hd. Bolt M5x22 | ||||
| 73 | 888102 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 74 | 888009 | |||
| No information available, not orderable | ||||
| 75 | 888258 | |||
| PUSHING LEVER (D) (OLD 887678) | ||||
| 76A | 889331 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 77 | 886736 | |||
| No information available, not orderable | ||||
| 78 | 888257 | |||
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 79 | 872971 | 1.05 | 1.27 | |
| O-ring (s-5) | ||||
| 80 | 872822 | 3.00 | 3.63 | |
| Spring (f) | ||||
| 81 | 301631 | 1.04 | 1.26 | |
| Guide Lock | ||||
| 82 | 886107 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 83A | 889128 | |||
| Spring | ||||
| 84 | 880446 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 85 | 888008 | |||
| Nail Guide Cover | ||||
| 86 | 882681 | 4.80 | 5.81 | |
| Nail Stopper (b) | ||||
| 87 | 882680 | 3.30 | 3.99 | |
| Spring | ||||
| 88 | 880494 | 2.40 | 2.90 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 89 | 880413 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 90 | 888260 | |||
| Nylon Nut M5 | ||||
| 91 | 877371 | 1.05 | 1.27 | |
| Sleeve | ||||
| 92 | 882907 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 93 | 888265 | |||
| No information available, not orderable | ||||
| 94 | 888021 | |||
| No information available, not orderable | ||||
| 95 | 888016 | |||
| Feeder Shaft Ring | ||||
| 96 | 877826 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 97 | 888018 | |||
| No information available, not orderable | ||||
| 98 | 888017 | |||
| Label | ||||
| 99 | 888266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 100 | 888020 | |||
| Ratchet Spring | ||||
| 101 | 880398 | 7.65 | 9.26 | |
| Holder Shaft | ||||
| 102A | 889509 | 1.80 | 2.18 | |
| Roll Pin D2.5x12 | ||||
| 103 | 878791 | 1.04 | 1.26 | |
| Spring | ||||
| 104 | 881826 | 1.05 | 1.27 | |
| Valve Packing | ||||
| 105 | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 106 | 888015 | |||
| Cylinder O-ring (c) | ||||
| 107 | 889010 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| GRIP TAPE | ||||
| 601 | 880408 | 11.10 | 13.43 | |
| No information available, not orderable | ||||
| 602 | 888213 | |||
| HOUSING | ||||
| 603 | 880517 | 57.53 | 69.61 | |
| No information available, not orderable | ||||
| 604 | 877153 | |||
| No information available, not orderable | ||||
| 605 | 874042 | |||
| Single Sequential Actuation Mechanismkit | ||||
| 606 | 887916 | 3.30 | 3.99 | |
