Here you will find all available parts and drawings of the 'Hikoki NV50AP3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

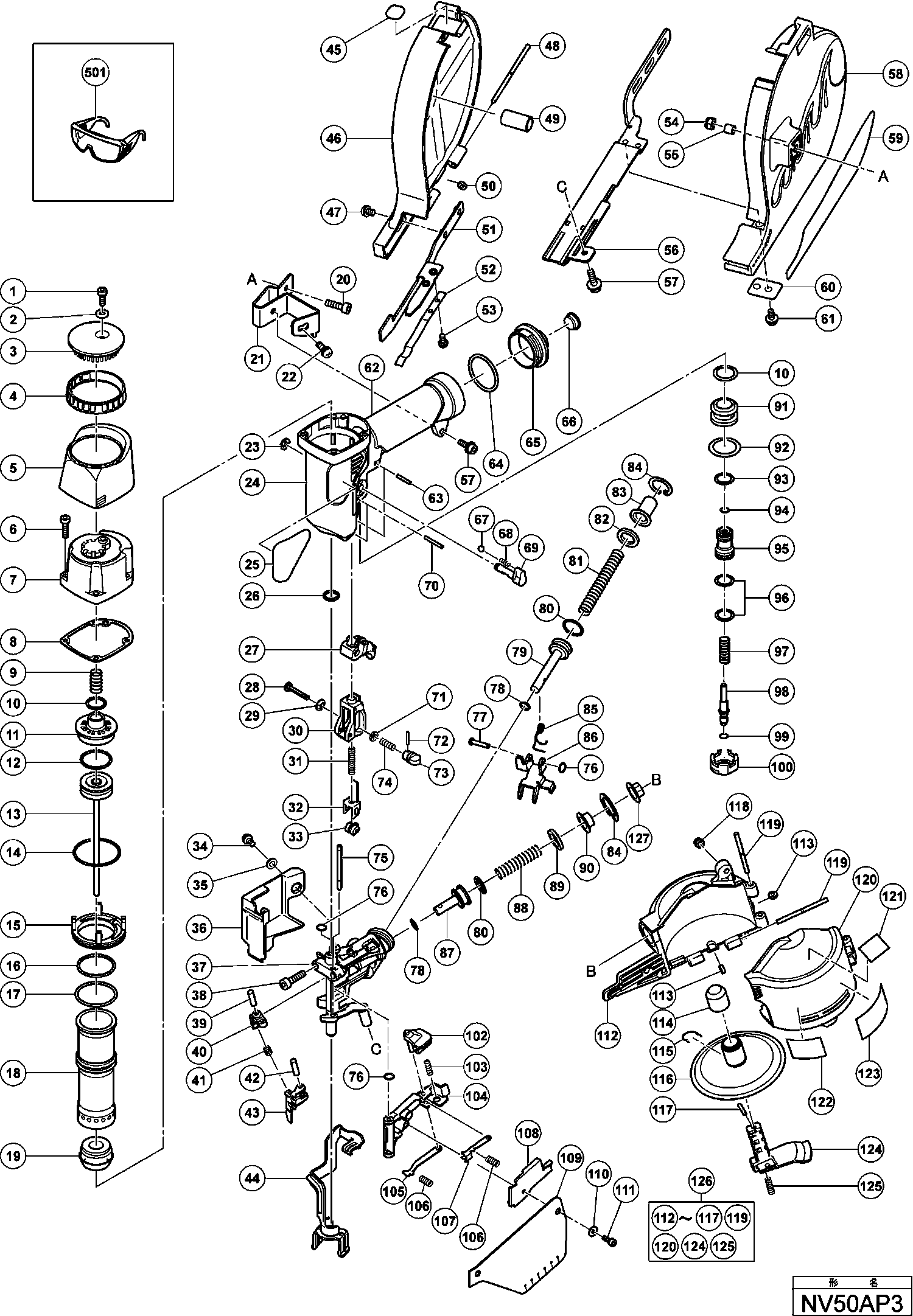

Technical drawing of model Hikoki NV50AP3
Spare parts list of model Hikoki NV50AP3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 1 | 949819 | 2.55 | 3.09 | |
| Washer | ||||
| 2 | 944260 | 1.05 | 1.27 | |
| Top Cover | ||||
| 3 | 881841 | 3.90 | 4.72 | |
| Head Ring | ||||
| 4 | 881840 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 5 | 881883 | |||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 6 | 949757 | 3.00 | 3.63 | |
| Exhaust Cover | ||||
| 7 | 881879 | 64.21 | 77.70 | |
| Gasket (a) | ||||
| 8 | 881839 | 1.05 | 1.27 | |
| Head Valve Spring | ||||
| 9 | 881851 | 3.00 | 3.63 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 10 | 877699 | 1.05 | 1.27 | |
| Head Valve (a) | ||||
| 11 | 881837 | 12.45 | 15.06 | |
| No information available, not orderable | ||||
| 12 | 883365 | |||
| No information available, not orderable | ||||
| 13 | 885390 | |||
| O-ring (1as-50) | ||||
| 14 | 990067 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 15 | 881831 | 4.50 | 5.44 | |
| O-ring (s-36) | ||||
| 16 | 984483 | 1.65 | 2.00 | |
| Cylinder O-ring | ||||
| 17 | 881864 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 18 | 885531 | |||
| Piston Bumper | ||||
| 19 | 881830 | 15.81 | 19.13 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 20 | 949660 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 21 | 885413 | |||
| Machine Screw (w/washers) M5x16 | ||||
| 22 | 990541 | 1.05 | 1.27 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 23 | 955479 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 24 | 885389 | |||
| O-ring (s-12) | ||||
| 26 | 875638 | 1.65 | 2.00 | |
| Switch | ||||
| 27 | 884145 | 6.45 | 7.80 | |
| Adjuster Shaft | ||||
| 28 | 881846 | 7.65 | 9.26 | |
| Latch | ||||
| 29 | 886101 | 5.10 | 6.17 | |
| Pushing Lever Guide | ||||
| 30 | 316389 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 31 | 881844 | |||
| Pushing Lever (b) | ||||
| 32 | 886099 | 12.00 | 14.52 | |
| Adjuster | ||||
| 33 | 886100 | 7.80 | 9.44 | |
| Nylock bolt M5x8 | ||||
| 34 | 878540 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 35 | 876205 | |||
| No information available, not orderable | ||||
| 36 | 885415 | |||
| No information available, not orderable | ||||
| 37 | 885392 | |||
| Hex. Socket Hd. Bolt M6x25 (10 Pcs.) | ||||
| 38 | 949652 | 3.30 | 3.99 | |
| Roll Pin D4x14 (10 Pcs.) | ||||
| 39 | 949770 | 2.55 | 3.09 | |
| Feeder Arm | ||||
| 40 | 878132 | 40.84 | 49.41 | |
| Feeder Spring | ||||
| 41 | 878340 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 42 | 983545 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 43 | 885539 | |||
| No information available, not orderable | ||||
| 44 | 885394 | |||
| No information available, not orderable | ||||
| 45 | 885532 | |||
| No information available, not orderable | ||||
| 46 | 885396 | |||
| No information available, not orderable | ||||
| 47 | 310533 | |||
| No information available, not orderable | ||||
| 48 | 885398 | |||
| No information available, not orderable | ||||
| 49 | 885399 | |||
| Feeder Shaft Ring | ||||
| 50 | 877826 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 51 | 885400 | |||
| No information available, not orderable | ||||
| 52 | 885401 | |||
| Seal Lock Screw M4x6 (black) | ||||
| 53 | 303631 | 1.04 | 1.26 | |
| Nylon Nut M6 | ||||
| 54 | 963837 | 1.05 | 1.27 | |
| Holder Sleeve (b) | ||||
| 55 | 885414 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 56 | 885395 | |||
| Nylock Bolt (w/flange) M5x16 | ||||
| 57 | 313082 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 885397 | |||
| No information available, not orderable | ||||
| 60 | 885533 | |||
| No information available, not orderable | ||||
| 61 | 678668 | |||
| Roll Pin D3x18 (10 Pcs.) | ||||
| 63 | 949518 | 2.40 | 2.90 | |
| O-ring (i.d 37.2) | ||||
| 64 | 880183 | 1.05 | 1.27 | |
| Baffle | ||||
| 65 | 880379 | 28.05 | 33.94 | |
| Dust Cap | ||||
| 66 | 872035 | 1.04 | 1.26 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 67 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 68 | 982454 | 1.04 | 1.26 | |
| Change Knob | ||||
| 69 | 884335 | 4.80 | 5.81 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 70 | 949539 | 2.25 | 2.72 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 71 | 949429 | 1.05 | 1.27 | |
| Roll Pin D1.6x12 | ||||
| 72 | 878222 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 73 | 885391 | |||
| Adjuster Spring | ||||
| 74 | 881853 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 75 | 885535 | |||
| O-ring (1ap-3) | ||||
| 76 | 873093 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 77 | 885407 | |||
| O-ring (p-9) | ||||
| 78 | 872645 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 79 | 885402 | |||
| O-ring (P-18) | ||||
| 80 | 873570 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 81 | 885403 | |||
| No information available, not orderable | ||||
| 82 | 885534 | |||
| No information available, not orderable | ||||
| 83 | 885404 | |||
| Locking Ring for D24 | ||||
| 84 | 983748 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 85 | 885406 | |||
| No information available, not orderable | ||||
| 86 | 885405 | |||
| No information available, not orderable | ||||
| 87 | 885393 | |||
| Spring | ||||
| 88 | 880409 | 2.40 | 2.90 | |
| Damper | ||||
| 89 | 877476 | 2.40 | 2.90 | |
| Feed Piston Cover | ||||
| 90 | 880170 | 2.25 | 2.72 | |
| Valve Bushing (b) | ||||
| 91 | 878881 | 39.74 | 48.08 | |
| O-ring (s-18) | ||||
| 92 | 878885 | 1.05 | 1.27 | |
| O-Ring (I.D.11) | ||||
| 93 | 878887 | 1.65 | 2.00 | |
| O-RING (S-4) | ||||
| 94 | 981317 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 95 | 884143 | 9.60 | 11.62 | |
| O-ring (I.D. 8.8) | ||||
| 96 | 878925 | 1.05 | 1.27 | |
| Plunger Spring | ||||
| 97 | 878884 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 98 | 884144 | 3.30 | 3.99 | |
| O-RING (I.D.1.8) | ||||
| 99 | 878888 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 100 | 880671 | 23.65 | 28.62 | |
| Guide Lock | ||||
| 102 | 878103 | 11.85 | 14.34 | |
| Spring | ||||
| 103 | 880446 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 104 | 885536 | |||
| Nail Stopper (b) | ||||
| 105 | 881814 | 3.00 | 3.63 | |
| Spring | ||||
| 106 | 880393 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 107 | 885537 | |||
| Nail Guide Cover | ||||
| 108 | 881815 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 109 | 885538 | |||
| Sleeve (b) | ||||
| 110 | 878337 | 3.00 | 3.63 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 111 | 880413 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 112 | 885540 | |||
| Feeder Shaft Ring | ||||
| 113 | 877826 | 2.55 | 3.09 | |
| Holder Cap | ||||
| 114 | 885412 | 1.80 | 2.18 | |
| Ratchet Spring | ||||
| 115 | 885543 | 1.80 | 2.18 | |
| Nail Holder | ||||
| 116 | 885411 | 3.60 | 4.36 | |
| Roll Pin D2.5 | ||||
| 117 | 885544 | 1.20 | 1.45 | |
| Nylon Nut M5 | ||||
| 118 | 877371 | 1.05 | 1.27 | |
| Pin D4x58 | ||||
| 119 | 885541 | 6.75 | 8.17 | |
| Magazine Cover | ||||
| 120 | 885409 | 7.35 | 8.89 | |
| Warning Label | ||||
| 123 | 884070 | 1.65 | 2.00 | |
| Holder Shaft | ||||
| 124 | 885410 | 1.80 | 2.18 | |
| Spring | ||||
| 125 | 885542 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 126 | 885408 | |||
| Magazine Bushing | ||||
| 127 | 880177 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
