Here you will find all available parts and drawings of the 'Hikoki NV50AF3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

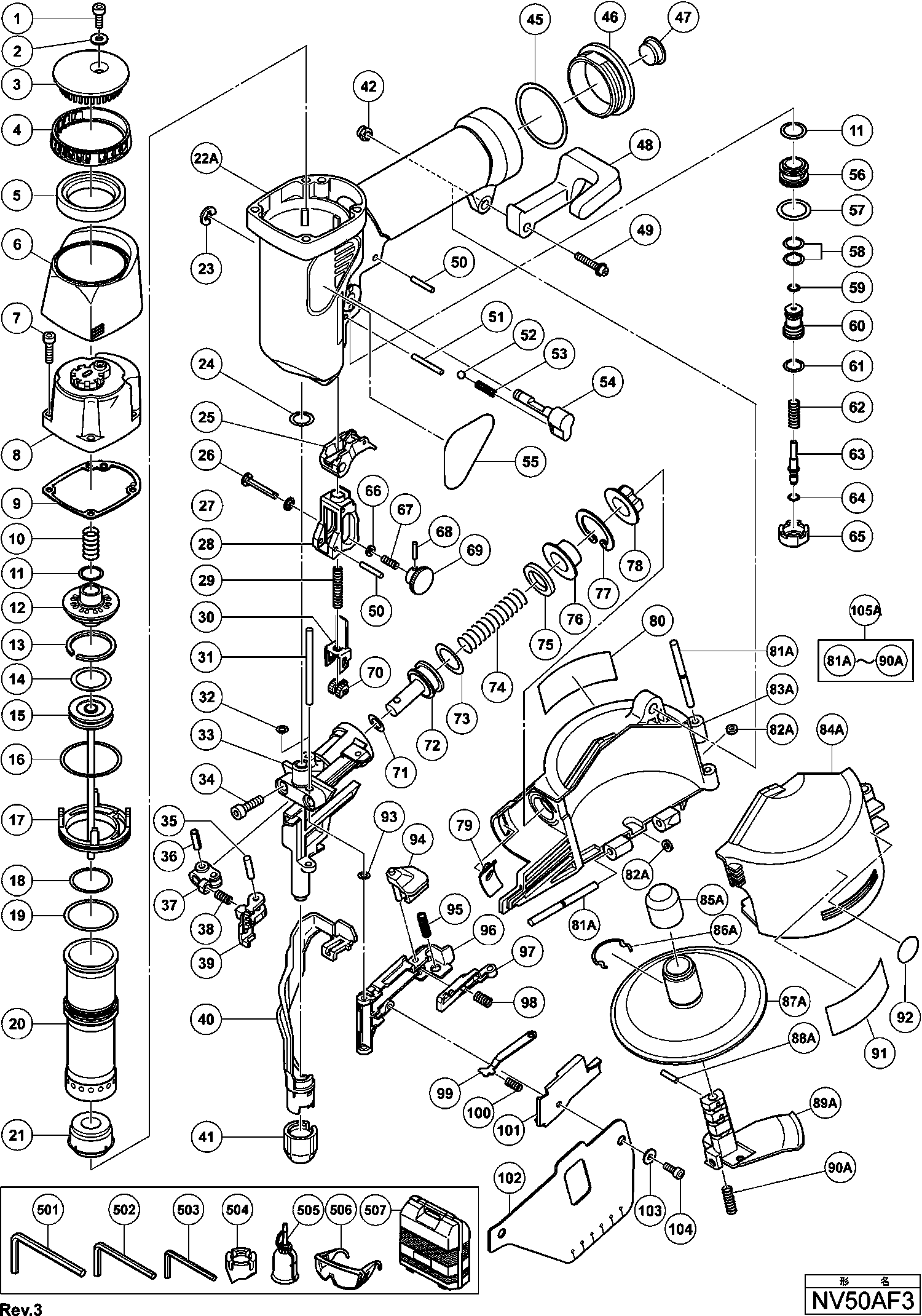

Technical drawing of model Hikoki NV50AF3
Spare parts list of model Hikoki NV50AF3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cap (1) | ||||
| *46 | 882162 | 32.18 | 38.93 | |
| Baffle | ||||
| *46 | 880379 | 28.05 | 33.94 | |
| CASE | ||||
| *507 | 881849 | 43.18 | 52.25 | |
| No information available, not orderable | ||||
| *6 | 881883 | |||
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 1 | 949819 | 2.55 | 3.09 | |
| Washer | ||||
| 2 | 944260 | 1.05 | 1.27 | |
| Top Cover | ||||
| 3 | 881841 | 3.90 | 4.72 | |
| Head Ring | ||||
| 4 | 881840 | 3.90 | 4.72 | |
| Muffler | ||||
| 5 | 881835 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 6 | 881883 | |||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 7 | 949757 | 3.00 | 3.63 | |
| Exhaust Cap (old 881880) | ||||
| 8 | 881865 | 64.21 | 77.70 | |
| Exhaust Cover | ||||
| 8 | 881879 | 64.21 | 77.70 | |
| Gasket (a) | ||||
| 9 | 881839 | 1.05 | 1.27 | |
| Head Valve Spring | ||||
| 10 | 881851 | 3.00 | 3.63 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 11 | 877699 | 1.05 | 1.27 | |
| Head Valve (a) | ||||
| 12 | 881837 | 12.45 | 15.06 | |
| Piston Ring | ||||
| 13 | 881834 | 18.43 | 22.29 | |
| PISTON RING | ||||
| 14 | 881833 | 1.05 | 1.27 | |
| Plunger | ||||
| 15 | 881832 | 113.71 | 137.59 | |
| O-ring (1as-50) | ||||
| 16 | 990067 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 17 | 881831 | 4.50 | 5.44 | |
| O-ring (s-36) | ||||
| 18 | 984483 | 1.65 | 2.00 | |
| Cylinder O-ring | ||||
| 19 | 881864 | 1.65 | 2.00 | |
| Cylinder | ||||
| 20 | 881829 | 41.53 | 50.25 | |
| Piston Bumper | ||||
| 21 | 881830 | 15.81 | 19.13 | |
| Body Assembly | ||||
| 22A | 881878 | 145.89 | 176.52 | |
| Body Assembly | ||||
| 22A | 881877 | 134.20 | 162.38 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 23 | 955479 | 1.05 | 1.27 | |
| O-ring (s-12) | ||||
| 24 | 875638 | 1.65 | 2.00 | |
| Trigger (a) | ||||
| 25 | 880674 | 11.85 | 14.34 | |
| Adjuster Shaft | ||||
| 26 | 881846 | 7.65 | 9.26 | |
| Pushing Lever Guide | ||||
| 28 | 316389 | 3.30 | 3.99 | |
| Spring | ||||
| 29 | 881882 | 2.25 | 2.72 | |
| Pushing Lever (b) | ||||
| 30 | 886099 | 12.00 | 14.52 | |
| Nail Guide Shaft | ||||
| 31 | 881811 | 6.75 | 8.17 | |
| O-ring (1ap-3) | ||||
| 32 | 873093 | 1.05 | 1.27 | |
| Nose | ||||
| 33 | 881810 | 314.88 | 381.00 | |
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 34 | 949660 | 3.30 | 3.99 | |
| Needle Roller | ||||
| 35 | 983545 | 1.05 | 1.27 | |
| Roll Pin D4x14 (10 Pcs.) | ||||
| 36 | 949770 | 2.55 | 3.09 | |
| Feeder Arm | ||||
| 37 | 878132 | 40.84 | 49.41 | |
| Feeder Spring | ||||
| 38 | 878340 | 1.05 | 1.27 | |
| Feeder | ||||
| 39 | 881818 | 35.06 | 42.43 | |
| PUSH LEVER FOR NV50AF3 | ||||
| 40 | 881819 | 129.42 | 156.60 | |
| Nose Cap (a) | ||||
| 41 | 881092 | 6.45 | 7.80 | |
| Nylon Nut M5 | ||||
| 42 | 877371 | 1.05 | 1.27 | |
| O-ring (i.d 37.2) | ||||
| 45 | 880183 | 1.05 | 1.27 | |
| Cap (1) | ||||
| 46 | 882162 | 32.18 | 38.93 | |
| Baffle | ||||
| 46 | 880379 | 28.05 | 33.94 | |
| Dust Cap | ||||
| 47 | 872035 | 1.04 | 1.26 | |
| Hook | ||||
| 48 | 881827 | 4.50 | 5.44 | |
| Machine Screw (w/washers) M5x30 (black) | ||||
| 49 | 880881 | 1.05 | 1.27 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 50 | 949518 | 2.40 | 2.90 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 51 | 949539 | 2.25 | 2.72 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 52 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 53 | 982454 | 1.04 | 1.26 | |
| Change Button (b) | ||||
| 54 | 880086 | 23.10 | 27.95 | |
| Valve Bushing (b) | ||||
| 56 | 878881 | 39.74 | 48.08 | |
| O-ring (s-18) | ||||
| 57 | 878885 | 1.05 | 1.27 | |
| O-ring (I.D. 8.8) | ||||
| 58 | 878925 | 1.05 | 1.27 | |
| O-RING (S-4) | ||||
| 59 | 981317 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 60 | 880672 | 32.18 | 38.93 | |
| O-Ring (I.D.11) | ||||
| 61 | 878887 | 1.65 | 2.00 | |
| Plunger Spring | ||||
| 62 | 878884 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 63 | 880673 | 14.71 | 17.80 | |
| O-RING (I.D.1.8) | ||||
| 64 | 878888 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 65 | 880671 | 23.65 | 28.62 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 66 | 949429 | 1.05 | 1.27 | |
| Adjuster Spring | ||||
| 67 | 881853 | 1.65 | 2.00 | |
| Roll Pin D1.6x12 | ||||
| 68 | 878222 | 1.05 | 1.27 | |
| Adjuster Knob | ||||
| 69 | 881848 | 3.60 | 4.36 | |
| Adjuster | ||||
| 70 | 886100 | 7.80 | 9.44 | |
| O-ring (p-9) | ||||
| 71 | 872645 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 72 | 880168 | |||
| O-ring (P-18) | ||||
| 73 | 873570 | 1.35 | 1.63 | |
| Spring | ||||
| 74 | 880409 | 2.40 | 2.90 | |
| Damper | ||||
| 75 | 877476 | 2.40 | 2.90 | |
| Feed Piston Cover | ||||
| 76 | 880170 | 2.25 | 2.72 | |
| Locking Ring for D24 | ||||
| 77 | 983748 | 1.05 | 1.27 | |
| Magazine Bushing | ||||
| 78 | 880177 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 79 | 881850 | |||
| No longer available, no replacement | ||||
| 80 | 878183 | |||
| Pin D4x58 | ||||
| 81A | 885541 | 6.75 | 8.17 | |
| Feeder Shaft Ring | ||||
| 82A | 877826 | 2.55 | 3.09 | |
| WAREHOUSE (OLD 884090) | ||||
| 83A | 886831 | 10.80 | 13.07 | |
| Magazine Cover | ||||
| 84A | 885409 | 7.35 | 8.89 | |
| Holder Cap | ||||
| 85A | 885412 | 1.80 | 2.18 | |
| Ratchet Spring | ||||
| 86A | 885543 | 1.80 | 2.18 | |
| Nail Holder | ||||
| 87A | 885411 | 3.60 | 4.36 | |
| Roll Pin D2.5 | ||||
| 88A | 885544 | 1.20 | 1.45 | |
| Holder Shaft | ||||
| 89A | 885410 | 1.80 | 2.18 | |
| Spring | ||||
| 90A | 885542 | 1.80 | 2.18 | |
| Warning Label | ||||
| 91 | 884070 | 1.65 | 2.00 | |
| Warning Label (a) | ||||
| 92 | 883513 | 1.65 | 2.00 | |
| O-ring (p-4) | ||||
| 93 | 874436 | 1.05 | 1.27 | |
| Guide Lock | ||||
| 94 | 878103 | 11.85 | 14.34 | |
| Spring | ||||
| 95 | 880446 | 1.35 | 1.63 | |
| Guide Piece | ||||
| 96 | 881812 | 105.05 | 127.11 | |
| Nail Stopper (a) | ||||
| 97 | 881813 | 49.64 | 60.06 | |
| Spring | ||||
| 98 | 881817 | 1.04 | 1.26 | |
| Nail Stopper (b) | ||||
| 99 | 881814 | 3.00 | 3.63 | |
| Spring | ||||
| 100 | 880393 | 1.05 | 1.27 | |
| Nail Guide Cover | ||||
| 101 | 881815 | 4.20 | 5.08 | |
| Cover | ||||
| 102 | 881816 | 4.50 | 5.44 | |
| Sleeve (b) | ||||
| 103 | 878337 | 3.00 | 3.63 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 104 | 880413 | 1.05 | 1.27 | |
| Complete Magazine | ||||
| 105A | 881820 | 61.33 | 74.20 | |
| No information available, not orderable | ||||
| 501 | 944459 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 943277 | |||
| Nose Cap (b) | ||||
| 504 | 881093 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 505 | 877153 | |||
| No information available, not orderable | ||||
| 506 | 875769 | |||
| CASE | ||||
| 507 | 881849 | 43.18 | 52.25 | |
| CASE | ||||
| 507 | 881881 | 34.92 | 42.25 | |
| No information available, not orderable | ||||
| 601 | 881012 | |||
| GRIP TAPE | ||||
| 602 | 880408 | 11.10 | 13.43 | |
| No information available, not orderable | ||||
| 603A | 888213 | |||
