Here you will find all available parts and drawings of the 'Hikoki NV50A1'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

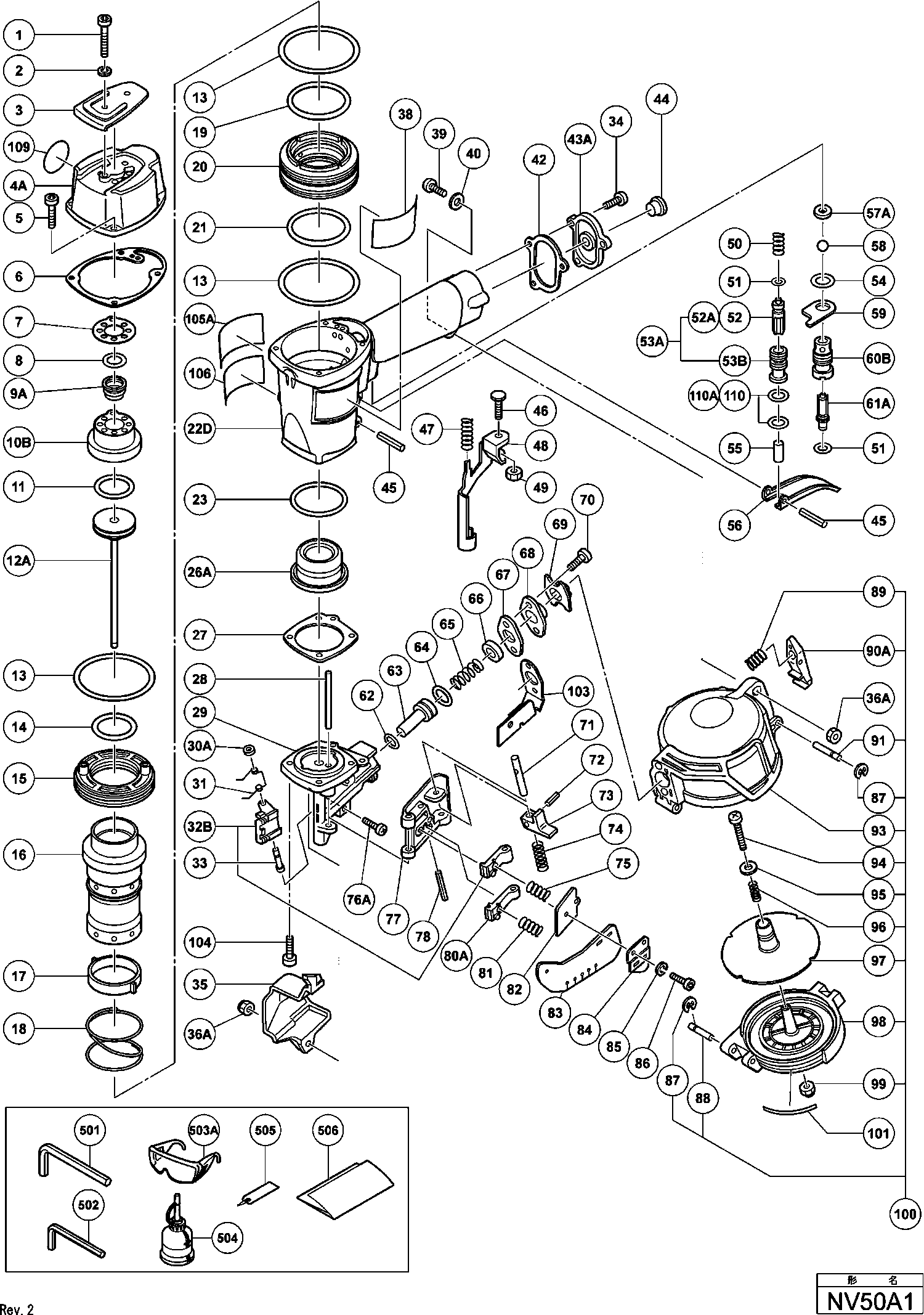

Technical drawing of model Hikoki NV50A1
Spare parts list of model Hikoki NV50A1
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete Magazine | ||||
| *100 | 877892 | 46.75 | 56.57 | |
| Complete Magazine | ||||
| *100 | 877902 | 46.75 | 56.57 | |
| Safety Spring | ||||
| *47 | 876676 | 1.05 | 1.27 | |
| Spring | ||||
| *47 | 877943 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 1 | 949662 | 2.10 | 2.54 | |
| Spring Washer M5 (10 pieces) | ||||
| 2 | 949454 | 1.04 | 1.26 | |
| Top Cover | ||||
| 3 | 876179 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 4A | 880275 | |||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 5 | 949757 | 3.00 | 3.63 | |
| Gasket (f) (old 876712p) | ||||
| 6 | 876712 | 3.30 | 3.99 | |
| Gasket (g) | ||||
| 7 | 876713 | 1.65 | 2.00 | |
| Valve O-ring Till 12.1987 | ||||
| 8 | 872821 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 9A | 878417 | |||
| Cylinder head (old 876711p) | ||||
| 10B | 876711 | 43.86 | 53.07 | |
| Piston O-ring | ||||
| 11 | 876174 | 3.60 | 4.36 | |
| Punch pin (h) | ||||
| 12A | 877898 | 134.20 | 162.38 | |
| O-Ring (s-65) | ||||
| 13 | 876161 | 3.00 | 3.63 | |
| Cylinder O-ring (d) | ||||
| 14 | 877126 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 15 | 876168 | 10.95 | 13.25 | |
| Cylinder | ||||
| 16 | 877486 | 64.21 | 77.70 | |
| Cylinder Ring | ||||
| 17 | 876167 | 1.05 | 1.27 | |
| Cylinder Spring | ||||
| 18 | 876172 | 6.60 | 7.99 | |
| Cylinder O-ring (a) | ||||
| 19 | 877123 | 2.40 | 2.90 | |
| Cylinder Guide | ||||
| 20 | 877122 | 17.60 | 21.30 | |
| Cylinder O-ring (b) | ||||
| 21 | 877124 | 1.95 | 2.36 | |
| BODY (B) ASS'Y (OLD 876709P) | ||||
| 22D | 882950 | 131.89 | 159.59 | |
| Cylinder O-ring (c) | ||||
| 23 | 877125 | 1.95 | 2.36 | |
| Piston Bumper (old 877461) | ||||
| 26A | 878179 | 18.70 | 22.63 | |
| Gasket (a) | ||||
| 27 | 876673 | 1.04 | 1.26 | |
| Nail Guide Shaft | ||||
| 28 | 877823 | 8.70 | 10.53 | |
| Nose Nv50a1 | ||||
| 29 | 877899 | 291.64 | 352.88 | |
| Feeder Shaft Ring | ||||
| 30A | 877826 | 2.55 | 3.09 | |
| Spring for feed mechanism | ||||
| 31 | 877474 | 2.40 | 2.90 | |
| Feeder | ||||
| 32B | 880270 | 35.06 | 42.43 | |
| Feeder Shaft | ||||
| 33 | 877904 | 7.95 | 9.62 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 34 | 949821 | 2.55 | 3.09 | |
| Baffle | ||||
| 35 | 877480 | 3.00 | 3.63 | |
| Nylon Nut M5 | ||||
| 36A | 877371 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 38 | 306870 | |||
| Machine Screw M5x20 (10 pieces) | ||||
| 39 | 949241 | 1.35 | 1.63 | |
| No longer available, no replacement | ||||
| 40 | 876205 | |||
| Gasket (d) | ||||
| 42 | 877131 | 1.05 | 1.27 | |
| Cap (old 876714p) | ||||
| 43A | 880036 | 6.75 | 8.17 | |
| Dust Cap | ||||
| 44 | 872035 | 1.04 | 1.26 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 45 | 949866 | 3.60 | 4.36 | |
| Safety Bolt | ||||
| 46 | 875650 | 1.05 | 1.27 | |
| Safety Spring | ||||
| 47 | 876676 | 1.05 | 1.27 | |
| Spring | ||||
| 47 | 877943 | 1.04 | 1.26 | |
| Pushing Lever | ||||
| 48 | 877890 | 27.50 | 33.28 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 49 | 949555 | 1.05 | 1.27 | |
| Plunger Spring | ||||
| 50 | 875643 | 1.05 | 1.27 | |
| O-ring | ||||
| 51 | 874820 | 1.65 | 2.00 | |
| Safety Plunger (a) | ||||
| 52 | 876739 | 10.95 | 13.25 | |
| Plunger (a) | ||||
| 52A | 878122 | 2.40 | 2.90 | |
| VALVE BUSHING ASS'Y(DISCON) | ||||
| 53A | 876764 | 21.94 | 26.55 | |
| Valve Bushing | ||||
| 53B | 878266 | 16.50 | 19.96 | |
| O-ring (s-12) | ||||
| 54 | 875638 | 1.65 | 2.00 | |
| Safety Plunger (b) | ||||
| 55 | 875642 | 8.70 | 10.53 | |
| Trigger | ||||
| 56 | 876203 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 57A | 878734 | |||
| Valve Packing | ||||
| 57B | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 58 | 875645 | |||
| Ball D7.2 | ||||
| 58A | 890301 | 1.04 | 1.26 | |
| Valve Plate | ||||
| 59 | 875644 | 1.05 | 1.27 | |
| Trigger Valve Bushing | ||||
| 60B | 877335 | 12.60 | 15.25 | |
| Trigger Plunger | ||||
| 61A | 878121 | 1.65 | 2.00 | |
| O-ring (p-9) | ||||
| 62 | 872645 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 63 | 877475 | |||
| O-ring (P-18) | ||||
| 64 | 873570 | 1.35 | 1.63 | |
| Spring | ||||
| 65 | 876693 | 2.55 | 3.09 | |
| Damper | ||||
| 66 | 877476 | 2.40 | 2.90 | |
| Feed Piston Cover (a) | ||||
| 67 | 877477 | 1.05 | 1.27 | |
| Feed Piston Cover (b) | ||||
| 68 | 877478 | 2.10 | 2.54 | |
| Magazine Bushing Since 4.1986 | ||||
| 69 | 877479 | 1.65 | 2.00 | |
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 70 | 949819 | 2.55 | 3.09 | |
| Lock Shaft | ||||
| 71 | 876682 | 3.90 | 4.72 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 72 | 949776 | 2.40 | 2.90 | |
| Guide Lock | ||||
| 73 | 877374 | 10.20 | 12.34 | |
| Spring | ||||
| 74 | 877372 | 2.40 | 2.90 | |
| Main Stopper Spring | ||||
| 75 | 876681 | 1.65 | 2.00 | |
| Machine Screw M5X16 (10 pieces) | ||||
| 76A | 949239 | 1.05 | 1.27 | |
| GELEIDER | ||||
| 77 | 877465 | 60.00 | 72.60 | |
| Roll Pin D3x28 (10 Pcs.) | ||||
| 78 | 949865 | 2.55 | 3.09 | |
| SUB NAIL STOPPER | ||||
| 80A | 877493 | 15.95 | 19.30 | |
| Sub Stopper Spring | ||||
| 81 | 877468 | 1.05 | 1.27 | |
| Nail Guide Cover | ||||
| 82 | 877469 | 1.05 | 1.27 | |
| Cover | ||||
| 83 | 877470 | 1.50 | 1.82 | |
| Cover Plate | ||||
| 84 | 877471 | 1.95 | 2.36 | |
| Spring Washer M4 (10 pieces) | ||||
| 85 | 949453 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x8 (10 Pcs.) | ||||
| 86 | 949811 | 1.50 | 1.82 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 87 | 872971 | 1.05 | 1.27 | |
| Hinge Pin (old 878953) | ||||
| 88 | 877152 | 3.60 | 4.36 | |
| Stopper Spring | ||||
| 89 | 877149 | 1.05 | 1.27 | |
| Stopper | ||||
| 90A | 880146 | 1.95 | 2.36 | |
| Stopper Pin | ||||
| 91 | 877150 | 2.55 | 3.09 | |
| Magazine Nv50a1 | ||||
| 93 | 877906 | 14.71 | 17.80 | |
| Machine Screw M4x40 (10 Pcs.) | ||||
| 94 | 949228 | 1.35 | 1.63 | |
| Ring | ||||
| 95 | 875246 | 1.05 | 1.27 | |
| Spring | ||||
| 96 | 877894 | 1.05 | 1.27 | |
| Nail Holder | ||||
| 97 | 877893 | 10.20 | 12.34 | |
| Magazine Cover | ||||
| 98 | 877895 | 7.35 | 8.89 | |
| Nylon Nut M4 | ||||
| 99 | 876465 | 1.05 | 1.27 | |
| Complete Magazine | ||||
| 100 | 877892 | 46.75 | 56.57 | |
| Complete Magazine | ||||
| 100 | 877902 | 46.75 | 56.57 | |
| LABEL NV50A1 | ||||
| 101 | 877903 | 1.00 | 1.21 | |
| Nail Guard | ||||
| 103 | 877916 | 7.05 | 8.53 | |
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 104 | 878181 | 1.05 | 1.27 | |
| Warning Label | ||||
| 105A | 884070 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 106 | 878183 | |||
| Warning Label (a) | ||||
| 109 | 883513 | 1.65 | 2.00 | |
| O-ring (s-12) | ||||
| 110 | 875638 | 1.65 | 2.00 | |
| O-ring (i.d 10.7) | ||||
| 110A | 884112 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 943277 | |||
| No information available, not orderable | ||||
| 503A | 875769 | |||
| No information available, not orderable | ||||
| 504 | 877153 | |||
| Caution Tag | ||||
| 505 | 882413 | 1.95 | 2.36 | |
| LEAFLET | ||||
| 506 | 882414 | 1.86 | 2.25 | |
| No information available, not orderable | ||||
| 601 | 876212 | |||
| No information available, not orderable | ||||
| 602 | 876720 | |||
| POWER SET | ||||
| 606A | 877908 | 120.01 | 145.21 | |
| Hex. Socket Hd. Bolt M5x65 (10 Pcs) | ||||
| 607 | 949827 | 7.50 | 9.08 | |
| BOUT ( 10 STUKS ) | ||||
| 608 | 949826 | 6.06 | 7.33 | |
| UPPER COVER | ||||
| 609 | 877909 | 58.19 | 70.41 | |
| Packing (h) | ||||
| 610 | 877911 | 1.50 | 1.82 | |
| Packing (j) W/4mm Hole | ||||
| 611 | 877912 | 1.04 | 1.26 | |
| Exhaust Piece | ||||
| 612 | 877910 | 63.80 | 77.20 | |
| No information available, not orderable | ||||
| 613 | 876762 | |||
| PAKKING | ||||
| 614 | 877915 | 1.00 | 1.21 | |
| Grease (attolub No.2) 500g | ||||
| 615 | 317918 | 32.18 | 38.93 | |
| Grip Tape (a) | ||||
| 616 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 617A | 888213 | |||
