Here you will find all available parts and drawings of the 'Hikoki NT65MA4'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

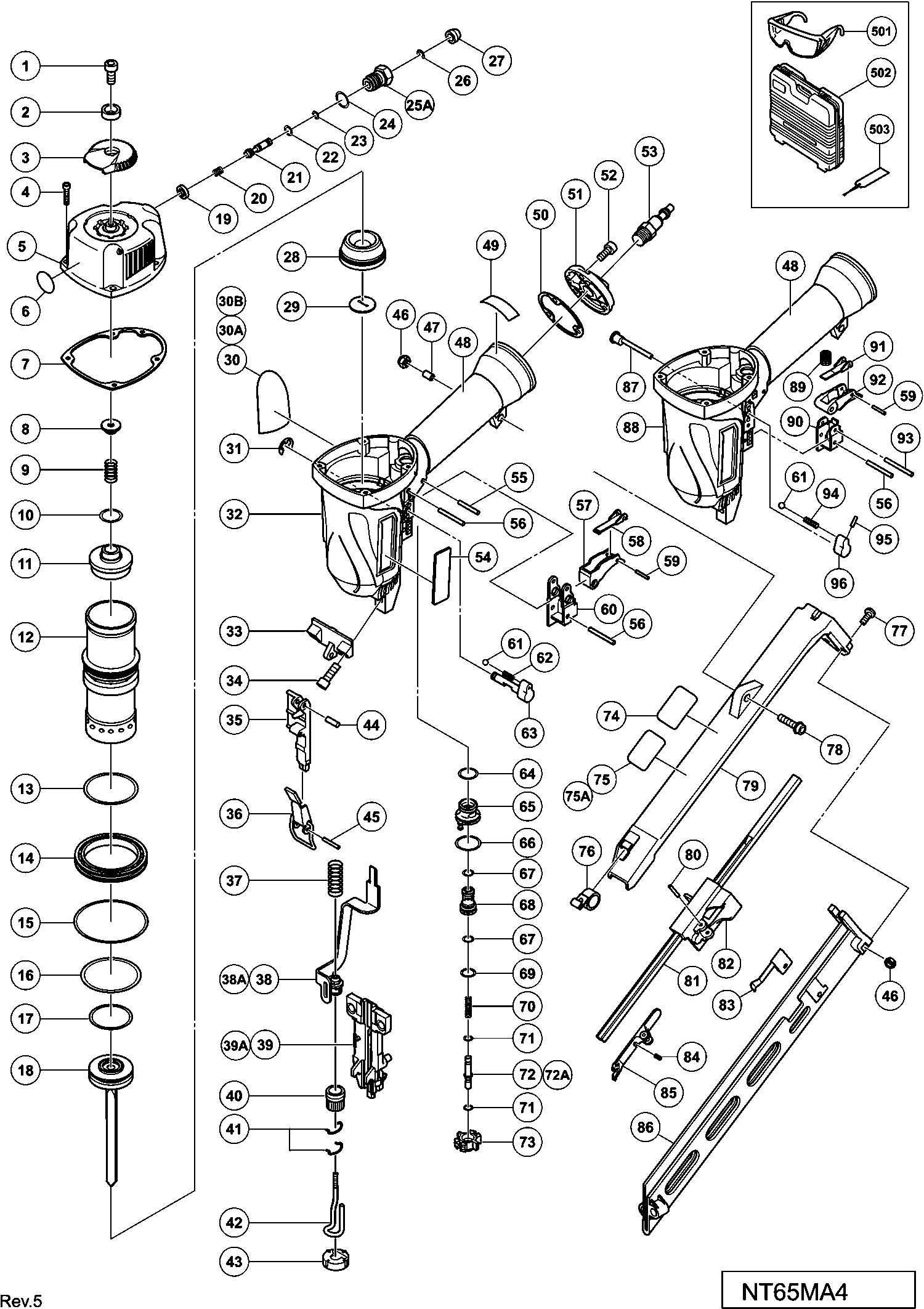

Technical drawing of model Hikoki NT65MA4
Spare parts list of model Hikoki NT65MA4
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M6x12 (10 Pcs.) | ||||
| 1 | 949657 | 3.00 | 3.63 | |
| Plate | ||||
| 2 | 880515 | 5.85 | 7.08 | |
| Top Cover | ||||
| 3 | 884332 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 4 | 949757 | 3.00 | 3.63 | |
| Exhaust Cap | ||||
| 5 | 887161 | 11.03 | 13.34 | |
| Warning Label (a) | ||||
| 6 | 883513 | 1.65 | 2.00 | |
| GASKET PACKING | ||||
| 7 | 887165 | 2.10 | 2.54 | |
| Head Bumper | ||||
| 8 | 882914 | 6.60 | 7.99 | |
| Head Valve Spring | ||||
| 9 | 882913 | 6.75 | 8.17 | |
| O-ring (i.d. 20.8) | ||||
| 10 | 883992 | 1.65 | 2.00 | |
| Gasket | ||||
| 11 | 887169 | 1.80 | 2.18 | |
| Cylinder | ||||
| 12 | 887162 | 16.78 | 20.30 | |
| O-ring | ||||
| 13 | 887176 | 1.05 | 1.27 | |
| Cylinder Plate | ||||
| 14 | 887163 | 2.10 | 2.54 | |
| Cylinder O-ring (i.d. 63.1) | ||||
| 15 | 884339 | 2.10 | 2.54 | |
| O-ring (p-46) | ||||
| 16 | 878716 | 1.65 | 2.00 | |
| O-ring (i.d. 34.7) | ||||
| 17 | 882685 | 1.65 | 2.00 | |
| Piston | ||||
| 18 | 884330 | 65.04 | 78.70 | |
| Gasket | ||||
| 19 | 884338 | 1.05 | 1.27 | |
| Spring | ||||
| 20 | 887177 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 21 | 884333 | 3.30 | 3.99 | |
| O-ring (1ap-3) | ||||
| 22 | 873093 | 1.05 | 1.27 | |
| O-ring (s3) | ||||
| 23 | 881715 | 1.05 | 1.27 | |
| O-ring (s-10) | ||||
| 24 | 987105 | 1.05 | 1.27 | |
| Valve Bushing | ||||
| 25A | 887150 | 5.10 | 6.17 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 26 | 968643 | 1.95 | 2.36 | |
| Knob (black) | ||||
| 27 | 886743 | 1.20 | 1.45 | |
| Piston Bumper | ||||
| 28 | 887170 | 2.10 | 2.54 | |
| Bumper Sheet | ||||
| 29 | 881756 | 1.05 | 1.27 | |
| Name Plate (1) | ||||
| 30 | 887167 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 30A | 888739 | |||
| Retaining Ring (e-type) For D6 Shaft | ||||
| 31 | 955479 | 1.05 | 1.27 | |
| Housing | ||||
| 32 | 887160 | 32.31 | 39.10 | |
| Guide Plate (b) | ||||
| 33 | 881764 | 27.50 | 33.28 | |
| Nylock Hex. Socket Hd. Bolt M6x30 | ||||
| 34 | 331967 | 1.20 | 1.45 | |
| GUIDE PLATE (A) | ||||
| 35 | 881743 | 52.53 | 63.56 | |
| Locking Device | ||||
| 36 | 884323 | 4.20 | 5.08 | |
| Spring | ||||
| 37 | 877894 | 1.05 | 1.27 | |
| Pushing Lever (b) | ||||
| 38 | 887179 | 6.90 | 8.35 | |
| Pushing Lever (b) | ||||
| 38A | 887688 | 6.90 | 8.35 | |
| Guide Piece | ||||
| 39 | 881742 | 57.06 | 69.05 | |
| Guide Piece | ||||
| 39A | 887689 | 57.06 | 69.05 | |
| Adjuster | ||||
| 40 | 887172 | 2.10 | 2.54 | |
| Ratchet Spring | ||||
| 41 | 881765 | 1.95 | 2.36 | |
| Pushing Lever (a) | ||||
| 42 | 884324 | 4.20 | 5.08 | |
| Nose Cap (a) | ||||
| 43 | 881751 | 1.95 | 2.36 | |
| Roll Pin D4x14 (10 Pcs.) | ||||
| 44 | 949770 | 2.55 | 3.09 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 45 | 949685 | 2.55 | 3.09 | |
| Nylon Nut M5 | ||||
| 46 | 877371 | 1.05 | 1.27 | |
| Sleeve | ||||
| 47 | 881774 | 3.30 | 3.99 | |
| Seal Plate (b) | ||||
| 50 | 887171 | 1.20 | 1.45 | |
| Cap (a) (silver green) 1/4-18npt | ||||
| 51 | 884343 | 3.45 | 4.17 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 52 | 949821 | 2.55 | 3.09 | |
| Brand Plate | ||||
| 54 | 886342 | 1.80 | 2.18 | |
| Brand Plate | ||||
| 54A | 886342 | 1.80 | 2.18 | |
| Roll Pin D3x22 (10 Pcs.) | ||||
| 55 | 949864 | 1.65 | 2.00 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 56 | 949866 | 3.60 | 4.36 | |
| Trigger (c) | ||||
| 57 | 887166 | 1.20 | 1.45 | |
| Trigger (c) | ||||
| 58 | 885689 | 2.10 | 2.54 | |
| Roll Pin D2.5x16 | ||||
| 59 | 881951 | 1.80 | 2.18 | |
| Roll Pin D2.5 | ||||
| 59A | 887856 | 1.20 | 1.45 | |
| PUSHING LEVER GUIDE | ||||
| 60 | 885640 | 1.74 | 2.11 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 61 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 62 | 982454 | 1.04 | 1.26 | |
| Change Knob (c) | ||||
| 63 | 886265 | 2.10 | 2.54 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 64 | 877763 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 65 | 884963 | 1.65 | 2.00 | |
| O-ring (P-18) | ||||
| 66 | 873570 | 1.35 | 1.63 | |
| O-RING (P-7) (OLD 676531) | ||||
| 67 | 889335 | 1.00 | 1.21 | |
| O-RING (P-7) (OLD 676531) | ||||
| 67A | 889335 | 1.00 | 1.21 | |
| Valve Piston | ||||
| 68 | 884964 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 69 | 872654 | |||
| O-RING (1AP-10) (OLD 872654) | ||||
| 69A | 889495 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 70 | 887178 | 1.20 | 1.45 | |
| O-RING (I.D.1.8) | ||||
| 71 | 878888 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 72 | 885888 | 3.15 | 3.81 | |
| Spindle Ass'y | ||||
| 72A | 887679 | 3.15 | 3.81 | |
| Valve Bushing (a) | ||||
| 73 | 884962 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 74 | 878183 | |||
| Leaf Spring | ||||
| 76 | 881755 | 3.30 | 3.99 | |
| Machine Screw M5x15 Black | ||||
| 77 | 885997 | 1.05 | 1.27 | |
| Hd. Bolt M5x20 (with washer) | ||||
| 78 | 881773 | 1.65 | 2.00 | |
| Magazine Cover | ||||
| 79 | 881752 | 9.60 | 11.62 | |
| Roll Pin D2.5x20 (stainless steel) | ||||
| 80 | 881767 | 1.05 | 1.27 | |
| Nail Rail | ||||
| 81 | 884327 | 7.20 | 8.71 | |
| Nail feed | ||||
| 82 | 881744 | 4.50 | 5.44 | |
| Nail Stopper | ||||
| 83 | 881766 | 3.30 | 3.99 | |
| Push spring | ||||
| 84 | 880321 | 1.05 | 1.27 | |
| Nail Feeder (a) | ||||
| 85 | 881746 | 17.88 | 21.63 | |
| Magazine | ||||
| 86 | 881754 | 18.98 | 22.96 | |
| No information available, not orderable | ||||
| 87 | 887668 | |||
| Change Rod (d) | ||||
| 87A | 888798 | 1.95 | 2.36 | |
| Housing | ||||
| 88 | 887692 | 32.31 | 39.10 | |
| Trigger Arm Spring | ||||
| 89 | 887682 | 2.10 | 2.54 | |
| Pushing Lever Guide | ||||
| 90 | 887693 | 8.85 | 10.71 | |
| Trigger (d) | ||||
| 91 | 887694 | 2.10 | 2.54 | |
| Trigger (d) | ||||
| 92 | 887695 | 3.15 | 3.81 | |
| Roll Pin D3x35 | ||||
| 93 | 887675 | 1.20 | 1.45 | |
| Spring | ||||
| 94 | 887673 | 1.20 | 1.45 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 95 | 887458 | 1.20 | 1.45 | |
| Change Knob (d) | ||||
| 96 | 887684 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 502 | 884340 | |||
| No information available, not orderable | ||||
| 503 | 888760 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| No information available, not orderable | ||||
| 603 | 877153 | |||
| No information available, not orderable | ||||
| 604 | 874042 | |||
| No information available, not orderable | ||||
| 605 | 876212 | |||
| Grease (attolub No.2) 500g | ||||
| 606 | 317918 | 32.18 | 38.93 | |
| Single Sequential Actuation Mechanismkit | ||||
| 607 | 887916 | 3.30 | 3.99 | |
| O-ring Kit Includ.608-615 | ||||
| 608 | 888208 | 6.45 | 7.80 | |
