Here you will find all available parts and drawings of the 'Hikoki NT65M2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

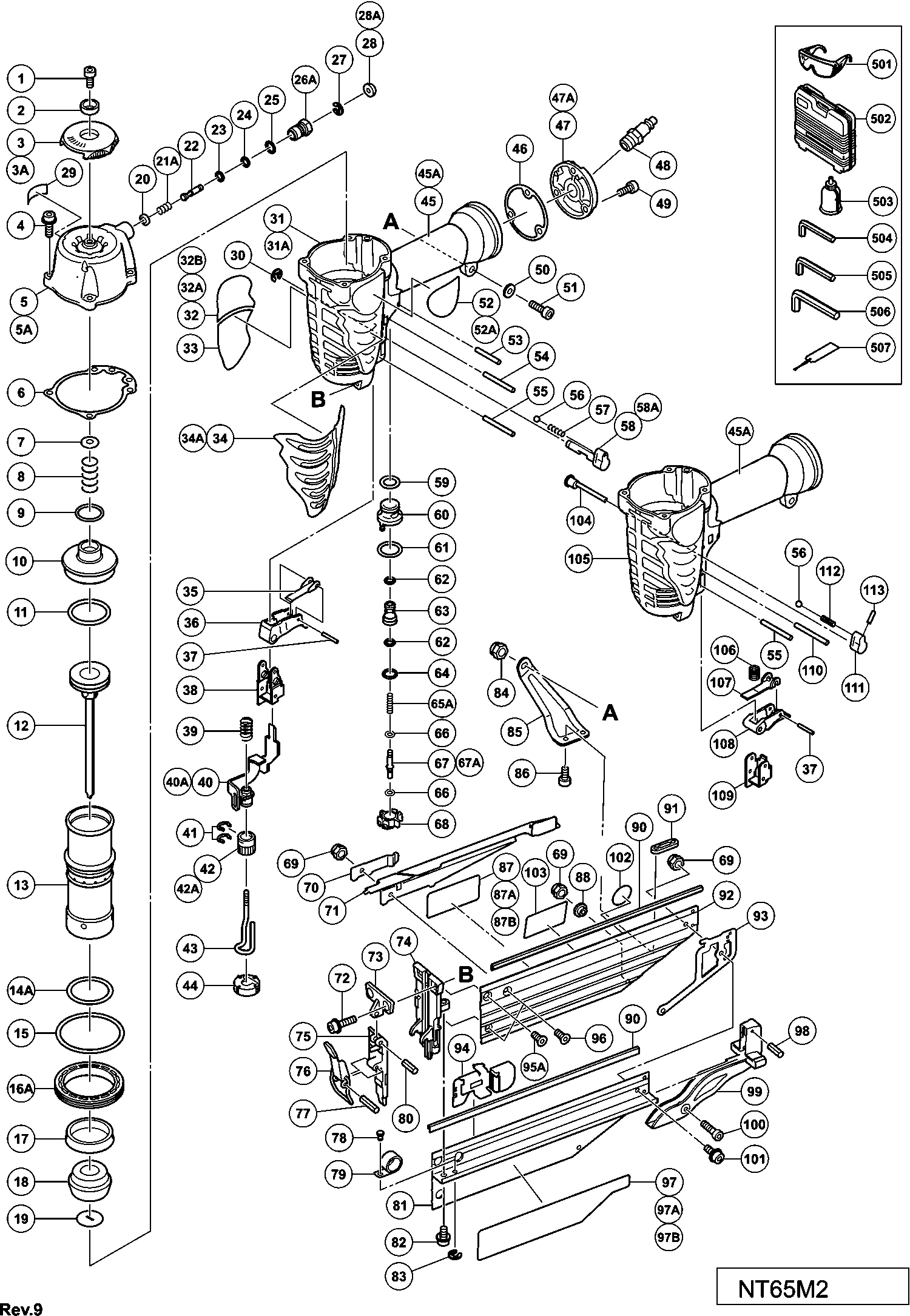

Technical drawing of model Hikoki NT65M2
Spare parts list of model Hikoki NT65M2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M6x12 (10 Pcs.) | ||||
| 1 | 949657 | 3.00 | 3.63 | |
| Plate | ||||
| 2 | 880515 | 5.85 | 7.08 | |
| TOP COVER (GRAY) | ||||
| 3 | 885673 | 3.48 | 4.21 | |
| Top Cover (black) | ||||
| 3A | 886740 | 4.20 | 5.08 | |
| BOUT HD. M5X25 | ||||
| 4 | 885637 | 1.00 | 1.21 | |
| Exhaust cover (black) | ||||
| 5 | 885671 | 22.83 | 27.62 | |
| Exhaust Cap | ||||
| 5A | 886739 | 22.83 | 27.62 | |
| GASKET PACKING | ||||
| 6 | 885672 | 4.20 | 5.08 | |
| Head Bumper | ||||
| 7 | 882914 | 6.60 | 7.99 | |
| Head Valve Spring | ||||
| 8 | 882913 | 6.75 | 8.17 | |
| O-ring (i.d. 20.8) | ||||
| 9 | 883992 | 1.65 | 2.00 | |
| Head Valve (a) | ||||
| 10 | 882927 | 14.10 | 17.06 | |
| O-ring (i.d.31.7) | ||||
| 11 | 885668 | 2.10 | 2.54 | |
| Striking pin | ||||
| 12 | 885667 | 41.80 | 50.58 | |
| CYLINDER | ||||
| 13 | 885663 | 23.48 | 28.41 | |
| O-ring (s-44) | ||||
| 14A | 880362 | 1.04 | 1.26 | |
| O-ring (i.d.59.6) | ||||
| 15 | 885665 | 2.10 | 2.54 | |
| Cylinder Plate | ||||
| 16A | 885664 | 5.40 | 6.53 | |
| Cylinder Ring | ||||
| 17 | 885666 | 2.10 | 2.54 | |
| Piston Bumper | ||||
| 18 | 885669 | 5.10 | 6.17 | |
| Bumper Sheet | ||||
| 19 | 885670 | 1.05 | 1.27 | |
| Gasket | ||||
| 20 | 884338 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21 | 881900 | |||
| Spring | ||||
| 21A | 887177 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 22 | 884333 | 3.30 | 3.99 | |
| O-ring (s3) | ||||
| 23 | 881715 | 1.05 | 1.27 | |
| O-ring (1ap-3) | ||||
| 24 | 873093 | 1.05 | 1.27 | |
| O-ring (s-10) | ||||
| 25 | 987105 | 1.05 | 1.27 | |
| Valve Bushing | ||||
| 26A | 887150 | 5.10 | 6.17 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 27 | 968643 | 1.95 | 2.36 | |
| Knob | ||||
| 28 | 884334 | 1.65 | 2.00 | |
| Knob (black) | ||||
| 28A | 886743 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 29 | 888763 | |||
| Retaining Ring (e-type) For D6 Shaft | ||||
| 30 | 955479 | 1.05 | 1.27 | |
| Housing (black) | ||||
| 31 | 885662 | 64.63 | 78.20 | |
| Housing | ||||
| 31A | 886738 | 103.68 | 125.45 | |
| No information available, not orderable | ||||
| 32 | 888736 | |||
| No information available, not orderable | ||||
| 32A | 888737 | |||
| No information available, not orderable | ||||
| 33 | 888738 | |||
| Protector (silver) | ||||
| 34 | 885675 | 4.20 | 5.08 | |
| Protector (black) | ||||
| 34A | 886741 | 4.20 | 5.08 | |
| Trigger (c) | ||||
| 35 | 885689 | 2.10 | 2.54 | |
| Switch | ||||
| 36 | 885657 | 10.35 | 12.52 | |
| Roll Pin D2.5x16 | ||||
| 37 | 881951 | 1.80 | 2.18 | |
| Roll Pin D2.5 | ||||
| 37A | 887856 | 1.20 | 1.45 | |
| PUSHING LEVER GUIDE | ||||
| 38 | 885640 | 1.74 | 2.11 | |
| Pushing Lever Spring | ||||
| 39 | 885638 | 1.05 | 1.27 | |
| Pushing Lever | ||||
| 40 | 885639 | 16.78 | 20.30 | |
| Pushing Lever (b) | ||||
| 40A | 887700 | 16.78 | 20.30 | |
| Ratchet Spring | ||||
| 41 | 881765 | 1.95 | 2.36 | |
| Adjuster (green) | ||||
| 42 | 884325 | 2.10 | 2.54 | |
| Regulator (black) | ||||
| 42A | 886742 | 2.10 | 2.54 | |
| Pushing Lever | ||||
| 43 | 885688 | 4.65 | 5.63 | |
| Nose Cap (a) | ||||
| 44 | 881751 | 1.95 | 2.36 | |
| Gasket (b) | ||||
| 46 | 884342 | 1.05 | 1.27 | |
| AFDEKPLAATJE ZWART | ||||
| 47 | 885674 | 4.20 | 5.08 | |
| Cap (a) (silver green) 1/4-18npt | ||||
| 47A | 884343 | 3.45 | 4.17 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 49 | 949821 | 2.55 | 3.09 | |
| Ring | ||||
| 50 | 885661 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 51 | 949757 | 3.00 | 3.63 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 53 | 949539 | 2.25 | 2.72 | |
| Roll Pin D3x32 | ||||
| 54 | 884975 | 1.65 | 2.00 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 55 | 949866 | 3.60 | 4.36 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 56 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 57 | 982454 | 1.04 | 1.26 | |
| Change Knob (c) (green) | ||||
| 58 | 885658 | 10.80 | 13.07 | |
| Change Knob (c) | ||||
| 58A | 886265 | 2.10 | 2.54 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 59 | 877763 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 60 | 884963 | 1.65 | 2.00 | |
| O-ring (P-18) | ||||
| 61 | 873570 | 1.35 | 1.63 | |
| O-RING (P-7) (OUD 676531) | ||||
| 62 | 889335 | 1.00 | 1.21 | |
| O-RING (P-7) (OUD 676531) | ||||
| 62A | 889335 | 1.00 | 1.21 | |
| Valve Piston | ||||
| 63 | 884964 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 64 | 872654 | |||
| O-RING (1AP-10) (OLD 872654) | ||||
| 64A | 889495 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 65A | 887178 | 1.20 | 1.45 | |
| O-RING (I.D.1.8) | ||||
| 66 | 878888 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 67 | 884965 | 4.80 | 5.81 | |
| Spindle Ass'y | ||||
| 67A | 887679 | 3.15 | 3.81 | |
| Valve Bushing (a) | ||||
| 68 | 884962 | 1.65 | 2.00 | |
| Nylon Nut M4 | ||||
| 69 | 876465 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 70 | 885646 | 1.05 | 1.27 | |
| MAGAZINE COVER | ||||
| 71 | 885648 | 4.80 | 5.81 | |
| BOUT HD. M5X25 | ||||
| 72 | 885637 | 1.00 | 1.21 | |
| GUIDE PLATE (B) | ||||
| 73 | 885635 | 10.05 | 12.16 | |
| Guide Piece | ||||
| 74 | 885636 | 45.65 | 55.24 | |
| GUIDE PLATE | ||||
| 75 | 885634 | 20.90 | 25.29 | |
| Locking Device | ||||
| 76 | 884323 | 4.20 | 5.08 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 77 | 949685 | 2.55 | 3.09 | |
| Pin | ||||
| 78 | 885656 | 1.05 | 1.27 | |
| Spring | ||||
| 79 | 885655 | 3.15 | 3.81 | |
| Roll Pin D4x14 (10 Pcs.) | ||||
| 80 | 949770 | 2.55 | 3.09 | |
| Magazine (a) | ||||
| 81 | 885641 | 22.83 | 27.62 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x12 | ||||
| 82 | 885652 | 1.05 | 1.27 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 83 | 872971 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 84 | 877371 | 1.05 | 1.27 | |
| Handle Arm | ||||
| 85 | 885659 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 86 | 949812 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 87 | 888757 | |||
| Label | ||||
| 87A | 888266 | 1.04 | 1.26 | |
| Sleeve | ||||
| 88 | 885649 | 1.05 | 1.27 | |
| Nail Rail | ||||
| 90 | 885643 | 2.10 | 2.54 | |
| ARM PLATE | ||||
| 91 | 885660 | 1.74 | 2.11 | |
| Magazine (b) | ||||
| 92 | 885642 | 22.83 | 27.62 | |
| SPACER | ||||
| 93 | 885644 | 2.58 | 3.12 | |
| Nail feed | ||||
| 94 | 885654 | 5.40 | 6.53 | |
| Seal Lock Flat Head Screw M4x6 | ||||
| 95A | 887680 | 1.80 | 2.18 | |
| NYLOCK HEX. SOCKET FLAT HEAD BOLT M4X10 | ||||
| 96A | 885650 | 1.05 | 1.27 | |
| Roll Pin D2.5x12 | ||||
| 98 | 878791 | 1.04 | 1.26 | |
| Magazine Protector | ||||
| 99 | 885645 | 4.58 | 5.54 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 100 | 949754 | 2.40 | 2.90 | |
| Hex. Socket Hd. Bolt M4x14 (w/sp.washer) | ||||
| 101 | 885653 | 1.05 | 1.27 | |
| Warning Label (a) | ||||
| 102 | 883513 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 103 | 878183 | |||
| No information available, not orderable | ||||
| 104 | 887668 | |||
| Change Rod (d) | ||||
| 104A | 888798 | 1.95 | 2.36 | |
| Housing | ||||
| 105 | 887701 | 64.63 | 78.20 | |
| Trigger Arm Spring | ||||
| 106 | 887682 | 2.10 | 2.54 | |
| Trigger (d) | ||||
| 107 | 887694 | 2.10 | 2.54 | |
| Trigger (d) | ||||
| 108 | 887695 | 3.15 | 3.81 | |
| Pushing Lever Guide | ||||
| 109 | 887693 | 8.85 | 10.71 | |
| Roll Pin D3x35 | ||||
| 110 | 887675 | 1.20 | 1.45 | |
| Change Knob (d) | ||||
| 111 | 887684 | 1.20 | 1.45 | |
| Spring | ||||
| 112 | 887673 | 1.20 | 1.45 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 113 | 887458 | 1.20 | 1.45 | |
| Seal Lock Plate Screw M4x10 | ||||
| 114 | 305749 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 502 | 885676 | |||
| No information available, not orderable | ||||
| 503 | 877153 | |||
| No information available, not orderable | ||||
| 504 | 943277 | |||
| No information available, not orderable | ||||
| 505 | 944458 | |||
| No information available, not orderable | ||||
| 506 | 944459 | |||
| No information available, not orderable | ||||
| 507 | 888760 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| O-ring Kit Includ.608-615 | ||||
| 603 | 885914 | 13.50 | 16.34 | |
| GASKET PACKING | ||||
| 604 | 885672 | 4.20 | 5.08 | |
| O-ring (i.d. 20.8) | ||||
| 605 | 883992 | 1.65 | 2.00 | |
| O-ring (i.d.31.7) | ||||
| 606 | 885668 | 2.10 | 2.54 | |
| O-ring (s-44) | ||||
| 607A | 880362 | 1.04 | 1.26 | |
| O-ring (i.d.59.6) | ||||
| 608 | 885665 | 2.10 | 2.54 | |
| Cylinder Ring | ||||
| 609 | 885666 | 2.10 | 2.54 | |
| Single Sequential Actuation Mechanismkit | ||||
| 611 | 887916 | 3.30 | 3.99 | |
