Here you will find all available parts and drawings of the 'Hikoki NT65M'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

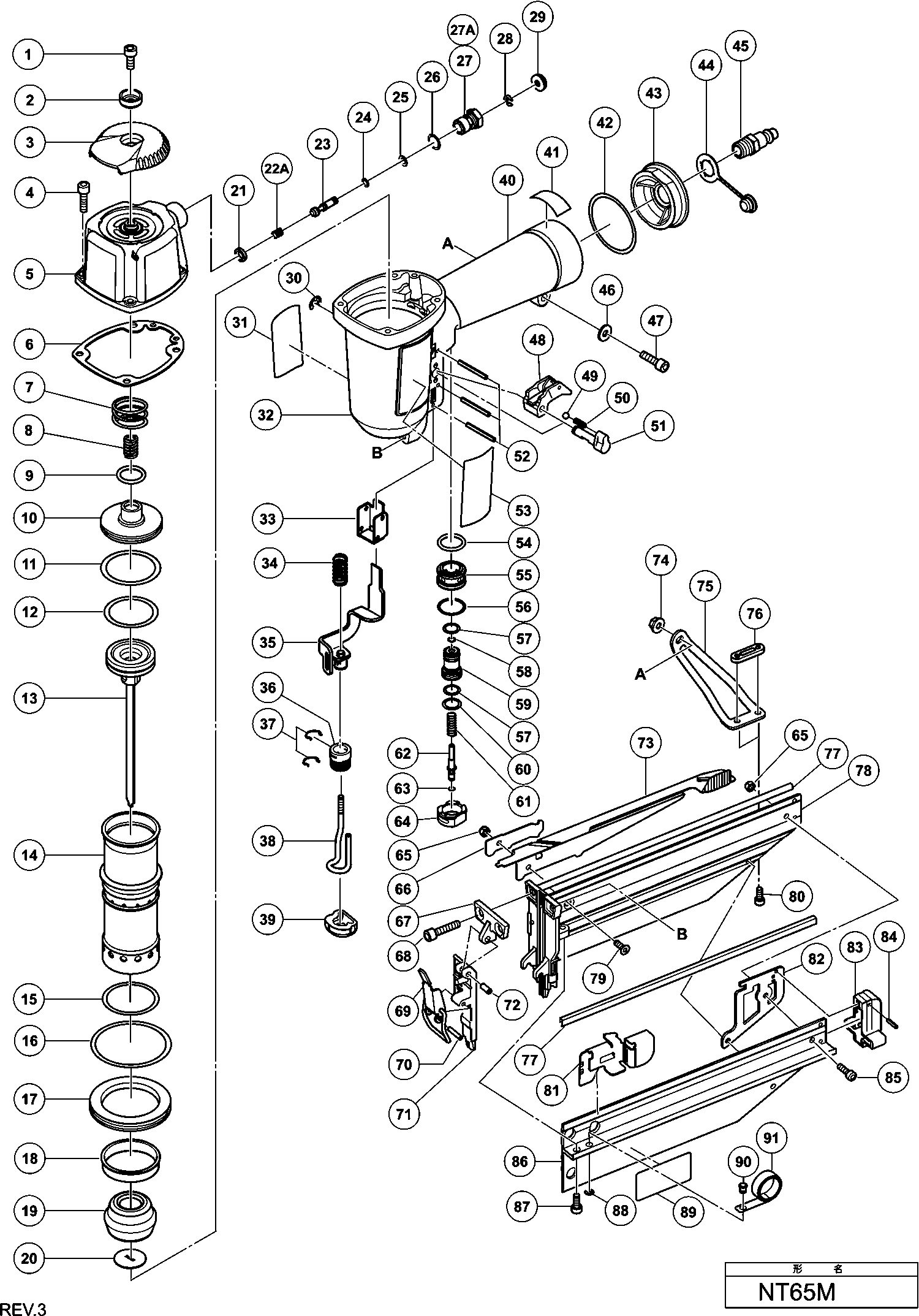

Technical drawing of model Hikoki NT65M
Spare parts list of model Hikoki NT65M
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| INBUSBOUT M6X10 ( 10 STUKS ) | ||||
| 1 | 949830 | 2.46 | 2.98 | |
| Plate | ||||
| 2 | 880515 | 5.85 | 7.08 | |
| Top Cover | ||||
| 3 | 884332 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 4 | 885196 | |||
| No information available, not orderable | ||||
| 5 | 885197 | |||
| No information available, not orderable | ||||
| 6 | 885198 | |||
| No information available, not orderable | ||||
| 7 | 885199 | |||
| No information available, not orderable | ||||
| 8 | 885200 | |||
| No information available, not orderable | ||||
| 9 | 885201 | |||
| No information available, not orderable | ||||
| 10 | 885202 | |||
| No information available, not orderable | ||||
| 11 | 885203 | |||
| No information available, not orderable | ||||
| 12 | 885204 | |||
| No information available, not orderable | ||||
| 13 | 885205 | |||
| No information available, not orderable | ||||
| 14 | 885206 | |||
| No information available, not orderable | ||||
| 15 | 885207 | |||
| No information available, not orderable | ||||
| 16 | 885208 | |||
| No information available, not orderable | ||||
| 17 | 885209 | |||
| No information available, not orderable | ||||
| 18 | 885210 | |||
| No information available, not orderable | ||||
| 19 | 885211 | |||
| No information available, not orderable | ||||
| 20 | 885212 | |||
| No longer available, no replacement | ||||
| 21 | 881711 | |||
| Gasket | ||||
| 21A | 884338 | 1.05 | 1.27 | |
| Spring | ||||
| 22A | 887177 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 23 | 884333 | 3.30 | 3.99 | |
| O-ring (1ap-3) | ||||
| 24 | 873093 | 1.05 | 1.27 | |
| O-ring (s3) | ||||
| 25 | 881715 | 1.05 | 1.27 | |
| O-ring (s-10) | ||||
| 26 | 987105 | 1.05 | 1.27 | |
| Valve Bushing | ||||
| 27A | 887150 | 5.10 | 6.17 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 28 | 968643 | 1.95 | 2.36 | |
| Knob | ||||
| 29 | 884334 | 1.65 | 2.00 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 30 | 955479 | 1.05 | 1.27 | |
| Warning Label | ||||
| 31 | 884070 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 32 | 885213 | |||
| Pushing Lever Guide | ||||
| 33 | 884336 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 34 | 885214 | |||
| No information available, not orderable | ||||
| 35 | 885215 | |||
| Adjuster (green) | ||||
| 36 | 884325 | 2.10 | 2.54 | |
| Ratchet Spring | ||||
| 37 | 881765 | 1.95 | 2.36 | |
| Pushing Lever (a) | ||||
| 38 | 884324 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 39 | 885216 | |||
| No information available, not orderable | ||||
| 43 | 885218 | |||
| No information available, not orderable | ||||
| 44 | 885219 | |||
| No information available, not orderable | ||||
| 45 | 885220 | |||
| No information available, not orderable | ||||
| 46 | 885221 | |||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 47 | 949757 | 3.00 | 3.63 | |
| Switch | ||||
| 48 | 884145 | 6.45 | 7.80 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 49 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 50 | 982454 | 1.04 | 1.26 | |
| Change Knob | ||||
| 51 | 884335 | 4.80 | 5.81 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 52 | 949866 | 3.60 | 4.36 | |
| HEAD VALVE O-RING (I.D.16.8) | ||||
| 54 | 877699 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 55 | 878881 | 39.74 | 48.08 | |
| O-ring (s-18) | ||||
| 56 | 878885 | 1.05 | 1.27 | |
| O-ring (I.D. 8.8) | ||||
| 57 | 878925 | 1.05 | 1.27 | |
| O-RING (S-4) | ||||
| 58 | 981317 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 59 | 884143 | 9.60 | 11.62 | |
| O-Ring (I.D.11) | ||||
| 60 | 878887 | 1.65 | 2.00 | |
| Plunger Spring | ||||
| 61 | 878884 | 1.65 | 2.00 | |
| Plunger (a) | ||||
| 62 | 884144 | 3.30 | 3.99 | |
| O-RING (I.D.1.8) | ||||
| 63 | 878888 | 1.05 | 1.27 | |
| Valve Bushing (a) | ||||
| 64 | 880671 | 23.65 | 28.62 | |
| Nylon Nut M4 | ||||
| 65 | 876465 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 66 | 885222 | |||
| No information available, not orderable | ||||
| 67 | 885223 | |||
| No information available, not orderable | ||||
| 68 | 885224 | |||
| Locking Device | ||||
| 69 | 884323 | 4.20 | 5.08 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 70 | 949685 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 71 | 885225 | |||
| No information available, not orderable | ||||
| 72 | 885226 | |||
| No information available, not orderable | ||||
| 73 | 885227 | |||
| No information available, not orderable | ||||
| 74 | 885228 | |||
| No information available, not orderable | ||||
| 75 | 885229 | |||
| No information available, not orderable | ||||
| 76 | 885230 | |||
| No information available, not orderable | ||||
| 77 | 885231 | |||
| No information available, not orderable | ||||
| 78 | 885232 | |||
| No information available, not orderable | ||||
| 79 | 885233 | |||
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 80 | 949812 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 81 | 885234 | |||
| No information available, not orderable | ||||
| 82 | 885235 | |||
| No information available, not orderable | ||||
| 83 | 885236 | |||
| Roll Pin D2.5x12 | ||||
| 84 | 878791 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 85 | 885237 | |||
| No information available, not orderable | ||||
| 86 | 885238 | |||
| No information available, not orderable | ||||
| 87 | 885239 | |||
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 88 | 872971 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 90 | 885241 | |||
| No information available, not orderable | ||||
| 91 | 885242 | |||
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 502 | 885243 | |||
| No information available, not orderable | ||||
| 503 | 884337 | |||
| No information available, not orderable | ||||
| 504 | 885244 | |||
| No information available, not orderable | ||||
| 601 | 884320 | |||
| No information available, not orderable | ||||
| 602 | 884321 | |||
| No information available, not orderable | ||||
| 603 | 881778 | |||
| O-RING (I.D.1.8) | ||||
| 604 | 878888 | 1.05 | 1.27 | |
| Valve Piston (b) | ||||
| 605 | 880672 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 606 | 884322 | |||
| Grip Tape (a) | ||||
| 607 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 608A | 888213 | |||
