Here you will find all available parts and drawings of the 'Hikoki NT65GS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

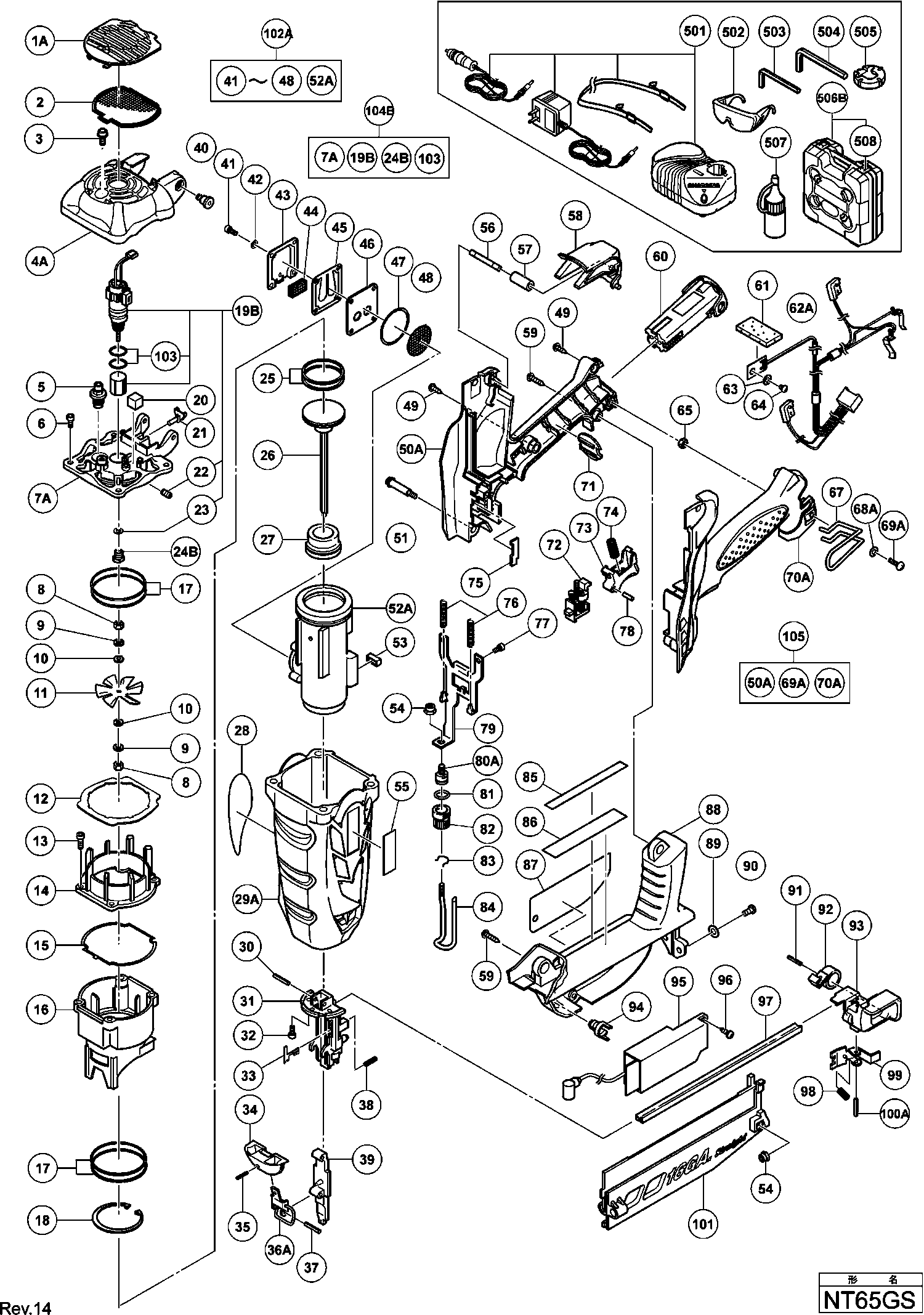

Technical drawing of model Hikoki NT65GS
Spare parts list of model Hikoki NT65GS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *60 | 326299 | |||
| Filter Cover B#9r192230 | ||||
| 1A | 886664 | 1.05 | 1.27 | |
| Filter | ||||
| 2 | 886344 | 10.20 | 12.34 | |
| Hex. Socket Hd. Bolt (w/flange) M5x10 B#9r192232 | ||||
| 3 | 886347 | 1.05 | 1.27 | |
| Top Cover | ||||
| 4A | 886335 | 3.15 | 3.81 | |
| Spark Plug (a) | ||||
| 5 | 885333 | 3.30 | 3.99 | |
| Nylock Hex. Socket Hd. Bolt M4x12 | ||||
| 6 | 880630 | 1.05 | 1.27 | |
| Cylinder Head B#9r192236 | ||||
| 7A | 886661 | 20.90 | 25.29 | |
| Nut M3 (10 Pcs.) | ||||
| 8 | 949553 | 1.04 | 1.26 | |
| Spring Washer M3 (10 pieces) | ||||
| 9 | 949451 | 1.05 | 1.27 | |
| Washer M3 (10 Pcs.) | ||||
| 10 | 949422 | 1.04 | 1.26 | |
| Fan | ||||
| 11 | 886309 | 2.10 | 2.54 | |
| Rubber Plate B#9r192241 | ||||
| 12 | 886568 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 13 | 949754 | 2.40 | 2.90 | |
| Cover | ||||
| 14 | 886295 | 9.15 | 11.07 | |
| Gasket B#9r192244 | ||||
| 15 | 886296 | 1.05 | 1.27 | |
| Chamber B#9r192245 | ||||
| 16 | 886297 | 10.65 | 12.89 | |
| Piston Ring | ||||
| 17 | 886312 | 2.10 | 2.54 | |
| Retaining Ring For D40 Hole B#9r192247 | ||||
| 18 | 886298 | 1.05 | 1.27 | |
| Motor | ||||
| 19B | 887446 | 104.50 | 126.44 | |
| Gasket | ||||
| 20 | 886315 | 1.05 | 1.27 | |
| Adaptor | ||||
| 21 | 886313 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M4x5 | ||||
| 22 | 886314 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 23 | 886567 | 1.05 | 1.27 | |
| Cover | ||||
| 24B | 887890 | 2.10 | 2.54 | |
| Piston Ring | ||||
| 25 | 886286 | 4.20 | 5.08 | |
| Piston B#9r192149 | ||||
| 26 | 886291 | 22.83 | 27.62 | |
| Piston Bumper | ||||
| 27 | 886289 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 28 | 888773 | |||
| Housing | ||||
| 29A | 331425 | 12.90 | 15.61 | |
| Pin | ||||
| 30 | 886310 | 1.05 | 1.27 | |
| Guide Piece | ||||
| 31 | 886302 | 18.84 | 22.79 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 B#9r192262 | ||||
| 32 | 886311 | 1.05 | 1.27 | |
| Lock Plate B#9r192174 | ||||
| 33 | 886304 | 1.05 | 1.27 | |
| Lock Lever Cover B#9r192204 | ||||
| 34 | 886570 | 2.10 | 2.54 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 35 | 949776 | 2.40 | 2.90 | |
| Catch Lever | ||||
| 36A | 887453 | 4.20 | 5.08 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 37 | 949496 | 1.65 | 2.00 | |
| Holding Spring | ||||
| 38 | 886305 | 1.05 | 1.27 | |
| Guide Plate | ||||
| 39 | 886303 | 12.90 | 15.61 | |
| Hex. Shoulder Bolt M5 B#9r192253 | ||||
| 40 | 886566 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 41 | 886307 | 1.05 | 1.27 | |
| Conical Spring H8 | ||||
| 42 | 886319 | 1.05 | 1.27 | |
| Buffer Cover B#9r192276 | ||||
| 43 | 886287 | 4.20 | 5.08 | |
| Muffler | ||||
| 44 | 886288 | 2.10 | 2.54 | |
| Gasket | ||||
| 45 | 886290 | 3.15 | 3.81 | |
| Buffer Plate B#9r192279 | ||||
| 46 | 886293 | 2.10 | 2.54 | |
| O-Ring | ||||
| 47 | 886294 | 1.05 | 1.27 | |
| Mesh B#9r192281 | ||||
| 48 | 886292 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 49 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50A | 886317 | |||
| Hex. Shoulder Bolt M4x32 B#9r192269 | ||||
| 51 | 886565 | 1.05 | 1.27 | |
| Cylinder | ||||
| 52A | 886284 | 32.31 | 39.10 | |
| Rubber | ||||
| 53 | 886285 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 54 | 877371 | 1.05 | 1.27 | |
| Brand Plate | ||||
| 55 | 886342 | 1.80 | 2.18 | |
| Brand Plate | ||||
| 55A | 886342 | 1.80 | 2.18 | |
| Pin | ||||
| 56 | 886332 | 1.05 | 1.27 | |
| Rubber Bushing | ||||
| 57 | 886333 | 1.05 | 1.27 | |
| Actuator B#9r192284 | ||||
| 58 | 886326 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 59 | 302086 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 60 | 326299 | |||
| Holder | ||||
| 61 | 886316 | 1.05 | 1.27 | |
| Internal wire (a) | ||||
| 62A | 887635 | 72.19 | 87.35 | |
| Washer M4 (10 Pcs.) | ||||
| 63 | 949423 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 64 | 949216 | 1.05 | 1.27 | |
| Lock Nut M4 (black) B#9r192290 | ||||
| 65 | 886330 | 1.05 | 1.27 | |
| Hook | ||||
| 67 | 886345 | 3.15 | 3.81 | |
| Ring | ||||
| 68A | 887036 | 1.05 | 1.27 | |
| Truss Hd. Screw M4x25 (black) B#9r192314 | ||||
| 69A | 887034 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 70A | 886323 | |||
| Terminal Support B#9r192292 | ||||
| 71 | 326316 | 1.05 | 1.27 | |
| Terminal Support B#9r192292 | ||||
| 71A | 326316 | 1.05 | 1.27 | |
| Trigger Stopper B#9r192298 | ||||
| 72 | 886552 | 3.15 | 3.81 | |
| Switch | ||||
| 73 | 886327 | 1.05 | 1.27 | |
| Trigger Spring B#9r192293 | ||||
| 74 | 886328 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 75 | 886324 | 1.05 | 1.27 | |
| Spring | ||||
| 76 | 886301 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 B#9r192299 | ||||
| 77 | 886308 | 1.05 | 1.27 | |
| Pin D3x20 (10 Pcs.) | ||||
| 78 | 949890 | 1.80 | 2.18 | |
| Pushing Lever Arm B#9r192300 | ||||
| 79 | 886299 | 7.35 | 8.89 | |
| Pushing Lever Piece B#9r192301 | ||||
| 80A | 887035 | 3.15 | 3.81 | |
| O-ring (s-8) | ||||
| 81 | 992912 | 1.05 | 1.27 | |
| Adjuster | ||||
| 82 | 886338 | 2.10 | 2.54 | |
| Ratchet Spring | ||||
| 83 | 886331 | 1.05 | 1.27 | |
| Pushing Lever | ||||
| 84 | 886337 | 4.20 | 5.08 | |
| CAUTION LABEL (A) | ||||
| 86 | 888761 | 1.04 | 1.26 | |
| Warning Label (c) | ||||
| 87 | 888774 | 1.04 | 1.26 | |
| Magazine Cover | ||||
| 88 | 886318 | 6.90 | 8.35 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 89 | 949431 | 1.04 | 1.26 | |
| Machine Screw M5x15 Black | ||||
| 90 | 885997 | 1.05 | 1.27 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 91 | 949496 | 1.65 | 2.00 | |
| Leaf Spring | ||||
| 92 | 881755 | 3.30 | 3.99 | |
| Nail Feeder (b) | ||||
| 93 | 886340 | 2.10 | 2.54 | |
| Prism B#9r192321 | ||||
| 94 | 886322 | 1.05 | 1.27 | |
| Controller | ||||
| 95 | 886320 | 72.33 | 87.51 | |
| Screw with flange D4x12 (black) | ||||
| 96 | 325083 | 1.65 | 2.00 | |
| Nail Rail B#9r192324 | ||||
| 97 | 886341 | 7.35 | 8.89 | |
| Push spring | ||||
| 98 | 880321 | 1.05 | 1.27 | |
| Nail Feeder (a) B#9r192326 | ||||
| 99 | 886339 | 2.10 | 2.54 | |
| Roll Pin D2.5x26 B#9r192327 | ||||
| 100A | 886605 | 1.05 | 1.27 | |
| Magazine | ||||
| 101 | 886336 | 10.20 | 12.34 | |
| Cylinder Ass'y (a) B#9r192329 Includ.41-48,52a | ||||
| 102A | 886550 | 45.65 | 55.24 | |
| O-ring (s-12) | ||||
| 103 | 875638 | 1.65 | 2.00 | |
| Cylinder Head Ass'y Includ.7,19,25a | ||||
| 104B | 887891 | 138.74 | 167.87 | |
| Handle Set (old 886317+886323) | ||||
| 105 | 331424 | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504 | 943277 | |||
| Nose Cap (a) B#9r192333 | ||||
| 505 | 886349 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 506B | 886857 | |||
| No information available, not orderable | ||||
| 507 | 886036 | |||
| Lever | ||||
| 508 | 887996 | 1.20 | 1.45 | |
