Here you will find all available parts and drawings of the 'Hikoki NT65GA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

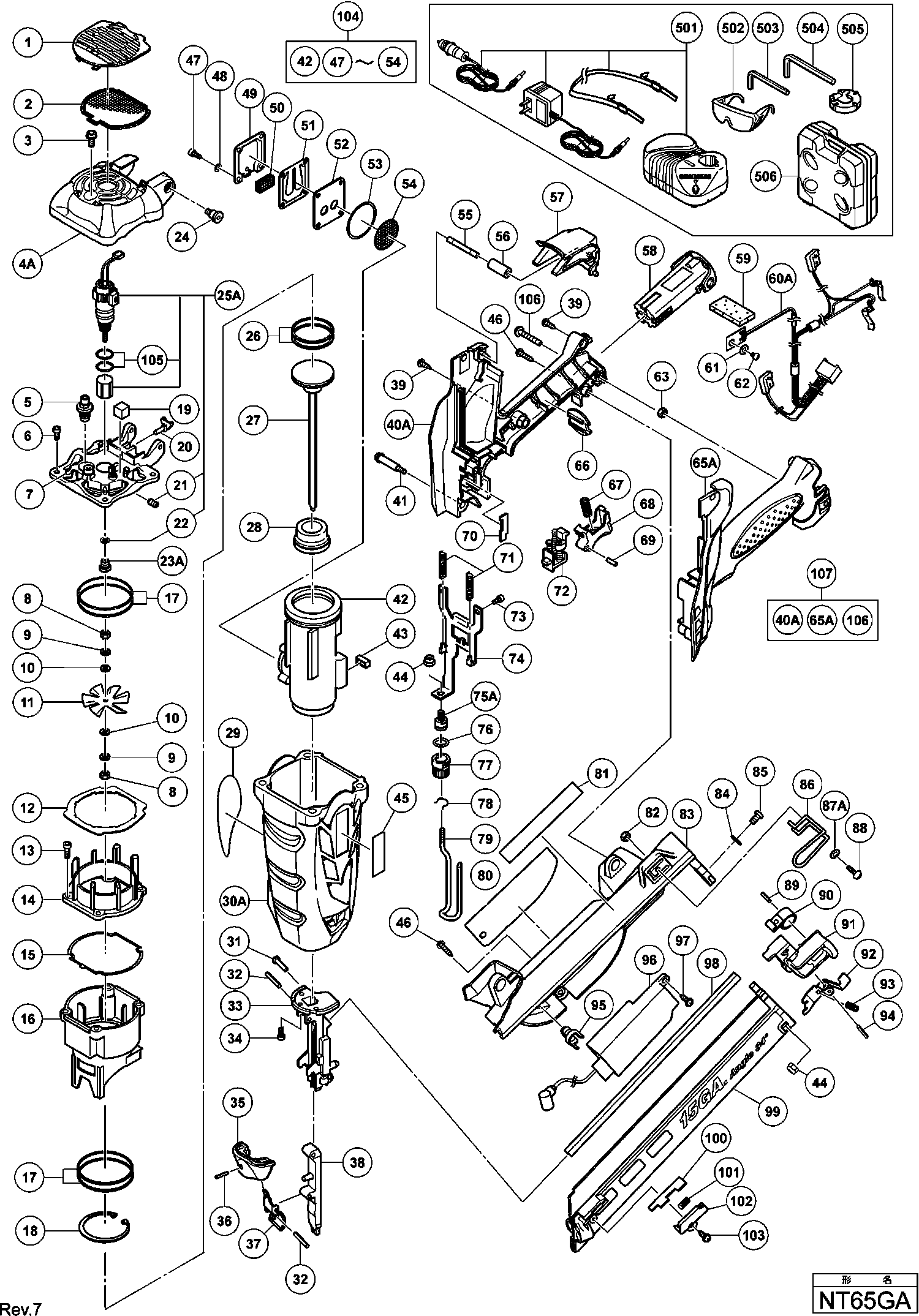

Technical drawing of model Hikoki NT65GA
Spare parts list of model Hikoki NT65GA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *45 | 886342M | |||
| Filter Cover B#9r192230 | ||||
| 1 | 886664 | 1.05 | 1.27 | |
| Filter | ||||
| 2 | 886344 | 10.20 | 12.34 | |
| Hex. Socket Hd. Bolt (w/flange) M5x10 B#9r192232 | ||||
| 3 | 886347 | 1.05 | 1.27 | |
| Top Cover | ||||
| 4 | 886335 | 3.15 | 3.81 | |
| Spark Plug (a) | ||||
| 5 | 885333 | 3.30 | 3.99 | |
| Nylock Hex. Socket Hd. Bolt M4x12 | ||||
| 6 | 880630 | 1.05 | 1.27 | |
| Cylinder Head B#9r192236 | ||||
| 7 | 886661 | 20.90 | 25.29 | |
| Nut M3 (10 Pcs.) | ||||
| 8 | 949553 | 1.04 | 1.26 | |
| Spring Washer M3 (10 pieces) | ||||
| 9 | 949451 | 1.05 | 1.27 | |
| Washer M3 (10 Pcs.) | ||||
| 10 | 949422 | 1.04 | 1.26 | |
| Fan | ||||
| 11 | 886309 | 2.10 | 2.54 | |
| Rubber Plate B#9r192241 | ||||
| 12 | 886568 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 13 | 949754 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 14 | 886609 | |||
| Gasket B#9r192244 | ||||
| 15 | 886296 | 1.05 | 1.27 | |
| Chamber B#9r192245 | ||||
| 16 | 886297 | 10.65 | 12.89 | |
| Piston Ring | ||||
| 17 | 886312 | 2.10 | 2.54 | |
| Retaining Ring For D40 Hole B#9r192247 | ||||
| 18 | 886298 | 1.05 | 1.27 | |
| Gasket | ||||
| 19 | 886315 | 1.05 | 1.27 | |
| Adaptor | ||||
| 20 | 886313 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M4x5 | ||||
| 21 | 886314 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 22 | 886567 | 1.05 | 1.27 | |
| Cover | ||||
| 23A | 887890 | 2.10 | 2.54 | |
| Hex. Shoulder Bolt M5 B#9r192253 | ||||
| 24 | 886566 | 1.05 | 1.27 | |
| Motor | ||||
| 25A | 887446 | 104.50 | 126.44 | |
| Piston Ring | ||||
| 26 | 886286 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 27 | 886585 | |||
| Piston Bumper | ||||
| 28 | 886289 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 29 | 888753 | |||
| Housing | ||||
| 30A | 331425 | 12.90 | 15.61 | |
| No information available, not orderable | ||||
| 31 | 886610 | |||
| Roll Pin D3x16 (10 Pcs.) | ||||
| 32 | 949496 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 33 | 886611 | |||
| Seal Lock Hex. Socket Hd. Bolt M4x12 B#9r192262 | ||||
| 34 | 886311 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 35 | 886587 | |||
| Roll Pin D3x10 (10 Pcs.) | ||||
| 36 | 949776 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 37 | 886586 | |||
| No information available, not orderable | ||||
| 37A | 887466 | |||
| No information available, not orderable | ||||
| 38 | 886612 | |||
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 39 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 40A | 886317 | |||
| Hex. Shoulder Bolt M4x32 B#9r192269 | ||||
| 41 | 886565 | 1.05 | 1.27 | |
| CYLINDER | ||||
| 42 | 886584 | 32.31 | 39.10 | |
| Rubber | ||||
| 43 | 886285 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 44 | 877371 | 1.05 | 1.27 | |
| Brand Plate | ||||
| 45 | 886342 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 46 | 302086 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 47 | 886307 | 1.05 | 1.27 | |
| Conical Spring H8 | ||||
| 48 | 886319 | 1.05 | 1.27 | |
| Buffer Cover B#9r192276 | ||||
| 49 | 886287 | 4.20 | 5.08 | |
| Muffler | ||||
| 50 | 886288 | 2.10 | 2.54 | |
| Gasket | ||||
| 51 | 886290 | 3.15 | 3.81 | |
| Buffer Plate B#9r192279 | ||||
| 52 | 886293 | 2.10 | 2.54 | |
| O-Ring | ||||
| 53 | 886294 | 1.05 | 1.27 | |
| Mesh B#9r192281 | ||||
| 54 | 886292 | 3.30 | 3.99 | |
| Pin | ||||
| 55 | 886332 | 1.05 | 1.27 | |
| Rubber Bushing | ||||
| 56 | 886333 | 1.05 | 1.27 | |
| Actuator B#9r192284 | ||||
| 57 | 886326 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 58 | 326263 | |||
| Holder | ||||
| 59 | 886316 | 1.05 | 1.27 | |
| Internal wire (a) | ||||
| 60A | 887635 | 72.19 | 87.35 | |
| Washer M4 (10 Pcs.) | ||||
| 61 | 949423 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 62 | 949216 | 1.05 | 1.27 | |
| Lock Nut M4 (black) B#9r192290 | ||||
| 63 | 886330 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 65A | 886323 | |||
| Terminal Support B#9r192292 | ||||
| 66 | 326316 | 1.05 | 1.27 | |
| Terminal Support B#9r192292 | ||||
| 66A | 326316 | 1.05 | 1.27 | |
| Trigger Spring B#9r192293 | ||||
| 67 | 886328 | 1.05 | 1.27 | |
| Switch | ||||
| 68 | 886327 | 1.05 | 1.27 | |
| Pin D3x20 (10 Pcs.) | ||||
| 69 | 949890 | 1.80 | 2.18 | |
| Cover Plate | ||||
| 70 | 886324 | 1.05 | 1.27 | |
| Spring | ||||
| 71 | 886301 | 1.05 | 1.27 | |
| Trigger Stopper B#9r192298 | ||||
| 72 | 886552 | 3.15 | 3.81 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 B#9r192299 | ||||
| 73 | 886308 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 74 | 886613 | |||
| Pushing Lever Piece B#9r192301 | ||||
| 75A | 887035 | 3.15 | 3.81 | |
| O-ring (s-8) | ||||
| 76 | 992912 | 1.05 | 1.27 | |
| Adjuster | ||||
| 77 | 886338 | 2.10 | 2.54 | |
| Ratchet Spring | ||||
| 78 | 886331 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 79 | 886589 | |||
| Warning Label (c) | ||||
| 80 | 888774 | 1.04 | 1.26 | |
| CAUTION LABEL (A) | ||||
| 81 | 888761 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 82 | 886614 | |||
| No information available, not orderable | ||||
| 83 | 886592 | |||
| Bolt Washer M5 (10 Pcs.) | ||||
| 84 | 949431 | 1.04 | 1.26 | |
| Machine Screw M5x15 Black | ||||
| 85 | 885997 | 1.05 | 1.27 | |
| Hook | ||||
| 86 | 886345 | 3.15 | 3.81 | |
| Ring | ||||
| 87A | 887036 | 1.05 | 1.27 | |
| Truss Hd. Screw M4 (black) Except For Europe | ||||
| 88 | 886346 | 1.05 | 1.27 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 89 | 949496 | 1.65 | 2.00 | |
| Leaf Spring | ||||
| 90 | 881755 | 3.30 | 3.99 | |
| Nail Feeder (b) | ||||
| 91 | 886340 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 92 | 886590 | |||
| Spring | ||||
| 93 | 886604 | 1.05 | 1.27 | |
| Roll Pin D2.5x26 B#9r192327 | ||||
| 94 | 886605 | 1.05 | 1.27 | |
| Prism B#9r192321 | ||||
| 95 | 886322 | 1.05 | 1.27 | |
| Controller | ||||
| 96 | 886320 | 72.33 | 87.51 | |
| Screw with flange D4x12 (black) | ||||
| 97 | 325083 | 1.65 | 2.00 | |
| Nail Rail | ||||
| 98 | 886591 | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 99 | 886588 | |||
| No information available, not orderable | ||||
| 100 | 886615 | |||
| Pushing Stopper Spring | ||||
| 101 | 886619 | 1.05 | 1.27 | |
| Pushing Stopper Cover | ||||
| 102 | 886616 | 1.20 | 1.45 | |
| Tapschroef D3x10 (black) | ||||
| 103 | 306371 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 104 | 886618 | |||
| O-ring (s-12) | ||||
| 105 | 875638 | 1.65 | 2.00 | |
| Truss Hd. Screw M4x25 (black) B#9r192314 | ||||
| 106 | 887034 | 1.05 | 1.27 | |
| Handle Set (old 886317+886323) | ||||
| 107 | 331424 | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 503 | 943277 | |||
| No information available, not orderable | ||||
| 504 | 944458 | |||
| Nose Cap (a) B#9r192333 | ||||
| 505 | 886349 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 506 | 886617 | |||
