Here you will find all available parts and drawings of the 'Hikoki NT50GS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

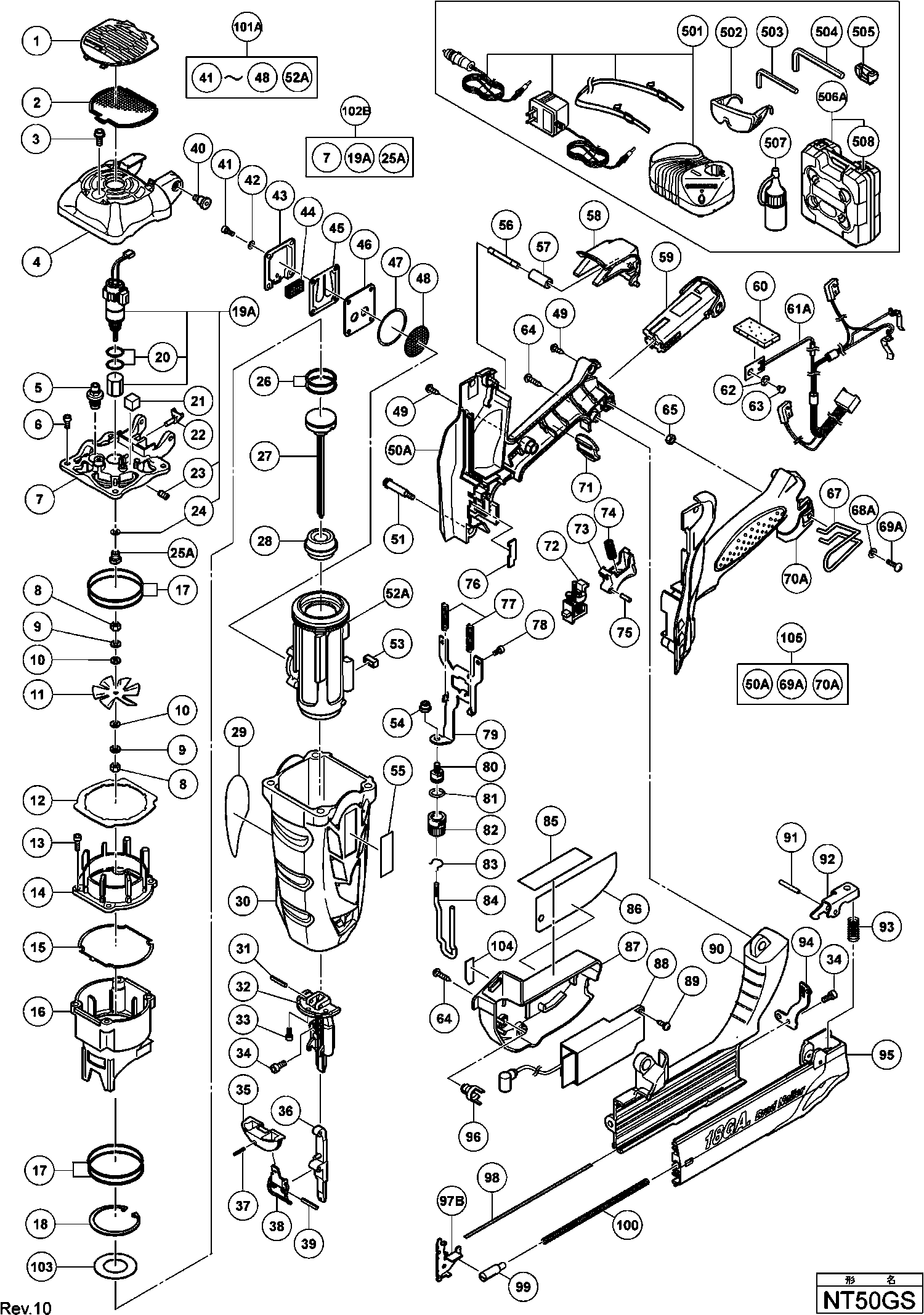

Technical drawing of model Hikoki NT50GS
Spare parts list of model Hikoki NT50GS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nose Cap (a) B#9r192394 | ||||
| *505 | 886846 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| *59 | 326299 | |||
| Filter Cover B#9r192230 | ||||
| 1 | 886664 | 1.05 | 1.27 | |
| Filter | ||||
| 2 | 886344 | 10.20 | 12.34 | |
| Hex. Socket Hd. Bolt (w/flange) M5x10 B#9r192232 | ||||
| 3 | 886347 | 1.05 | 1.27 | |
| Top Cover | ||||
| 4 | 886335 | 3.15 | 3.81 | |
| Spark Plug (a) | ||||
| 5 | 885333 | 3.30 | 3.99 | |
| Nylock Hex. Socket Hd. Bolt M4x12 | ||||
| 6 | 880630 | 1.05 | 1.27 | |
| Cylinder Head B#9r192236 | ||||
| 7 | 886661 | 20.90 | 25.29 | |
| Nut M3 (10 Pcs.) | ||||
| 8 | 949553 | 1.04 | 1.26 | |
| Spring Washer M3 (10 pieces) | ||||
| 9 | 949451 | 1.05 | 1.27 | |
| Washer M3 (10 Pcs.) | ||||
| 10 | 949422 | 1.04 | 1.26 | |
| Fan | ||||
| 11 | 886309 | 2.10 | 2.54 | |
| Rubber Plate B#9r192241 | ||||
| 12 | 886568 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 13 | 949754 | 2.40 | 2.90 | |
| Cover | ||||
| 14 | 886295 | 9.15 | 11.07 | |
| Gasket B#9r192244 | ||||
| 15 | 886296 | 1.05 | 1.27 | |
| Chamber B#9r192245 | ||||
| 16 | 886297 | 10.65 | 12.89 | |
| Piston Ring | ||||
| 17 | 886312 | 2.10 | 2.54 | |
| Retaining Ring For D40 Hole B#9r192247 | ||||
| 18 | 886298 | 1.05 | 1.27 | |
| Motor | ||||
| 19A | 887446 | 104.50 | 126.44 | |
| O-ring (s-12) | ||||
| 20 | 875638 | 1.65 | 2.00 | |
| Gasket | ||||
| 21 | 886315 | 1.05 | 1.27 | |
| Adaptor | ||||
| 22 | 886313 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M4x5 | ||||
| 23 | 886314 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 24 | 886567 | 1.05 | 1.27 | |
| Cover | ||||
| 25A | 887890 | 2.10 | 2.54 | |
| Piston Ring | ||||
| 26 | 886848 | 5.63 | 6.81 | |
| Piston | ||||
| 27 | 886839 | 22.83 | 27.62 | |
| Piston Bumper | ||||
| 28 | 886851 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 29 | 888752 | |||
| Housing | ||||
| 30 | 886855 | 16.36 | 19.80 | |
| Pin | ||||
| 31 | 886310 | 1.05 | 1.27 | |
| Guide Piece | ||||
| 32 | 886840 | 24.68 | 29.86 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 B#9r192262 | ||||
| 33 | 886311 | 1.05 | 1.27 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 34 | 880413 | 1.05 | 1.27 | |
| Lock Lever Cover B#9r192204 | ||||
| 35 | 886570 | 2.10 | 2.54 | |
| Guide Plate | ||||
| 36 | 886841 | 14.30 | 17.30 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 37 | 949776 | 2.40 | 2.90 | |
| Locking Device | ||||
| 38 | 886843 | 3.15 | 3.81 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 39 | 949496 | 1.65 | 2.00 | |
| Hex. Shoulder Bolt M5 B#9r192253 | ||||
| 40 | 886566 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 41 | 886307 | 1.05 | 1.27 | |
| Conical Spring H8 | ||||
| 42 | 886319 | 1.05 | 1.27 | |
| Buffer Cover B#9r192276 | ||||
| 43 | 886287 | 4.20 | 5.08 | |
| Muffler | ||||
| 44 | 886288 | 2.10 | 2.54 | |
| Gasket | ||||
| 45 | 886290 | 3.15 | 3.81 | |
| Buffer Plate B#9r192279 | ||||
| 46 | 886293 | 2.10 | 2.54 | |
| O-Ring | ||||
| 47 | 886294 | 1.05 | 1.27 | |
| Mesh B#9r192281 | ||||
| 48 | 886292 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 49 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50A | 886317 | |||
| Hex. Shoulder Bolt M4x32 B#9r192269 | ||||
| 51 | 886565 | 1.05 | 1.27 | |
| Cylinder | ||||
| 52A | 887356 | 36.10 | 43.68 | |
| Rubber | ||||
| 53 | 886285 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 54 | 877371 | 1.05 | 1.27 | |
| Brand Plate | ||||
| 55 | 886342 | 1.80 | 2.18 | |
| Brand Plate | ||||
| 55A | 886342 | 1.80 | 2.18 | |
| Pin | ||||
| 56 | 886332 | 1.05 | 1.27 | |
| Rubber Bushing | ||||
| 57 | 886333 | 1.05 | 1.27 | |
| Actuator B#9r192284 | ||||
| 58 | 886326 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 59 | 326299 | |||
| Holder | ||||
| 60 | 886316 | 1.05 | 1.27 | |
| Internal wire (a) | ||||
| 61A | 887635 | 72.19 | 87.35 | |
| Washer M4 (10 Pcs.) | ||||
| 62 | 949423 | 1.05 | 1.27 | |
| Seal Lock Screw M4x10 | ||||
| 63 | 324082 | 1.65 | 2.00 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 64 | 302086 | 1.05 | 1.27 | |
| Lock Nut M4 (black) B#9r192290 | ||||
| 65 | 886330 | 1.05 | 1.27 | |
| Hook | ||||
| 67 | 886345 | 3.15 | 3.81 | |
| Ring | ||||
| 68A | 887036 | 1.05 | 1.27 | |
| Truss Hd. Screw M4x25 (black) B#9r192314 | ||||
| 69A | 887034 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 70A | 886323 | |||
| Terminal Support B#9r192292 | ||||
| 71 | 326316 | 1.05 | 1.27 | |
| Terminal Support B#9r192292 | ||||
| 71A | 326316 | 1.05 | 1.27 | |
| Trigger Stopper B#9r192298 | ||||
| 72 | 886552 | 3.15 | 3.81 | |
| Switch | ||||
| 73 | 886327 | 1.05 | 1.27 | |
| Trigger Spring B#9r192293 | ||||
| 74 | 886328 | 1.05 | 1.27 | |
| Pin D3x20 (10 Pcs.) | ||||
| 75 | 949890 | 1.80 | 2.18 | |
| Cover Plate | ||||
| 76 | 886324 | 1.05 | 1.27 | |
| Spring | ||||
| 77 | 886301 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 B#9r192299 | ||||
| 78 | 886308 | 1.05 | 1.27 | |
| Pushing Lever Arm B#9r192308 | ||||
| 79 | 886856 | 8.33 | 10.07 | |
| Pushing Lever Piece B#9r192301 | ||||
| 80 | 887035 | 3.15 | 3.81 | |
| O-ring (s-8) | ||||
| 81 | 992912 | 1.05 | 1.27 | |
| Adjuster | ||||
| 82 | 886338 | 2.10 | 2.54 | |
| Ratchet Spring | ||||
| 83 | 886331 | 1.05 | 1.27 | |
| Pushing Lever | ||||
| 84 | 886852 | 4.65 | 5.63 | |
| Warning Label (c) | ||||
| 86 | 888774 | 1.04 | 1.26 | |
| CONTROL COVER | ||||
| 87 | 886844 | 3.48 | 4.21 | |
| Controller | ||||
| 88 | 886320 | 72.33 | 87.51 | |
| Screw with flange D4x12 (black) | ||||
| 89 | 325083 | 1.65 | 2.00 | |
| Magazine | ||||
| 90 | 886845 | 22.83 | 27.62 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 91 | 949685 | 2.55 | 3.09 | |
| Stop Lever B#9r192334 | ||||
| 92 | 885894 | 1.05 | 1.27 | |
| Spring | ||||
| 93 | 885895 | 1.05 | 1.27 | |
| PLATE | ||||
| 94 | 886842 | 1.74 | 2.11 | |
| Magazine Cover | ||||
| 95 | 886849 | 14.78 | 17.88 | |
| Prism B#9r192321 | ||||
| 96 | 886322 | 1.05 | 1.27 | |
| Nail Feeder | ||||
| 97B | 887995 | 2.10 | 2.54 | |
| Nail Plate B#9r192345 | ||||
| 98 | 885898 | 1.05 | 1.27 | |
| Feeder Piece B#9r192346 | ||||
| 99 | 885899 | 1.05 | 1.27 | |
| Spring | ||||
| 100 | 885900 | 1.05 | 1.27 | |
| CYLINDER (A) | ||||
| 101A | 887387 | 77.77 | 94.10 | |
| Cylinder Head Ass'y Includ.7,19,25a | ||||
| 102B | 887891 | 138.74 | 167.87 | |
| Cylinder Plate | ||||
| 103 | 887032 | 1.05 | 1.27 | |
| Caution Label | ||||
| 104 | 887415 | 1.20 | 1.45 | |
| Handle Set (old 886317+886323) | ||||
| 105 | 331424 | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 503 | 943277 | |||
| No information available, not orderable | ||||
| 504 | 944458 | |||
| Nose Cap (a) B#9r192394 | ||||
| 505 | 886846 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 506A | 886857 | |||
| No information available, not orderable | ||||
| 507 | 886036 | |||
| Lever | ||||
| 508 | 887996 | 1.20 | 1.45 | |
