Here you will find all available parts and drawings of the 'Hikoki NT50AE2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

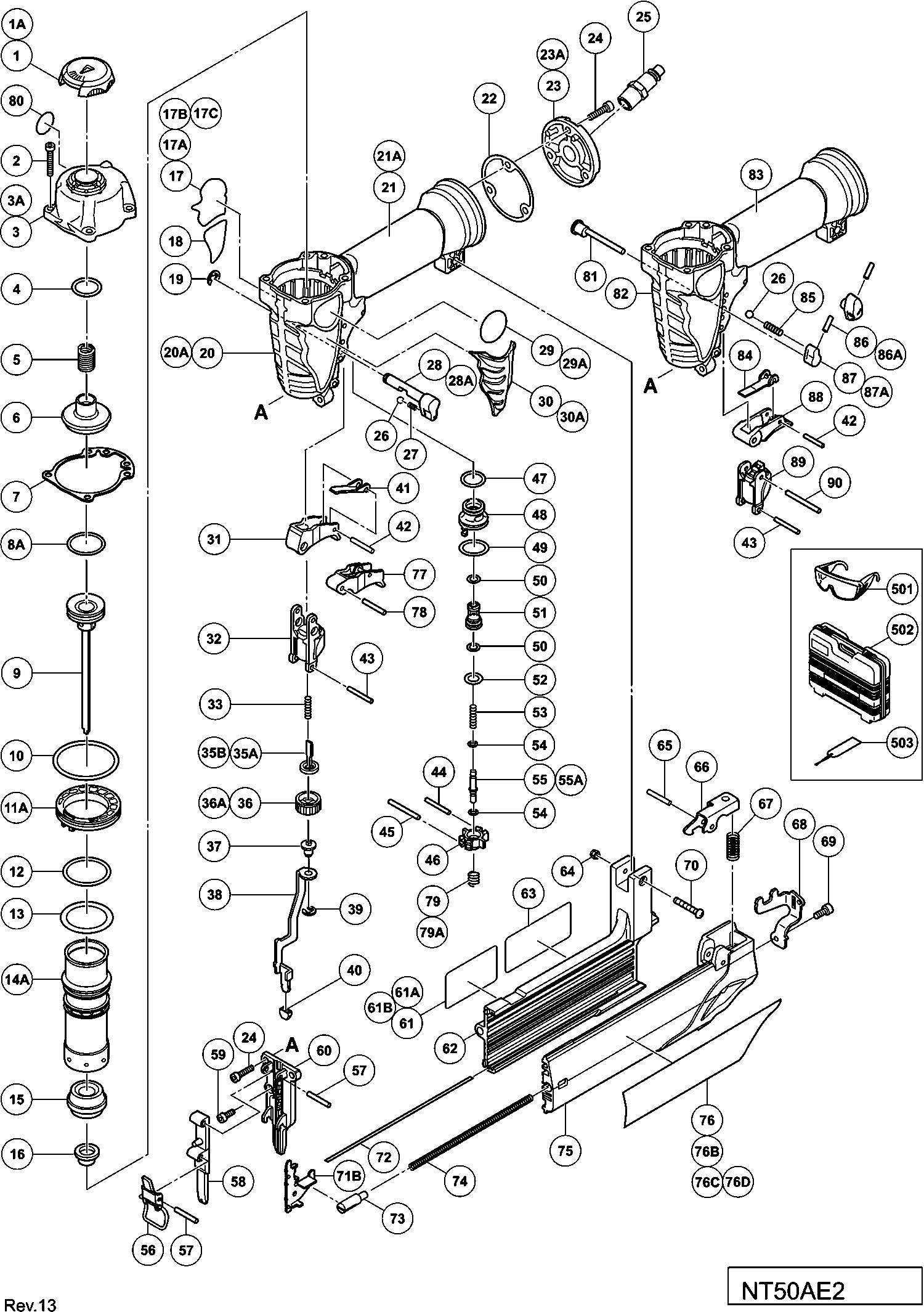

Technical drawing of model Hikoki NT50AE2
Spare parts list of model Hikoki NT50AE2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Name Plate | ||||
| *17 | 885876 | 1.05 | 1.27 | |
| Name Plate | ||||
| *17 | 885961 | 1.05 | 1.27 | |
| Top Cover (gray) | ||||
| 1 | 885866 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 1A | 886197 | |||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 2 | 949757 | 3.00 | 3.63 | |
| Exhaust Cover (black) | ||||
| 3 | 885867 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 3A | 886733 | |||
| O-ring | ||||
| 4 | 878600 | 1.05 | 1.27 | |
| Head Valve Spring | ||||
| 5 | 880190 | 2.55 | 3.09 | |
| Head Valve (a) | ||||
| 6 | 880410 | 14.70 | 17.79 | |
| Gasket | ||||
| 7 | 885868 | 2.10 | 2.54 | |
| O-ring (p22.4) | ||||
| 8A | 886068 | 1.50 | 1.82 | |
| Striking pin | ||||
| 9 | 885870 | 18.70 | 22.63 | |
| O-ring (i.d 44.7) | ||||
| 10 | 885871 | 1.05 | 1.27 | |
| Cylinder Plate | ||||
| 11A | 885872 | 1.05 | 1.27 | |
| O-ring (s-30) | ||||
| 12 | 301684 | 1.05 | 1.27 | |
| O-ring (p-32) | ||||
| 13 | 986374 | 1.65 | 2.00 | |
| Cylinder | ||||
| 14A | 885873 | 12.90 | 15.61 | |
| Piston Bumper | ||||
| 15 | 885874 | 2.10 | 2.54 | |
| Bumper Piece | ||||
| 16 | 885875 | 1.05 | 1.27 | |
| Name Plate | ||||
| 17 | 885876 | 1.05 | 1.27 | |
| Name Plate | ||||
| 17 | 885961 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 17B | 888002 | |||
| Name Plate | ||||
| 17C | 888004 | 1.04 | 1.26 | |
| NAME PLATE NT50AE2(S) | ||||
| 17C | 888003 | 1.00 | 1.21 | |
| Warning Label | ||||
| 18 | 885877 | 1.05 | 1.27 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 19 | 955479 | 1.05 | 1.27 | |
| BEHUIZING (ZWART) | ||||
| 20 | 885878 | 23.48 | 28.41 | |
| No information available, not orderable | ||||
| 20A | 886731 | |||
| Gasket (b) | ||||
| 22 | 884342 | 1.05 | 1.27 | |
| AFDEKPLAATJE ZWART | ||||
| 23 | 885959 | 4.20 | 5.08 | |
| Cap (a) (silver green) 1/4-18npt | ||||
| 23A | 884343 | 3.45 | 4.17 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 24 | 949821 | 2.55 | 3.09 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 26 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 27 | 982454 | 1.04 | 1.26 | |
| Change Knob (c) (green) | ||||
| 28 | 885658 | 10.80 | 13.07 | |
| Change Knob (c) | ||||
| 28A | 886265 | 2.10 | 2.54 | |
| PROTECTOR (SILVER) | ||||
| 30 | 885879 | 1.74 | 2.11 | |
| No information available, not orderable | ||||
| 30A | 886735 | |||
| Switch | ||||
| 31 | 885657 | 10.35 | 12.52 | |
| Pushing Lever Guide | ||||
| 32 | 885880 | 2.10 | 2.54 | |
| Pushing Lever Spring (a) | ||||
| 33 | 885881 | 1.05 | 1.27 | |
| Pushing Lever (c) | ||||
| 35A | 885973 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 35B | 887678 | |||
| PUSHING LEVER (D) (OLD 887678) | ||||
| 35C | 889331 | 3.60 | 4.36 | |
| Adjuster (green) | ||||
| 36 | 885884 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 36A | 886736 | |||
| Pushing Lever (b) | ||||
| 37 | 885885 | 2.10 | 2.54 | |
| Pushing Lever (a) | ||||
| 38 | 885886 | 4.20 | 5.08 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 39 | 872971 | 1.05 | 1.27 | |
| Nose cap | ||||
| 40 | 885887 | 1.05 | 1.27 | |
| Trigger (c) | ||||
| 41 | 885689 | 2.10 | 2.54 | |
| Roll Pin D2.5x16 | ||||
| 42 | 881951 | 1.80 | 2.18 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 43 | 949539 | 2.25 | 2.72 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 44 | 949539 | 2.25 | 2.72 | |
| Roll Pin D3x32 | ||||
| 45 | 884975 | 1.65 | 2.00 | |
| Valve Bushing (a) | ||||
| 46 | 884962 | 1.65 | 2.00 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 47 | 877763 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 48 | 884963 | 1.65 | 2.00 | |
| O-ring (P-18) | ||||
| 49 | 873570 | 1.35 | 1.63 | |
| O-RING (P-7) (OUD 676531) | ||||
| 50 | 889335 | 1.00 | 1.21 | |
| O-RING (P-7) (OUD 676531) | ||||
| 50A | 889335 | 1.00 | 1.21 | |
| Valve Piston | ||||
| 51 | 884964 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 52 | 872654 | |||
| O-RING (1AP-10) (OLD 872654) | ||||
| 52A | 889495 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 53 | 884966 | 1.65 | 2.00 | |
| O-RING (I.D.1.8) | ||||
| 54 | 878888 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 55 | 885888 | 3.15 | 3.81 | |
| Spindle Ass'y | ||||
| 55A | 887679 | 3.15 | 3.81 | |
| Lock Lever | ||||
| 56 | 885889 | 3.15 | 3.81 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 57 | 949518 | 2.40 | 2.90 | |
| GUIDE PLATE | ||||
| 58 | 885890 | 7.95 | 9.62 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 59 | 880413 | 1.05 | 1.27 | |
| Guide Piece | ||||
| 60 | 885891 | 15.26 | 18.47 | |
| No information available, not orderable | ||||
| 61 | 885892 | |||
| No information available, not orderable | ||||
| 61A | 887751 | |||
| Label | ||||
| 61B | 888005 | 37.13 | 44.92 | |
| Complete Magazine | ||||
| 62 | 885893 | 20.90 | 25.29 | |
| No longer available, no replacement | ||||
| 63 | 878183 | |||
| Nylon Nut M4 | ||||
| 64 | 876465 | 1.05 | 1.27 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 65 | 949685 | 2.55 | 3.09 | |
| Stop Lever B#9r192334 | ||||
| 66 | 885894 | 1.05 | 1.27 | |
| Spring | ||||
| 67 | 885895 | 1.05 | 1.27 | |
| Plate | ||||
| 68 | 885896 | 1.05 | 1.27 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 69 | 880413 | 1.05 | 1.27 | |
| Screw M4x25 Black | ||||
| 70 | 885960 | 1.05 | 1.27 | |
| Nail Feeder | ||||
| 71B | 887995 | 2.10 | 2.54 | |
| Nail Plate B#9r192345 | ||||
| 72 | 885898 | 1.05 | 1.27 | |
| Feeder Piece B#9r192346 | ||||
| 73 | 885899 | 1.05 | 1.27 | |
| Spring | ||||
| 74 | 885900 | 1.05 | 1.27 | |
| Magazine Cover | ||||
| 75 | 885901 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 77 | 884993 | |||
| Roll Pin D3x18 (10 Pcs.) | ||||
| 78 | 949518 | 2.40 | 2.90 | |
| Spring | ||||
| 79 | 884994 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 79A | 887752 | |||
| Warning Label (a) | ||||
| 80 | 883513 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 81 | 887668 | |||
| Change Rod (d) | ||||
| 81A | 888798 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 82 | 887681 | |||
| Trigger Arm (d) | ||||
| 84 | 887755 | 2.10 | 2.54 | |
| Trigger (d) | ||||
| 84A | 887670 | 1.20 | 1.45 | |
| Spring | ||||
| 85 | 887673 | 1.20 | 1.45 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 86 | 887458 | 1.20 | 1.45 | |
| Roll Pin D3x8 | ||||
| 86A | 887619 | 1.20 | 1.45 | |
| Change Knob (d) | ||||
| 87 | 887684 | 1.20 | 1.45 | |
| Knob (s) | ||||
| 87A | 887901 | 1.20 | 1.45 | |
| Trigger (d) Ass'y Includ.64,65 | ||||
| 88 | 887756 | 4.20 | 5.08 | |
| PUSHING LEVER GUIDE (D) | ||||
| 89 | 887686 | 1.86 | 2.25 | |
| Roll Pin D3x35 | ||||
| 90 | 887675 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 502 | 885902 | |||
| No information available, not orderable | ||||
| 503 | 888760 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| O-ring Kit Includ.608-614 | ||||
| 603 | 886375 | 10.05 | 12.16 | |
| Gasket | ||||
| 604 | 885868 | 2.10 | 2.54 | |
| O-ring (i.d 44.7) | ||||
| 605 | 885871 | 1.05 | 1.27 | |
| O-ring (p22.4) | ||||
| 606 | 886068 | 1.50 | 1.82 | |
| O-ring | ||||
| 607 | 878600 | 1.05 | 1.27 | |
| O-ring (s-30) | ||||
| 608 | 301684 | 1.05 | 1.27 | |
| O-ring (p-32) | ||||
| 609 | 986374 | 1.65 | 2.00 | |
| Single Sequential Actuation Mechanismkit | ||||
| 611 | 887916 | 3.30 | 3.99 | |
