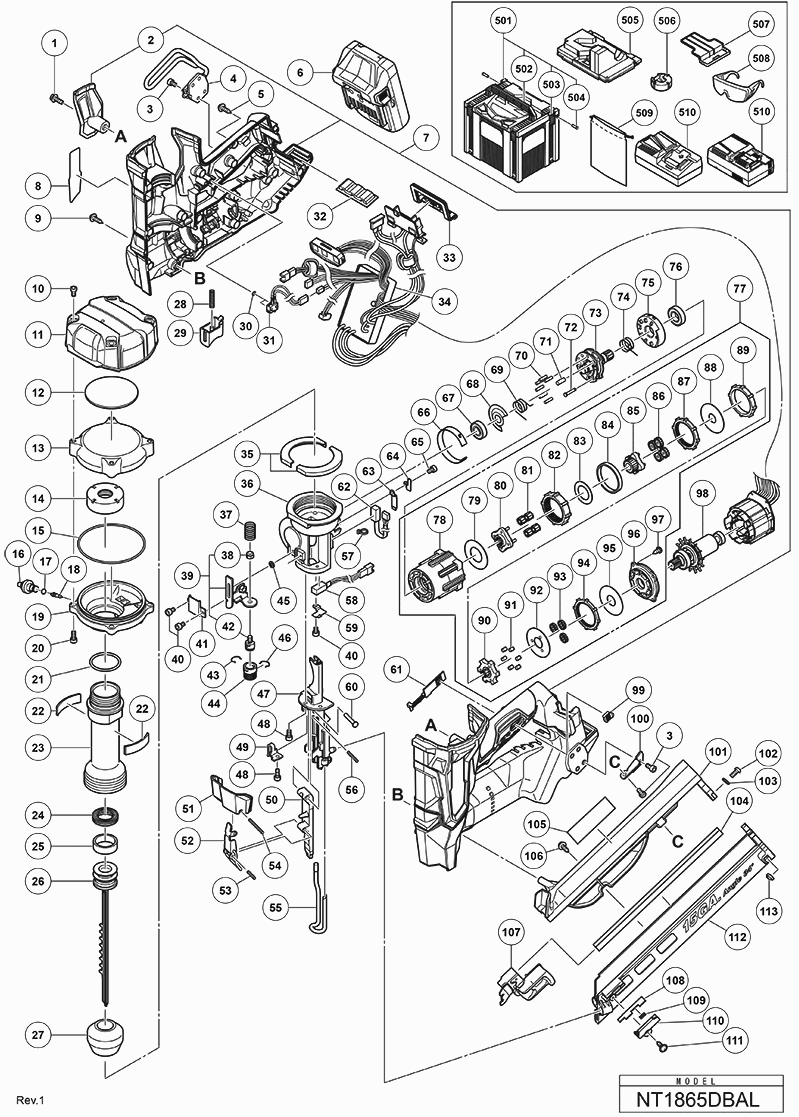

Technical drawing of model Hikoki NT1865DMA
Spare parts list of model Hikoki NT1865DMA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *505 | 371108M | |||
| No information available, not orderable | ||||
| *7B | 371009 | |||
| Hd. Bolt M5x16 (with Washer) | ||||
| 1 | 880219 | 1.05 | 1.27 | |
| HOUSING (C) | ||||
| 2 | 371225 | 1.20 | 1.45 | |
| Low Head Hex. Socket Bolt M4x8 | ||||
| 3 | 331109 | 1.80 | 2.18 | |
| Hook (1) | ||||
| 4 | 371214 | 12.45 | 15.06 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 5 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 6 | 339783 | |||
| No information available, not orderable | ||||
| 6A | 377797M | |||
| No information available, not orderable | ||||
| 7 | 371009 | |||
| P-tite Screw D4x20 Since 7.2016 | ||||
| 9 | 994806 | 1.04 | 1.26 | |
| HEX.SOCKET BOLT M5 | ||||
| 10 | 371015 | 1.04 | 1.26 | |
| TOP COVER | ||||
| 11 | 371014 | 6.45 | 7.80 | |
| RUBBER CUSHION (C) | ||||
| 12 | 371012 | 1.35 | 1.63 | |
| CHAMBER COVER | ||||
| 13 | 371035 | 20.35 | 24.62 | |
| SPECIAL NUT M36 | ||||
| 14 | 371040 | 11.10 | 13.43 | |
| O-RING (I.D. 79.5) | ||||
| 15 | 371037 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 16 | 371039 | |||
| CHARGE CAP | ||||
| 16B | 377913 | 1.38 | 1.67 | |
| O-ring (s-5) | ||||
| 17 | 872822 | 3.00 | 3.63 | |
| Valve Core | ||||
| 18 | 371038 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 19 | 371036 | |||
| CHAMBER BASE NEW | ||||
| 19A | 376548 | 27.09 | 32.78 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 20 | 949658 | 1.80 | 2.18 | |
| O-RING (I.D.32.99) | ||||
| 21 | 371042 | 1.35 | 1.63 | |
| Rubber Cushion (b) | ||||
| 22 | 371011 | 1.04 | 1.26 | |
| CYLINDER | ||||
| 23 | 371041 | 47.71 | 57.73 | |
| X-ring | ||||
| 24 | 371046 | 4.50 | 5.44 | |
| Slide Ring | ||||
| 25 | 371047 | 19.53 | 23.63 | |
| PISTON | ||||
| 26 | 371045 | 156.20 | 189.00 | |
| PISTON BUMPER | ||||
| 27 | 371048 | 31.35 | 37.93 | |
| Spring (t) | ||||
| 28 | 332000 | 1.80 | 2.18 | |
| TRIGGER | ||||
| 29 | 371021 | 1.04 | 1.26 | |
| O-RING (I.D. 2.5) | ||||
| 30 | 371020 | 1.04 | 1.26 | |
| SWITCH CABLE (A) | ||||
| 31 | 371019 | 10.05 | 12.16 | |
| Rubber Cushion | ||||
| 32 | 332668 | 2.10 | 2.54 | |
| Terminal Rubber (a) | ||||
| 33 | 370728 | 2.55 | 3.09 | |
| WIRING | ||||
| 34 | 372187 | 150.01 | 181.52 | |
| Terminal Rubber (a) | ||||
| 34 | 370728 | 2.55 | 3.09 | |
| Rubber Cushion (a) | ||||
| 35 | 371010 | 1.04 | 1.26 | |
| NOSE | ||||
| 36 | 371050 | 54.45 | 65.88 | |
| SPRING | ||||
| 37 | 371067 | 1.04 | 1.26 | |
| Nylon Nut M5 | ||||
| 38 | 877371 | 1.05 | 1.27 | |
| PUSHING LEVER ARM ASS'Y | ||||
| 39 | 371064 | 9.90 | 11.98 | |
| Seal Lock Hex. Socket Hd. Bolt M3x6 | ||||
| 40 | 325077 | 1.65 | 2.00 | |
| PUSHING LEVER ARM HOLDER | ||||
| 41 | 371058 | 1.04 | 1.26 | |
| PUSHING LEVER PIECE | ||||
| 42 | 371065 | 3.15 | 3.81 | |
| Ratchet Spring | ||||
| 43 | 881765 | 1.95 | 2.36 | |
| Adjuster | ||||
| 44 | 887358 | 2.10 | 2.54 | |
| WASHER D4 | ||||
| 45 | 371062 | 1.04 | 1.26 | |
| PUSHING LEVER ARM HOLDER (B) | ||||
| 46 | 371061 | 6.60 | 7.99 | |
| Ratchet Spring | ||||
| 46 | 886331 | 1.05 | 1.27 | |
| BLADE GUIDE | ||||
| 47 | 371057 | 62.56 | 75.70 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 B#9r192262 | ||||
| 47 | 886311 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 B#9r192262 | ||||
| 48 | 886311 | 1.05 | 1.27 | |
| Ratchet Spring | ||||
| 48 | 886331 | 1.05 | 1.27 | |
| BLADE GUIDE | ||||
| 49 | 371057 | 62.56 | 75.70 | |
| PUSHING LEVER ARM HOLDER (B) | ||||
| 49 | 371061 | 6.60 | 7.99 | |
| GUIDE PLATE | ||||
| 50 | 371070 | 37.81 | 45.75 | |
| LOCK LEVER COVER | ||||
| 51 | 371079 | 1.04 | 1.26 | |
| LOCK LEVER | ||||
| 52 | 371076 | 5.85 | 7.08 | |
| Roll Pin D3x16 (10 Pcs.) | ||||
| 53 | 949496 | 1.65 | 2.00 | |
| ROLL PIN D3X32 | ||||
| 54 | 371080 | 1.04 | 1.26 | |
| Pushing Lever | ||||
| 55 | 371083 | 12.00 | 14.52 | |
| ROLL PIN D3X22 | ||||
| 56 | 371077 | 1.04 | 1.26 | |
| WIRE BAND | ||||
| 57 | 6696839 | 1.08 | 1.31 | |
| SENSOR (B) | ||||
| 58 | 371022 | 11.55 | 13.98 | |
| SENSOR HOLDER (A) | ||||
| 59 | 371052 | 1.04 | 1.26 | |
| GUIDE PIN | ||||
| 60 | 371073 | 1.04 | 1.26 | |
| Lever (c) | ||||
| 61 | 331790 | 1.80 | 2.18 | |
| SENSOR (C) | ||||
| 62 | 371023 | 8.70 | 10.53 | |
| SENSOR HOLDER (A) | ||||
| 62 | 371053 | 1.04 | 1.26 | |
| SENSOR (C) | ||||
| 63 | 371023 | 8.70 | 10.53 | |
| SENSOR HOLDER (B) | ||||
| 63 | 371054 | 1.04 | 1.26 | |
| SENSOR HOLDER (B) | ||||
| 64 | 371054 | 1.04 | 1.26 | |
| SENSOR HOLDER (A) | ||||
| 64 | 371053 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M3x8 | ||||
| 65 | 325241 | 1.65 | 2.00 | |
| SHIELD RING | ||||
| 66 | 371051 | 1.04 | 1.26 | |
| Ball Bearing (1) | ||||
| 67 | 371033 | 3.15 | 3.81 | |
| WASHER (A) | ||||
| 68 | 371032 | 1.04 | 1.26 | |
| WHEEL SPRING (A) | ||||
| 69 | 371027 | 1.04 | 1.26 | |
| NEEDLE ROLLER D3 | ||||
| 70 | 371030 | 1.04 | 1.26 | |
| NEEDLE ROLLER D4.5 | ||||
| 71 | 371031 | 1.04 | 1.26 | |
| Pin (a) | ||||
| 72 | 371029 | 1.20 | 1.45 | |
| PIN WHEEL | ||||
| 73 | 371026 | 77.96 | 94.33 | |
| WHEEL SPRING (B) | ||||
| 74 | 371028 | 1.04 | 1.26 | |
| POSITION DETECTOR | ||||
| 75 | 371034 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 76 | 6901VV | |||
| Gear Box Set | ||||
| 77 | 371025 | 33.55 | 40.60 | |
| ROTOR | ||||
| 98 | 361054 | 37.95 | 45.92 | |
| Tappet | ||||
| 99 | 326276 | 1.05 | 1.27 | |
| MAGAZINE HOLDER | ||||
| 100 | 371093 | 1.35 | 1.63 | |
| MAGAZINE COVER | ||||
| 101 | 371085 | 15.26 | 18.47 | |
| Machine Screw M5x15 Black | ||||
| 102 | 885997 | 1.05 | 1.27 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 103 | 949431 | 1.04 | 1.26 | |
| Nail Rail | ||||
| 104 | 886591 | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 106 | 307811 | |||
| NAIL FEEDER (B) | ||||
| 107 | 371090 | 19.66 | 23.79 | |
| PUSHING STOPPER (A) | ||||
| 108 | 371091 | 1.04 | 1.26 | |
| Pushing Stopper Spring | ||||
| 109 | 886619 | 1.05 | 1.27 | |
| Pushing Stopper Cover | ||||
| 110 | 886616 | 1.20 | 1.45 | |
| Tapschroef D3x10 (black) | ||||
| 111 | 306371 | 1.04 | 1.26 | |
| TAPSCHROEF D3 ZWART MET RING (OUD 887464/306371) | ||||
| 111A | 382272 | 1.00 | 1.21 | |
| MAGAZINE | ||||
| 112 | 371226 | 18.70 | 22.63 | |
| Nylon Nut M5 | ||||
| 113 | 877371 | 1.05 | 1.27 | |
| PANEL SHEET | ||||
| 114 | 373658 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 337528 | |||
| No information available, not orderable | ||||
| 502 | 875769 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| NOSE CAP BLACK 3MM | ||||
| 504 | 371094 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 505 | 371895 | |||
| NOSE CAP BLACK 3MM | ||||
| 506 | 371094 | 2.70 | 3.27 | |
| Battery Cover | ||||
| 507 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 508 | 875769 | |||
| Pouch Cloth | ||||
| 509 | 6698667 | 1.98 | 2.39 | |
| HOOK | ||||
| 601 | 372992 | 14.73 | 17.82 | |
| No information available, not orderable | ||||
| 602 | 375605 | |||
