Here you will find all available parts and drawings of the 'Hikoki NR90GR2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

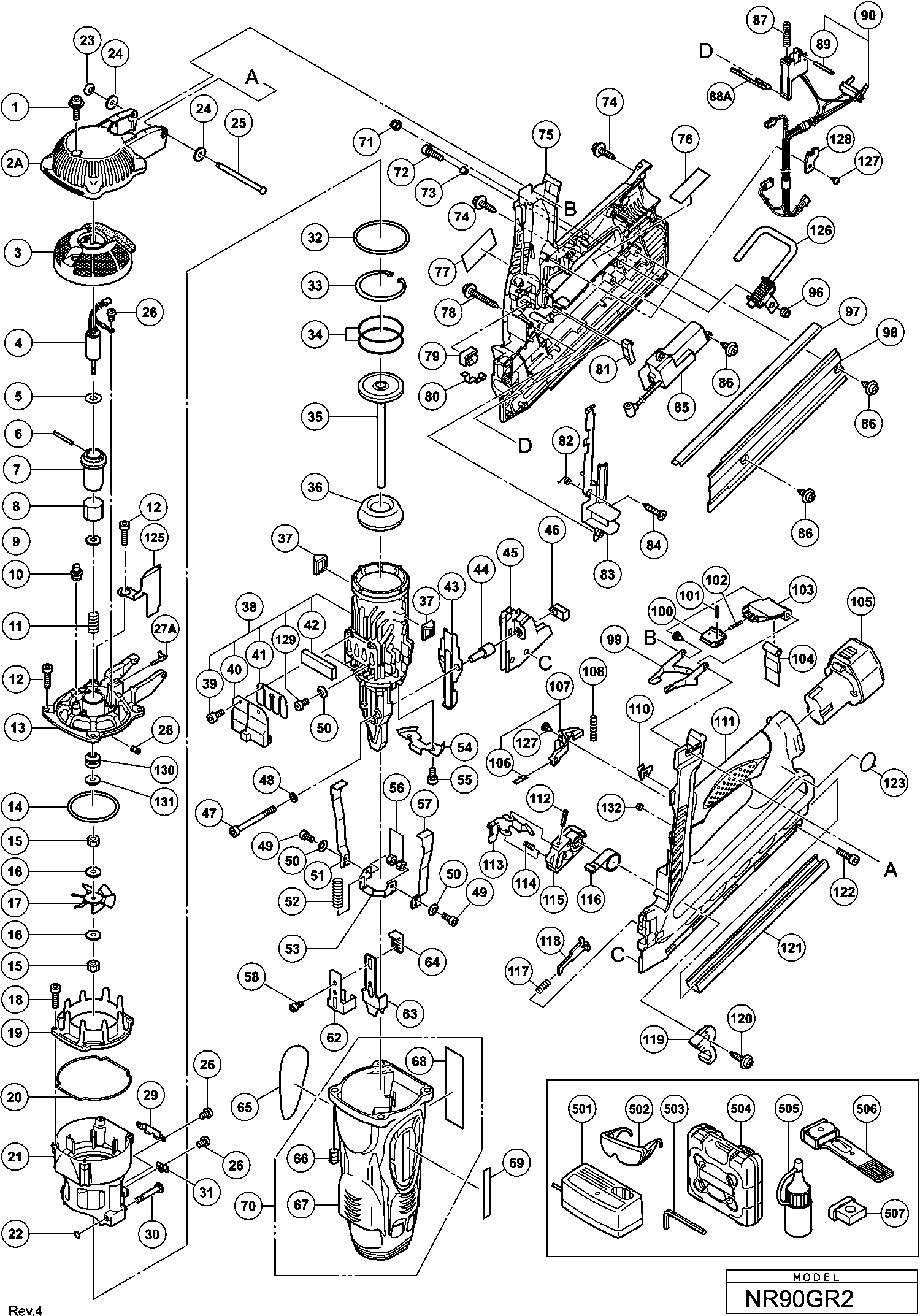

Technical drawing of model Hikoki NR90GR2
Spare parts list of model Hikoki NR90GR2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *105 | 325292 | |||
| No information available, not orderable | ||||
| *601 | 885246 | |||
| Controller | ||||
| *85 | 885331 | 87.59 | 105.98 | |
| Bolt | ||||
| 1 | 996399 | 1.04 | 1.26 | |
| Top Cover | ||||
| 2A | 886598 | 9.45 | 11.43 | |
| Filter | ||||
| 3 | 886129 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 4 | 885309 | |||
| Motor (old 885309) | ||||
| 4A | 887735 | 99.28 | 120.12 | |
| Rubber Ring | ||||
| 5 | 885313 | 1.50 | 1.82 | |
| Roll Pin D2.5x25 | ||||
| 6 | 885318 | 1.50 | 1.82 | |
| Motor Mount | ||||
| 7 | 885310 | 7.05 | 8.53 | |
| Sleeve | ||||
| 8 | 885314 | 1.65 | 2.00 | |
| Ring | ||||
| 9 | 885320 | 1.50 | 1.82 | |
| Spark Plug (a) | ||||
| 10 | 885333 | 3.30 | 3.99 | |
| Motor Spring | ||||
| 11 | 885319 | 1.50 | 1.82 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 12 | 949757 | 3.00 | 3.63 | |
| Cylinder Head Ass'y Includ.19,20 | ||||
| 13 | 885308 | 32.18 | 38.93 | |
| O-ring (i.d 59.92) | ||||
| 14 | 885316 | 4.80 | 5.81 | |
| Nut M4 (10 Pieces) | ||||
| 15 | 949554 | 1.05 | 1.27 | |
| Washer M4 (10 Pcs.) | ||||
| 16 | 949423 | 1.05 | 1.27 | |
| Fan | ||||
| 17 | 885311 | 4.80 | 5.81 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 18 | 949754 | 2.40 | 2.90 | |
| Chamber Head | ||||
| 19 | 885294 | 13.89 | 16.80 | |
| Seal Plate (b) | ||||
| 20 | 886133 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 21 | 885296 | |||
| O-Ring | ||||
| 22 | 878607 | 1.05 | 1.27 | |
| Shaft Ring | ||||
| 23 | 880319 | 1.65 | 2.00 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 24 | 949431 | 1.04 | 1.26 | |
| Shaft | ||||
| 25 | 885277 | 3.00 | 3.63 | |
| Machine Screw M4x6 (10 Pcs.) | ||||
| 26 | 949214 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 885317 | |||
| Adaptor | ||||
| 27A | 886313 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M4x5 | ||||
| 28 | 961681 | 1.04 | 1.26 | |
| Chamber Lock Plate | ||||
| 29 | 885297 | 3.30 | 3.99 | |
| Pin (a) | ||||
| 30 | 886484 | 1.65 | 2.00 | |
| Shift Plate | ||||
| 31 | 885306 | 1.65 | 2.00 | |
| O-ring (i.d. 66.27) | ||||
| 32 | 885283 | 6.45 | 7.80 | |
| Washer Spring | ||||
| 33 | 885285 | 1.65 | 2.00 | |
| Piston Ring | ||||
| 34 | 886132 | 9.75 | 11.80 | |
| Piston | ||||
| 35 | 885619 | 58.44 | 70.71 | |
| Piston Bumper | ||||
| 36 | 885289 | 8.40 | 10.16 | |
| Chamber Stop Rubber | ||||
| 37 | 885284 | 1.80 | 2.18 | |
| Cylinder Ass'y Includ.42-46 | ||||
| 38 | 885618 | 72.19 | 87.35 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 | ||||
| 39 | 886241 | 1.65 | 2.00 | |
| Buffer Cover (a) | ||||
| 40 | 886467 | 1.80 | 2.18 | |
| Lead Valve | ||||
| 41 | 885290 | 1.65 | 2.00 | |
| Muffler | ||||
| 42 | 885288 | 13.50 | 16.34 | |
| Guide Piece | ||||
| 43 | 885632 | 8.40 | 10.16 | |
| Lock Sleeve | ||||
| 44 | 886252 | 6.45 | 7.80 | |
| Plate | ||||
| 45 | 885622 | 25.16 | 30.45 | |
| Special Nut M5 | ||||
| 46 | 886544 | 7.50 | 9.08 | |
| Nylock Hex.socket Hd.bolt M5x50 | ||||
| 47 | 886545 | 1.80 | 2.18 | |
| Lock Sleeve | ||||
| 48 | 886143 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 | ||||
| 49 | 886241 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 50 | 886242 | |||
| Conical Spring H8 | ||||
| 50A | 886319 | 1.05 | 1.27 | |
| Pushing Lever Arm (c) | ||||
| 51 | 886546 | 5.10 | 6.17 | |
| Pushing Lever Spring (a) | ||||
| 52 | 886245 | 1.65 | 2.00 | |
| Pushing Lever Connector | ||||
| 53 | 885301 | 4.35 | 5.26 | |
| Cylinder Plate | ||||
| 54 | 885625 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 55 | 980046 | |||
| U-NUT M4 | ||||
| 56 | 956329 | 1.05 | 1.27 | |
| Pushing Lever Arm (d) | ||||
| 57 | 886547 | 5.10 | 6.17 | |
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 58 | 949819 | 2.55 | 3.09 | |
| Stopper | ||||
| 62 | 886128 | 6.45 | 7.80 | |
| Pushing Lever (a) | ||||
| 63 | 886144 | 6.75 | 8.17 | |
| Adjuster Bush (a) | ||||
| 64 | 885272 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 65 | 888756 | |||
| Screw M5 | ||||
| 66 | 885304 | 1.50 | 1.82 | |
| Housing | ||||
| 67 | 886134 | 23.93 | 28.95 | |
| Insulator Sheet | ||||
| 68 | 885307 | 1.65 | 2.00 | |
| Brand Plate | ||||
| 69 | 328922 | 1.95 | 2.36 | |
| Brand Plate | ||||
| 69A | 328922 | 1.95 | 2.36 | |
| Housing | ||||
| 70 | 886244 | 33.96 | 41.09 | |
| Nylon Nut M4 | ||||
| 71 | 876465 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x15 (10 Pcs.) | ||||
| 72 | 949820 | 2.55 | 3.09 | |
| Sleeve | ||||
| 73 | 878164 | 14.70 | 17.79 | |
| Sleeve | ||||
| 73A | 878164 | 14.70 | 17.79 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 74 | 302086 | 1.05 | 1.27 | |
| Handle (d) | ||||
| 75 | 886139 | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 77 | 888762 | |||
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 78 | 301815 | 1.05 | 1.27 | |
| Switch Mount | ||||
| 79 | 885334 | 1.65 | 2.00 | |
| Switch Arm | ||||
| 80 | 885347 | 1.65 | 2.00 | |
| PRISM | ||||
| 81 | 885628 | 3.30 | 3.99 | |
| Spring | ||||
| 82 | 885337 | 1.65 | 2.00 | |
| Wiring Cover | ||||
| 83 | 885339 | 3.30 | 3.99 | |
| Screw | ||||
| 84 | 885346 | 1.65 | 2.00 | |
| Controller | ||||
| 85 | 885331 | 87.59 | 105.98 | |
| Controller | ||||
| 85 | 885595 | 57.06 | 69.05 | |
| Tapping Screw (w/flange) D4x14 (black) | ||||
| 86 | 309933 | 1.05 | 1.27 | |
| Spring | ||||
| 87 | 885828 | 1.65 | 2.00 | |
| Chamber Lock Bar | ||||
| 88A | 887617 | 4.65 | 5.63 | |
| Roll Pin D2.5x10 (10 Pcs.) | ||||
| 89 | 949551 | 1.65 | 2.00 | |
| Wire harness (a) | ||||
| 90 | 885799 | 46.61 | 56.40 | |
| Nylon Nut M5 | ||||
| 96 | 877371 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 97 | 885629 | |||
| MAGAZINE PLATE | ||||
| 98 | 885630 | 5.28 | 6.39 | |
| Cell Lever (a) | ||||
| 99 | 886141 | 6.75 | 8.17 | |
| Lever | ||||
| 100 | 885280 | 1.50 | 1.82 | |
| Roll Pin D2x8 (10 Pcs.) | ||||
| 101 | 949859 | 1.20 | 1.45 | |
| Spring D3.6 | ||||
| 102 | 885281 | 1.50 | 1.82 | |
| Cell Cover | ||||
| 103 | 885352 | 3.30 | 3.99 | |
| Cell Rubber (a) | ||||
| 104 | 886131 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 105 | 325292 | |||
| Tension Plate (c) | ||||
| 106 | 886257 | 3.30 | 3.99 | |
| SWITCH SLIDER | ||||
| 107 | 886135 | 6.45 | 7.80 | |
| Spring | ||||
| 108 | 885518 | 1.65 | 2.00 | |
| Lever Stopper | ||||
| 110 | 886138 | 3.30 | 3.99 | |
| Handle (c) Nr90gr2 Grey | ||||
| 111 | 886729 | 36.99 | 44.75 | |
| Roll Pin D4x28 (10 Pcs.) | ||||
| 112 | 949506 | 3.00 | 3.63 | |
| Nail feed | ||||
| 113 | 885621 | 6.45 | 7.80 | |
| Spring | ||||
| 114 | 883687 | 1.65 | 2.00 | |
| Nail Feeder (b) | ||||
| 115 | 885324 | 3.00 | 3.63 | |
| Spring | ||||
| 116 | 885325 | 7.05 | 8.53 | |
| Spring D8 | ||||
| 117 | 885328 | 1.50 | 1.82 | |
| STOP BUTTON | ||||
| 118 | 885623 | 3.96 | 4.79 | |
| Feeder Knob | ||||
| 119 | 886246 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 120 | 302089 | 1.05 | 1.27 | |
| Magazine Guard | ||||
| 121 | 885354 | 8.40 | 10.16 | |
| Hex. Socket Hd. Bolt M4x18 | ||||
| 122 | 880003 | 1.05 | 1.27 | |
| Wiring Plate | ||||
| 125 | 886253 | 1.65 | 2.00 | |
| Hook | ||||
| 126 | 886255 | 9.00 | 10.89 | |
| Tapping Screw D3x8 | ||||
| 127 | 885714 | 1.80 | 2.18 | |
| Wiring Plate (b) | ||||
| 128 | 886548 | 1.80 | 2.18 | |
| Seal Lock Screw M4x6 (black) | ||||
| 129 | 303631 | 1.04 | 1.26 | |
| Cover | ||||
| 130 | 886470 | 1.80 | 2.18 | |
| Ring | ||||
| 131 | 886471 | 1.80 | 2.18 | |
| Sleeve | ||||
| 132 | 886543 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504 | 886146 | |||
| No information available, not orderable | ||||
| 505 | 886036 | |||
| Workpiece Protective Nose | ||||
| 506 | 885788 | 38.91 | 47.08 | |
| Rubber Cap for Protective Nose | ||||
| 507 | 885791 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| 601 | 885546 | |||
| Workpiece Protective Nose | ||||
| 602 | 885788 | 38.91 | 47.08 | |
| Rubber Cap for Protective Nose | ||||
| 603 | 885791 | 6.30 | 7.62 | |
