Here you will find all available parts and drawings of the 'Hikoki NR90AE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

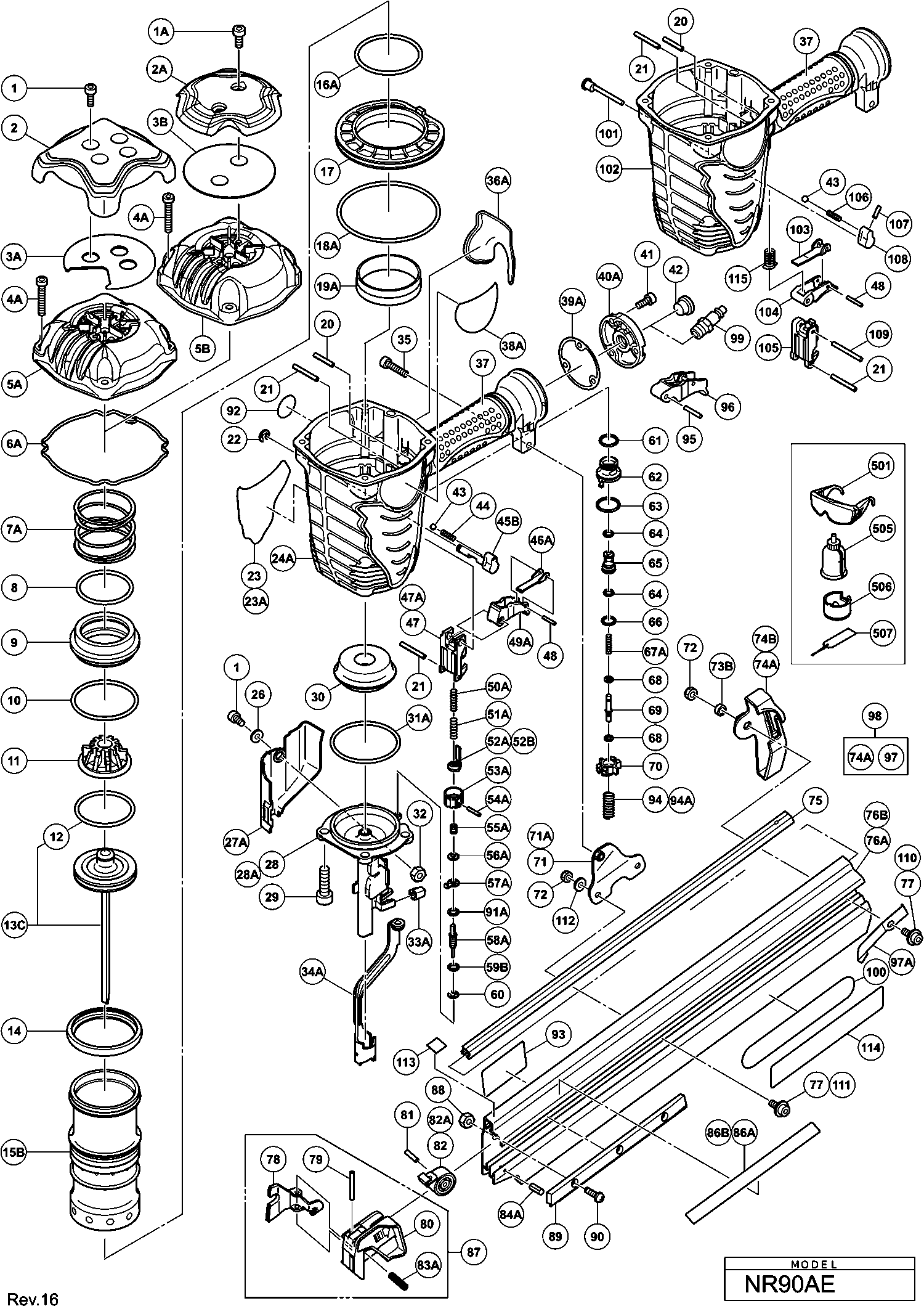

Technical drawing of model Hikoki NR90AE
Spare parts list of model Hikoki NR90AE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guide Piece | ||||
| *47 | 884995 | 4.35 | 5.26 | |
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 1 | 949665 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M6x12 Since 9.2015 For Model | ||||
| 1A | 888792 | 1.04 | 1.26 | |
| Head Guard Till 8.2015 | ||||
| 2 | 884952 | 13.50 | 16.34 | |
| Head Guard Since 9.2015 For Model (s) | ||||
| 2A | 888790 | 9.90 | 11.98 | |
| Sheet (Old 884986) | ||||
| 3A | 886454 | 2.10 | 2.54 | |
| Sheet Since 9.2015 For Model (s) | ||||
| 3B | 888794 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt M6x30 | ||||
| 4A | 888793 | 1.04 | 1.26 | |
| Exhaust Cover Till 8.2015 | ||||
| 5A | 886261 | 41.80 | 50.58 | |
| Exhaust Cover Since 9.2015 For Model (s) | ||||
| 5B | 888789 | 14.44 | 17.47 | |
| Gasket (a) | ||||
| 6A | 886455 | 2.10 | 2.54 | |
| Head Valve Spring | ||||
| 7A | 886456 | 3.15 | 3.81 | |
| O-ring (i.d 49.4) | ||||
| 8 | 884947 | 1.65 | 2.00 | |
| Head Valve | ||||
| 9 | 884946 | 18.15 | 21.96 | |
| O-ring (i.d 59.4) | ||||
| 10 | 884948 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 11 | 884950 | |||
| Exhaust Valve Rubber | ||||
| 11A | 889217 | 4.05 | 4.90 | |
| Piston O-ring | ||||
| 12 | 884958 | 1.65 | 2.00 | |
| Piston Assembly (old 897491) | ||||
| 13C | 888403 | 47.58 | 57.57 | |
| Valve Rubber | ||||
| 14 | 884945 | 10.95 | 13.25 | |
| Cylinder | ||||
| 15B | 886457 | 36.16 | 43.76 | |
| O-ring (i.d 59.6) | ||||
| 16A | 886480 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 17 | 884944 | 3.30 | 3.99 | |
| O-ring (i.d 94.6) | ||||
| 18A | 886481 | 3.30 | 3.99 | |
| Cylinder Ring | ||||
| 19A | 886483 | 1.65 | 2.00 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 20 | 949539 | 2.25 | 2.72 | |
| Roll Pin D3x32 | ||||
| 21 | 884975 | 1.65 | 2.00 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 22 | 955479 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 23 | 888746 | |||
| No information available, not orderable | ||||
| 23A | 888747 | |||
| No information available, not orderable | ||||
| 24A | 886259 | |||
| No longer available, no replacement | ||||
| 26 | 876205 | |||
| Washer (OLD 876205) | ||||
| 26A | 889024 | 1.04 | 1.26 | |
| Pushing Lever Cover (a) | ||||
| 27A | 886874 | 1.05 | 1.27 | |
| Nose | ||||
| 28 | 885521 | 125.26 | 151.57 | |
| NOSE | ||||
| 28A | 887676 | 76.04 | 92.01 | |
| Nylock Hex Socket Head Bolt M8x30 since 6.1981 | ||||
| 29 | 306437 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 30 | 884959 | |||
| SLAGPEN BUMPER ZWART (OUD 884959) | ||||
| 30A | 890445 | 6.84 | 8.28 | |
| O-ring (i.d 60) | ||||
| 31A | 886482 | 1.65 | 2.00 | |
| Nylon Nut M5 | ||||
| 32 | 877371 | 1.05 | 1.27 | |
| Nose Rubber | ||||
| 33A | 886458 | 1.20 | 1.45 | |
| Pushing Lever (a) Ass'y | ||||
| 34A | 886865 | 12.45 | 15.06 | |
| Hex. Socket Hd. Bolt M6x22 (10 Pcs.) | ||||
| 35 | 949670 | 3.00 | 3.63 | |
| Grip Rubber (b) | ||||
| 36A | 886260 | 2.10 | 2.54 | |
| Brand Label | ||||
| 38A | 888713 | 1.04 | 1.26 | |
| Gasket (b) | ||||
| 39A | 884342 | 1.05 | 1.27 | |
| Cap (1) | ||||
| 40A | 881949 | 4.80 | 5.81 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 41 | 949821 | 2.55 | 3.09 | |
| Dust Cap | ||||
| 42 | 872035 | 1.04 | 1.26 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 43 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 44 | 982454 | 1.04 | 1.26 | |
| Change Knob (c) | ||||
| 45B | 886265 | 2.10 | 2.54 | |
| Trigger (c) | ||||
| 46A | 885689 | 2.10 | 2.54 | |
| Guide Piece | ||||
| 47 | 884995 | 4.35 | 5.26 | |
| Pushing Lever Guide | ||||
| 47A | 886864 | 2.10 | 2.54 | |
| Roll Pin D2.5x16 | ||||
| 48 | 881951 | 1.80 | 2.18 | |
| Switch | ||||
| 49A | 885657 | 10.35 | 12.52 | |
| Push Lever Spring (d) | ||||
| 50A | 886879 | 5.55 | 6.72 | |
| PUSHING LEVER SPRING (B) | ||||
| 50A | 886861 | 1.05 | 1.27 | |
| Push Lever Spring (c) | ||||
| 51A | 886878 | 5.10 | 6.17 | |
| Pushing Lever Spring (a) | ||||
| 51A | 886860 | 1.05 | 1.27 | |
| PUSHING LEVER (C) | ||||
| 52A | 886867 | 3.15 | 3.81 | |
| Pushing Lever (d) | ||||
| 52B | 887664 | 4.20 | 5.08 | |
| Adjuster | ||||
| 53A | 886872 | 1.20 | 1.45 | |
| Roll Pin D2x16 | ||||
| 54A | 886873 | 1.20 | 1.45 | |
| Adjuster Spring | ||||
| 55A | 886870 | 1.20 | 1.45 | |
| Adjuster Plate (c) | ||||
| 56A | 886869 | 1.20 | 1.45 | |
| Adjuster Plate (a) | ||||
| 57A | 886868 | 2.10 | 2.54 | |
| Pushing Lever (b) | ||||
| 58A | 886866 | 4.20 | 5.08 | |
| O-ring (s-5) | ||||
| 59B | 872822 | 3.00 | 3.63 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 60 | 872971 | 1.05 | 1.27 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 61 | 877763 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 62 | 884963 | 1.65 | 2.00 | |
| O-ring (P-18) | ||||
| 63 | 873570 | 1.35 | 1.63 | |
| O-RING (P-7) (OUD 676531) | ||||
| 64 | 889335 | 1.00 | 1.21 | |
| O-RING (P-7) (OUD 676531) | ||||
| 64A | 889335 | 1.00 | 1.21 | |
| Valve Piston | ||||
| 65 | 884964 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 66 | 872654 | |||
| O-RING (1AP-10) (OLD 872654) | ||||
| 66A | 889495 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 67A | 887178 | 1.20 | 1.45 | |
| O-RING (I.D.1.8) | ||||
| 68 | 878888 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 69 | 884965 | 4.80 | 5.81 | |
| Valve Bushing (a) | ||||
| 70 | 884962 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 71 | 885522 | |||
| Handle Arm | ||||
| 71A | 888795 | 1.95 | 2.36 | |
| Nylon Nut M6 | ||||
| 72 | 963837 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 72A | 890477 | |||
| Sleeve | ||||
| 73B | 883499 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 74A | 887031 | |||
| Magazine Cover | ||||
| 74B | 888787 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 74C | 889330 | |||
| Nail Rail | ||||
| 75 | 885524 | 8.25 | 9.98 | |
| Magazine (old 885525) | ||||
| 76A | 887030 | 57.06 | 69.05 | |
| Magazine | ||||
| 76B | 888786 | 35.06 | 42.43 | |
| Hex Socket Bolt M6x12 | ||||
| 77 | 984443 | 1.04 | 1.26 | |
| SPIJKERVOEDING | ||||
| 78 | 885526 | 21.72 | 26.28 | |
| Roll Pin D4x36 (10 Pcs.) | ||||
| 79 | 949547 | 3.90 | 4.72 | |
| Nail feed | ||||
| 80 | 885527 | 5.25 | 6.35 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 81 | 943364 | 1.05 | 1.27 | |
| Ribbon spring (a) | ||||
| 82A | 888801 | 6.60 | 7.99 | |
| Spring for feed mechanism | ||||
| 83A | 886278 | 1.05 | 1.27 | |
| Roll Pin D3x8 | ||||
| 84A | 887619 | 1.20 | 1.45 | |
| Label (c) | ||||
| 86A | 887489 | 1.20 | 1.45 | |
| Label (c) | ||||
| 86B | 887665 | 1.20 | 1.45 | |
| Nail feed | ||||
| 87 | 885530 | 44.00 | 53.24 | |
| Nylon Nut M4 | ||||
| 88 | 876465 | 1.05 | 1.27 | |
| MAGAZIJN PLAAT | ||||
| 89 | 885717 | 2.94 | 3.56 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 90 | 951039 | 1.05 | 1.27 | |
| O-RING (S-4) | ||||
| 91A | 981317 | 1.05 | 1.27 | |
| Warning Label (a) | ||||
| 92 | 883513 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 93 | 878183 | |||
| Spring | ||||
| 94 | 884994 | 4.80 | 5.81 | |
| Trigger Arm Spring | ||||
| 94A | 887682 | 2.10 | 2.54 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 95 | 949518 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 96 | 884993 | |||
| Nail Stopper | ||||
| 97A | 888802 | 1.35 | 1.63 | |
| Magazine Cover Ass'y | ||||
| 98 | 887492 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 101 | 887668 | |||
| Change Rod (d) | ||||
| 101A | 888798 | 1.95 | 2.36 | |
| Housing | ||||
| 102 | 887669 | 58.99 | 71.37 | |
| Housing | ||||
| 102A | 887669 | 58.99 | 71.37 | |
| Trigger (d) | ||||
| 103 | 887670 | 1.20 | 1.45 | |
| Trigger (d) | ||||
| 104 | 887671 | 6.60 | 7.99 | |
| Pushing Lever Guide (d) | ||||
| 105 | 887672 | 2.10 | 2.54 | |
| Spring | ||||
| 106 | 887673 | 1.20 | 1.45 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 107 | 887458 | 1.20 | 1.45 | |
| Change Knob (d) | ||||
| 108 | 887674 | 1.20 | 1.45 | |
| Roll Pin D3x35 | ||||
| 109 | 887675 | 1.20 | 1.45 | |
| Hex.socket head bolt M6x16 | ||||
| 110 | 888797 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M6x16 | ||||
| 111 | 888803 | 1.04 | 1.26 | |
| RING | ||||
| 112 | 877402 | 2.10 | 2.54 | |
| Plate (a) | ||||
| 113 | 888800 | 1.04 | 1.26 | |
| Label (d) | ||||
| 114 | 888784 | 1.04 | 1.26 | |
| Trigger Arm Spring | ||||
| 115 | 887682 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 505 | 877153 | |||
| Nose cap | ||||
| 506 | 886401 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| 507 | 888760 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| Sequential Fire Parts Set New Aug | ||||
| 603 | 884992 | 26.54 | 32.11 | |
| No information available, not orderable | ||||
| 604 | 884993 | |||
| Guide Piece | ||||
| 605 | 884995 | 4.35 | 5.26 | |
| Spring | ||||
| 606 | 884994 | 4.80 | 5.81 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 607 | 949518 | 2.40 | 2.90 | |
| Nose cap | ||||
| 608 | 886401 | 10.95 | 13.25 | |
| O-ring Kit Includ.608-615 | ||||
| 609 | 884991 | 16.36 | 19.80 | |
| Gasket (a) | ||||
| 610 | 884953 | 4.80 | 5.81 | |
| O-ring (i.d 49.4) | ||||
| 611 | 884947 | 1.65 | 2.00 | |
| O-ring (i.d 59.4) | ||||
| 612 | 884948 | 1.65 | 2.00 | |
| Piston O-ring | ||||
| 613 | 884958 | 1.65 | 2.00 | |
| O-ring (i.d 59.6) | ||||
| 614 | 884942 | 1.65 | 2.00 | |
| O-ring (i.d 94.6) | ||||
| 615 | 884943 | 3.30 | 3.99 | |
| Cylinder Ring | ||||
| 616 | 877317 | 1.65 | 2.00 | |
| Cylinder Ring | ||||
| 616A | 886483 | 1.65 | 2.00 | |
| Hanger Plate Parts Set Includ.617-619 For Europe | ||||
| 618 | 887892 | 341.41 | 413.11 | |
| Sleeve | ||||
| 619 | 887894 | 39.74 | 48.08 | |
| Hanger Plate For Europe | ||||
| 620 | 887893 | 167.75 | 202.98 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 621 | 949757 | 3.00 | 3.63 | |
