Here you will find all available parts and drawings of the 'Hikoki NR83AA3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

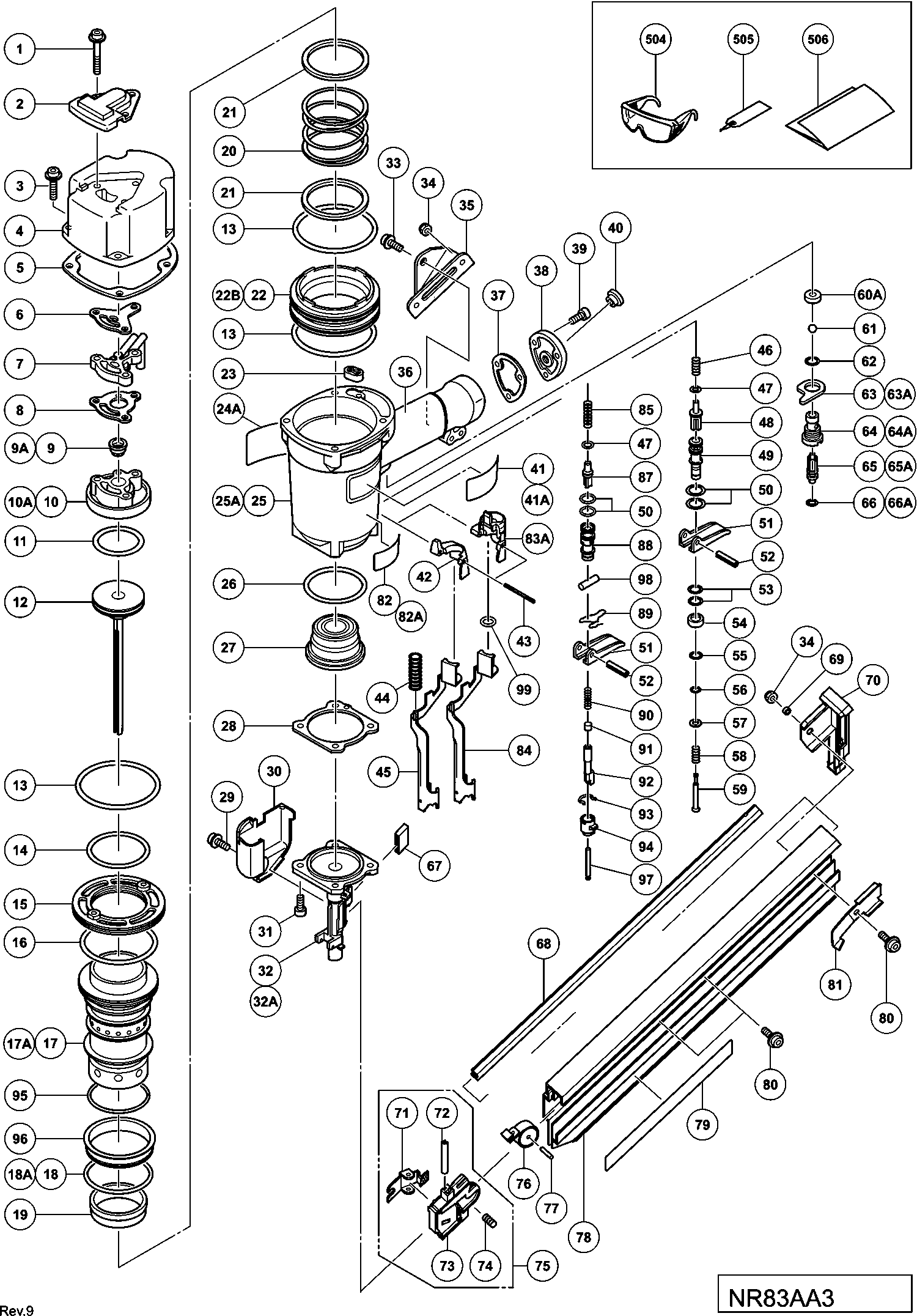

Technical drawing of model Hikoki NR83AA3
Spare parts list of model Hikoki NR83AA3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt (w/flange) M6x45 | ||||
| 1 | 883509 | 3.30 | 3.99 | |
| Cover Plate | ||||
| 2 | 877330 | 3.90 | 4.72 | |
| HEX.SOCKET HD.BOLT M6X25 W/WASHER | ||||
| 3 | 883507 | 2.46 | 2.98 | |
| Exhaust Cover | ||||
| 4 | 877324 | 75.76 | 91.67 | |
| Gasket (b) | ||||
| 5 | 877325 | 4.50 | 5.44 | |
| Gasket (f) | ||||
| 6 | 877329 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 7 | 877328 | |||
| Gasket (c) | ||||
| 8 | 877854 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 9 | 884110 | |||
| Exhaust Valve | ||||
| 9A | 887774 | 3.15 | 3.81 | |
| Head Cap And Gasket Set Includ.8 | ||||
| 10 | 877307 | 24.89 | 30.11 | |
| No information available, not orderable | ||||
| 10A | 887769 | |||
| O-ring (1ap-48) | ||||
| 11 | 877368 | 1.95 | 2.36 | |
| Piston | ||||
| 12 | 883510 | 81.68 | 98.83 | |
| O-ring (s-90) | ||||
| 13 | 877316 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 14 | 877312 | |||
| Cylinder Plate | ||||
| 15 | 877318 | 20.49 | 24.79 | |
| Cylinder O-ring (i.d 79.3) | ||||
| 16 | 877313 | 1.95 | 2.36 | |
| Cylinder | ||||
| 17 | 884068 | 49.64 | 60.06 | |
| No information available, not orderable | ||||
| 17A | 887762 | |||
| Cylinder O-ring (i.d 69.3) | ||||
| 18 | 877314 | 1.95 | 2.36 | |
| O-ring (s-70) | ||||
| 18A | 878863 | 2.40 | 2.90 | |
| Cylinder Ring | ||||
| 19A | 886483 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 20 | 877321 | |||
| Ring | ||||
| 21 | 877322 | 2.40 | 2.90 | |
| CILINDER GUIDE | ||||
| 22 | 877310 | 30.52 | 36.93 | |
| Cylinder Guide (b) | ||||
| 22B | 887763 | 22.83 | 27.62 | |
| Gasket (g) | ||||
| 23 | 877327 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 24B | 888957 | |||
| BODY ASS'Y | ||||
| 25 | 883506 | 62.48 | 75.60 | |
| Body Assembly | ||||
| 25A | 887773 | 60.91 | 73.70 | |
| No information available, not orderable | ||||
| 26 | 877315 | |||
| Piston Bumper (b) | ||||
| 27 | 883511 | 14.03 | 16.97 | |
| Gasket (a) | ||||
| 28 | 877334 | 2.40 | 2.90 | |
| NYLOCK BOUT M6X12 | ||||
| 29 | 882974 | 1.38 | 1.67 | |
| GUARD | ||||
| 30 | 883493 | 2.70 | 3.27 | |
| NYLOCK HEX.SOCKET HD.BOLT M8X22 | ||||
| 31 | 883492 | 2.70 | 3.27 | |
| Nose | ||||
| 32 | 883490 | 163.35 | 197.65 | |
| NOSE | ||||
| 32A | 887775 | 138.74 | 167.87 | |
| Nylock Bolt (w/flange) M8x16 | ||||
| 33 | 883505 | 3.00 | 3.63 | |
| Nylon Nut M6 | ||||
| 34 | 963837 | 1.05 | 1.27 | |
| HANDLE ARM | ||||
| 35 | 883504 | 6.06 | 7.33 | |
| Gasket (d) | ||||
| 37 | 877331 | 1.05 | 1.27 | |
| Cap | ||||
| 38 | 878311 | 10.65 | 12.89 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 39 | 949658 | 1.80 | 2.18 | |
| Dust Cap | ||||
| 40 | 872035 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 42 | 884119 | |||
| Roll Pin D3x45 | ||||
| 43 | 884025 | 1.80 | 2.18 | |
| Spring | ||||
| 44 | 884117 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 45 | 884118 | |||
| Plunger Spring | ||||
| 46 | 875643 | 1.05 | 1.27 | |
| O-ring (p-4) | ||||
| 47 | 874436 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 48 | 884113 | 3.30 | 3.99 | |
| Valve Bushing | ||||
| 49 | 884111 | 15.26 | 18.47 | |
| O-ring (i.d 10.7) | ||||
| 50 | 884112 | 1.65 | 2.00 | |
| Trigger | ||||
| 51 | 876203 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 52 | 949866 | 3.60 | 4.36 | |
| O-ring (p-9) | ||||
| 53 | 872645 | 1.65 | 2.00 | |
| Valve Sleeve (a) | ||||
| 54 | 884116 | 3.30 | 3.99 | |
| O-RING (S-7) | ||||
| 55 | 876316 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 56 | 878723 | |||
| Washer M5 (10 Pcs.) | ||||
| 57 | 949424 | 1.05 | 1.27 | |
| Plunger (b) Spring | ||||
| 58 | 884115 | 1.65 | 2.00 | |
| Plunger (b) | ||||
| 59 | 884114 | 4.80 | 5.81 | |
| Valve Packing | ||||
| 60A | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 61 | 875645 | |||
| O-ring (s-12) | ||||
| 62 | 875638 | 1.65 | 2.00 | |
| Valve Plate | ||||
| 63 | 875644 | 1.05 | 1.27 | |
| Valve Plate | ||||
| 63A | 887771 | 4.20 | 5.08 | |
| Trigger Valve Bushing | ||||
| 64 | 877335 | 12.60 | 15.25 | |
| No information available, not orderable | ||||
| 64A | 887839 | |||
| Trigger Plunger | ||||
| 65 | 878121 | 1.65 | 2.00 | |
| O-ring | ||||
| 66 | 874820 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 66A | 887840 | |||
| NEUS RUBBER | ||||
| 67 | 883491 | 1.08 | 1.31 | |
| NAIL RAIL | ||||
| 68 | 883496 | 9.00 | 10.89 | |
| Sleeve | ||||
| 69 | 883499 | 1.50 | 1.82 | |
| Magazine Cover | ||||
| 70 | 883497 | 4.80 | 5.81 | |
| SPIJKERVOEDING | ||||
| 71 | 883502 | 17.16 | 20.76 | |
| ROLL PIN D4X40 (10 STUKS) | ||||
| 72 | 949688 | 3.48 | 4.21 | |
| SPIJKERVOEDING | ||||
| 73 | 883501 | 2.70 | 3.27 | |
| VEER VOOR TOEVOERMECHANISME | ||||
| 74 | 883441 | 1.38 | 1.67 | |
| SPIJKERVOEDING | ||||
| 75 | 883500 | 26.46 | 32.02 | |
| Leaf Spring | ||||
| 76 | 883503 | 9.00 | 10.89 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 77 | 943364 | 1.05 | 1.27 | |
| Magazine | ||||
| 78 | 883495 | 55.41 | 67.05 | |
| Hex Socket Bolt M6x12 | ||||
| 80 | 984443 | 1.04 | 1.26 | |
| NAIL STOPPER | ||||
| 81 | 883498 | 2.22 | 2.69 | |
| No information available, not orderable | ||||
| 82 | 888759 | |||
| Label | ||||
| 82A | 887864 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 83A | 887862 | |||
| Plunger Spring | ||||
| 85 | 887724 | 1.20 | 1.45 | |
| PLUNGER (2 needed) | ||||
| 87 | 887725 | 1.20 | 1.45 | |
| Trigger Spring Since 7.2016 For Nor | ||||
| 89 | 887727 | 3.15 | 3.81 | |
| ROD SPRING | ||||
| 90 | 887728 | 1.20 | 1.45 | |
| ROD (B) | ||||
| 91 | 887729 | 1.20 | 1.45 | |
| Ratchet Spring | ||||
| 93 | 886331 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 94 | 887766 | |||
| No information available, not orderable | ||||
| 95 | 878376 | |||
| No information available, not orderable | ||||
| 96 | 887767 | |||
| No information available, not orderable | ||||
| 97 | 887732 | |||
| No information available, not orderable | ||||
| 98 | 887768 | |||
| O-ring (s3) | ||||
| 99 | 881715 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 504 | 875769 | |||
| No information available, not orderable | ||||
| 505 | 884072 | |||
| No information available, not orderable | ||||
| 506 | 884120 | |||
| No information available, not orderable | ||||
| 601 | 877153 | |||
| No information available, not orderable | ||||
| 602 | 874042 | |||
| No information available, not orderable | ||||
| 603 | 876212 | |||
| Grease (attolub No.2) 500g | ||||
| 604 | 317918 | 32.18 | 38.93 | |
| Grip Tape (a) | ||||
| 605 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 606A | 888213 | |||
| No information available, not orderable | ||||
| 607 | 884069 | |||
