Here you will find all available parts and drawings of the 'Hikoki NR83A5'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

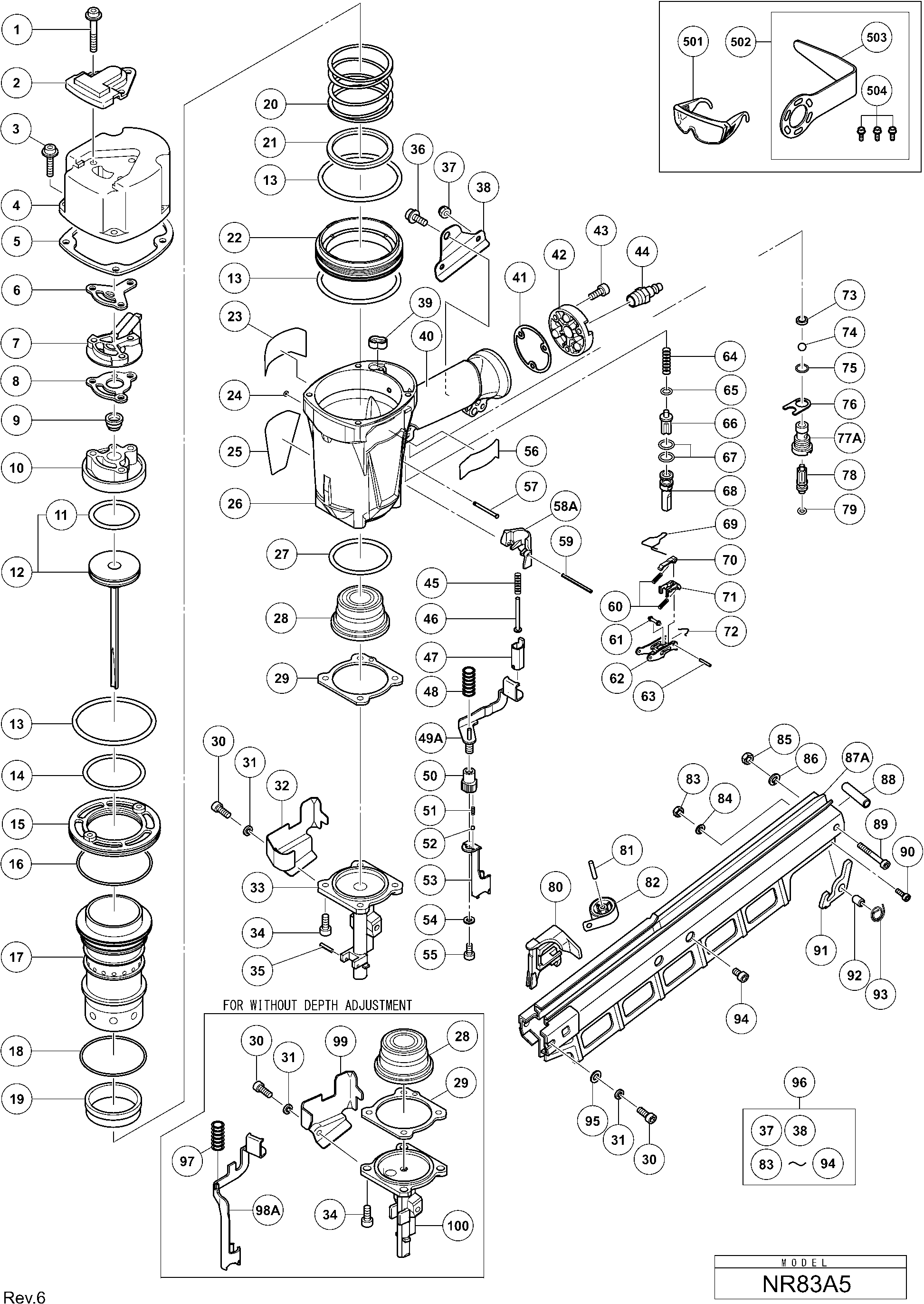

Technical drawing of model Hikoki NR83A5
Spare parts list of model Hikoki NR83A5
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| NYLOCK HEX. SOCKET HD. BOLT M6X18 | ||||
| *30 | 888245 | 1.00 | 1.21 | |
| HOOK ASS'Y (OLD 889111) | ||||
| *502A | 889661 | 10.95 | 13.25 | |
| Hex. Socket Hd. Bolt (w/flange) M6x45 | ||||
| 1 | 883509 | 3.30 | 3.99 | |
| Cover Plate | ||||
| 2 | 877330 | 3.90 | 4.72 | |
| HEX.SOCKET HD.BOLT M6X25 W/WASHER | ||||
| 3 | 883507 | 2.46 | 2.98 | |
| Exhaust Cover | ||||
| 4 | 877324 | 75.76 | 91.67 | |
| Gasket (b) | ||||
| 5 | 877325 | 4.50 | 5.44 | |
| Gasket (f) | ||||
| 6 | 877329 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 7 | 877328 | |||
| Gasket (c) | ||||
| 8 | 877854 | 2.40 | 2.90 | |
| Exhaust Valve | ||||
| 9 | 887774 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 9A | 890442 | |||
| Head Cap And Gasket Set Includ.8 | ||||
| 10 | 877307 | 24.89 | 30.11 | |
| O-ring (1ap-48) | ||||
| 11 | 877368 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 12 | 885915 | |||
| EXTENDED LIFE PISTON ASS'Y SET (OLD 885915) | ||||
| 12B | 890385 | 25.58 | 30.95 | |
| No information available, not orderable | ||||
| 13 | 889112 | |||
| No information available, not orderable | ||||
| 14 | 877312 | |||
| CILINDER O-RING (I.D 63.1) (OUD 877312) | ||||
| 14A | 890443 | 1.00 | 1.21 | |
| Cylinder Plate | ||||
| 15 | 877318 | 20.49 | 24.79 | |
| Cylinder O-ring (i.d 79.3) | ||||
| 16 | 877313 | 1.95 | 2.36 | |
| Cylinder | ||||
| 17 | 889086 | 35.34 | 42.76 | |
| Cylinder O-ring (i.d 69.3) | ||||
| 18 | 877314 | 1.95 | 2.36 | |
| Cylinder Ring | ||||
| 19 | 886483 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 20 | 877321 | |||
| Ring | ||||
| 21 | 877322 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 22 | 889087 | |||
| No information available, not orderable | ||||
| 23 | 889107 | |||
| O-ring (i.d 1.8) Since 7.2016 For Nor | ||||
| 24 | 883405 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 25 | 889106 | |||
| Body Ass'y Includ.40 | ||||
| 26 | 889085 | 47.58 | 57.57 | |
| Body Ass'y Includ.40 | ||||
| 26C | 889085 | 47.58 | 57.57 | |
| No information available, not orderable | ||||
| 27 | 877315 | |||
| CILINDER O-RING (I.D 63.9) (OUD 877315) | ||||
| 27A | 890444 | 1.00 | 1.21 | |
| Piston Bumper (b) | ||||
| 28 | 883511 | 14.03 | 16.97 | |
| Gasket (a) | ||||
| 29 | 877334 | 2.40 | 2.90 | |
| NYLOCK HEX. SOCKET HD. BOLT M6X18 | ||||
| 30 | 888245 | 1.00 | 1.21 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 31 | 949455 | 1.05 | 1.27 | |
| Guard (a) For With Depth Adjustment Type | ||||
| 32 | 884061 | 3.00 | 3.63 | |
| Nose (p1) For With Depth Adjustment Type | ||||
| 33 | 889108 | 81.81 | 98.99 | |
| NYLOCK HEX.SOCKET HD.BOLT M8X22 | ||||
| 34 | 883492 | 2.70 | 3.27 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 35 | 949518 | 2.40 | 2.90 | |
| Nylock Bolt (w/flange) M8x16 | ||||
| 36 | 883505 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 37 | 888796 | |||
| No information available, not orderable | ||||
| 37A | 890477 | |||
| Handle Arm (b) | ||||
| 38 | 884066 | 3.00 | 3.63 | |
| Gasket (g) | ||||
| 39 | 877327 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 41 | 889080 | |||
| No information available, not orderable | ||||
| 42 | 889079 | |||
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 43 | 949658 | 1.80 | 2.18 | |
| Air Plug Npt 3/8 | ||||
| 44 | 887863 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 45 | 889103 | |||
| No information available, not orderable | ||||
| 46 | 889102 | |||
| No information available, not orderable | ||||
| 47 | 889099 | |||
| No information available, not orderable | ||||
| 48 | 884067 | |||
| No information available, not orderable | ||||
| 49A | 889336 | |||
| Adjuster | ||||
| 50 | 326799 | 8.40 | 10.16 | |
| AFSTELVEER | ||||
| 51 | 880175 | 1.00 | 1.21 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 52 | 959148 | 1.05 | 1.27 | |
| Pushing Lever (a) | ||||
| 53 | 888256 | 4.95 | 5.99 | |
| Ring | ||||
| 54 | 880081 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M6x12 Since 9.2015 For Model | ||||
| 55 | 888792 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 57 | 889096 | |||
| Valve Guard | ||||
| 58A | 889348 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 59 | 887852 | |||
| No information available, not orderable | ||||
| 60 | 889094 | |||
| No information available, not orderable | ||||
| 61 | 889093 | |||
| No information available, not orderable | ||||
| 62 | 889091 | |||
| Roll Pin D2.5 | ||||
| 63 | 887856 | 1.20 | 1.45 | |
| Plunger Spring | ||||
| 64 | 886725 | 1.05 | 1.27 | |
| O-ring (p-4) | ||||
| 65 | 874436 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 66 | 884113 | 3.30 | 3.99 | |
| O-ring (i.d 10.7) | ||||
| 67 | 884112 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 68 | 889088 | |||
| No information available, not orderable | ||||
| 69 | 889089 | |||
| No information available, not orderable | ||||
| 70 | 889092 | |||
| No information available, not orderable | ||||
| 71 | 889095 | |||
| No information available, not orderable | ||||
| 72 | 889081 | |||
| Valve Packing | ||||
| 73 | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 74 | 875645 | |||
| Ball D7.2 | ||||
| 74A | 890301 | 1.04 | 1.26 | |
| O-ring (s-12) | ||||
| 75 | 875638 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 76 | 889110 | |||
| Trigger Valve Bushing | ||||
| 77A | 889225 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 78 | 889098 | |||
| No information available, not orderable | ||||
| 79 | 887840 | |||
| O-ring (i.d 2.8) | ||||
| 79A | 890032 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 80 | 877393Z | |||
| Needle Roller | ||||
| 81 | 878418 | 1.65 | 2.00 | |
| Leaf Spring | ||||
| 82 | 878422 | 7.35 | 8.89 | |
| Nylon Nut M4 | ||||
| 83 | 876465 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 84 | 949453 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 85 | 877371 | 1.05 | 1.27 | |
| VEERRING D5 | ||||
| 86 | 889083 | 1.00 | 1.21 | |
| Magazine | ||||
| 87A | 884065 | 58.44 | 70.71 | |
| Sleeve | ||||
| 88 | 876550 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x45 (10 Pcs.) | ||||
| 89 | 949824 | 3.90 | 4.72 | |
| Hex. Socket Hd. Bolt M4x15 (10 Pcs.) | ||||
| 90 | 949650 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 91 | 877396Z | |||
| Collar | ||||
| 92 | 877398 | 2.55 | 3.09 | |
| Stopper Spring | ||||
| 93 | 877397 | 3.90 | 4.72 | |
| Hex. Socket Hd. Bolt M6x12 Since 9.2015 For Model | ||||
| 94 | 888792 | 1.04 | 1.26 | |
| RING | ||||
| 95 | 877402 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 96 | 885827 | |||
| Spring (a) | ||||
| 97 | 884077 | 1.50 | 1.82 | |
| PUSHING LEVER NR83A5 (OLD 889125) | ||||
| 98A | 889357 | 7.98 | 9.66 | |
| Guard (1) | ||||
| 99 | 884075 | 2.70 | 3.27 | |
| Nose (p2) For Without Depth Adjustment Type | ||||
| 100 | 889109 | 66.69 | 80.69 | |
| No information available, not orderable | ||||
| 101 | 890632 | |||
| No information available, not orderable | ||||
| 102 | 886282 | |||
| No information available, not orderable | ||||
| 103 | 890635 | |||
| No information available, not orderable | ||||
| 104 | 890626 | |||
| No information available, not orderable | ||||
| 105 | 890634 | |||
| No information available, not orderable | ||||
| 106 | 890625 | |||
| Washer M4 (10 Pcs.) | ||||
| 107 | 949423 | 1.05 | 1.27 | |
| Bolt Washer M5 (10 Pcs.) | ||||
| 108 | 949431 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 109 | 890638 | |||
| No information available, not orderable | ||||
| 110 | 890631 | |||
| No information available, not orderable | ||||
| 111 | 890630 | |||
| Roll Pin D2x8 (10 Pcs.) | ||||
| 112 | 949859 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 113 | 890628 | |||
| No information available, not orderable | ||||
| 114 | 890629 | |||
| Hex Socket Bolt M6x12 | ||||
| 115 | 984443 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 116 | 890633 | |||
| No information available, not orderable | ||||
| 117 | 890637 | |||
| No information available, not orderable | ||||
| 118 | 890627 | |||
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 119 | 992803 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 120 | 890636 | |||
| No information available, not orderable | ||||
| 122 | 890624 | |||
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 502 | 889111 | |||
| No information available, not orderable | ||||
| 503 | 889078 | |||
| HOOK (OLD 889078) | ||||
| 503A | 889663 | 9.30 | 11.25 | |
| No information available, not orderable | ||||
| 504 | 306017 | |||
| Hd. Bolt M5x16 (with Washer) | ||||
| 504A | 880219 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 505 | 890658 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602 | 888213 | |||
