Here you will find all available parts and drawings of the 'Hikoki NR83A2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

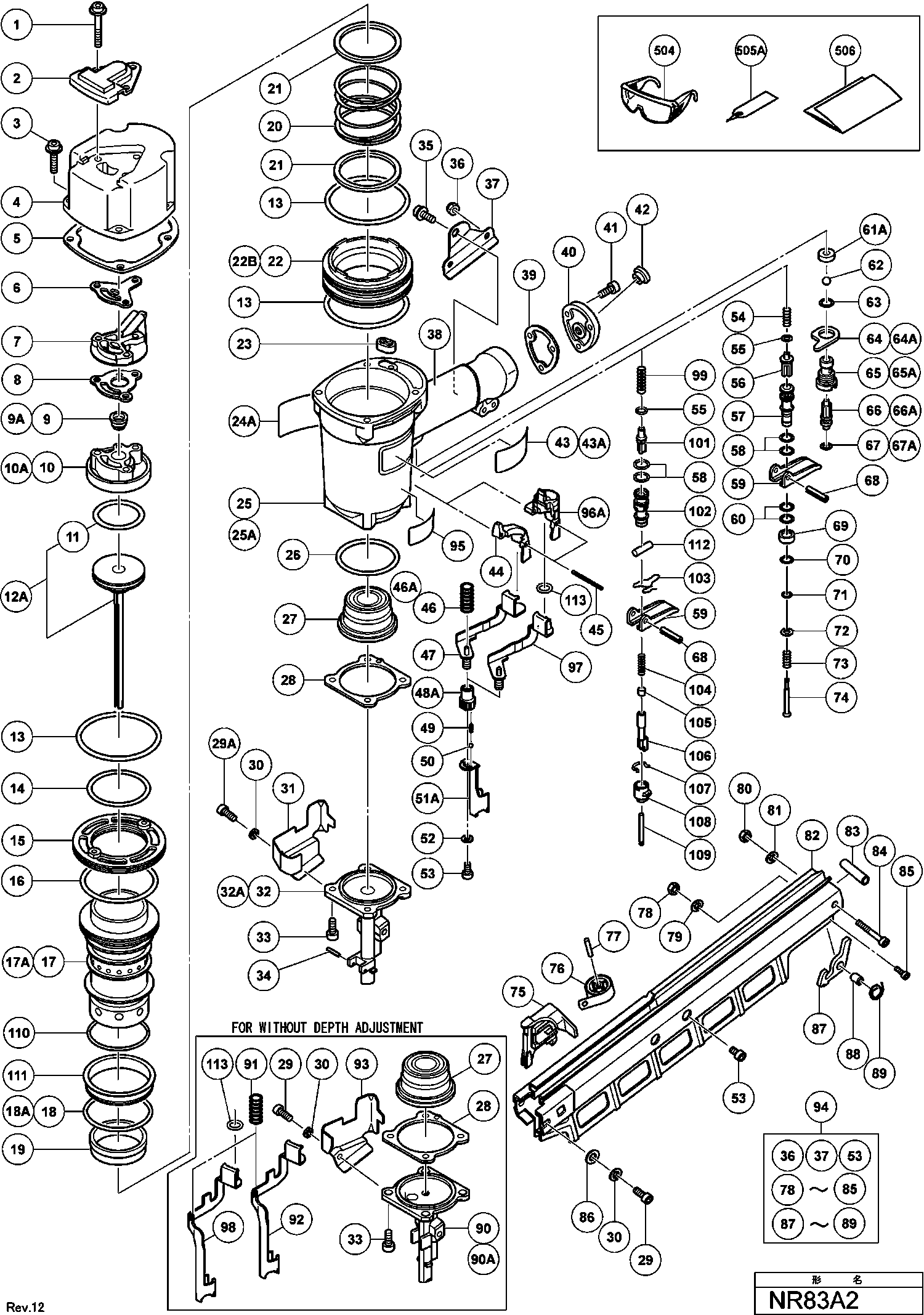

Technical drawing of model Hikoki NR83A2
Spare parts list of model Hikoki NR83A2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt (w/flange) M6x45 | ||||
| 1 | 883509 | 3.30 | 3.99 | |
| Cover Plate | ||||
| 2 | 877330 | 3.90 | 4.72 | |
| HEX.SOCKET HD.BOLT M6X25 W/WASHER | ||||
| 3 | 883507 | 2.46 | 2.98 | |
| Exhaust Cover | ||||
| 4 | 877324 | 75.76 | 91.67 | |
| Gasket (b) | ||||
| 5 | 877325 | 4.50 | 5.44 | |
| Gasket (f) | ||||
| 6 | 877329 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 7 | 877328 | |||
| Gasket (c) | ||||
| 8 | 877854 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 9 | 884110 | |||
| Exhaust Valve | ||||
| 9A | 887774 | 3.15 | 3.81 | |
| Head Cap And Gasket Set Includ.8 | ||||
| 10 | 877307 | 24.89 | 30.11 | |
| No information available, not orderable | ||||
| 10A | 887769 | |||
| O-ring (1ap-48) | ||||
| 11 | 877368 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 12A | 885915 | |||
| O-ring (s-90) | ||||
| 13 | 877316 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 14 | 877312 | |||
| Cylinder Plate | ||||
| 15 | 877318 | 20.49 | 24.79 | |
| Cylinder O-ring (i.d 79.3) | ||||
| 16 | 877313 | 1.95 | 2.36 | |
| Cylinder | ||||
| 17 | 884068 | 49.64 | 60.06 | |
| No information available, not orderable | ||||
| 17A | 887762 | |||
| Cylinder O-ring (i.d 69.3) | ||||
| 18 | 877314 | 1.95 | 2.36 | |
| O-ring (s-70) | ||||
| 18A | 878863 | 2.40 | 2.90 | |
| Cylinder Ring | ||||
| 19 | 877317 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 20 | 877321 | |||
| Ring | ||||
| 21 | 877322 | 2.40 | 2.90 | |
| CILINDER GUIDE | ||||
| 22 | 877310 | 30.52 | 36.93 | |
| Cylinder Guide (b) | ||||
| 22B | 887763 | 22.83 | 27.62 | |
| Gasket (g) | ||||
| 23 | 877327 | 1.05 | 1.27 | |
| WARNING LABEL | ||||
| 24A | 888143 | 1.04 | 1.26 | |
| BODY ASS'Y | ||||
| 25 | 883506 | 62.48 | 75.60 | |
| Body Assembly | ||||
| 25A | 887773 | 60.91 | 73.70 | |
| No information available, not orderable | ||||
| 26 | 877315 | |||
| Piston Bumper (b) | ||||
| 27 | 883511 | 14.03 | 16.97 | |
| Gasket (a) | ||||
| 28 | 877334 | 2.40 | 2.90 | |
| NYLOCK HEX. SOCKET HD. BOLT M6X18 | ||||
| 29A | 888245 | 1.00 | 1.21 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 30 | 949455 | 1.05 | 1.27 | |
| Guard (a) For With Depth Adjustment Type | ||||
| 31 | 884061 | 3.00 | 3.63 | |
| Nose For With Depth Adjustment Type | ||||
| 32 | 884060 | 127.19 | 153.90 | |
| NOSE | ||||
| 32A | 887770 | 96.94 | 117.29 | |
| NYLOCK HEX.SOCKET HD.BOLT M8X22 | ||||
| 33 | 883492 | 2.70 | 3.27 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 34 | 949518 | 2.40 | 2.90 | |
| Nylock Bolt (w/flange) M8x16 | ||||
| 35 | 883505 | 3.00 | 3.63 | |
| Nylon Nut M6 | ||||
| 36 | 963837 | 1.05 | 1.27 | |
| Handle Arm (b) | ||||
| 37 | 884066 | 3.00 | 3.63 | |
| Gasket (d) | ||||
| 39 | 877331 | 1.05 | 1.27 | |
| Cap | ||||
| 40 | 878311 | 10.65 | 12.89 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 41 | 949658 | 1.80 | 2.18 | |
| Dust Cap | ||||
| 42 | 872035 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 888743 | |||
| No information available, not orderable | ||||
| 43A | 888744 | |||
| No information available, not orderable | ||||
| 44 | 884119 | |||
| Roll Pin D3x45 | ||||
| 45 | 884025 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 46 | 884067 | |||
| No information available, not orderable | ||||
| 46A | 887841 | |||
| Pushing Lever (b) | ||||
| 47 | 884063 | 14.10 | 17.06 | |
| Adjuster | ||||
| 48A | 326799 | 8.40 | 10.16 | |
| AFSTELVEER | ||||
| 49 | 880175 | 1.00 | 1.21 | |
| Steel Ball D3.175 (10 Pcs.) | ||||
| 50 | 959148 | 1.05 | 1.27 | |
| Pushing Lever (a) | ||||
| 51A | 888256 | 4.95 | 5.99 | |
| Ring | ||||
| 52 | 880081 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M6x12 (10 Pcs.) | ||||
| 53 | 949657 | 3.00 | 3.63 | |
| Plunger Spring | ||||
| 54 | 875643 | 1.05 | 1.27 | |
| O-ring (p-4) | ||||
| 55 | 874436 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 56 | 884113 | 3.30 | 3.99 | |
| Valve Bushing | ||||
| 57 | 884111 | 15.26 | 18.47 | |
| O-ring (i.d 10.7) | ||||
| 58 | 884112 | 1.65 | 2.00 | |
| Trigger | ||||
| 59 | 876203 | 2.55 | 3.09 | |
| O-ring (p-9) | ||||
| 60 | 872645 | 1.65 | 2.00 | |
| Valve Packing | ||||
| 61A | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 875645 | |||
| O-ring (s-12) | ||||
| 63 | 875638 | 1.65 | 2.00 | |
| Valve Plate | ||||
| 64 | 875644 | 1.05 | 1.27 | |
| Valve Plate | ||||
| 64A | 887771 | 4.20 | 5.08 | |
| Trigger Valve Bushing | ||||
| 65 | 877335 | 12.60 | 15.25 | |
| No information available, not orderable | ||||
| 65A | 887839 | |||
| Trigger Plunger | ||||
| 66 | 878121 | 1.65 | 2.00 | |
| O-ring | ||||
| 67 | 874820 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 67A | 887840 | |||
| Roll Pin D3x30 (10 Pcs.) | ||||
| 68 | 949866 | 3.60 | 4.36 | |
| Valve Sleeve (a) | ||||
| 69 | 884116 | 3.30 | 3.99 | |
| O-RING (S-7) | ||||
| 70 | 876316 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 71 | 878723 | |||
| Washer M5 (10 Pcs.) | ||||
| 72 | 949424 | 1.05 | 1.27 | |
| Plunger (b) Spring | ||||
| 73 | 884115 | 1.65 | 2.00 | |
| Plunger (b) | ||||
| 74 | 884114 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 75 | 877393Z | |||
| Leaf Spring | ||||
| 76 | 878422 | 7.35 | 8.89 | |
| Needle Roller | ||||
| 77 | 878418 | 1.65 | 2.00 | |
| Nylon Nut M4 | ||||
| 78 | 876465 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 79 | 949453 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 80 | 877371 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 81 | 949454 | 1.04 | 1.26 | |
| Magazine | ||||
| 82 | 884065 | 58.44 | 70.71 | |
| Sleeve | ||||
| 83 | 876550 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x45 (10 Pcs.) | ||||
| 84 | 949824 | 3.90 | 4.72 | |
| Hex. Socket Hd. Bolt M4x15 (10 Pcs.) | ||||
| 85 | 949650 | 2.40 | 2.90 | |
| RING | ||||
| 86 | 877402 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 87 | 877396Z | |||
| Collar | ||||
| 88 | 877398 | 2.55 | 3.09 | |
| Stopper Spring | ||||
| 89 | 877397 | 3.90 | 4.72 | |
| Nose For Without Depth Adjustment Type | ||||
| 90 | 884076 | 291.64 | 352.88 | |
| NOSE | ||||
| 90A | 887772 | 125.40 | 151.73 | |
| Spring (a) | ||||
| 91 | 884077 | 1.50 | 1.82 | |
| Pushing Lever | ||||
| 92 | 884074 | 14.10 | 17.06 | |
| Guard (1) | ||||
| 93 | 884075 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 94 | 885827 | |||
| Label | ||||
| 95 | 887864 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 96A | 887862 | |||
| Plunger Spring | ||||
| 99 | 887724 | 1.20 | 1.45 | |
| PLUNGER (2 needed) | ||||
| 101 | 887725 | 1.20 | 1.45 | |
| Trigger Spring Since 7.2016 For Nor | ||||
| 103 | 887727 | 3.15 | 3.81 | |
| ROD SPRING | ||||
| 104 | 887728 | 1.20 | 1.45 | |
| ROD (B) | ||||
| 105 | 887729 | 1.20 | 1.45 | |
| Ratchet Spring | ||||
| 107 | 886331 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 108 | 887766 | |||
| No information available, not orderable | ||||
| 109 | 887732 | |||
| No information available, not orderable | ||||
| 110 | 878376 | |||
| No information available, not orderable | ||||
| 111 | 887767 | |||
| No information available, not orderable | ||||
| 112 | 887768 | |||
| O-ring (s3) | ||||
| 113 | 881715 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 504 | 875769 | |||
| Caution Tag | ||||
| 505 | 882413 | 1.95 | 2.36 | |
| LEAFLET | ||||
| 506 | 882414 | 1.86 | 2.25 | |
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| No information available, not orderable | ||||
| 603 | 877153 | |||
| No information available, not orderable | ||||
| 604 | 874042 | |||
| No information available, not orderable | ||||
| 605 | 876212 | |||
| Grease (attolub No.2) 500g | ||||
| 606 | 317918 | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 608 | 884080 | |||
