Here you will find all available parts and drawings of the 'Hikoki N5024A'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

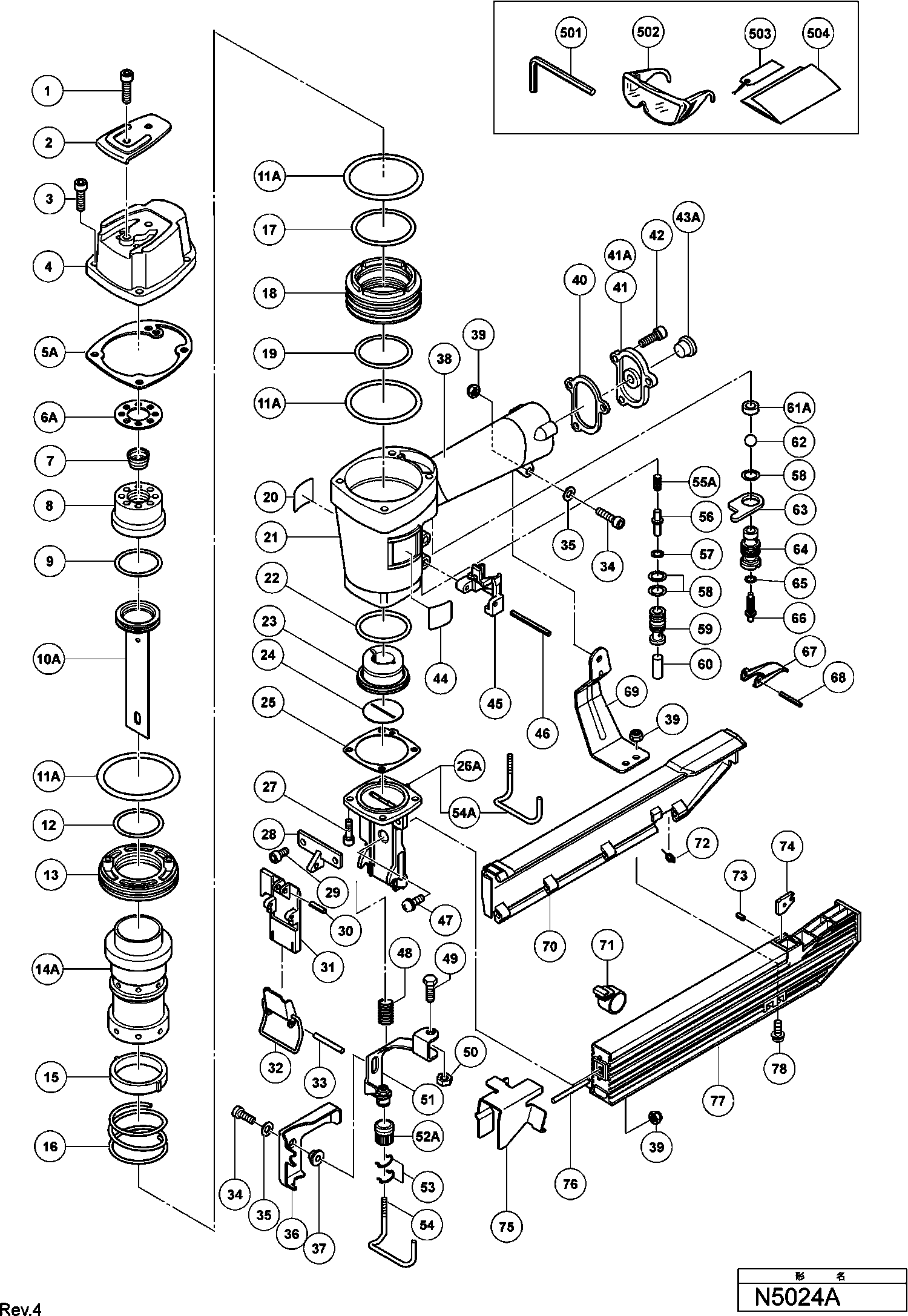

Technical drawing of model Hikoki N5024A
Spare parts list of model Hikoki N5024A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 1 | 949662 | 2.10 | 2.54 | |
| Top Cover | ||||
| 2 | 876179 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 3 | 949757 | 3.00 | 3.63 | |
| Exhaust Capold (old 877128) | ||||
| 4 | 877917 | 28.88 | 34.94 | |
| No information available, not orderable | ||||
| 5A | 885794 | |||
| Gasket (c) | ||||
| 6A | 886466 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 7 | 878417 | |||
| Head Cap Ass'y | ||||
| 8 | 877129 | 14.58 | 17.64 | |
| Piston O-ring | ||||
| 9 | 876174 | 3.60 | 4.36 | |
| Piston | ||||
| 10A | 884357 | 38.03 | 46.01 | |
| O-ring (i.d. 64.5) | ||||
| 11A | 885793 | 2.10 | 2.54 | |
| Cylinder O-ring (d) | ||||
| 12 | 877126 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 13 | 876168 | 10.95 | 13.25 | |
| Cylinder | ||||
| 14A | 888212 | 24.75 | 29.95 | |
| Cylinder Ring | ||||
| 15 | 876167 | 1.05 | 1.27 | |
| Cylinder Spring | ||||
| 16 | 876172 | 6.60 | 7.99 | |
| Cylinder O-ring (a) | ||||
| 17 | 877123 | 2.40 | 2.90 | |
| Cylinder Guide | ||||
| 18 | 877122 | 17.60 | 21.30 | |
| Cylinder O-ring (b) | ||||
| 19 | 877124 | 1.95 | 2.36 | |
| Warning Label | ||||
| 20 | 884070 | 1.65 | 2.00 | |
| Housing | ||||
| 21 | 884171 | 81.68 | 98.83 | |
| Cylinder O-ring (c) | ||||
| 22 | 877125 | 1.95 | 2.36 | |
| Piston Bumper | ||||
| 23 | 884350 | 11.85 | 14.34 | |
| Bumper Sheet | ||||
| 24 | 884351 | 1.05 | 1.27 | |
| Gasket (a) | ||||
| 25 | 876673 | 1.04 | 1.26 | |
| Nose | ||||
| 26A | 886726 | 113.99 | 137.92 | |
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 27 | 878181 | 1.05 | 1.27 | |
| Guide Plate | ||||
| 28 | 884360 | 14.10 | 17.06 | |
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 29 | 949819 | 2.55 | 3.09 | |
| Roll Pin D4x16 (10 Pcs.) | ||||
| 30 | 949497 | 2.55 | 3.09 | |
| Guide Piece | ||||
| 31 | 884361 | 17.13 | 20.72 | |
| Locking Device | ||||
| 32 | 884362 | 8.33 | 10.07 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 33 | 949866 | 3.60 | 4.36 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 34 | 949658 | 1.80 | 2.18 | |
| No longer available, no replacement | ||||
| 35 | 876205 | |||
| Guard (1) | ||||
| 36 | 884364 | 2.10 | 2.54 | |
| Sleeve | ||||
| 37 | 884366 | 4.20 | 5.08 | |
| Nylon Nut M5 | ||||
| 39 | 877371 | 1.05 | 1.27 | |
| Gasket (d) | ||||
| 40 | 877131 | 1.05 | 1.27 | |
| Cap (old 876714p) | ||||
| 41 | 880036 | 6.75 | 8.17 | |
| Cap | ||||
| 41A | 885795 | 4.50 | 5.44 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 42 | 949821 | 2.55 | 3.09 | |
| Valve Guard | ||||
| 45 | 884356 | 2.10 | 2.54 | |
| Roll Pin D3x45 | ||||
| 46 | 884025 | 1.80 | 2.18 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 47 | 308386 | 1.05 | 1.27 | |
| Spring | ||||
| 48 | 877894 | 1.05 | 1.27 | |
| Safety Bolt | ||||
| 49 | 875650 | 1.05 | 1.27 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 50 | 949555 | 1.05 | 1.27 | |
| Pushing Lever | ||||
| 51 | 884353 | 22.83 | 27.62 | |
| Adjuster | ||||
| 52A | 885796 | 4.20 | 5.08 | |
| Ratchet Spring | ||||
| 53 | 881765 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 54 | 884354 | |||
| Pushing Lever (a) | ||||
| 54A | 886447 | 4.20 | 5.08 | |
| Plunger Spring | ||||
| 55A | 886725 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 56 | 878542 | 1.95 | 2.36 | |
| Plunger O-ring | ||||
| 57 | 877705 | 1.05 | 1.27 | |
| O-ring (s-12) | ||||
| 58 | 875638 | 1.65 | 2.00 | |
| Valve Bushing | ||||
| 59 | 877880 | 27.09 | 32.78 | |
| Plunger (b) | ||||
| 60 | 877882 | 5.55 | 6.72 | |
| Valve Packing | ||||
| 61A | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 875645 | |||
| Valve Plate | ||||
| 63 | 875644 | 1.05 | 1.27 | |
| Trigger Valve Bushing | ||||
| 64 | 877335 | 12.60 | 15.25 | |
| O-ring | ||||
| 65 | 874820 | 1.65 | 2.00 | |
| Trigger Plunger | ||||
| 66 | 878121 | 1.65 | 2.00 | |
| Trigger | ||||
| 67 | 876203 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 68 | 949866 | 3.60 | 4.36 | |
| Handle Arm | ||||
| 69 | 884363 | 6.68 | 8.08 | |
| Magazine Cover | ||||
| 70 | 883718 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 71 | 881047 | |||
| Spring | ||||
| 72 | 881043 | 1.35 | 1.63 | |
| Roll Pin D3x8 (10 Pcs.) | ||||
| 73 | 949749 | 1.95 | 2.36 | |
| Magazine Piece | ||||
| 74 | 881039 | 2.55 | 3.09 | |
| Staple Feeder | ||||
| 75 | 884359 | 8.33 | 10.07 | |
| Pivot Pin | ||||
| 76 | 883719 | 2.10 | 2.54 | |
| Magazine Ass'y Includ.75,76 | ||||
| 77 | 884358 | 16.36 | 19.80 | |
| Machine Screw (w/washers) M5x14 (black) | ||||
| 78 | 678653 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 875769 | |||
| Caution Tag | ||||
| 503 | 882413 | 1.95 | 2.36 | |
| Leaflet | ||||
| 504 | 882414 | 1.86 | 2.25 | |
| No information available, not orderable | ||||
| 601 | 876762 | |||
| Grip Tape (a) | ||||
| 602 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 603A | 888213 | |||
