Here you will find all available parts and drawings of the 'Hikoki N5021A'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

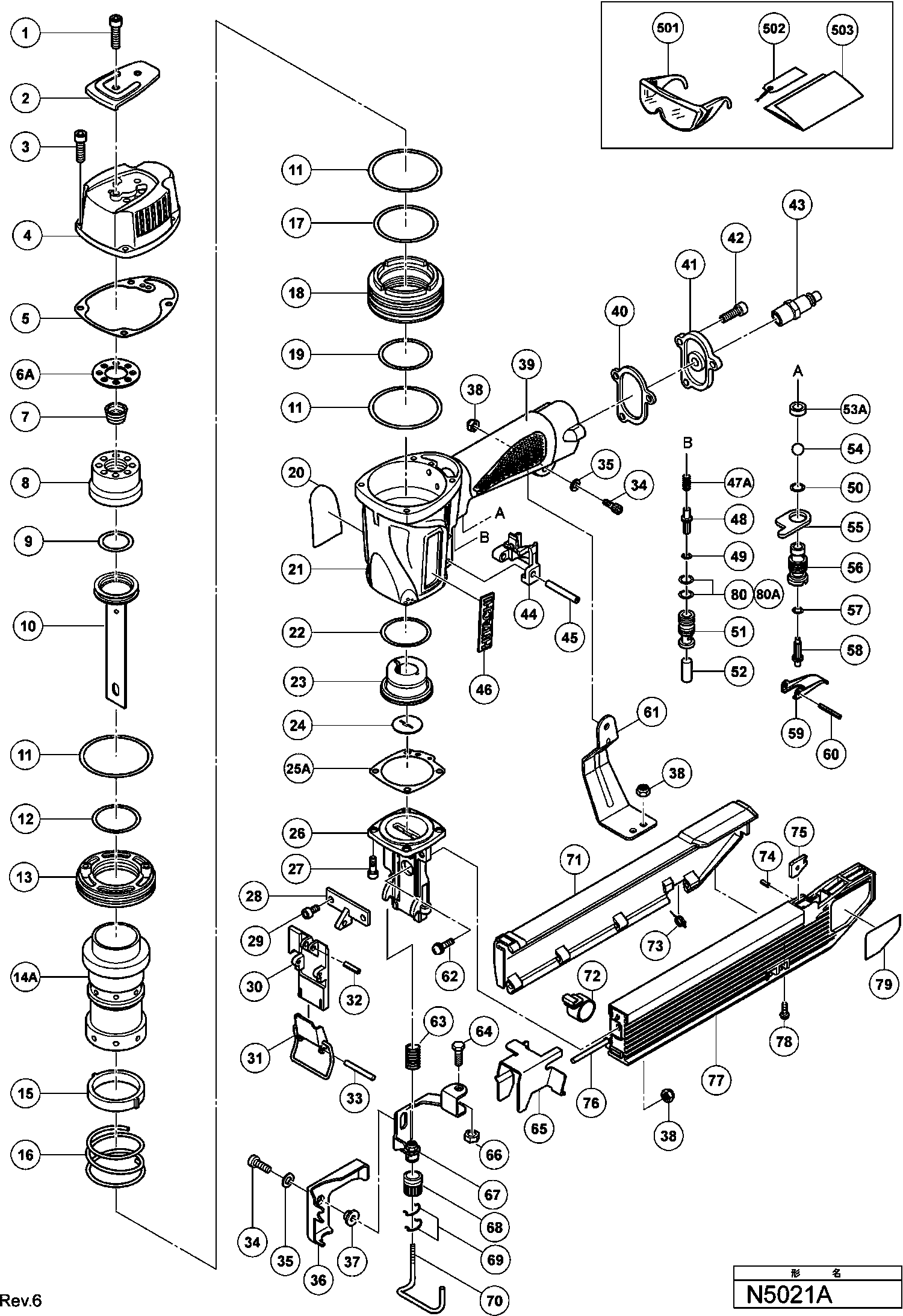

Technical drawing of model Hikoki N5021A
Spare parts list of model Hikoki N5021A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 1 | 949662 | 2.10 | 2.54 | |
| Top Cover | ||||
| 2 | 876179 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 3 | 949757 | 3.00 | 3.63 | |
| Exhaust Cover | ||||
| 4 | 886444 | 14.65 | 17.73 | |
| Gasket | ||||
| 5 | 883892 | 1.65 | 2.00 | |
| Gasket (c) | ||||
| 6A | 886466 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 7 | 878417 | |||
| EXHAUST VALVE (OLD 878417) | ||||
| 7A | 890209 | 1.00 | 1.21 | |
| Head Cap Ass'y | ||||
| 8 | 877129 | 14.58 | 17.64 | |
| Piston O-ring | ||||
| 9 | 876174 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 10 | 886448 | |||
| O-ring (i.d. 64.5) | ||||
| 11 | 885793 | 2.10 | 2.54 | |
| Cylinder O-ring (d) | ||||
| 12 | 877126 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 13 | 876168 | 10.95 | 13.25 | |
| Cylinder | ||||
| 14A | 888212 | 24.75 | 29.95 | |
| Cylinder Ring | ||||
| 15 | 876167 | 1.05 | 1.27 | |
| Cylinder Spring | ||||
| 16 | 876172 | 6.60 | 7.99 | |
| Cylinder O-ring (a) | ||||
| 17 | 877123 | 2.40 | 2.90 | |
| Cylinder Guide | ||||
| 18 | 877122 | 17.60 | 21.30 | |
| Cylinder O-ring (b) | ||||
| 19 | 877124 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 20A | 888963 | |||
| No information available, not orderable | ||||
| 20B | 888963M | |||
| Housing | ||||
| 21 | 886443 | 58.93 | 71.30 | |
| Cylinder O-ring (c) | ||||
| 22 | 877125 | 1.95 | 2.36 | |
| Piston Bumper | ||||
| 23 | 884350 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 24 | 886445 | |||
| Gasket (a) | ||||
| 25A | 883881 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 26 | 886446 | |||
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 27 | 878181 | 1.05 | 1.27 | |
| Guide Plate | ||||
| 28 | 884360 | 14.10 | 17.06 | |
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 29 | 949819 | 2.55 | 3.09 | |
| Guide Piece | ||||
| 30 | 884361 | 17.13 | 20.72 | |
| Locking Device | ||||
| 31 | 884362 | 8.33 | 10.07 | |
| Roll Pin D4x16 (10 Pcs.) | ||||
| 32 | 949497 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 33 | 949866 | 3.60 | 4.36 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 34 | 949658 | 1.80 | 2.18 | |
| Washer (OLD 876205) | ||||
| 35A | 889024 | 1.04 | 1.26 | |
| Guard (1) | ||||
| 36 | 884364 | 2.10 | 2.54 | |
| Sleeve | ||||
| 37 | 884366 | 4.20 | 5.08 | |
| Nylon Nut M5 | ||||
| 38 | 877371 | 1.05 | 1.27 | |
| Gasket (d) | ||||
| 40 | 877131 | 1.05 | 1.27 | |
| Cap | ||||
| 41 | 885795 | 4.50 | 5.44 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 42 | 949821 | 2.55 | 3.09 | |
| Valve Guard | ||||
| 44 | 884356 | 2.10 | 2.54 | |
| Roll Pin D3x45 | ||||
| 45 | 884025 | 1.80 | 2.18 | |
| Brand Plate | ||||
| 46 | 886342 | 1.80 | 2.18 | |
| Plunger Spring | ||||
| 47A | 886725 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 48 | 878542 | 1.95 | 2.36 | |
| Plunger O-ring | ||||
| 49 | 877705 | 1.05 | 1.27 | |
| O-ring (s-12) | ||||
| 50 | 875638 | 1.65 | 2.00 | |
| Valve Bushing | ||||
| 51 | 877880 | 27.09 | 32.78 | |
| Plunger (b) | ||||
| 52 | 877882 | 5.55 | 6.72 | |
| Valve Packing | ||||
| 53A | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 54 | 875645 | |||
| Ball D7.2 | ||||
| 54A | 890301 | 1.04 | 1.26 | |
| Valve Plate | ||||
| 55 | 875644 | 1.05 | 1.27 | |
| Trigger Valve Bushing | ||||
| 56 | 877335 | 12.60 | 15.25 | |
| O-ring | ||||
| 57 | 874820 | 1.65 | 2.00 | |
| Trigger Plunger | ||||
| 58 | 878121 | 1.65 | 2.00 | |
| Trigger | ||||
| 59 | 876203 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 60 | 949866 | 3.60 | 4.36 | |
| Handle Arm | ||||
| 61 | 884363 | 6.68 | 8.08 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 62 | 308386 | 1.05 | 1.27 | |
| Spring | ||||
| 63 | 877894 | 1.05 | 1.27 | |
| Safety Bolt | ||||
| 64 | 875650 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 65 | 886450 | |||
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 66 | 949555 | 1.05 | 1.27 | |
| Pushing Lever | ||||
| 67 | 884353 | 22.83 | 27.62 | |
| Adjuster | ||||
| 68 | 885796 | 4.20 | 5.08 | |
| Ratchet Spring | ||||
| 69 | 881765 | 1.95 | 2.36 | |
| Pushing Lever (a) | ||||
| 70 | 886447 | 4.20 | 5.08 | |
| Magazine Cover | ||||
| 71 | 883718 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 72 | 881047 | |||
| RIBBON SPRING | ||||
| 72A | 889503 | 3.90 | 4.72 | |
| Spring | ||||
| 73 | 881043 | 1.35 | 1.63 | |
| Roll Pin D3x8 (10 Pcs.) | ||||
| 74 | 949749 | 1.95 | 2.36 | |
| Magazine Piece | ||||
| 75 | 881039 | 2.55 | 3.09 | |
| Pivot Pin | ||||
| 76 | 883719 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 77 | 886449 | |||
| Machine Screw (w/washers) M5x14 (black) | ||||
| 78 | 678653 | 1.05 | 1.27 | |
| O-ring (s-12) | ||||
| 80 | 875638 | 1.65 | 2.00 | |
| O-ring (i.d 10.7) | ||||
| 80A | 884112 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| Caution Tag | ||||
| 502 | 882413 | 1.95 | 2.36 | |
| LEAFLET | ||||
| 503 | 882414 | 1.86 | 2.25 | |
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| No information available, not orderable | ||||
| 603 | 876762 | |||
| No information available, not orderable | ||||
| 604 | 877153 | |||
| No information available, not orderable | ||||
| 605 | 874042 | |||
| No information available, not orderable | ||||
| 606 | 876212 | |||
| Grease (attolub No.2) 500g | ||||
| 607 | 317918 | 32.18 | 38.93 | |
