Here you will find all available parts and drawings of the 'Hikoki N5010A'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

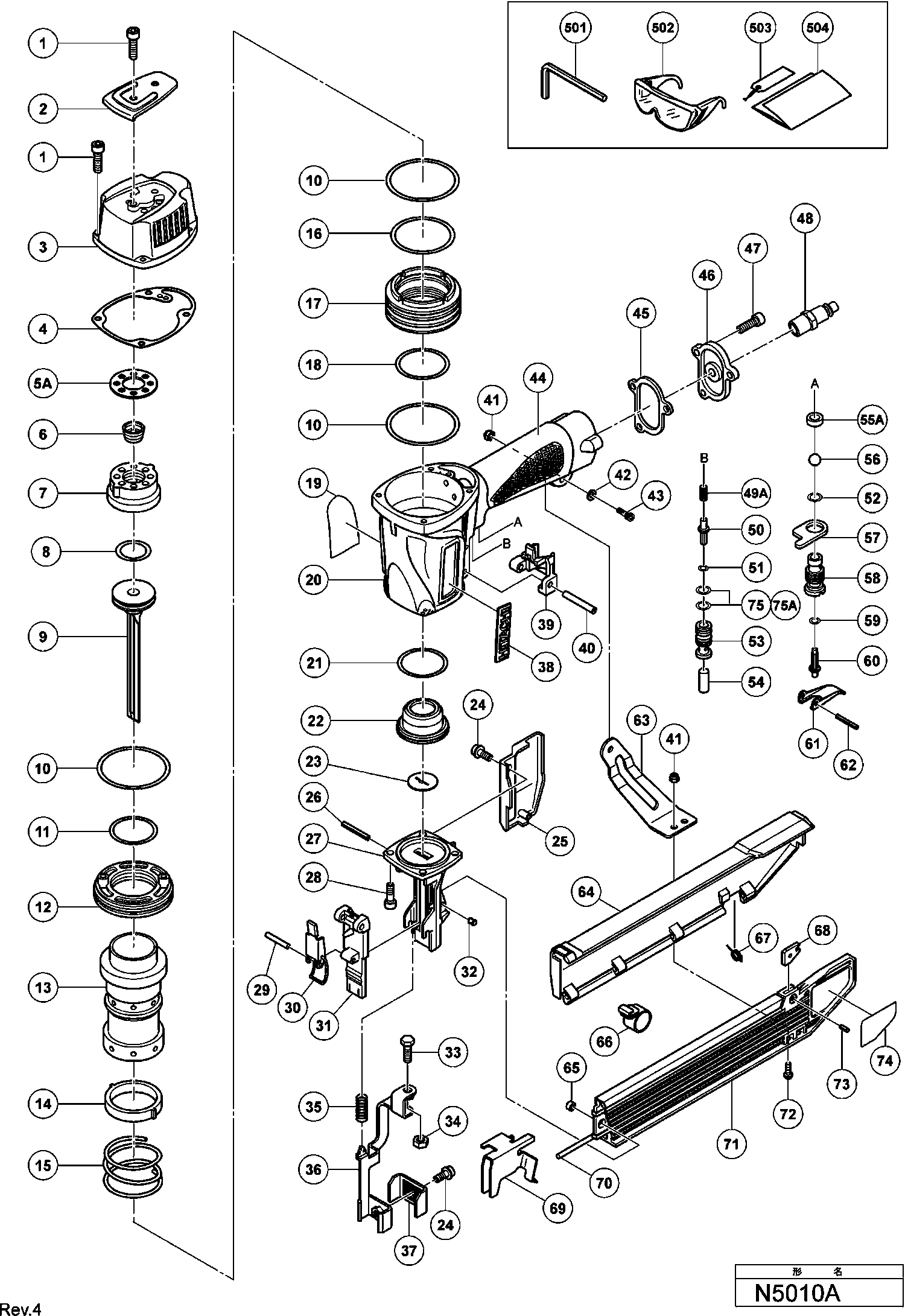

Technical drawing of model Hikoki N5010A
Spare parts list of model Hikoki N5010A
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 1 | 949757 | 3.00 | 3.63 | |
| Top Cover | ||||
| 2 | 876179 | 1.05 | 1.27 | |
| Exhaust Cover | ||||
| 3 | 886444 | 14.65 | 17.73 | |
| Gasket | ||||
| 4 | 883892 | 1.65 | 2.00 | |
| Gasket (c) | ||||
| 5A | 886466 | 1.05 | 1.27 | |
| Exhaust Valve | ||||
| 6 | 878539 | 3.75 | 4.54 | |
| Head Cap | ||||
| 7 | 878026 | 73.01 | 88.35 | |
| Piston O-ring | ||||
| 8 | 876174 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 9 | 886437 | |||
| O-ring (i.d. 64.5) | ||||
| 10 | 885793 | 2.10 | 2.54 | |
| Cylinder O-ring (d) | ||||
| 11 | 877126 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 12 | 876168 | 10.95 | 13.25 | |
| Cylinder | ||||
| 13A | 885792 | 24.75 | 29.95 | |
| Cylinder Ring | ||||
| 14 | 876167 | 1.05 | 1.27 | |
| Cylinder Spring | ||||
| 15 | 876172 | 6.60 | 7.99 | |
| Cylinder O-ring (a) | ||||
| 16 | 877123 | 2.40 | 2.90 | |
| Cylinder Guide | ||||
| 17 | 877122 | 17.60 | 21.30 | |
| Cylinder O-ring (b) | ||||
| 18 | 877124 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 19A | 888961 | |||
| Housing | ||||
| 20 | 886443 | 58.93 | 71.30 | |
| Cylinder O-ring (c) | ||||
| 21 | 877125 | 1.95 | 2.36 | |
| Piston Bumper | ||||
| 22 | 886434 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 23 | 886435 | |||
| Nylock bolt M5x8 | ||||
| 24 | 878540 | 1.04 | 1.26 | |
| Guard (1) | ||||
| 25 | 883724 | 2.10 | 2.54 | |
| Roll Pin D4x36 (10 Pcs.) | ||||
| 26 | 949547 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 27 | 886436 | |||
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 28 | 878181 | 1.05 | 1.27 | |
| Roll Pin D3x20 (10 Pcs.) | ||||
| 29 | 949685 | 2.55 | 3.09 | |
| Locking Device | ||||
| 30 | 886441 | 4.58 | 5.54 | |
| No information available, not orderable | ||||
| 31 | 886440 | |||
| Pin | ||||
| 32 | 881044 | 4.50 | 5.44 | |
| Safety Bolt | ||||
| 33 | 875650 | 1.05 | 1.27 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 34 | 949555 | 1.05 | 1.27 | |
| Spring (b) | ||||
| 35 | 877873 | 1.04 | 1.26 | |
| Pushing Lever | ||||
| 36 | 883714 | 19.25 | 23.29 | |
| PUSHING LEVER PIECE (OLD 883715) | ||||
| 37A | 889337 | 1.20 | 1.45 | |
| Brand Plate | ||||
| 38 | 886342 | 1.80 | 2.18 | |
| Valve Guard | ||||
| 39 | 884356 | 2.10 | 2.54 | |
| Roll Pin D3x45 | ||||
| 40 | 884025 | 1.80 | 2.18 | |
| Nylon Nut M5 | ||||
| 41 | 877371 | 1.05 | 1.27 | |
| Washer (OLD 876205) | ||||
| 42A | 889024 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 43 | 949658 | 1.80 | 2.18 | |
| Gasket (d) | ||||
| 45 | 877131 | 1.05 | 1.27 | |
| Cap | ||||
| 46 | 885795 | 4.50 | 5.44 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 47 | 949821 | 2.55 | 3.09 | |
| Plunger Spring | ||||
| 49A | 886725 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 50 | 878542 | 1.95 | 2.36 | |
| Plunger O-ring | ||||
| 51 | 877705 | 1.05 | 1.27 | |
| O-ring (s-12) | ||||
| 52 | 875638 | 1.65 | 2.00 | |
| Valve Bushing | ||||
| 53 | 877880 | 27.09 | 32.78 | |
| Plunger (b) | ||||
| 54 | 877882 | 5.55 | 6.72 | |
| Valve Packing | ||||
| 55A | 888151 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 56 | 875645 | |||
| Ball D7.2 | ||||
| 56A | 890301 | 1.04 | 1.26 | |
| Valve Plate | ||||
| 57 | 875644 | 1.05 | 1.27 | |
| Trigger Valve Bushing | ||||
| 58 | 877335 | 12.60 | 15.25 | |
| O-ring | ||||
| 59 | 874820 | 1.65 | 2.00 | |
| Trigger Plunger | ||||
| 60 | 878121 | 1.65 | 2.00 | |
| Trigger | ||||
| 61 | 876203 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 62 | 949866 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 63 | 886442 | |||
| Magazine Cover | ||||
| 64 | 883718 | 7.20 | 8.71 | |
| Shaft Ring | ||||
| 65 | 881045 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 66 | 881047 | |||
| RIBBON SPRING | ||||
| 66A | 889503 | 3.90 | 4.72 | |
| Spring | ||||
| 67 | 881043 | 1.35 | 1.63 | |
| Magazine Piece | ||||
| 68 | 881039 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 69 | 886439 | |||
| Pivot Pin | ||||
| 70 | 883719 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 71 | 886438 | |||
| Machine Screw (w/washers) M5x14 (black) | ||||
| 72 | 678653 | 1.05 | 1.27 | |
| Roll Pin D3x8 (10 Pcs.) | ||||
| 73 | 949749 | 1.95 | 2.36 | |
| O-ring (s-12) | ||||
| 75 | 875638 | 1.65 | 2.00 | |
| O-ring (i.d 10.7) | ||||
| 75A | 884112 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 875769 | |||
| Caution Tag | ||||
| 503 | 882413 | 1.95 | 2.36 | |
| LEAFLET | ||||
| 504 | 882414 | 1.86 | 2.25 | |
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| No information available, not orderable | ||||
| 603 | 876762 | |||
| No information available, not orderable | ||||
| 604 | 877153 | |||
| No information available, not orderable | ||||
| 605 | 874042 | |||
| No information available, not orderable | ||||
| 606 | 876212 | |||
| Grease (attolub No.2) 500g | ||||
| 607 | 317918 | 32.18 | 38.93 | |
