Here you will find all available parts and drawings of the 'Hikoki N5008AC'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

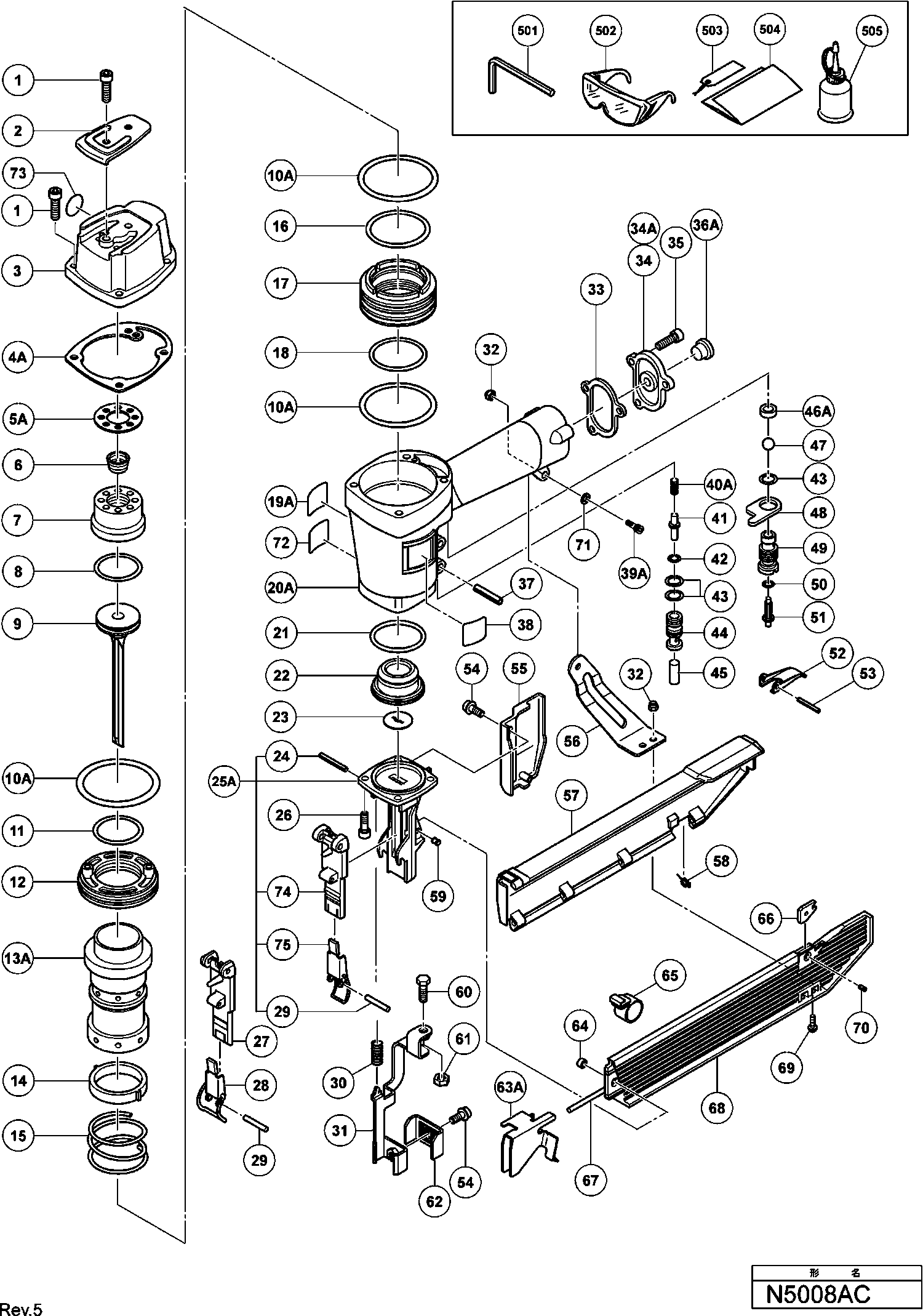

Technical drawing of model Hikoki N5008AC
Spare parts list of model Hikoki N5008AC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 1 | 949757 | 3.00 | 3.63 | |
| Top Cover | ||||
| 2 | 876179 | 1.05 | 1.27 | |
| Exhaust Capold (old 877128) | ||||
| 3 | 877917 | 28.88 | 34.94 | |
| GASKET PACKING | ||||
| 4A | 885794 | 4.20 | 5.08 | |
| Gasket (c) | ||||
| 5A | 886466 | 1.05 | 1.27 | |
| Exhaust Valve | ||||
| 6 | 878539 | 3.75 | 4.54 | |
| Head Cap | ||||
| 7 | 878026 | 73.01 | 88.35 | |
| Piston O-ring | ||||
| 8 | 876174 | 3.60 | 4.36 | |
| Piston | ||||
| 9 | 883716 | 92.40 | 111.80 | |
| O-ring (i.d. 64.5) | ||||
| 10A | 885793 | 2.10 | 2.54 | |
| Cylinder O-ring (d) | ||||
| 11 | 877126 | 1.65 | 2.00 | |
| Cylinder Plate | ||||
| 12 | 876168 | 10.95 | 13.25 | |
| Cylinder | ||||
| 13A | 885792 | 24.75 | 29.95 | |
| Cylinder Ring | ||||
| 14 | 876167 | 1.05 | 1.27 | |
| Cylinder Spring | ||||
| 15 | 876172 | 6.60 | 7.99 | |
| Cylinder O-ring (a) | ||||
| 16 | 877123 | 2.40 | 2.90 | |
| Cylinder Guide | ||||
| 17 | 877122 | 17.60 | 21.30 | |
| Cylinder O-ring (b) | ||||
| 18 | 877124 | 1.95 | 2.36 | |
| Warning Label | ||||
| 19A | 884070 | 1.65 | 2.00 | |
| Housing | ||||
| 20A | 884171 | 81.68 | 98.83 | |
| Cylinder O-ring (c) | ||||
| 21 | 877125 | 1.95 | 2.36 | |
| Piston Bumper | ||||
| 22 | 883711 | 8.85 | 10.71 | |
| Bumper Sheet | ||||
| 23 | 883712 | 1.50 | 1.82 | |
| Roll Pin D4x36 (10 Pcs.) | ||||
| 24 | 949547 | 3.90 | 4.72 | |
| Nose Set | ||||
| 25A | 888126 | 80.03 | 96.83 | |
| Nylock Hex. Socket Hd. Bolt M5x16 | ||||
| 26 | 878181 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 883721 | |||
| No information available, not orderable | ||||
| 28 | 883722 | |||
| Roll Pin D3x20 (10 Pcs.) | ||||
| 29 | 949685 | 2.55 | 3.09 | |
| Spring (b) | ||||
| 30 | 877873 | 1.04 | 1.26 | |
| Pushing Lever | ||||
| 31 | 883714 | 19.25 | 23.29 | |
| Nylon Nut M5 | ||||
| 32 | 877371 | 1.05 | 1.27 | |
| Gasket (d) | ||||
| 33 | 877131 | 1.05 | 1.27 | |
| Cap (old 876714p) | ||||
| 34 | 880036 | 6.75 | 8.17 | |
| Cap | ||||
| 34A | 885795 | 4.50 | 5.44 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 35 | 949821 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 37 | 949866 | 3.60 | 4.36 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 39A | 949658 | 1.80 | 2.18 | |
| Plunger Spring | ||||
| 40A | 886725 | 1.05 | 1.27 | |
| Plunger (a) | ||||
| 41 | 878542 | 1.95 | 2.36 | |
| Plunger O-ring | ||||
| 42 | 877705 | 1.05 | 1.27 | |
| O-ring (s-12) | ||||
| 43 | 875638 | 1.65 | 2.00 | |
| Valve Bushing | ||||
| 44 | 877880 | 27.09 | 32.78 | |
| Plunger (b) | ||||
| 45 | 877882 | 5.55 | 6.72 | |
| Valve Packing | ||||
| 46A | 888151 | 1.04 | 1.26 | |
| Urethane Ball (c) D7.14 | ||||
| 47 | 875645 | 3.90 | 4.72 | |
| Valve Plate | ||||
| 48 | 875644 | 1.05 | 1.27 | |
| Trigger Valve Bushing | ||||
| 49 | 877335 | 12.60 | 15.25 | |
| O-ring | ||||
| 50 | 874820 | 1.65 | 2.00 | |
| Trigger Plunger | ||||
| 51 | 878121 | 1.65 | 2.00 | |
| Trigger | ||||
| 52 | 876203 | 2.55 | 3.09 | |
| Roll Pin D3x30 (10 Pcs.) | ||||
| 53 | 949866 | 3.60 | 4.36 | |
| Nylock bolt M5x8 | ||||
| 54 | 878540 | 1.04 | 1.26 | |
| Guard (1) | ||||
| 55 | 883724 | 2.10 | 2.54 | |
| Handle Arm | ||||
| 56 | 883723 | 4.20 | 5.08 | |
| Magazine Cover | ||||
| 57 | 883718 | 7.20 | 8.71 | |
| Spring | ||||
| 58 | 881043 | 1.35 | 1.63 | |
| Pin | ||||
| 59 | 881044 | 4.50 | 5.44 | |
| Safety Bolt | ||||
| 60 | 875650 | 1.05 | 1.27 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 61 | 949555 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 62 | 883715 | |||
| Staple Feeder | ||||
| 63A | 886724 | 8.33 | 10.07 | |
| Shaft Ring | ||||
| 64 | 881045 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 65 | 881047 | |||
| Magazine Piece | ||||
| 66 | 881039 | 2.55 | 3.09 | |
| Pivot Pin | ||||
| 67 | 883719 | 2.10 | 2.54 | |
| Magazine Ass'y Includ.69,75 | ||||
| 68 | 883717 | 15.26 | 18.47 | |
| Machine Screw (w/washers) M5x14 (black) | ||||
| 69 | 678653 | 1.05 | 1.27 | |
| Roll Pin D3x6 | ||||
| 70 | 881040 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 71 | 876205 | |||
| No longer available, no replacement | ||||
| 72 | 878183 | |||
| Warning Label (a) | ||||
| 73 | 883513 | 1.65 | 2.00 | |
| Guide Piece | ||||
| 74 | 886718 | 10.58 | 12.80 | |
| Locking Device | ||||
| 75 | 886441 | 4.58 | 5.54 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 504 | 882414 | |||
| No information available, not orderable | ||||
| 505 | 877153 | |||
| No information available, not orderable | ||||
| 601 | 876762 | |||
| Grip Tape (a) | ||||
| 602 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 603A | 888213 | |||
