Here you will find all available parts and drawings of the 'Hikoki N3804AB3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

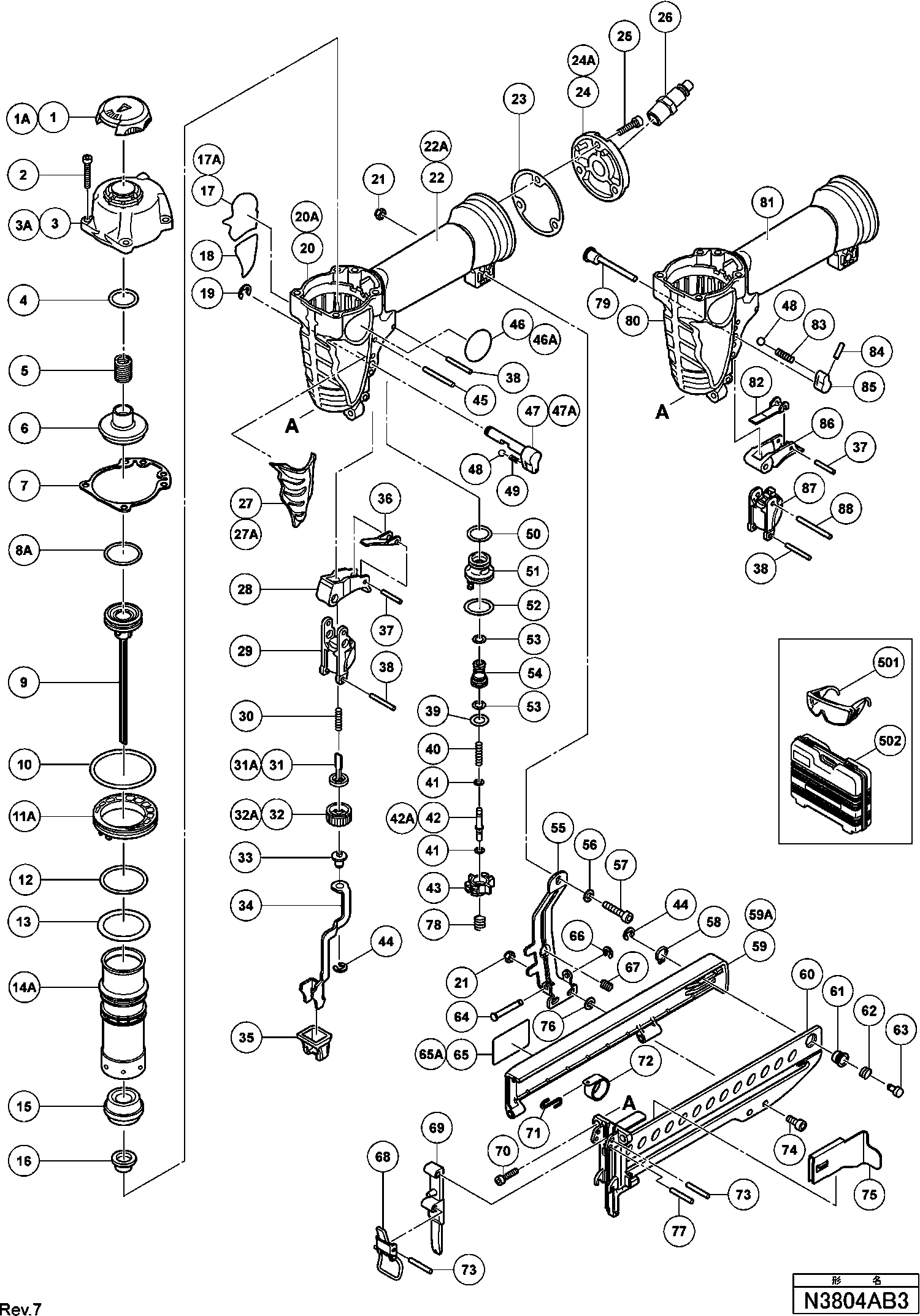

Technical drawing of model Hikoki N3804AB3
Spare parts list of model Hikoki N3804AB3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Top Cover (gray) | ||||
| 1 | 885866 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 2 | 949757 | 3.00 | 3.63 | |
| Exhaust Cover (black) | ||||
| 3 | 885867 | 7.20 | 8.71 | |
| O-ring | ||||
| 4 | 878600 | 1.05 | 1.27 | |
| Head Valve Spring | ||||
| 5 | 880190 | 2.55 | 3.09 | |
| Head Valve (a) | ||||
| 6 | 880410 | 14.70 | 17.79 | |
| Gasket | ||||
| 7 | 885868 | 2.10 | 2.54 | |
| O-ring (p22.4) | ||||
| 8A | 886068 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 9 | 885966 | |||
| Piston (Old 885966) | ||||
| 9A | 890204 | 11.70 | 14.16 | |
| O-ring (i.d 44.7) | ||||
| 10 | 885871 | 1.05 | 1.27 | |
| Cylinder Plate | ||||
| 11A | 885872 | 1.05 | 1.27 | |
| O-ring (s-30) | ||||
| 12 | 301684 | 1.05 | 1.27 | |
| O-ring (p-32) | ||||
| 13 | 986374 | 1.65 | 2.00 | |
| Cylinder | ||||
| 14A | 885873 | 12.90 | 15.61 | |
| Piston Bumper | ||||
| 15 | 885874 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 16 | 885968 | |||
| No information available, not orderable | ||||
| 17 | 888732 | |||
| Warning Label | ||||
| 18 | 885877 | 1.05 | 1.27 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 19 | 955479 | 1.05 | 1.27 | |
| Housing (black) | ||||
| 20 | 885878 | 23.48 | 28.41 | |
| Nylon Nut M4 | ||||
| 21 | 876465 | 1.05 | 1.27 | |
| Gasket (b) | ||||
| 23 | 884342 | 1.05 | 1.27 | |
| COVER PLATE (BLACK) | ||||
| 24 | 885674 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 25 | 949821 | 2.55 | 3.09 | |
| Protector (silver) | ||||
| 27 | 885879 | 1.74 | 2.11 | |
| Switch | ||||
| 28 | 885657 | 10.35 | 12.52 | |
| Pushing Lever Guide | ||||
| 29 | 885880 | 2.10 | 2.54 | |
| Pushing Lever Spring (a) | ||||
| 30 | 885881 | 1.05 | 1.27 | |
| Pushing Lever (c) | ||||
| 31 | 885973 | 4.50 | 5.44 | |
| PUSHING LEVER (D) (OLD 887678) | ||||
| 31B | 889331 | 3.60 | 4.36 | |
| Adjuster (green) | ||||
| 32 | 885884 | 1.05 | 1.27 | |
| Pushing Lever (b) | ||||
| 33 | 885885 | 2.10 | 2.54 | |
| Pushing Lever (a) | ||||
| 34 | 885972 | 4.20 | 5.08 | |
| NOSE CAP | ||||
| 35 | 885969 | 1.20 | 1.45 | |
| Trigger (c) | ||||
| 36 | 885689 | 2.10 | 2.54 | |
| Roll Pin D2.5x16 | ||||
| 37 | 881951 | 1.80 | 2.18 | |
| Roll Pin D3x25 (10 Pcs.) | ||||
| 38 | 949539 | 2.25 | 2.72 | |
| O-RING (1AP-10) (OLD 872654) | ||||
| 39A | 889495 | 1.04 | 1.26 | |
| Plunger Spring | ||||
| 40 | 884966 | 1.65 | 2.00 | |
| O-RING (I.D.1.8) | ||||
| 41 | 878888 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 42 | 885888 | 3.15 | 3.81 | |
| Spindle Ass'y | ||||
| 42A | 887679 | 3.15 | 3.81 | |
| Valve Bushing (a) | ||||
| 43 | 884962 | 1.65 | 2.00 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 44 | 872971 | 1.05 | 1.27 | |
| Roll Pin D3x32 | ||||
| 45 | 884975 | 1.65 | 2.00 | |
| Change Knob (c) (green) | ||||
| 47 | 885658 | 10.80 | 13.07 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 48 | 959155 | 1.04 | 1.26 | |
| Spring | ||||
| 49 | 982454 | 1.04 | 1.26 | |
| FEED PISTON O-RING (I.D.14) | ||||
| 50 | 877763 | 1.05 | 1.27 | |
| Valve Bushing (b) | ||||
| 51 | 884963 | 1.65 | 2.00 | |
| O-ring (P-18) | ||||
| 52 | 873570 | 1.35 | 1.63 | |
| O-RING (P-7) (OLD 676531) | ||||
| 53A | 889335 | 1.00 | 1.21 | |
| Valve Piston | ||||
| 54 | 884964 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 55 | 885984 | |||
| Ring | ||||
| 56 | 885985 | 1.05 | 1.27 | |
| HEX. SOCKET HD. BOLT M4X22 | ||||
| 57 | 880032 | 1.00 | 1.21 | |
| Washer Spring | ||||
| 58 | 885977 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 59 | 885979 | |||
| No information available, not orderable | ||||
| 60 | 885970 | |||
| Stopper sleeve | ||||
| 61 | 885975 | 1.00 | 1.21 | |
| Stopper spring | ||||
| 62 | 885976 | 1.00 | 1.21 | |
| Feeder stopper | ||||
| 63 | 885974 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 64 | 885978 | |||
| No information available, not orderable | ||||
| 65 | 888757 | |||
| Label | ||||
| 65A | 888266 | 1.04 | 1.26 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 66 | 874759 | 1.04 | 1.26 | |
| SPRING | ||||
| 67 | 885983 | 1.00 | 1.21 | |
| Lock Lever | ||||
| 68 | 885889 | 3.15 | 3.81 | |
| Guide Plate | ||||
| 69A | 885971 | 10.80 | 13.07 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 70 | 949821 | 2.55 | 3.09 | |
| Hex. Socket Hd. Bolt M4x12 (10 Pcs.) | ||||
| 70 | 949813 | 1.65 | 2.00 | |
| SPRING HOOK | ||||
| 71 | 885982 | 1.00 | 1.21 | |
| Spring | ||||
| 72 | 885981 | 3.15 | 3.81 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 73 | 949518 | 2.40 | 2.90 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 74 | 949821 | 2.55 | 3.09 | |
| Hex. Socket Hd. Bolt M4x12 (10 Pcs.) | ||||
| 74 | 949813 | 1.65 | 2.00 | |
| Staple feeder | ||||
| 75 | 885980 | 3.48 | 4.21 | |
| Ring | ||||
| 76 | 885985 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 77 | 886193 | |||
| No information available, not orderable | ||||
| 78 | 887752 | |||
| Change Rod (d) | ||||
| 79A | 888798 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 80 | 887681 | |||
| Trigger Arm (d) | ||||
| 82 | 887755 | 2.10 | 2.54 | |
| Trigger (d) | ||||
| 82A | 887670 | 1.20 | 1.45 | |
| Spring | ||||
| 83 | 887673 | 1.20 | 1.45 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 84 | 887458 | 1.20 | 1.45 | |
| Change Knob (d) | ||||
| 85 | 887684 | 1.20 | 1.45 | |
| Trigger (d) Ass'y Includ.64,65 | ||||
| 86 | 887756 | 4.20 | 5.08 | |
| PUSHING LEVER GUIDE (D) | ||||
| 87 | 887686 | 1.86 | 2.25 | |
| Roll Pin D3x35 | ||||
| 88 | 887675 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 501 | 875769 | |||
| No information available, not orderable | ||||
| 502 | 885902 | |||
| Grip Tape (a) | ||||
| 601 | 881768 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 602A | 888213 | |||
| Full Sequential Actuation Mechanism Kit Includ.60 | ||||
| 603 | 885986 | 23.38 | 28.28 | |
| No information available, not orderable | ||||
| 604 | 884993 | |||
| Spring | ||||
| 605 | 884994 | 4.80 | 5.81 | |
| Roll Pin D3x18 (10 Pcs.) | ||||
| 606 | 949518 | 2.40 | 2.90 | |
| O-ring Kit Includ.608-614 | ||||
| 607 | 886375 | 10.05 | 12.16 | |
| Gasket | ||||
| 608 | 885868 | 2.10 | 2.54 | |
| O-ring (i.d 44.7) | ||||
| 609 | 885871 | 1.05 | 1.27 | |
| O-ring (p22.4) | ||||
| 610 | 886068 | 1.50 | 1.82 | |
| O-ring | ||||
| 611 | 878600 | 1.05 | 1.27 | |
| O-ring (s-30) | ||||
| 612 | 301684 | 1.05 | 1.27 | |
| O-ring (p-32) | ||||
| 613 | 986374 | 1.65 | 2.00 | |
| Single Sequential Actuation Mechanismkit | ||||
| 615 | 887916 | 3.30 | 3.99 | |
