Here you will find all available parts and drawings of the 'Hikoki N14DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

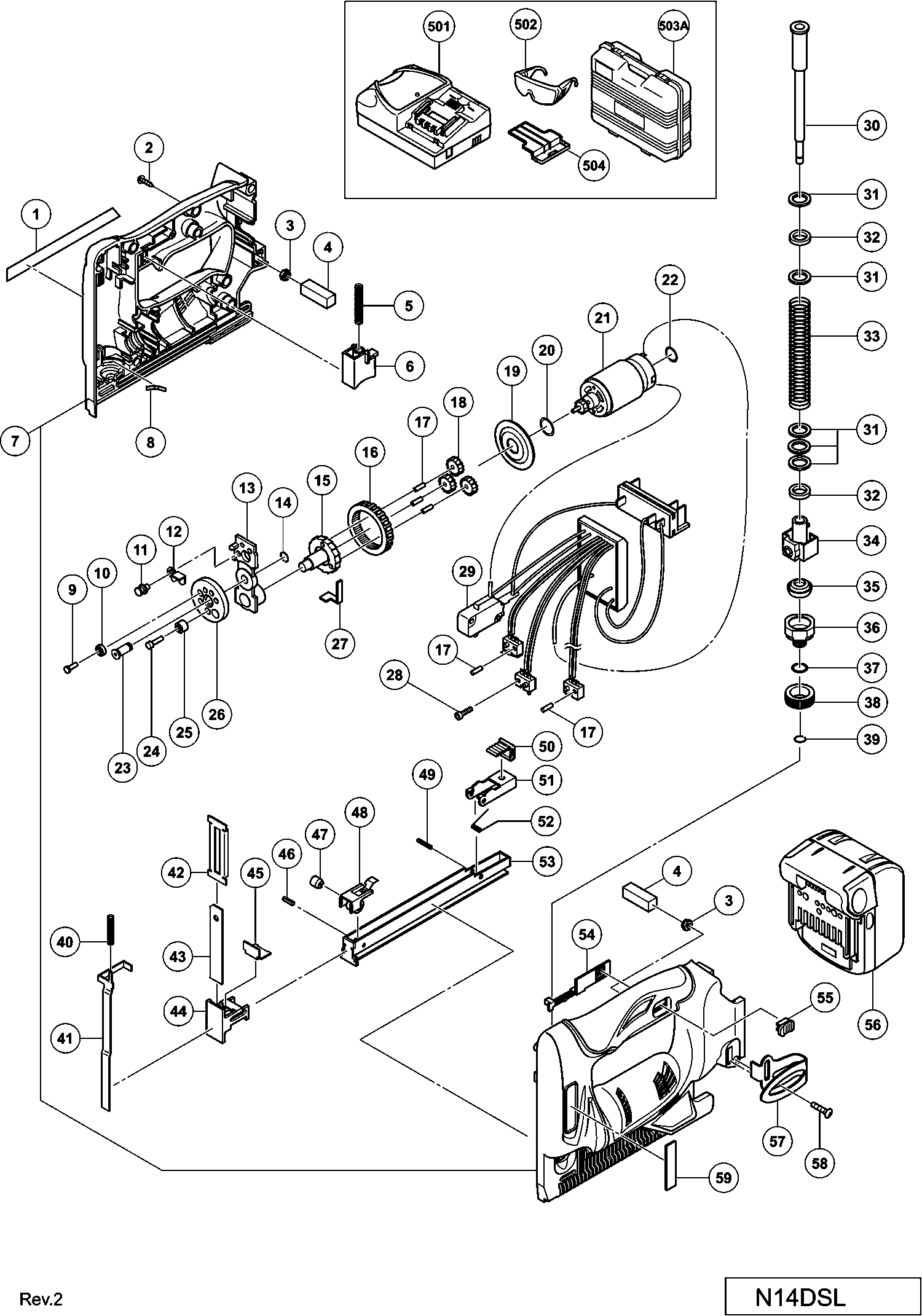

Technical drawing of model Hikoki N14DSL
Spare parts list of model Hikoki N14DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *56 | 334419 | |||
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 2 | 313687 | 1.04 | 1.26 | |
| Lock Nut M4 (black) | ||||
| 3 | 327002 | 1.80 | 2.18 | |
| Gasket | ||||
| 4 | 331186 | 1.80 | 2.18 | |
| Spring (t) | ||||
| 5 | 332000 | 1.80 | 2.18 | |
| Trigger | ||||
| 6 | 331789 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 7 | 334983 | |||
| No information available, not orderable | ||||
| 8 | 331782 | |||
| Pin (b) | ||||
| 9 | 331793 | 3.45 | 4.17 | |
| Cam Roller | ||||
| 10 | 331791 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 11 | 331799 | |||
| Switch Lever (1) | ||||
| 12 | 331798 | 1.80 | 2.18 | |
| Gear Holder | ||||
| 13 | 331797 | 7.35 | 8.89 | |
| Retaining Ring D5.4 | ||||
| 14 | 331993 | 1.80 | 2.18 | |
| Second Gear | ||||
| 15 | 331800 | 7.35 | 8.89 | |
| Ring Gear | ||||
| 16 | 331804 | 3.45 | 4.17 | |
| Needle Roller | ||||
| 17 | 331991 | 1.80 | 2.18 | |
| Gear | ||||
| 18 | 331803 | 1.80 | 2.18 | |
| Ring | ||||
| 19 | 331802 | 1.80 | 2.18 | |
| O-ring (1ap-12) | ||||
| 20 | 996407 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 21 | 331806 | |||
| No longer available, no replacement | ||||
| 22 | 872654 | |||
| Pin (a) | ||||
| 23 | 331796 | 3.45 | 4.17 | |
| Pin (b) | ||||
| 24 | 331794 | 3.45 | 4.17 | |
| Cam Roller | ||||
| 25 | 331792 | 1.80 | 2.18 | |
| Final Gear | ||||
| 26 | 331795 | 5.10 | 6.17 | |
| Clutch | ||||
| 27 | 331801 | 1.80 | 2.18 | |
| Nylock Hex. Socket Hd. Bolt M3x8 | ||||
| 28 | 331992 | 1.80 | 2.18 | |
| Switch | ||||
| 29 | 331990 | 87.45 | 105.81 | |
| No information available, not orderable | ||||
| 30 | 331785 | |||
| No information available, not orderable | ||||
| 31 | 331995 | |||
| No information available, not orderable | ||||
| 32 | 331787 | |||
| Main Spring | ||||
| 33 | 332002 | 6.75 | 8.17 | |
| Striker | ||||
| 34 | 331788 | 11.70 | 14.16 | |
| No information available, not orderable | ||||
| 35 | 331784 | |||
| No information available, not orderable | ||||
| 36 | 331783 | |||
| O-ring (s-10) | ||||
| 37 | 987105 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 38 | 331781 | |||
| Retaining Ring D4.4 | ||||
| 39 | 331994 | 1.80 | 2.18 | |
| Spring | ||||
| 40 | 331996 | 1.80 | 2.18 | |
| Pushing Lever | ||||
| 41 | 331773 | 6.75 | 8.17 | |
| Cover Plate | ||||
| 42 | 331774 | 1.04 | 1.26 | |
| Driver Blade | ||||
| 43 | 331776 | 5.10 | 6.17 | |
| Blade Guide (a) | ||||
| 44 | 334995 | 39.88 | 48.25 | |
| Blade Guide (b) | ||||
| 45 | 333942 | 1.80 | 2.18 | |
| Roll Pin D2.5x10 (10 Pcs.) | ||||
| 46 | 949551 | 1.65 | 2.00 | |
| Spring Coil | ||||
| 47 | 331778 | 1.80 | 2.18 | |
| Feeder | ||||
| 48 | 331997 | 6.75 | 8.17 | |
| Roll Pin D3x14 (10 Pcs.) | ||||
| 49 | 949900 | 2.40 | 2.90 | |
| Stopper Cover | ||||
| 50 | 331999 | 3.45 | 4.17 | |
| Stopper | ||||
| 51 | 331780 | 1.80 | 2.18 | |
| Stopper Spring | ||||
| 52 | 331998 | 1.80 | 2.18 | |
| Magazine Base | ||||
| 53 | 331779 | 14.70 | 17.79 | |
| Lever (c) | ||||
| 54 | 331790 | 1.80 | 2.18 | |
| Tappet | ||||
| 55 | 326276 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 56 | 334419 | |||
| Hook | ||||
| 57 | 332824 | 4.58 | 5.54 | |
| Truss Hd. Screw M4 (black) | ||||
| 58 | 327001 | 1.80 | 2.18 | |
| Hitachi Plate | ||||
| 59 | 329648 | 1.88 | 2.27 | |
| No information available, not orderable | ||||
| 502 | 875769 | |||
| No information available, not orderable | ||||
| 503B | 370474 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
