Here you will find all available parts and drawings of the 'Hikoki M8V2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

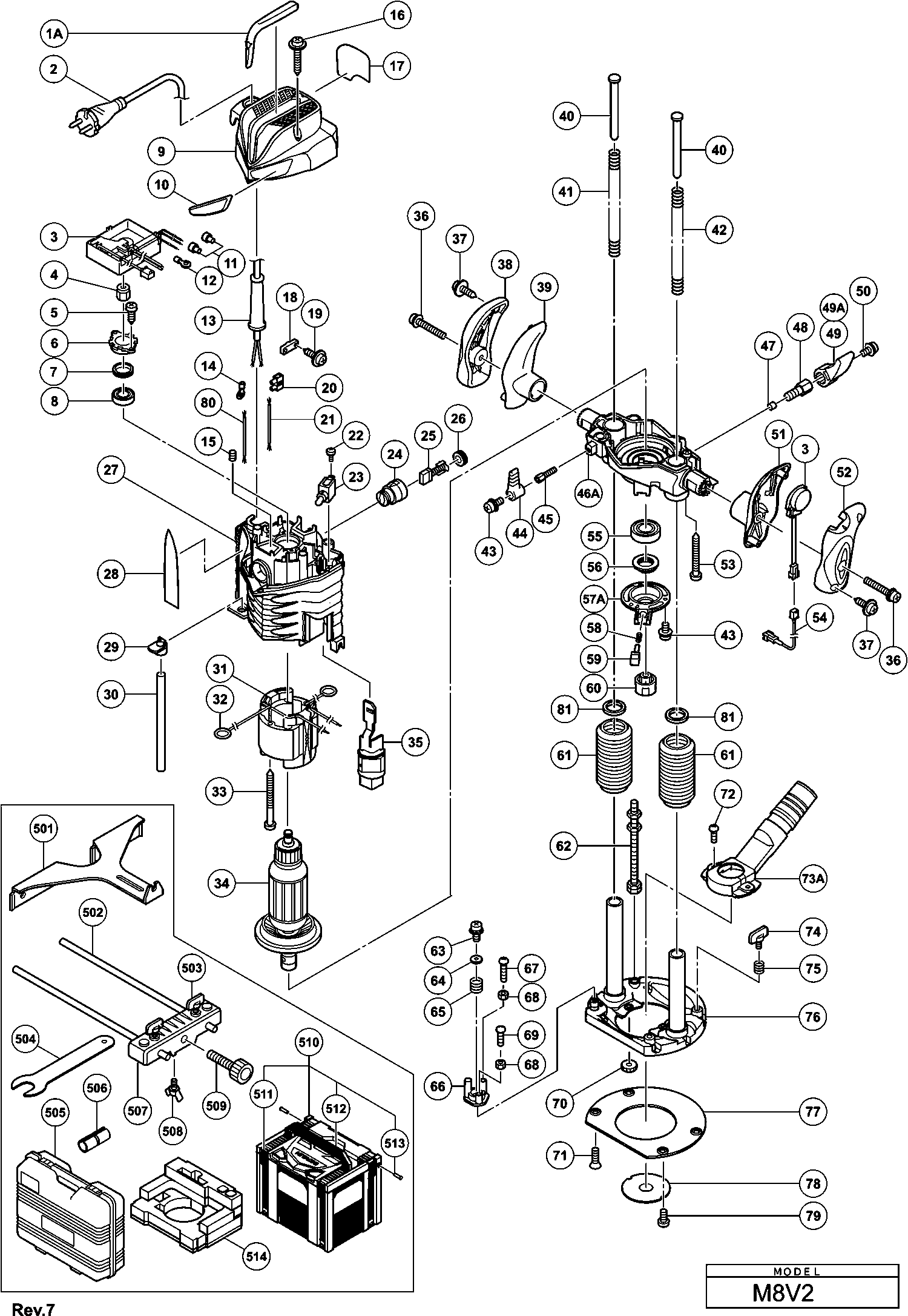

Technical drawing of model Hikoki M8V2
Spare parts list of model Hikoki M8V2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| connecting terminal | ||||
| *14 | 980063 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *2 | 500247Z | 6.18 | 7.48 | |
| Pillar Terminal (a) | ||||
| *20 | 958308Z | 5.55 | 6.72 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| *20 | 938307 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| *21 | 326177 | |||
| Scale | ||||
| *28 | 326090 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| *3 | 326086 | |||
| Stator 230v | ||||
| *31 | 340675E | 92.95 | 112.47 | |
| VELD 110-120 VOLT | ||||
| *31 | 340675C | 65.62 | 79.40 | |
| ANKER 110-120 VOLT | ||||
| *34 | 360773U | 81.95 | 99.16 | |
| ARMATURE 230-240 VOLT | ||||
| *34 | 360773E | 75.49 | 91.34 | |
| No information available, not orderable | ||||
| *506 | 971852 | |||
| No information available, not orderable | ||||
| *60 | 325212 | |||
| No information available, not orderable | ||||
| *610 | 956808 | |||
| Cord | ||||
| 2 | 500241Z | 17.19 | 20.80 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 2 | 500237Z | 11.40 | 13.79 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 2 | 500247Z | 6.18 | 7.48 | |
| No longer available, no replacement | ||||
| 3 | 326086 | |||
| CONTROLLER PACKAGE 230-240 VOLT (OLD 326092) | ||||
| 3A | 379003 | 49.56 | 59.97 | |
| Magnet Bm25y | ||||
| 4 | 307093 | 13.80 | 16.70 | |
| Screw | ||||
| 5 | 954017 | 1.04 | 1.26 | |
| Bushing | ||||
| 6 | 326079 | 5.25 | 6.35 | |
| Rubber Ring | ||||
| 7 | 323420 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 8 | 608VVM | 5.70 | 6.90 | |
| Head Cover | ||||
| 9 | 326085 | 22.83 | 27.62 | |
| Connector 50091 (10 Pcs.) | ||||
| 11 | 959140 | 3.30 | 3.99 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 12 | 930804 | 3.00 | 3.63 | |
| Cord Armor D8.8 | ||||
| 13 | 380090 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 14 | 980063 | 1.04 | 1.26 | |
| Hex Adjustment Screw M5x8 | ||||
| 15 | 938477 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 16 | 307028 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 18 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19 | 984750 | |||
| Pillar Terminal (a) | ||||
| 20 | 958308Z | 5.55 | 6.72 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 20 | 938307 | 2.13 | 2.57 | |
| BEDRADING BLAUW 110 VOLT | ||||
| 21 | 326180 | 1.86 | 2.25 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 22 | 307887 | 1.04 | 1.26 | |
| SCHAKELAAR | ||||
| 23 | 314603 | 11.88 | 14.37 | |
| Brush Holder | ||||
| 24 | 981586 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 25 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 26 | 961781 | 2.55 | 3.09 | |
| Housing | ||||
| 27 | 326093 | 55.00 | 66.55 | |
| Scale | ||||
| 28 | 326090 | 1.05 | 1.27 | |
| Marker | ||||
| 29 | 326084 | 1.05 | 1.27 | |
| Depth-gauge | ||||
| 30 | 325196 | 3.90 | 4.72 | |
| Stator 230v | ||||
| 31 | 340675E | 92.95 | 112.47 | |
| VELD 110-120 VOLT | ||||
| 31 | 340675C | 65.62 | 79.40 | |
| Brush Terminal | ||||
| 32 | 930703 | 2.40 | 2.90 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 33 | 960251 | 1.05 | 1.27 | |
| ANKER 110-120 VOLT | ||||
| 34 | 360773U | 81.95 | 99.16 | |
| ARMATURE 230-240 VOLT | ||||
| 34 | 360773E | 75.49 | 91.34 | |
| Lever | ||||
| 35 | 326083 | 3.00 | 3.63 | |
| Machine Screw (w/washers) M6x30 (black) | ||||
| 36 | 307443 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 37 | 305812 | 1.04 | 1.26 | |
| Handle (l) B | ||||
| 38 | 325220 | 6.15 | 7.44 | |
| Left Handle (a) M12sa2 | ||||
| 39 | 325171 | 3.00 | 3.63 | |
| Spring Guide | ||||
| 40 | 325180 | 1.95 | 2.36 | |
| Spring | ||||
| 41 | 303316 | 2.70 | 3.27 | |
| Spring | ||||
| 42 | 303317 | 3.00 | 3.63 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 43 | 935196 | 1.04 | 1.26 | |
| Lever (c) | ||||
| 44 | 325174 | 1.05 | 1.27 | |
| Lock Screw M6 | ||||
| 45 | 325175 | 1.95 | 2.36 | |
| End Bracket | ||||
| 46A | 335498 | 113.99 | 137.92 | |
| Blocking | ||||
| 47 | 971848 | 1.05 | 1.27 | |
| Locking Screw M10 | ||||
| 48 | 325187 | 5.40 | 6.53 | |
| Knob | ||||
| 49 | 326042 | 6.75 | 8.17 | |
| Lever (a) | ||||
| 49 | 323923 | 1.05 | 1.27 | |
| Lever (a) | ||||
| 49A | 323923 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M6x10 | ||||
| 50 | 997314 | 1.05 | 1.27 | |
| Handle (r) A | ||||
| 51 | 325172 | 3.00 | 3.63 | |
| Handle (r) B | ||||
| 52 | 325962 | 6.15 | 7.44 | |
| Tapping Screw D5x50 | ||||
| 53 | 307100 | 1.05 | 1.27 | |
| Cord for Control Unit | ||||
| 54 | 325202 | 9.60 | 11.62 | |
| Ball Bearing 6004tixvv | ||||
| 55 | 6004T1 | 10.20 | 12.34 | |
| Locking Nut | ||||
| 56 | 325186 | 5.40 | 6.53 | |
| Bearing Cover | ||||
| 57A | 325185 | 12.75 | 15.43 | |
| LAGER DEKSEL | ||||
| 57B | 379689 | 2.94 | 3.56 | |
| Holding Spring | ||||
| 58 | 325183 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 59 | 325182 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 60 | 325212 | |||
| Bellows (a) | ||||
| 61 | 325207 | 11.55 | 13.98 | |
| Screw M8 | ||||
| 62 | 302315 | 4.80 | 5.81 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 63 | 317200 | 1.65 | 2.00 | |
| Closing Washer (b) (old 976448) | ||||
| 64 | 962569 | 1.05 | 1.27 | |
| Spring | ||||
| 65 | 971858 | 1.05 | 1.27 | |
| Stopper Block | ||||
| 66 | 326081 | 3.00 | 3.63 | |
| STOPPERSTUK (OUD 326081) | ||||
| 66A | 379687 | 1.62 | 1.96 | |
| Machine Screw M5x25 (black) | ||||
| 67 | 302316 | 1.04 | 1.26 | |
| Nut M5 (black) | ||||
| 68 | 302012 | 1.05 | 1.27 | |
| Machine Screw M5x16 (black) | ||||
| 69 | 302317 | 1.05 | 1.27 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 71 | 992013 | 1.05 | 1.27 | |
| Wing Bolt M6x15 | ||||
| 74 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 75 | 947859 | 1.04 | 1.26 | |
| Base | ||||
| 76 | 326089 | 45.65 | 55.24 | |
| Sub Base | ||||
| 77 | 326080 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 78 | 956790 | |||
| Machine Screw M5x6 (10 Pcs.) | ||||
| 79 | 949234 | 1.05 | 1.27 | |
| INTERNAL WIRE (BROWN) | ||||
| 80 | 326179 | 1.95 | 2.36 | |
| Felt Washer | ||||
| 81 | 323426 | 1.50 | 1.82 | |
| Dial | ||||
| 82 | 371931 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 501 | 956797 | |||
| Guide Bar | ||||
| 502 | 971622 | 4.80 | 5.81 | |
| Wing Bolt M6x15 | ||||
| 503 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 504 | 323295 | |||
| No information available, not orderable | ||||
| 505 | 326095 | |||
| No information available, not orderable | ||||
| 506 | 971852 | |||
| No information available, not orderable | ||||
| 507 | 326091 | |||
| No information available, not orderable | ||||
| 507A | 379688 | |||
| Wing Bolt M6x10 (10 Pcs.) | ||||
| 508 | 949394 | 7.05 | 8.53 | |
| Screw | ||||
| 509 | 956793 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 510 | 337528 | |||
| No information available, not orderable | ||||
| 511 | 336472 | |||
| No information available, not orderable | ||||
| 512 | 336473 | |||
| No information available, not orderable | ||||
| 513 | 336474 | |||
| No information available, not orderable | ||||
| 514 | 337763 | |||
| No information available, not orderable | ||||
| 601 | 997466 | |||
| No information available, not orderable | ||||
| 601A | 339380 | |||
| Nut Wing | ||||
| 602 | 997467 | 4.20 | 5.08 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 603 | 949237 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 604 | 956794 | |||
| No longer available, no replacement | ||||
| 605 | 318304 | |||
| Square Nut | ||||
| 606 | 318350 | 2.85 | 3.45 | |
| Socket | ||||
| 607 | 317300 | 4.80 | 5.81 | |
| RING (B) | ||||
| 608 | 956046 | 1.00 | 1.21 | |
| Spring | ||||
| 609 | 971858 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 610 | 971878 | |||
| No information available, not orderable | ||||
| 611 | 956756 | |||
| No information available, not orderable | ||||
| 612 | 323298 | |||
| No information available, not orderable | ||||
| 613 | 323299 | |||
| No information available, not orderable | ||||
| 614 | 323300 | |||
| No information available, not orderable | ||||
| 615 | 323301 | |||
| No information available, not orderable | ||||
| 616 | 323302 | |||
| No information available, not orderable | ||||
| 617 | 323303 | |||
| No information available, not orderable | ||||
| 618 | 323304 | |||
| No information available, not orderable | ||||
| 619 | 303347 | |||
| No information available, not orderable | ||||
| 620 | 303348 | |||
| No information available, not orderable | ||||
| 621 | 303349 | |||
| No information available, not orderable | ||||
| 622 | 303350 | |||
| No information available, not orderable | ||||
| 623 | 303351 | |||
| No information available, not orderable | ||||
| 624 | 303352 | |||
| No information available, not orderable | ||||
| 625 | 303353 | |||
| No information available, not orderable | ||||
| 626 | 303354 | |||
| No information available, not orderable | ||||
| 627 | 303355 | |||
