Here you will find all available parts and drawings of the 'Hikoki M8SA2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

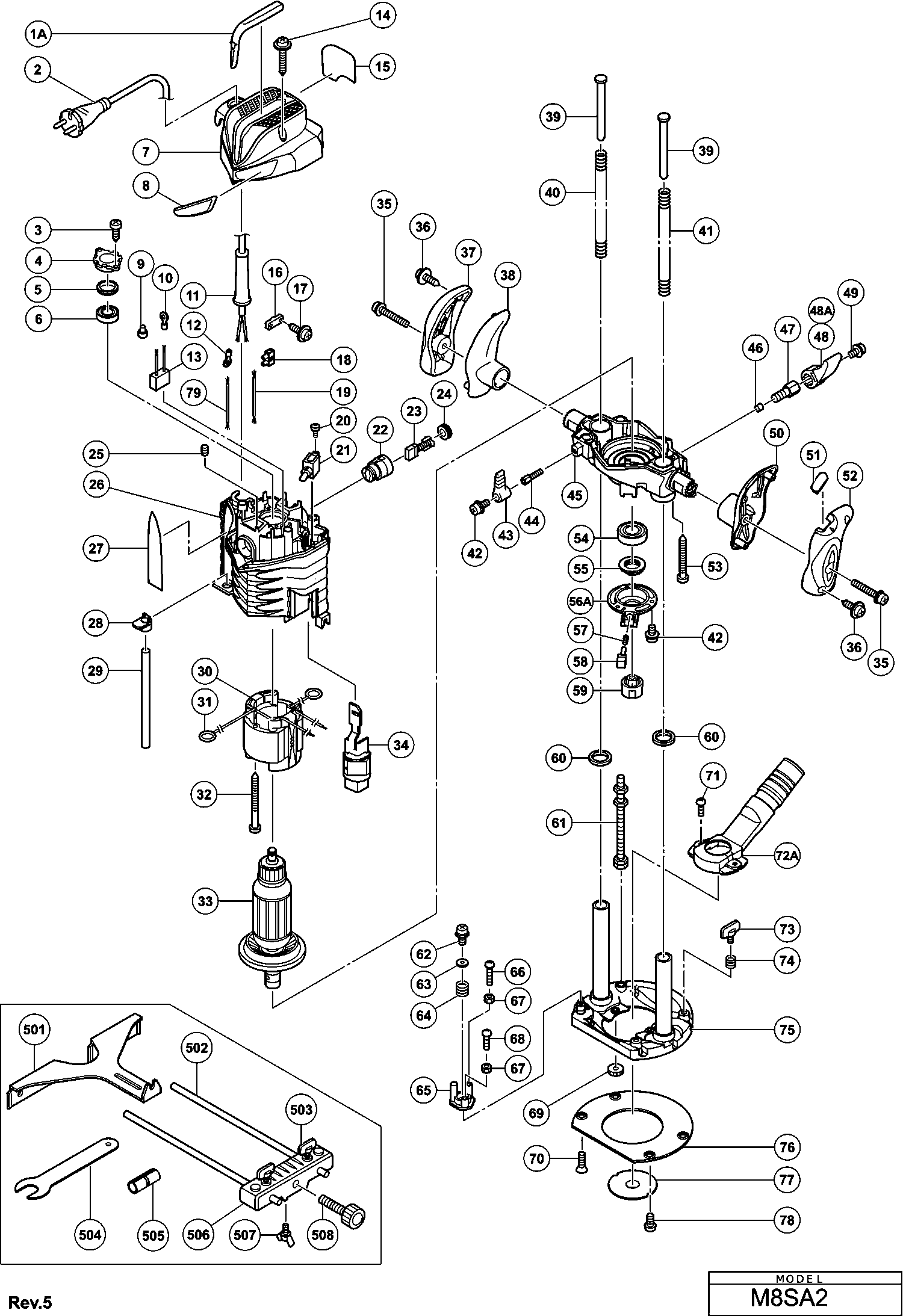

Technical drawing of model Hikoki M8SA2
Spare parts list of model Hikoki M8SA2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pillar Terminal Till 10.1999 For Aus | ||||
| *18 | 938307 | 2.13 | 2.57 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *2 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *2 | 500247Z | 6.18 | 7.48 | |
| Scale | ||||
| *27 | 326090 | 1.05 | 1.27 | |
| Stator 230v | ||||
| *30 | 340677E | 92.95 | 112.47 | |
| Armature 230v | ||||
| *33 | 360775E | 75.49 | 91.34 | |
| Knob | ||||
| *48 | 326042 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| *59 | 325212 | |||
| Cord (cord Armor D8.8) For Pan | ||||
| 2 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 2 | 500247Z | 6.18 | 7.48 | |
| Screw | ||||
| 3 | 954017 | 1.04 | 1.26 | |
| Bushing | ||||
| 4 | 326096 | 5.25 | 6.35 | |
| Rubber Ring | ||||
| 5 | 323420 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 6 | 608VVM | 5.70 | 6.90 | |
| Head Cover | ||||
| 7 | 326109 | 22.83 | 27.62 | |
| Connector 50092 (10 Pcs.) | ||||
| 9 | 959141 | 3.75 | 4.54 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 10 | 930804 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 11 | 953327 | |||
| connecting terminal | ||||
| 12 | 980063 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 13 | 930039 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 14 | 307028 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 16 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 17 | 984750 | |||
| Pillar Terminal Till 10.1999 For Aus | ||||
| 18 | 938307 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 19 | 326177 | |||
| Machine Screw (w/washer) M3.5x6 | ||||
| 20 | 307887 | 1.04 | 1.26 | |
| SCHAKELAAR | ||||
| 21 | 314603 | 11.88 | 14.37 | |
| Brush Holder | ||||
| 22 | 981586 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 23 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 24 | 961781 | 2.55 | 3.09 | |
| Hex Adjustment Screw M5x8 | ||||
| 25 | 938477 | 1.05 | 1.27 | |
| Housing | ||||
| 26 | 326093 | 55.00 | 66.55 | |
| Scale | ||||
| 27 | 326090 | 1.05 | 1.27 | |
| Marker | ||||
| 28 | 326084 | 1.05 | 1.27 | |
| Depth-gauge | ||||
| 29 | 325196 | 3.90 | 4.72 | |
| Stator 230v | ||||
| 30 | 340677E | 92.95 | 112.47 | |
| Brush Terminal | ||||
| 31 | 930703 | 2.40 | 2.90 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 32 | 960251 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 33 | 360775E | 75.49 | 91.34 | |
| Lever | ||||
| 34 | 326083 | 3.00 | 3.63 | |
| Machine Screw (w/washers) M6x30 (black) | ||||
| 35 | 307443 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 36 | 305812 | 1.04 | 1.26 | |
| Handle (l) B | ||||
| 37 | 325220 | 6.15 | 7.44 | |
| Left Handle (a) M12sa2 | ||||
| 38 | 325171 | 3.00 | 3.63 | |
| Spring Guide | ||||
| 39 | 325180 | 1.95 | 2.36 | |
| Spring | ||||
| 40 | 303316 | 2.70 | 3.27 | |
| Spring | ||||
| 41 | 303317 | 3.00 | 3.63 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 42 | 935196 | 1.04 | 1.26 | |
| Lever (c) | ||||
| 43 | 325174 | 1.05 | 1.27 | |
| Lock Screw M6 | ||||
| 44 | 325175 | 1.95 | 2.36 | |
| End Bracket | ||||
| 45 | 326097 | 55.00 | 66.55 | |
| Blocking | ||||
| 46 | 971848 | 1.05 | 1.27 | |
| Locking Screw M10 | ||||
| 47 | 325187 | 5.40 | 6.53 | |
| Knob | ||||
| 48 | 326042 | 6.75 | 8.17 | |
| Lever (a) | ||||
| 48A | 323923 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M6x10 | ||||
| 49 | 997314 | 1.05 | 1.27 | |
| Handle (r) A | ||||
| 50 | 325172 | 3.00 | 3.63 | |
| Dial Cover | ||||
| 51 | 325227 | 3.00 | 3.63 | |
| Right Handle (b) | ||||
| 52 | 325221 | 6.15 | 7.44 | |
| Tapping Screw D5x50 | ||||
| 53 | 307100 | 1.05 | 1.27 | |
| Ball Bearing 6004tixvv | ||||
| 54 | 6004T1 | 10.20 | 12.34 | |
| Locking Nut | ||||
| 55 | 325186 | 5.40 | 6.53 | |
| Bearing Cover | ||||
| 56A | 325185 | 12.75 | 15.43 | |
| LAGER DEKSEL | ||||
| 56B | 379689 | 2.94 | 3.56 | |
| Holding Spring | ||||
| 57 | 325183 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 58 | 325182 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 59 | 325212 | |||
| Felt Washer | ||||
| 60 | 323426 | 1.50 | 1.82 | |
| Screw M8 | ||||
| 61 | 302315 | 4.80 | 5.81 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 62 | 317200 | 1.65 | 2.00 | |
| Closing Washer (b) (old 976448) | ||||
| 63 | 962569 | 1.05 | 1.27 | |
| Spring | ||||
| 64 | 971858 | 1.05 | 1.27 | |
| Stopper Block | ||||
| 65 | 326081 | 3.00 | 3.63 | |
| STOPPERSTUK (OUD 326081) | ||||
| 65A | 379687 | 1.62 | 1.96 | |
| Machine Screw M5x25 (black) | ||||
| 66 | 302316 | 1.04 | 1.26 | |
| Nut M5 (black) | ||||
| 67 | 302012 | 1.05 | 1.27 | |
| Machine Screw M5x16 (black) | ||||
| 68 | 302317 | 1.05 | 1.27 | |
| Nut Wing | ||||
| 69 | 997467 | 4.20 | 5.08 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 70 | 992013 | 1.05 | 1.27 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 71 | 949237 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 72A | 339380 | |||
| Wing Bolt M6x15 | ||||
| 73 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 74 | 947859 | 1.04 | 1.26 | |
| Base | ||||
| 75 | 326098 | 45.65 | 55.24 | |
| Sub Base | ||||
| 76 | 326080 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 77 | 956790 | |||
| Machine Screw M5x6 (10 Pcs.) | ||||
| 78 | 949234 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 79 | 326179 | |||
| No information available, not orderable | ||||
| 501 | 956797 | |||
| Guide Bar | ||||
| 502 | 971622 | 4.80 | 5.81 | |
| Wing Bolt M6x15 | ||||
| 503 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 504 | 323295 | |||
| No information available, not orderable | ||||
| 505 | 971852 | |||
| No information available, not orderable | ||||
| 506 | 326091 | |||
| No information available, not orderable | ||||
| 506A | 379688 | |||
| Wing Bolt M6x10 (10 Pcs.) | ||||
| 507 | 949394 | 7.05 | 8.53 | |
| Screw | ||||
| 508 | 956793 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 601 | 971878 | |||
| No information available, not orderable | ||||
| 602 | 956808 | |||
| No information available, not orderable | ||||
| 603 | 323293 | |||
| No information available, not orderable | ||||
| 604 | 956794 | |||
| No information available, not orderable | ||||
| 605 | 997466 | |||
| No information available, not orderable | ||||
| 605A | 339380 | |||
| Nut Wing | ||||
| 606 | 997467 | 4.20 | 5.08 | |
| Machine Screw M5x12 (10 Pcs.) | ||||
| 607 | 949237 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 608 | 318304 | |||
| Square Nut | ||||
| 609 | 318350 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 610 | 317300 | |||
| RING (B) | ||||
| 611 | 956046 | 1.00 | 1.21 | |
| Spring | ||||
| 612 | 971858 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 613 | 303347 | |||
| No information available, not orderable | ||||
| 614 | 303348 | |||
| No information available, not orderable | ||||
| 615 | 303349 | |||
| No information available, not orderable | ||||
| 616 | 303350 | |||
| No information available, not orderable | ||||
| 617 | 303351 | |||
| No information available, not orderable | ||||
| 618 | 303352 | |||
| No information available, not orderable | ||||
| 619 | 303353 | |||
| No information available, not orderable | ||||
| 620 | 303354 | |||
| No information available, not orderable | ||||
| 621 | 303355 | |||
