Here you will find all available parts and drawings of the 'Hikoki M6SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

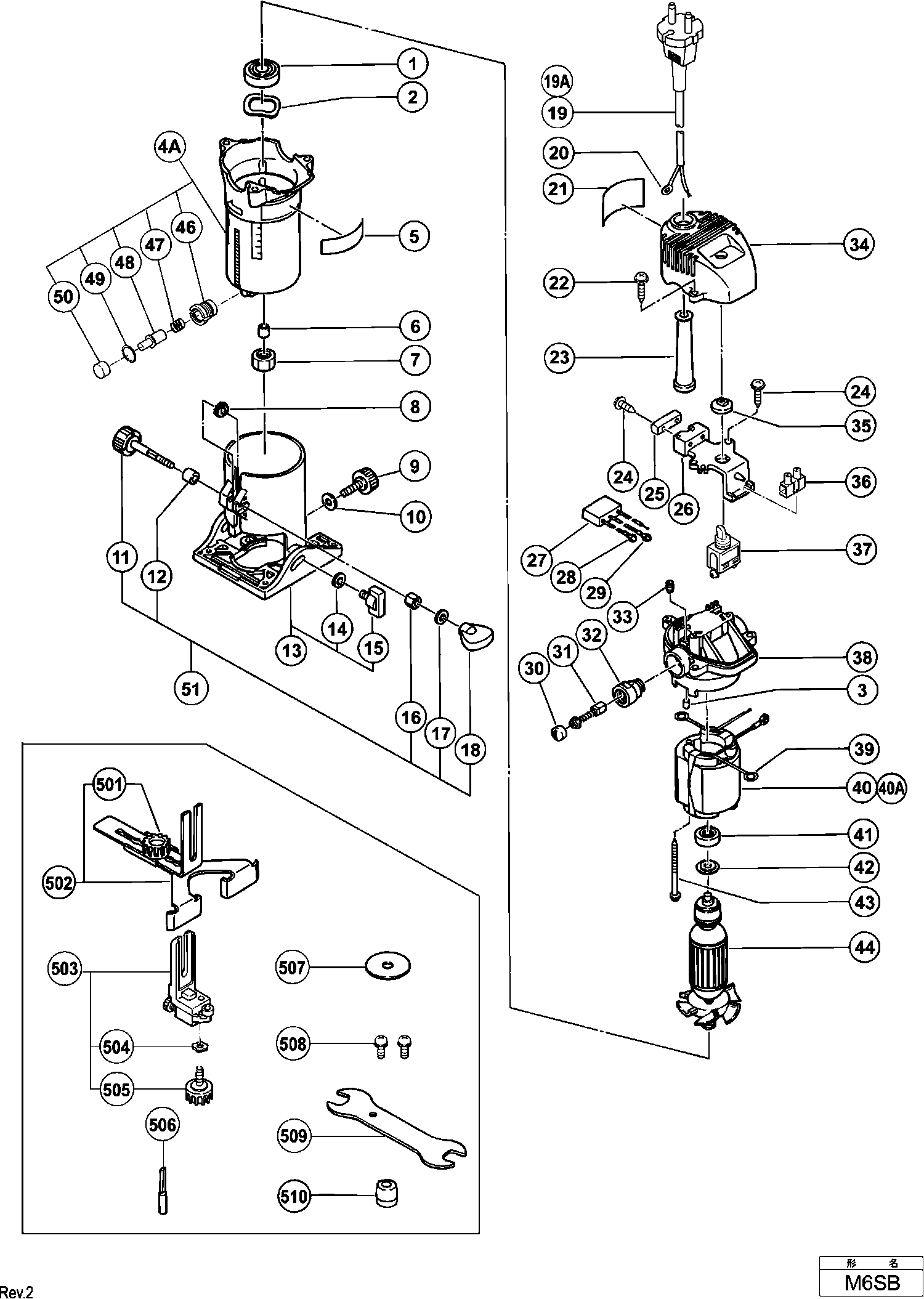

Technical drawing of model Hikoki M6SB
Spare parts list of model Hikoki M6SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *19 | 500439Z | |||
| No information available, not orderable | ||||
| *19A | 500455Z | |||
| Cord Armor D10.1 | ||||
| *23 | 938051 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| *37 | 955509 | |||
| Stator 220v-230v | ||||
| *40 | 340374L | 67.10 | 81.19 | |
| Stator Ass'y 240v Includ.39 | ||||
| *40 | 340374H | 61.05 | 73.87 | |
| Armature 230v | ||||
| *44 | 360428E | 148.78 | 180.02 | |
| Machine Screw (w/washer) M3.5x5 | ||||
| *52 | 980060 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| *6 | 960114 | |||
| Ball Bearing 6002ddcmps2l | ||||
| 1 | 6002DD | 7.05 | 8.53 | |
| Washer (1) | ||||
| 2 | 961489 | 1.05 | 1.27 | |
| RUBBER PEN | ||||
| 3 | 931701 | 1.05 | 1.27 | |
| Housing Assembly Includ.46-50 | ||||
| 4A | 314026 | 52.53 | 63.56 | |
| No information available, not orderable | ||||
| 6 | 960114 | |||
| Nut | ||||
| 7 | 960096 | 3.30 | 3.99 | |
| Pinion | ||||
| 8 | 314019 | 2.55 | 3.09 | |
| Knob Bolt M6x11 | ||||
| 9 | 993609 | 1.65 | 2.00 | |
| Ring | ||||
| 10 | 961482 | 1.05 | 1.27 | |
| Knob Bolt (b) | ||||
| 11 | 314018 | 5.25 | 6.35 | |
| Spacer bushing | ||||
| 12 | 961469 | 1.80 | 2.18 | |
| Base Plate Assembly Includ.14,15 | ||||
| 13 | 314017 | 67.10 | 81.19 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 14 | 949432 | 1.05 | 1.27 | |
| Wing Bolt (a) M6x15 | ||||
| 15 | 308364 | 1.05 | 1.27 | |
| Hexagonal Sleeve | ||||
| 16 | 314029 | 1.95 | 2.36 | |
| Washer M5.5 | ||||
| 17 | 310386 | 1.05 | 1.27 | |
| Wing Nut M5 | ||||
| 18 | 314020 | 2.40 | 2.90 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 19 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 19A | 500461Z | 17.88 | 21.63 | |
| connecting terminal | ||||
| 20 | 980063 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 22 | 307028 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 23 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 24 | 984750 | |||
| Cord Clip | ||||
| 25 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 26 | 314021 | |||
| Noise Suppressor | ||||
| 27 | 994273 | 4.29 | 5.19 | |
| connecting terminal | ||||
| 28 | 980063 | 1.04 | 1.26 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 29 | 959144 | 3.00 | 3.63 | |
| Brush Cap | ||||
| 30 | 937847 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 31 | 999021 | |||
| Brush Holder | ||||
| 32 | 937846 | 3.30 | 3.99 | |
| Hex Adjustment Screw M5x8 | ||||
| 33 | 938477 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 34 | 314028 | |||
| Rubber Cap | ||||
| 35 | 314016 | 1.05 | 1.27 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 36 | 938307 | 2.13 | 2.57 | |
| SCHAKELAAR | ||||
| 37 | 314603 | 11.88 | 14.37 | |
| SWITCH (1P SCREW TYPE) 110 VOLT (OLD 331986) | ||||
| 37A | 379238 | 3.78 | 4.57 | |
| Stator Holder Assembly Including Parts 32, 33 | ||||
| 38 | 314027 | 25.44 | 30.78 | |
| Brush Terminal For Aus | ||||
| 39 | 930630 | 1.35 | 1.63 | |
| Stator 220v-230v | ||||
| 40 | 340374L | 67.10 | 81.19 | |
| Stator Ass'y 240v Includ.39 | ||||
| 40 | 340374H | 61.05 | 73.87 | |
| STATOR ASS'Y 110 VOLT | ||||
| 40A | 340374M | 62.64 | 75.79 | |
| Ball Bearing 627vvc2ps2l | ||||
| 41 | 627VVM | 5.55 | 6.72 | |
| Washer | ||||
| 42 | 960111 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 43 | 963388 | |||
| Armature 230v | ||||
| 44 | 360428E | 148.78 | 180.02 | |
| Sleeve (a) M8 | ||||
| 46 | 321207 | 4.80 | 5.81 | |
| Spring | ||||
| 47 | 321206 | 1.65 | 2.00 | |
| Lock Pin | ||||
| 48 | 321204 | 3.30 | 3.99 | |
| Washer Spring | ||||
| 49 | 321205 | 1.65 | 2.00 | |
| Pushing Button | ||||
| 50 | 321203 | 1.65 | 2.00 | |
| Knob Bolt (b) Ass'y Includ.11,12,16-18 | ||||
| 51 | 325506 | 17.05 | 20.63 | |
| Knob Bolt M6x17 | ||||
| 501 | 960058 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 502 | 960104 | |||
| No information available, not orderable | ||||
| 503 | 314613 | |||
| No information available, not orderable | ||||
| 503A | 377127 | |||
| Washer | ||||
| 504 | 960092 | 1.05 | 1.27 | |
| Knob Bolt M6x17 | ||||
| 505 | 960058 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 506 | 971878 | |||
| No information available, not orderable | ||||
| 507 | 961478 | |||
| Machine Screw (w/washers) M4x8 For Ind | ||||
| 508 | 976815 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 509 | 931161 | |||
| No information available, not orderable | ||||
| 510 | 960095 | |||
| No information available, not orderable | ||||
| 601 | 314626 | |||
