Here you will find all available parts and drawings of the 'Hikoki M12VE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

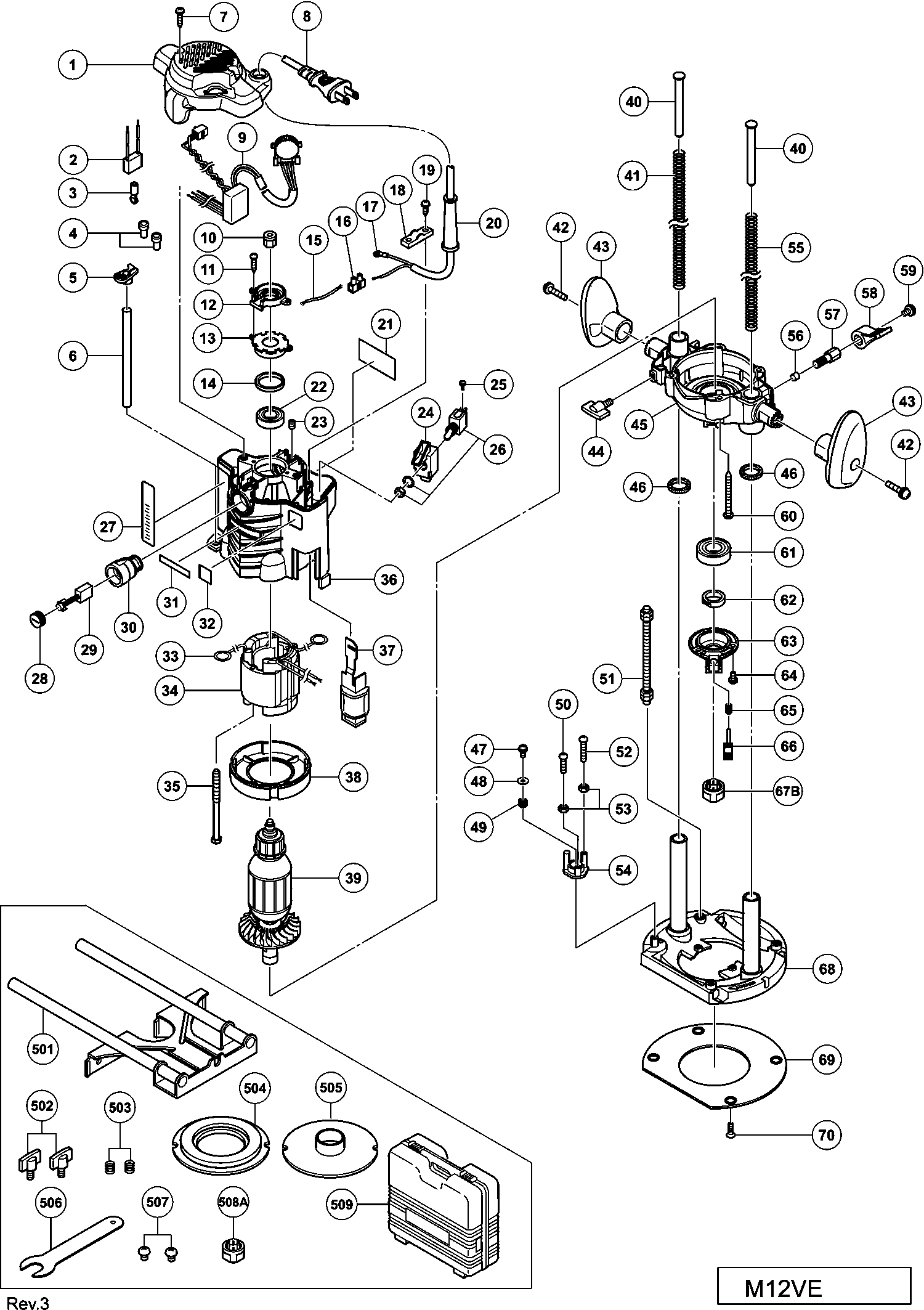

Technical drawing of model Hikoki M12VE
Spare parts list of model Hikoki M12VE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord Armor D10.1 | ||||
| *20 | 938051 | 1.04 | 1.26 | |
| Scale | ||||
| *27 | 331820 | 1.05 | 1.27 | |
| VELD 110-120 VOLT | ||||
| *34 | 340659D | 57.31 | 69.35 | |
| ANKER 110-120 VOLT | ||||
| *39 | 360886U | 52.47 | 63.49 | |
| Armature 230v | ||||
| *39 | 360886E | 47.38 | 57.32 | |
| No information available, not orderable | ||||
| *67B | 325199 | |||
| Cord (cord Armor D8.8) For Saf | ||||
| *8 | 500237Z | 11.40 | 13.79 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *8 | 500247Z | 6.18 | 7.48 | |
| No longer available, no replacement | ||||
| 1 | 331809 | |||
| BOVENKAP (OUD 331809) | ||||
| 1A | 382486 | 2.70 | 3.27 | |
| Noise Suppressor | ||||
| 2 | 930039 | 1.95 | 2.36 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 3 | 930804 | 3.00 | 3.63 | |
| Connector 50092 (10 Pcs.) | ||||
| 4 | 959141 | 3.75 | 4.54 | |
| Marker | ||||
| 5 | 331823 | 1.05 | 1.27 | |
| Depth-gauge | ||||
| 6 | 325196 | 3.90 | 4.72 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 7 | 301653 | 1.04 | 1.26 | |
| CORD 2,4M 2 X 1.5 H05VV-F GBR 110V | ||||
| 8 | 500463Z | 22.60 | 27.35 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 8 | 500237Z | 11.40 | 13.79 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 8 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 9 | 331811 | |||
| Controller Ass'y 220v-240v | ||||
| 9A | 379001 | 49.20 | 59.53 | |
| CONTROLLER 100-120 VOLT (OLD 331810) | ||||
| 9A | 379000 | 46.36 | 56.10 | |
| Magnet | ||||
| 10 | 325475 | 4.65 | 5.63 | |
| Tapping Screw D4X16 | ||||
| 11 | 954004 | 1.04 | 1.26 | |
| Mp Holder | ||||
| 12 | 331822 | 1.04 | 1.26 | |
| Bushing | ||||
| 13 | 325169 | 7.35 | 8.89 | |
| Rubber Ring | ||||
| 14 | 325184 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 15 | 331989 | |||
| Pillar Terminal Till 10.1999 For Aus | ||||
| 16 | 938307 | 2.13 | 2.57 | |
| connecting terminal | ||||
| 17 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 18 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19 | 984750 | |||
| Cord Armor D10.1 | ||||
| 20 | 938051 | 1.04 | 1.26 | |
| Ball Bearing 6200vvcmps2l | ||||
| 22 | 6200VV | 6.15 | 7.44 | |
| Hex Adjustment Screw M5x8 | ||||
| 23 | 938477 | 1.05 | 1.27 | |
| Switch Holder | ||||
| 24 | 331813 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 25 | 307887 | 1.04 | 1.26 | |
| 110 V switch | ||||
| 26 | 331986 | 6.30 | 7.62 | |
| Switch | ||||
| 26 | 331812 | 3.90 | 4.72 | |
| Switch | ||||
| 26B | 301821 | 18.43 | 22.29 | |
| Scale | ||||
| 27 | 331820 | 1.05 | 1.27 | |
| Scale | ||||
| 27 | 331821 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 28 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 29 | 999038 | 9.30 | 11.25 | |
| Brush Holder | ||||
| 30 | 938241 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 32 | 331825 | |||
| Brush Terminal | ||||
| 33 | 937623 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 34 | 340659L | 61.40 | 74.29 | |
| VELD 110-120 VOLT | ||||
| 34 | 340659D | 57.31 | 69.35 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 35 | 961400 | 1.04 | 1.26 | |
| Housing | ||||
| 36 | 331814 | 24.61 | 29.78 | |
| Lever | ||||
| 37 | 325960 | 3.90 | 4.72 | |
| Fan Guide | ||||
| 38 | 331980 | 1.95 | 2.36 | |
| ANKER 110-120 VOLT | ||||
| 39 | 360886U | 52.47 | 63.49 | |
| Armature 230v | ||||
| 39 | 360886E | 47.38 | 57.32 | |
| Spring Guide | ||||
| 40 | 325180 | 1.95 | 2.36 | |
| Spring | ||||
| 41 | 303316 | 2.70 | 3.27 | |
| Machine Screw (w/washers) M6x30 (black) | ||||
| 42 | 307443 | 1.05 | 1.27 | |
| Handle (a).(b) Set | ||||
| 43 | 331819 | 2.93 | 3.54 | |
| Wing Bolt M6x15 | ||||
| 44 | 301806 | 1.05 | 1.27 | |
| End Bracket | ||||
| 45 | 331817 | 26.33 | 31.85 | |
| Felt Washer | ||||
| 46 | 323426 | 1.50 | 1.82 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 47 | 317200 | 1.65 | 2.00 | |
| Closing Washer (b) (old 976448) | ||||
| 48 | 962569 | 1.05 | 1.27 | |
| Spring | ||||
| 49 | 971858 | 1.05 | 1.27 | |
| Machine Screw M5x20 (black) | ||||
| 50 | 302196 | 1.05 | 1.27 | |
| Screw M8 | ||||
| 51 | 331824 | 4.28 | 5.17 | |
| Machine Screw M5x35 (black) | ||||
| 52 | 302197 | 1.05 | 1.27 | |
| Nut M5 (black) | ||||
| 53 | 302012 | 1.05 | 1.27 | |
| Stopper Block | ||||
| 54 | 331826 | 2.93 | 3.54 | |
| STOPPERSTUK (OUD 331826) | ||||
| 54A | 381656 | 1.74 | 2.11 | |
| Spring | ||||
| 55 | 303317 | 3.00 | 3.63 | |
| Blocking | ||||
| 56 | 971848 | 1.05 | 1.27 | |
| Locking Screw M10 | ||||
| 57 | 325187 | 5.40 | 6.53 | |
| Lever (a) | ||||
| 58 | 323923 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M6x10 | ||||
| 59 | 997314 | 1.05 | 1.27 | |
| Tapping Screw D5x50 | ||||
| 60 | 307100 | 1.05 | 1.27 | |
| Ball Bearing 6004vvcmps2l | ||||
| 61 | 6004VV | 8.55 | 10.35 | |
| Locking Nut | ||||
| 62 | 325186 | 5.40 | 6.53 | |
| Bearing Cover | ||||
| 63 | 325185 | 12.75 | 15.43 | |
| LAGER DEKSEL | ||||
| 63A | 379689 | 2.94 | 3.56 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 64 | 935196 | 1.04 | 1.26 | |
| Holding Spring | ||||
| 65 | 325183 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 66 | 325182 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 67 | 323421 | |||
| Base | ||||
| 68 | 331818 | 24.61 | 29.78 | |
| No information available, not orderable | ||||
| 69 | 301810 | |||
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 70 | 992013 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 71 | 981373 | 1.05 | 1.27 | |
| Tube (d) | ||||
| 72 | 961820 | 1.05 | 1.27 | |
| SWITCH REPAIR PARTS SET FOR MODELS TILL 2024 | ||||
| 73 | 382482 | 23.98 | 29.02 | |
| No information available, not orderable | ||||
| 501 | 331816 | |||
| Wing Bolt M6x15 | ||||
| 502 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 503 | 947859 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 504 | 956756 | |||
| No information available, not orderable | ||||
| 505 | 956790 | |||
| No information available, not orderable | ||||
| 506 | 323295 | |||
| Machine Screw M5x6 (10 Pcs.) | ||||
| 507 | 949234 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 508 | 325199 | |||
| No information available, not orderable | ||||
| 601 | 307801 | |||
| No information available, not orderable | ||||
| 602 | 323293 | |||
| No information available, not orderable | ||||
| 603 | 997466 | |||
| No information available, not orderable | ||||
| 603A | 339380 | |||
| No information available, not orderable | ||||
| 604 | 956794 | |||
| No information available, not orderable | ||||
| 605 | 331815 | |||
| No longer available, no replacement | ||||
| 606 | 318304 | |||
| No information available, not orderable | ||||
| 607 | 331827 | |||
