Here you will find all available parts and drawings of the 'Hikoki M12SA2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

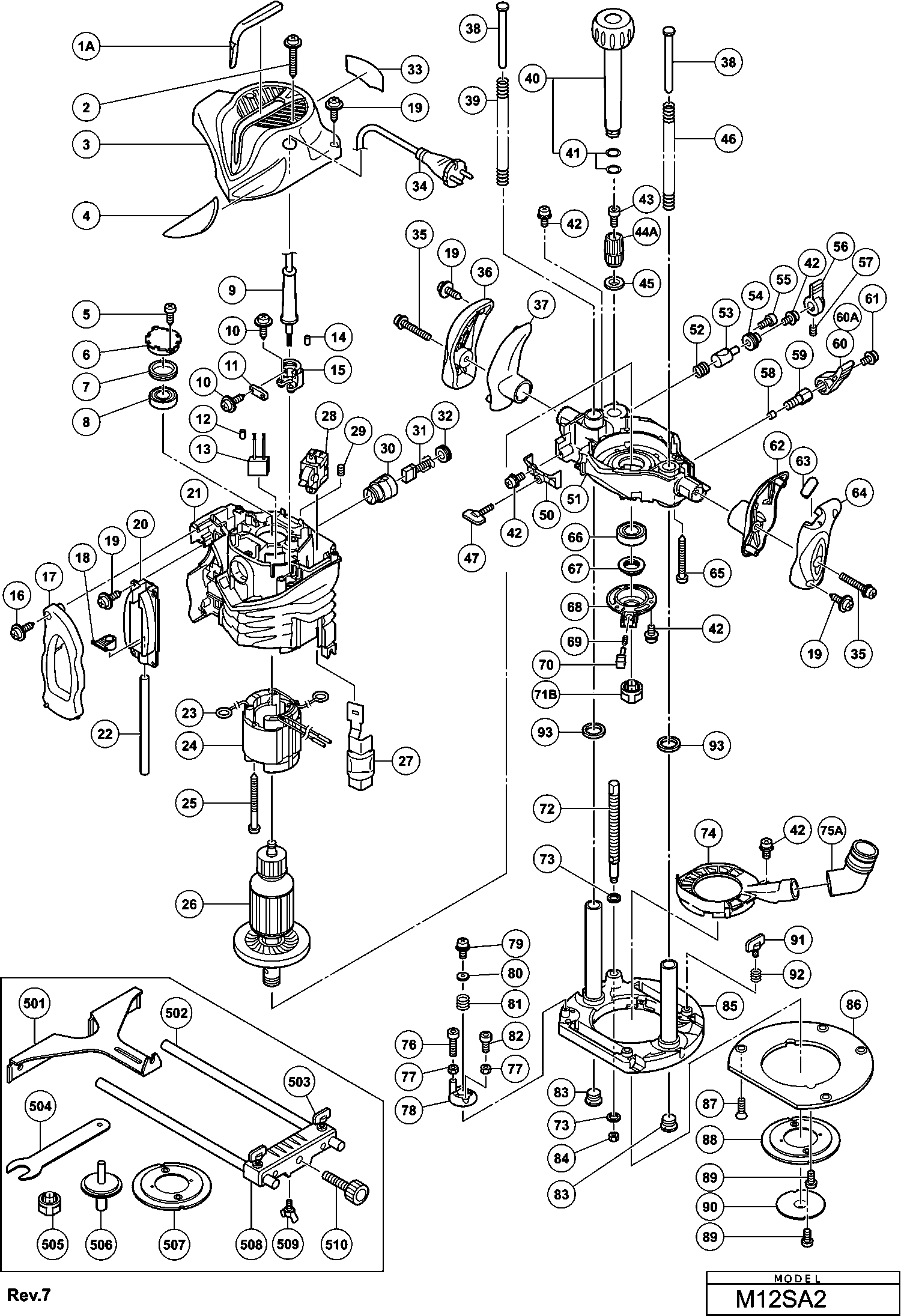

Technical drawing of model Hikoki M12SA2
Spare parts list of model Hikoki M12SA2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Threaded cable sleeve | ||||
| *14 | 981373 | 1.05 | 1.27 | |
| Stator 230v | ||||
| *24 | 340668G | 61.40 | 74.29 | |
| ANKER 110-120 VOLT | ||||
| *26 | 360750U | 139.32 | 168.58 | |
| Armature 230v | ||||
| *26 | 360750E | 131.59 | 159.22 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *34 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| *505 | 325212 | |||
| No information available, not orderable | ||||
| *506 | 325213 | |||
| No information available, not orderable | ||||
| *625 | 303351 | |||
| No information available, not orderable | ||||
| *71B | 325199 | |||
| Cord Armor D10.1 | ||||
| *9 | 938051 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 2 | 305490 | 1.04 | 1.26 | |
| Head Cover | ||||
| 3 | 325168 | 22.83 | 27.62 | |
| Screw | ||||
| 5 | 954017 | 1.04 | 1.26 | |
| Bushing | ||||
| 6 | 325226 | 7.35 | 8.89 | |
| Rubber Ring | ||||
| 7 | 325184 | 1.05 | 1.27 | |
| Ball Bearing 6200vvcmps2l | ||||
| 8 | 6200VV | 6.15 | 7.44 | |
| Cord Armor D10.1 | ||||
| 9 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 10 | 984750 | |||
| Cord Clip | ||||
| 11 | 937631 | 1.04 | 1.26 | |
| Tube (d) | ||||
| 12 | 961820 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 13 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 14 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 15 | 325203 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 16 | 302086 | 1.05 | 1.27 | |
| Front Cap | ||||
| 17 | 325170 | 3.90 | 4.72 | |
| Marker M12s2 | ||||
| 18 | 325198 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 19 | 305812 | 1.04 | 1.26 | |
| Shaft Holder M12sa2 | ||||
| 20 | 325197 | 1.95 | 2.36 | |
| Housing | ||||
| 21 | 325219 | 61.46 | 74.37 | |
| Depth-gauge | ||||
| 22 | 325196 | 3.90 | 4.72 | |
| Brush holder connector | ||||
| 23 | 958032 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 24 | 340668G | 61.40 | 74.29 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 25 | 961400 | 1.04 | 1.26 | |
| ANKER 110-120 VOLT | ||||
| 26 | 360750U | 139.32 | 168.58 | |
| Armature 230v | ||||
| 26 | 360750E | 131.59 | 159.22 | |
| Lever | ||||
| 27 | 325960 | 3.90 | 4.72 | |
| Switch | ||||
| 28 | 301821 | 18.43 | 22.29 | |
| Hex Adjustment Screw M5x8 | ||||
| 29 | 938477 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 30 | 980487 | 5.68 | 6.87 | |
| Carbon Brush (1 Pair) | ||||
| 31 | 999044 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 32 | 940540 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 34 | 500461Z | 17.88 | 21.63 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 34 | 500247Z | 6.18 | 7.48 | |
| Machine Screw (w/washers) M6x30 (black) | ||||
| 35 | 307443 | 1.05 | 1.27 | |
| Handle (l) B | ||||
| 36 | 325220 | 6.15 | 7.44 | |
| Left Handle (a) M12sa2 | ||||
| 37 | 325171 | 3.00 | 3.63 | |
| Spring Guide | ||||
| 38 | 325180 | 1.95 | 2.36 | |
| Plunge Spring (r) | ||||
| 39 | 325177 | 14.85 | 17.97 | |
| Depth Setting Knob | ||||
| 40 | 325214 | 4.35 | 5.26 | |
| No longer available, no replacement | ||||
| 41 | 872654 | |||
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 42 | 935196 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 43 | 984509 | 1.05 | 1.27 | |
| Knob (c) M12sa2 | ||||
| 44A | 325194 | 1.05 | 1.27 | |
| Guide Bush | ||||
| 45 | 325195 | 1.05 | 1.27 | |
| Plunge Spring (l) | ||||
| 46 | 325176 | 1.95 | 2.36 | |
| Wing Bolt M6x27 | ||||
| 47 | 301801 | 1.05 | 1.27 | |
| Front Cover (c) M12sa2 | ||||
| 50 | 325173 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 51 | 325228 | |||
| Spring | ||||
| 52 | 325193 | 1.05 | 1.27 | |
| Nut | ||||
| 53 | 325192 | 7.95 | 9.62 | |
| Special Bolt M12sa2 | ||||
| 54 | 325191 | 3.00 | 3.63 | |
| Hex. Socket Hd. Bolt M4x8 (10 Pcs.) | ||||
| 55 | 949811 | 1.50 | 1.82 | |
| Knob | ||||
| 56 | 325190 | 4.35 | 5.26 | |
| Hex. Socket Set Screw M6x6 | ||||
| 57 | 985033 | 1.05 | 1.27 | |
| Blocking | ||||
| 58 | 971848 | 1.05 | 1.27 | |
| Locking Screw M10 | ||||
| 59 | 325187 | 5.40 | 6.53 | |
| Knob | ||||
| 60 | 326042 | 6.75 | 8.17 | |
| Lever (a) | ||||
| 60A | 323923 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M6x10 | ||||
| 61 | 997314 | 1.05 | 1.27 | |
| Handle (r) A | ||||
| 62 | 325172 | 3.00 | 3.63 | |
| Dial Cover | ||||
| 63 | 325227 | 3.00 | 3.63 | |
| Right Handle (b) | ||||
| 64 | 325221 | 6.15 | 7.44 | |
| Tapping Screw D5x50 | ||||
| 65 | 307100 | 1.05 | 1.27 | |
| Ball Bearing 6004vvcmps2l | ||||
| 66 | 6004VV | 8.55 | 10.35 | |
| Locking Nut | ||||
| 67 | 325186 | 5.40 | 6.53 | |
| Bearing Cover | ||||
| 68 | 325185 | 12.75 | 15.43 | |
| LAGER DEKSEL | ||||
| 68A | 379689 | 2.94 | 3.56 | |
| Holding Spring | ||||
| 69 | 325183 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 70 | 325182 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 71 | 325199 | |||
| No information available, not orderable | ||||
| 71B | 325199 | |||
| Special Bolt Tr12 | ||||
| 72 | 325189 | 7.95 | 9.62 | |
| Ring | ||||
| 73 | 325188 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 74 | 325210 | |||
| No information available, not orderable | ||||
| 75 | 325215 | |||
| No information available, not orderable | ||||
| 75A | 339381 | |||
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 76 | 949662 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 77 | 302012 | 1.05 | 1.27 | |
| Stopper Block | ||||
| 78 | 325181 | 4.80 | 5.81 | |
| Machine Screw (w/washers) M4x8 (black) | ||||
| 79 | 317200 | 1.65 | 2.00 | |
| Closing Washer (b) (old 976448) | ||||
| 80 | 962569 | 1.05 | 1.27 | |
| Spring | ||||
| 81 | 971858 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x12 (10 Pcs.) | ||||
| 82 | 949765 | 2.55 | 3.09 | |
| Bolt | ||||
| 83 | 325178 | 3.90 | 4.72 | |
| Nut M8 (10 Pcs.) | ||||
| 84 | 949558 | 1.05 | 1.27 | |
| Base | ||||
| 85 | 325206 | 43.86 | 53.07 | |
| Plastic Sub Base | ||||
| 86 | 325179 | 6.75 | 8.17 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 87 | 992013 | 1.05 | 1.27 | |
| Template Guide Adapter | ||||
| 88 | 325211 | 12.75 | 15.43 | |
| Machine Screw M5x6 (10 Pcs.) | ||||
| 89 | 949234 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 90 | 956790 | |||
| Wing Bolt M6x15 | ||||
| 91 | 301806 | 1.05 | 1.27 | |
| Spring (old 996224) | ||||
| 92 | 947859 | 1.04 | 1.26 | |
| Felt Washer | ||||
| 93 | 323426 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 501 | 956797 | |||
| No information available, not orderable | ||||
| 502 | 325216 | |||
| Wing Bolt M6x15 | ||||
| 503 | 301806 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 504 | 323295 | |||
| No information available, not orderable | ||||
| 505 | 325212 | |||
| No information available, not orderable | ||||
| 506 | 325223 | |||
| No information available, not orderable | ||||
| 507 | 325224 | |||
| No information available, not orderable | ||||
| 508 | 325217 | |||
| STAAFHOUDER (OUD 325217) | ||||
| 508A | 382120 | 4.56 | 5.52 | |
| Wing Bolt M6x10 (10 Pcs.) | ||||
| 509 | 949394 | 7.05 | 8.53 | |
| Screw | ||||
| 510 | 956793 | 5.25 | 6.35 | |
| No information available, not orderable | ||||
| 601 | 956803 | |||
| No information available, not orderable | ||||
| 602 | 956802 | |||
| No information available, not orderable | ||||
| 603 | 956801 | |||
| No information available, not orderable | ||||
| 604 | 956806 | |||
| No information available, not orderable | ||||
| 605 | 956805 | |||
| No information available, not orderable | ||||
| 606 | 956804 | |||
| No information available, not orderable | ||||
| 607 | 312273 | |||
| No information available, not orderable | ||||
| 608 | 956810 | |||
| No information available, not orderable | ||||
| 609 | 956809 | |||
| No information available, not orderable | ||||
| 610 | 313765 | |||
| No information available, not orderable | ||||
| 611 | 956813 | |||
| No information available, not orderable | ||||
| 612 | 956812 | |||
| No information available, not orderable | ||||
| 613 | 956811 | |||
| No information available, not orderable | ||||
| 614 | 956814 | |||
| No information available, not orderable | ||||
| 615 | 956816 | |||
| No information available, not orderable | ||||
| 616 | 956815 | |||
| No information available, not orderable | ||||
| 617 | 956928Z | |||
| No information available, not orderable | ||||
| 618 | 956931Z | |||
| No information available, not orderable | ||||
| 619 | 956759 | |||
| No information available, not orderable | ||||
| 620 | 323298 | |||
| No information available, not orderable | ||||
| 621 | 323299 | |||
| No information available, not orderable | ||||
| 622 | 303348 | |||
| No information available, not orderable | ||||
| 623 | 303349 | |||
| No information available, not orderable | ||||
| 624 | 303350 | |||
| No information available, not orderable | ||||
| 625 | 323301 | |||
| No information available, not orderable | ||||
| 626 | 303352 | |||
| No information available, not orderable | ||||
| 627 | 323302 | |||
| No information available, not orderable | ||||
| 628 | 303353 | |||
| No information available, not orderable | ||||
| 629 | 956932 | |||
| No information available, not orderable | ||||
| 630 | 323303 | |||
| No information available, not orderable | ||||
| 631 | 323304 | |||
| No information available, not orderable | ||||
| 632 | 303354 | |||
| No information available, not orderable | ||||
| 633 | 956933 | |||
| No information available, not orderable | ||||
| 634 | 956934 | |||
| No information available, not orderable | ||||
| 635 | 303355 | |||
| No information available, not orderable | ||||
| 636 | 956794 | |||
| No information available, not orderable | ||||
| 637 | 307801 | |||
