Here you will find all available parts and drawings of the 'Hikoki HTD-2526PFB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

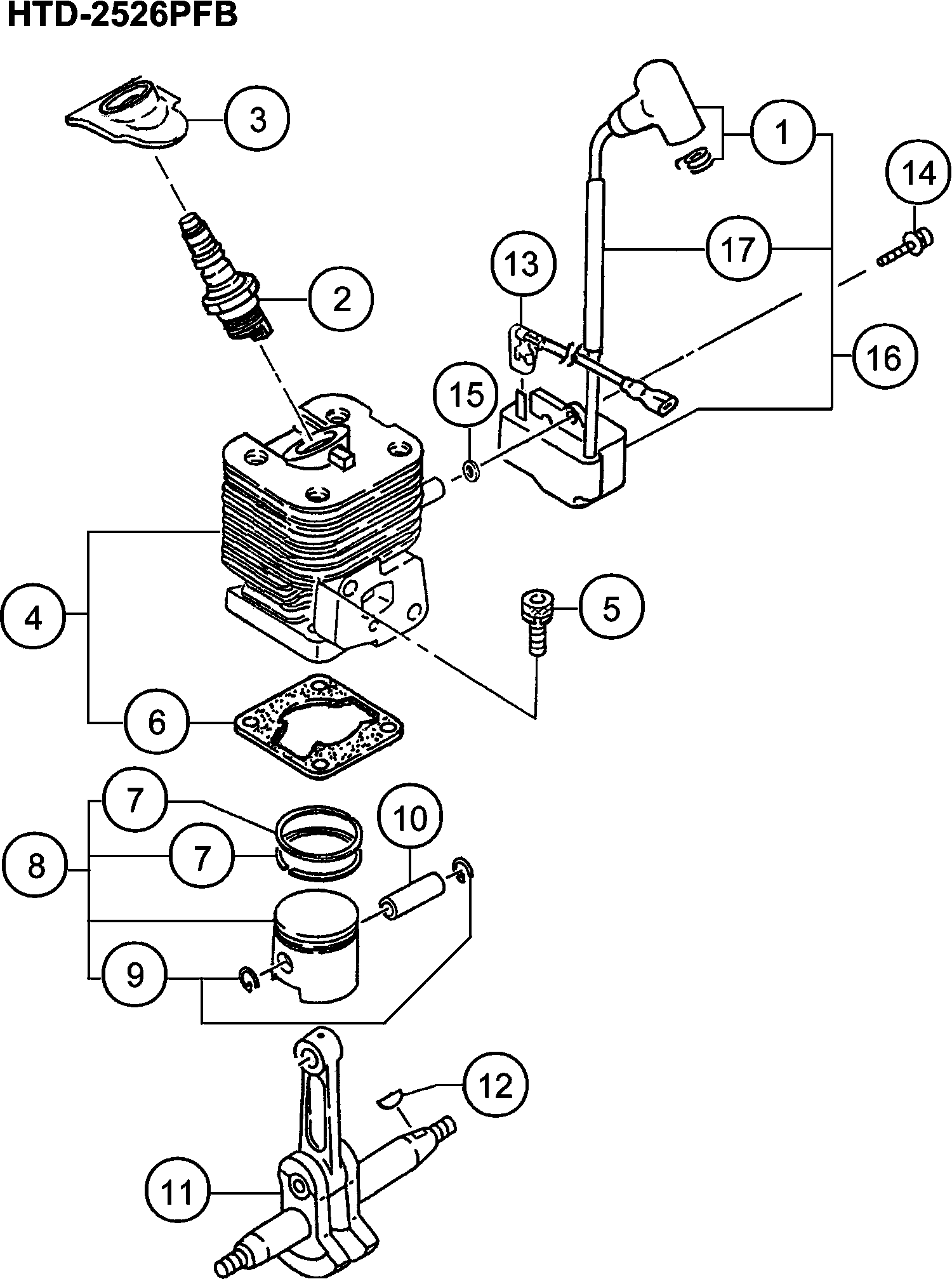

Technical drawing of model Hikoki HTD-2526PFB

Spare parts list of model Hikoki HTD-2526PFB

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Plug Cap
1 6684894 8.58 10.38
Spark Plug Ass'y Cj8y
2 6699325 3.30 3.99
Spark Plug Rubber Cover
3 6688334 3.30 3.99
Cylinder Set
4 6685462 66.40 80.34
Hex.hole Bolt M5x18/s
5 6684586 2.15 2.60
Cylinder Gasket
6 6685728 1.15 1.39
Piston Ring
7 6684588 8.58 10.38
Piston Set (old 030-01680-90)
8 6685877 28.14 34.05
Circlip
9 6685078 1.15 1.39
Piston Pin
10 6686016 2.31 2.80
No longer available, no replacement
11 6686176
Woodruff Key 3x13x4.5 Till B023800
12 6684899 2.15 2.60
Cord, B 140m
13 6687840 3.30 3.99
Hex. Hole Bolt M4x18/ws Till H124040
14 6684599 2.15 2.60
Washer T1.6
15 6684600 2.15 2.60
No information available, not orderable
16 6687704
Insulator Tube
17 6688316 1.05 1.27
Gear Shaft Shim 0.20
31 6684604 2.15 2.60
Gear Shaft Shim 0.30
31 6684605 2.15 2.60
No longer available, no replacement
32 6688047
No longer available, no replacement
33 6686529
Oil Seal
34 6684607 4.29 5.19
Ball Bearing 6001 C3
35 6684608 3.80 4.60
No longer available, no replacement
36 6686705
Stud Bolt 6x22
37 6686771 1.15 1.39
Hex. Socket Hd. Bolt M5x30 S
38 6684786 2.15 2.60
Hex. Hole Bolt 5x45
39 6695055 1.15 1.39
Spring Washer 5
40 6684834 2.15 2.60
Magneto Rotor Comp.
41 6687418 28.14 34.05
Ring
42 6684971 1.04 1.26
Bolt Washer M8
43 6684611 2.15 2.60
Hex. Nut M8
44 6684612 2.15 2.60
Intake Manifold Gasket
61 6689874 2.31 2.80
Insulator Set,spare
62 6689937 6.60 7.99
Hex. Hole Bolt M5x25ws
63 6695515 1.15 1.39
Carburetor Gasket
64 6689828 3.30 3.99
O-ring P-15
65 6698966 1.04 1.26
Cleaner Body Comp.
66 6690119 4.45 5.38
Collar 7.5
67 6690804 1.15 1.39
Choke Valve
68 6691261 3.30 3.99
No information available, not orderable
69 6684658
Blow Over Check Board
70 6690843 1.15 1.39
S.washer 5
71 6684662 2.15 2.60
Screw M5x60
72 6684660 2.15 2.60
Special Screw
73 6689737 1.15 1.39
Cleaner Sponge
74 6690364 1.15 1.39
Cleaner Cover
75 6690415 5.28 6.38
Carburetor Set Wyl139a
76 6690461 62.31 75.40
Shield Tube Ass'y
77A 6601195 26.48 32.03
Clip D6
78 6685198 1.15 1.39
No information available, not orderable
79 6684620
No information available, not orderable
82 6697187
Tank Cap D Ass'y Since K032881
83 6691748 7.59 9.18
Collar 5.8 Till G103930
84 6692244 1.15 1.39
Hex. Hole Bolt 5x18ps
85 6695505 1.15 1.39
Swivel Cap Since C026901
86 6691337 1.15 1.39
Priming Pump Comp.
87 6685139 5.94 7.18
Fuel Pipe 2.5x4x80
88 6692347 1.15 1.39
Fuel Pipe 2.5x4x70
89 6692346 1.15 1.39
Return Grommet Till 7.2014
90 6697846 1.04 1.26
Muffler Protector
101 6692772 9.90 11.98
Muffler Ass'y
102A 6601160 72.45 87.66
Washer (b)
103A 6696547 1.05 1.27
Hex. Hole Screw 6x55
104 6695086 1.15 1.39
Fan Housing
105 6686957 16.79 20.31
Recoil Spring Till 7.2014
106 6684675 11.55 13.98
Starter Rope Reel
107 6693066 3.30 3.99
Set Screw Till 7.2014
108 6693633 1.15 1.39
Starter Pulley Assembly (old 798-06500-90 & 669340
109 6693405 4.45 5.38
Primary Cord Grommet
110 6688049 1.15 1.39
Rope Till 7.2014
111 6693168 2.31 2.80
Starter Handle
112 6693237 1.15 1.39
Hex. Hole Bolt 4x15/ps
113 6684682 2.15 2.60
No information available, not orderable
114 6692718
Ring
115 6684661 2.15 2.60
Screw 5x8/s (old 994-14050-081)
116 6695332 1.05 1.27
Clutch
117 6688494 9.74 11.78
Tapping Screw 4.5x10 (old 990-73045-104)
118 6695104 1.15 1.39
Bolt 4x12ps
119 6695441 1.15 1.39
Starter Pawl Spring
120 6684684 4.29 5.19
Starter Pawl (old 788-06500-20)
121 6693319 2.31 2.80
Throttle Set Screw
131 6684698 4.29 5.19
Swivel
132 6684697 6.44 7.79
Stop Ring
133 6684696 2.15 2.60
O-RING (old 550-25100-20)
134 6684695 4.29 5.19
Main Jet #35
135 6691873 6.28 7.59
Pump Gasket (old 577-25100-20)
136 6691457 7.10 8.59
Pump Diaphragm
137 6684693 8.58 10.38
Inlet Screen
138 6684700 4.29 5.19
Pump Body Comp.
139 6691435 15.26 18.47
No longer available, no replacement
140 6685220
Metering Diaphragm Comp.
141 6690830 11.88 14.37
Diaphragm Cover-metering
142 6685222 4.45 5.38
Set Screw
143 6691312 1.15 1.39
Frame
151 6696363 8.85 10.71
Handle
152 6688097 9.90 11.98
Damper Collar B
153 6688485 1.15 1.39
Damper B
154 6688412 1.15 1.39
Ring
155 6689680 1.15 1.39
Hex. Socket Hd. Bolt M5x30 S
156 6684786 2.15 2.60
No longer available, no replacement
157 6696359
Handle Support Comp.
158 6686111 2.31 2.80
Hex. Hole Bolt 5x40
159 6695054 1.15 1.39
Spring Washer 5
160 6684834 2.15 2.60
Washer M5 (black)
161 6684918 2.15 2.60
No information available, not orderable
171A 6698868
Earth Terminal
172A 6696350 1.05 1.27
No information available, not orderable
173 6697609
Trigger Lockout
174 6696344 1.05 1.27
Throttle Lever Spring
175 6696345 1.05 1.27
Tab Terminal
176A 6696355 1.05 1.27
Screw 3x10
177 6684913 2.15 2.60
Button Stop
178 6688366 1.15 1.39
Stop Button Mark
179 6694588 1.15 1.39
Spring (a)
180 6696348 1.05 1.27
Lock Lever
181 6696346 1.05 1.27
Spring (b)
182 6696349 1.05 1.27
Throttle Lever
183 6696343 1.05 1.27
Release Lever
184 6696347 1.05 1.27
Throttle Wire Comp.
185A 6698828 3.15 3.81
Protection Tube 150l
186 6687524 1.15 1.39
No information available, not orderable
187 6697189
Handle B
188A 6698869 4.65 5.63
Tapping Screw D4
189 6697190 1.04 1.26
No longer available, no replacement
190 6698870
Gear Case Comp.
201 6688684 15.13 18.30
Stop Ring C-15, Outer
202 6695285 1.15 1.39
No information available, not orderable
203 6697745
Clutch Drum Comp.
204 6688570 17.70 21.42
Guide Plate (old 075-33160-20)
205 6686612 1.15 1.39
Cam Rod
206 6686811 5.78 6.99
Gear 2 Comp.
207 6688625 30.25 36.60
Gear Case Gasket (old 303-33160-20)
208 6688909 1.15 1.39
Gear Case Cover (old 630-33165-20)
209 6692101 6.28 7.59
Cutter Guide 734l M6
210 6687147 26.16 31.66
Hex. Hole Flush Bolt 6x25
211 6695075 1.15 1.39
Cutter A (696.5l)
212 6687086 48.25 58.38
Seal Rubber
213 6686654 1.15 1.39
No longer available, no replacement
214 6687187
Bolt
215 6687158 1.15 1.39
Flange nut
216 6695170 1.15 1.39
No longer available, no replacement
217 6695485
Hex. Hole Bolt 4x15/s
218 6695487 2.31 2.80
COMPLETE GREASE NIPPLE (OLD 300-32250-80)
219 6688643 1.15 1.39
Hex. Hole Bolt 6x18/s
220 6695495 1.15 1.39
Ring
221 6684822 2.15 2.60
Support Plate
222 6690762 3.30 3.99
Lock Nut 6 Ups-p
223 6695175 1.15 1.39
Ring
224 6684639 2.15 2.60
Gear Case B
225 6688844 7.50 9.08
Cutter Cover (old 138-33171-20/6687300)
226 6687302 8.58 10.38
Spring Nut 6
227 6695475 1.15 1.39
Ball Bearing 608 Zz C3
229 6695547 3.30 3.99
Combi. Box Spanner 10x19 ,plus
501 6685997 4.45 5.38
No information available, not orderable
502 6684813
