Here you will find all available parts and drawings of the 'Hikoki HTD-2526PF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

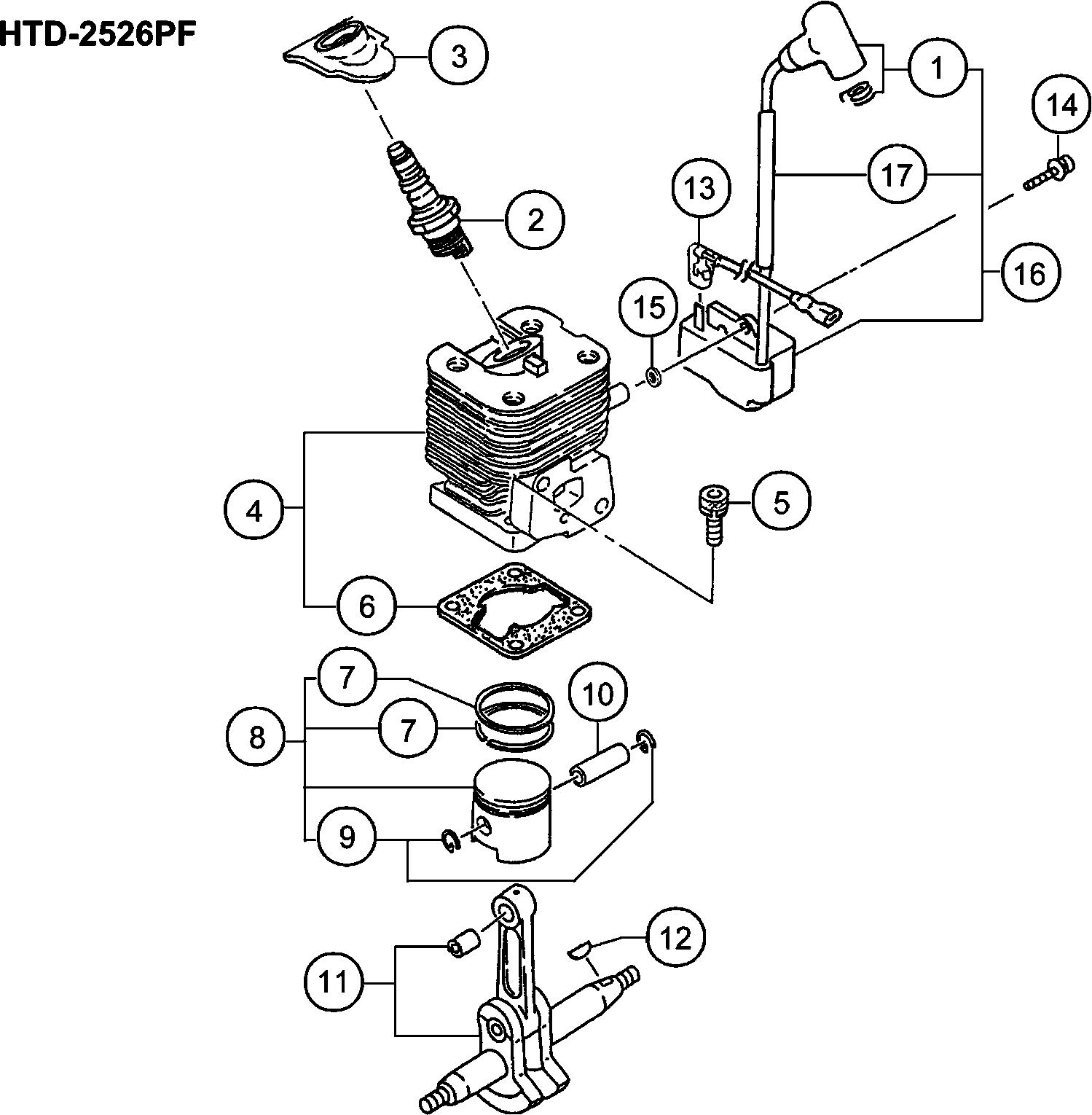

Technical drawing of model Hikoki HTD-2526PF
Spare parts list of model Hikoki HTD-2526PF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 3 | 6688334 | |||
| Cylinder Set | ||||
| 4 | 6685462 | 66.40 | 80.34 | |
| Hex.hole Bolt M5x18/s | ||||
| 5 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 6 | 6685728 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 7 | 6684588 | 8.58 | 10.38 | |
| Piston Set (old 030-01680-90) | ||||
| 8 | 6685877 | 28.14 | 34.05 | |
| Circlip | ||||
| 9 | 6685078 | 1.15 | 1.39 | |
| Piston Pin | ||||
| 10 | 6686016 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 11 | 6686176 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 12 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 13 | 6687840 | |||
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 14 | 6684599 | 2.15 | 2.60 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 16 | 6687704 | |||
| No information available, not orderable | ||||
| 17 | 6688316 | |||
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| Gear shaft shim 0.10 (old 330-00200-21) | ||||
| 31 | 6689177 | 1.15 | 1.39 | |
| Gear shaft shim 0.15 (old 330-00200-22) | ||||
| 31 | 6689178 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 32 | 6688047 | |||
| No longer available, no replacement | ||||
| 33 | 6686529 | |||
| Oil Seal | ||||
| 34 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 35 | 6684608 | 3.80 | 4.60 | |
| No longer available, no replacement | ||||
| 36 | 6686705 | |||
| Stud Bolt 6x22 | ||||
| 37 | 6686771 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 38 | 6684786 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 41 | 6687418 | 28.14 | 34.05 | |
| Ring | ||||
| 42 | 6684971 | 1.04 | 1.26 | |
| Bolt Washer M8 | ||||
| 43 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 44 | 6684612 | 2.15 | 2.60 | |
| Intake Manifold Gasket | ||||
| 51 | 6689874 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 52 | 6689937 | |||
| Hex. Hole Bolt M5x25ws | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 54 | 6689828 | 3.30 | 3.99 | |
| O-ring P-15 | ||||
| 55 | 6698966 | 1.04 | 1.26 | |
| Cleaner Body Comp. | ||||
| 56 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 57 | 6690804 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 58 | 6691261 | |||
| No information available, not orderable | ||||
| 59 | 6684658 | |||
| Blow Over Check Board | ||||
| 60 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 61 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 62 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 63 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 64 | 6690415 | 5.28 | 6.38 | |
| Special Screw | ||||
| 65 | 6689737 | 1.15 | 1.39 | |
| Carburetor Set Wyl139a | ||||
| 66 | 6690461 | 62.31 | 75.40 | |
| No longer available, no replacement | ||||
| 67 | 6688174 | |||
| Clip,6.3 Dia. | ||||
| 68 | 6684619 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 69 | 6684620 | |||
| Collar 5.8 Till G103930 | ||||
| 73 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 75 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 76 | 6691337 | |||
| Priming Pump Comp. | ||||
| 77 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 78 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 | ||||
| 79 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 80 | 6697846 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 81 | 6699738 | |||
| No information available, not orderable | ||||
| 82 | 6685049 | |||
| No information available, not orderable | ||||
| 83 | 6684625 | |||
| Muffler Protector | ||||
| 91 | 6692772 | 9.90 | 11.98 | |
| Hex. Hole Screw 6x55 | ||||
| 95 | 6695086 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 96 | 6692646 | |||
| Fan Housing | ||||
| 97 | 6686957 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 98 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 99 | 6693066 | 3.30 | 3.99 | |
| Set Screw Till 7.2014 | ||||
| 100 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 101 | 6693405 | |||
| Primary Cord Grommet | ||||
| 102 | 6688049 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 103 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 104 | 6693237 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 105 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 106 | 6692718 | |||
| Muffler Arrestor (old 732-04400-20) | ||||
| 107 | 6692696 | 2.31 | 2.80 | |
| Ring | ||||
| 108 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 109 | 6695471 | |||
| Screw 5x8/s (old 994-14050-081) | ||||
| 110 | 6695332 | 1.05 | 1.27 | |
| Clutch | ||||
| 111 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw 4.5x10 (old 990-73045-104) | ||||
| 112 | 6695104 | 1.15 | 1.39 | |
| Bolt 4x12ps | ||||
| 113 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 114 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 115 | 6693319 | 2.31 | 2.80 | |
| Muffler Set For Europe | ||||
| 116 | 6692455 | 93.09 | 112.64 | |
| Ring | ||||
| 117 | 6684639 | 2.15 | 2.60 | |
| Throttle Set Screw | ||||
| 121 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 122 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 123 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 124 | 6684695 | 4.29 | 5.19 | |
| Main Jet #35 | ||||
| 125 | 6691873 | 6.28 | 7.59 | |
| Pump Gasket (old 577-25100-20) | ||||
| 126 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 128 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 129 | 6691435 | 15.26 | 18.47 | |
| No longer available, no replacement | ||||
| 130 | 6685220 | |||
| Metering Diaphragm Comp. | ||||
| 131 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover-metering | ||||
| 132 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 133 | 6691312 | 1.15 | 1.39 | |
| Stop Ring C-15, Outer | ||||
| 252 | 6695285 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 253 | 6697745 | |||
| Ball Bearing #6002z | ||||
| 254 | 6695538 | 6.60 | 7.99 | |
| No longer available, no replacement | ||||
| 255 | 6688570 | |||
| Guide Plate (old 075-33160-20) | ||||
| 257 | 6686612 | 1.15 | 1.39 | |
| Cam Rod | ||||
| 258 | 6686811 | 5.78 | 6.99 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 260 | 6688909 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 265 | 6687086 | |||
| No longer available, no replacement | ||||
| 266 | 6686654 | |||
| No longer available, no replacement | ||||
| 267 | 6687187 | |||
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 271 | 6688643 | 1.15 | 1.39 | |
| Cutter Cover (old 138-33171-20/6687300) | ||||
| 280 | 6687302 | 8.58 | 10.38 | |
| Spring Nut 6 | ||||
| 282 | 6695475 | 1.15 | 1.39 | |
| Cutter Fixing Nut Till Z063200 | ||||
| 285 | 6687156 | 1.15 | 1.39 | |
| Flange nut | ||||
| 285A | 6695170 | 1.15 | 1.39 | |
| Ring | ||||
| 286 | 6684639 | 2.15 | 2.60 | |
| Guard Plate | ||||
| 287 | 6687275 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 288 | 6687285 | |||
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| Combi. Box Spanner 10x19 ,plus | ||||
| 502 | 6685997 | 4.45 | 5.38 | |
