Here you will find all available parts and drawings of the 'Hikoki HTD-2522PFB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

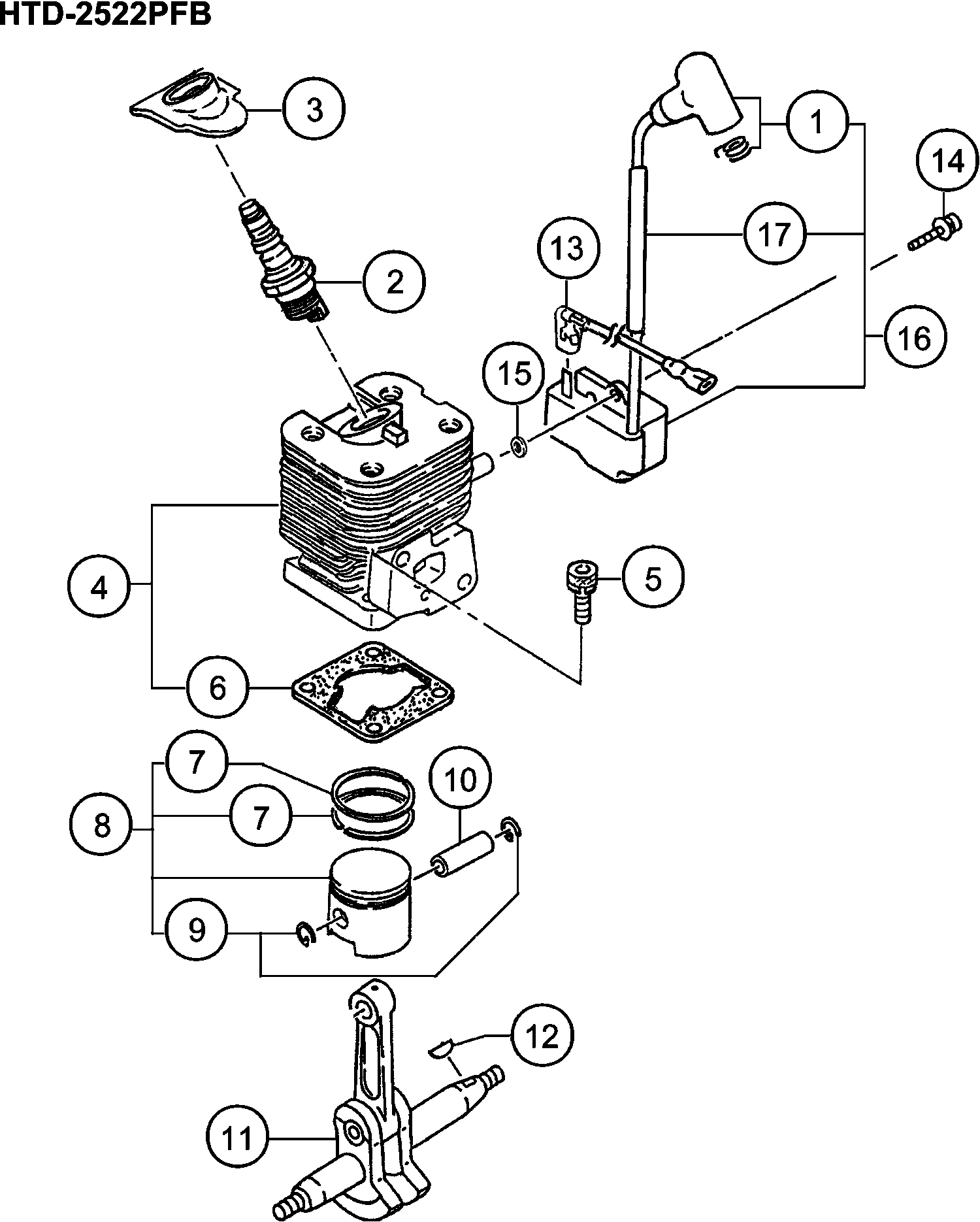

Technical drawing of model Hikoki HTD-2522PFB
Spare parts list of model Hikoki HTD-2522PFB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Cj8y | ||||
| 2 | 6699325 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 3 | 6688334 | |||
| Cylinder Set | ||||
| 4 | 6685462 | 66.40 | 80.34 | |
| Hex.hole Bolt M5x18/s | ||||
| 5 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 6 | 6685728 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 7 | 6684588 | 8.58 | 10.38 | |
| Piston Set (old 030-01680-90) | ||||
| 8 | 6685877 | 28.14 | 34.05 | |
| Circlip | ||||
| 9 | 6685078 | 1.15 | 1.39 | |
| Piston Pin | ||||
| 10 | 6686016 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 11 | 6686176 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 12 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 13 | 6687840 | |||
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 14 | 6684599 | 2.15 | 2.60 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 16 | 6687704 | |||
| No information available, not orderable | ||||
| 17 | 6688316 | |||
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 32 | 6688047 | |||
| No longer available, no replacement | ||||
| 33 | 6686529 | |||
| Oil Seal | ||||
| 34 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 35 | 6684608 | 3.80 | 4.60 | |
| No longer available, no replacement | ||||
| 36 | 6686705 | |||
| Stud Bolt 6x22 | ||||
| 37 | 6686771 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 38 | 6684786 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x45 | ||||
| 39 | 6695055 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 40 | 6684834 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 41 | 6687418 | 28.14 | 34.05 | |
| Ring | ||||
| 42 | 6684971 | 1.04 | 1.26 | |
| Bolt Washer M8 | ||||
| 43 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 44 | 6684612 | 2.15 | 2.60 | |
| Intake Manifold Gasket | ||||
| 61 | 6689874 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 62 | 6689937 | |||
| Hex. Hole Bolt M5x25ws | ||||
| 63 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 64 | 6684615 | 2.15 | 2.60 | |
| O-ring P-15 | ||||
| 65 | 6698966 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 66 | 6690122 | |||
| Collar 7.5 | ||||
| 67 | 6690804 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 68 | 6691261 | |||
| No information available, not orderable | ||||
| 69 | 6684658 | |||
| Blow Over Check Board | ||||
| 70 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 71 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 72 | 6684660 | 2.15 | 2.60 | |
| Special Screw | ||||
| 73 | 6689737 | 1.15 | 1.39 | |
| Cleaner Sponge | ||||
| 74 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 75 | 6690415 | 5.28 | 6.38 | |
| Carburetor Set Wyl139a | ||||
| 76 | 6690463 | 65.73 | 79.53 | |
| Throttle Wire Fixing Plate | ||||
| 77 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket | ||||
| 78 | 6689828 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 79A | 6601195 | |||
| Clip D6 | ||||
| 80 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 81 | 6684620 | |||
| No information available, not orderable | ||||
| 82 | 6697187 | |||
| Tank Cap D Ass'y Since K032881 | ||||
| 83 | 6691748 | 7.59 | 9.18 | |
| Collar 5.8 Till G103930 | ||||
| 84 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 85 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 86 | 6691337 | |||
| Priming Pump Comp. | ||||
| 87 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 88 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 | ||||
| 89 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 90 | 6697846 | 1.04 | 1.26 | |
| Muffler Protector | ||||
| 101 | 6692772 | 9.90 | 11.98 | |
| Muffler Ass'y | ||||
| 102A | 6601160 | 72.45 | 87.66 | |
| Washer (b) | ||||
| 103A | 6696547 | 1.05 | 1.27 | |
| Hex. Hole Screw 6x55 | ||||
| 104 | 6695086 | 1.15 | 1.39 | |
| Fan Housing | ||||
| 105 | 6686957 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 106 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 107 | 6693066 | 3.30 | 3.99 | |
| Set Screw Till 7.2014 | ||||
| 108 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 109 | 6693405 | |||
| Primary Cord Grommet | ||||
| 110 | 6688049 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 111 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 112 | 6693237 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 113 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 114 | 6692718 | |||
| Ring | ||||
| 115 | 6684661 | 2.15 | 2.60 | |
| Screw 5x8/s (old 994-14050-081) | ||||
| 116 | 6695332 | 1.05 | 1.27 | |
| Clutch | ||||
| 117 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw 4.5x10 (old 990-73045-104) | ||||
| 118 | 6695104 | 1.15 | 1.39 | |
| Bolt 4x12ps | ||||
| 119 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 120 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 121 | 6693319 | 2.31 | 2.80 | |
| Throttle Set Screw | ||||
| 131 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 132 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 133 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 134 | 6684695 | 4.29 | 5.19 | |
| Main Jet #35 | ||||
| 135 | 6691873 | 6.28 | 7.59 | |
| Pump Gasket (old 577-25100-20) | ||||
| 136 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 137 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 138 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 139 | 6691435 | 15.26 | 18.47 | |
| No longer available, no replacement | ||||
| 140 | 6685220 | |||
| Metering Diaphragm Comp. | ||||
| 141 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover-metering | ||||
| 142 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 143 | 6691312 | 1.15 | 1.39 | |
| Handle | ||||
| 161 | 6688097 | 9.90 | 11.98 | |
| Hex. Hole Bolt 5x40 | ||||
| 162 | 6695054 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 163 | 6684834 | 2.15 | 2.60 | |
| Ring | ||||
| 164 | 6689680 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 165A | 6698868 | |||
| Earth Terminal | ||||
| 166A | 6696350 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 167 | 6697609 | |||
| Trigger Lockout | ||||
| 168 | 6696344 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 169 | 6696345 | 1.05 | 1.27 | |
| Tab Terminal | ||||
| 170A | 6696355 | 1.05 | 1.27 | |
| Screw 3x10 | ||||
| 171 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 172 | 6688366 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 173 | 6694588 | 1.15 | 1.39 | |
| Spring (a) | ||||
| 174 | 6696348 | 1.05 | 1.27 | |
| Spring (b) | ||||
| 175 | 6696349 | 1.05 | 1.27 | |
| Throttle Lever | ||||
| 176 | 6696343 | 1.05 | 1.27 | |
| Lock Lever | ||||
| 177 | 6696346 | 1.05 | 1.27 | |
| Release Lever | ||||
| 178 | 6696347 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 179 | 6697188 | |||
| Protection Tube 150l | ||||
| 180 | 6687524 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 181 | 6697189 | |||
| Tapping Screw D4 | ||||
| 182 | 6697190 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 183 | 6698870 | |||
| Handle B | ||||
| 184A | 6698869 | 4.65 | 5.63 | |
| Gear Case (a) | ||||
| 191 | 6699126 | 18.43 | 22.29 | |
| Stop Ring C-15, Outer | ||||
| 192 | 6695285 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 193 | 6697745 | |||
| No longer available, no replacement | ||||
| 194 | 6688570 | |||
| Gear Shaft | ||||
| 195 | 6688960 | 2.31 | 2.80 | |
| Guide Plate (old 075-33160-20) | ||||
| 196 | 6686612 | 1.15 | 1.39 | |
| Cam Rod | ||||
| 197 | 6686811 | 5.78 | 6.99 | |
| Gear 2 Till D175950 For Europe | ||||
| 198 | 6688974 | 26.16 | 31.66 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 199 | 6688909 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 200 | 6692100 | |||
| Cutter Guide 625.5l M6 | ||||
| 201 | 6687137 | 24.20 | 29.28 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 202 | 6695075 | 1.15 | 1.39 | |
| Cutter A (591.5l) | ||||
| 203 | 6687084 | 42.20 | 51.06 | |
| No longer available, no replacement | ||||
| 204 | 6686654 | |||
| No longer available, no replacement | ||||
| 205 | 6687187 | |||
| Bolt | ||||
| 206 | 6687158 | 1.15 | 1.39 | |
| Flange nut | ||||
| 207 | 6695170 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 208A | 6695485 | |||
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 209 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 210 | 6695495 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 211 | 6696359 | |||
| Cutter Cover | ||||
| 212 | 6687301 | 8.41 | 10.18 | |
| Spring Nut 6 | ||||
| 213 | 6695475 | 1.15 | 1.39 | |
| Support Plate Since C192401 | ||||
| 214 | 6690764 | 4.45 | 5.38 | |
| Ring | ||||
| 215 | 6684822 | 2.15 | 2.60 | |
| Lock Nut 6 Ups-p | ||||
| 216 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 217 | 6684639 | 2.15 | 2.60 | |
| Combi. Box Spanner 10x19 ,plus | ||||
| 501 | 6685997 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684813 | |||
